Bissell POWERFORCE PET, TURBOCLEAN PET, 3942, 3946, 3948 Manual

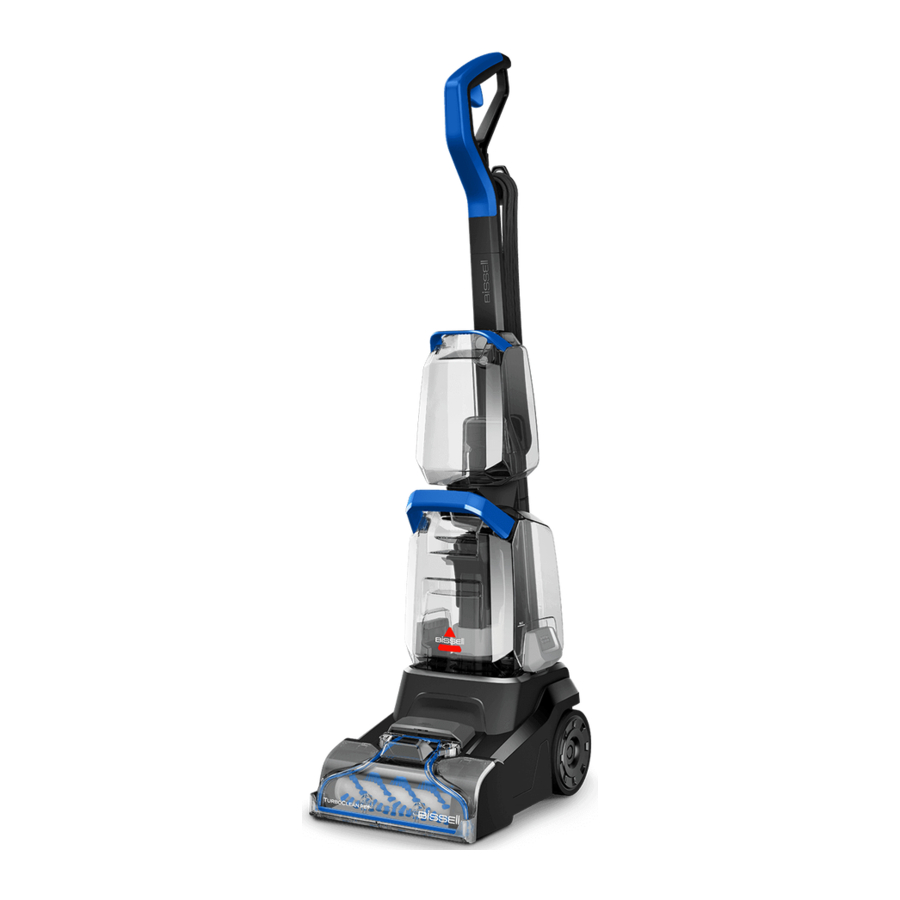

Product Overview

1. Upper Handle
2. Spray Trigger
3. Middle Handle
4. Clean Water Tank Handle
5. Clean Water Tank
6. Dirty Water Tank Handle
7. Dirty Water Tank
8. Lower Body
9. Hose Cover
10. Nozzle

What's in the Box?

Assembly

1. Slide middle handle into lower body until it "clicks" into place.

2. Slide upper handle into middle handle until it "clicks" into place

3. Align clean water tank with grooves on machine and push down until it "clicks" into place.

4. Wrap power cord around cord wraps.


Filling the Clean Water Tank

This machine is compatible with BISSELL® formulas made for upright carpet cleaners. For optimal performance, use genuine BISSELL formulas in your machine. Other formulas or household cleaners may cause defects or damage to the machine.

1. Choose your formula.

   * Scan the QR code with your smartphone camera or visit BISSELL.com for formulas.

2. Lift the clean water tank up to remove from the machine. Unscrew the yellow cap to add water.

3. Fill the tank with warm tap water (140°F/60°C MAX) to the WATER line. Do not use boiling water. Do not heat water or tank in microwave.


Note: BISSELL formula and BISSELL ANTIBACTERIAL formula have different fill lines.

Adding BISSELL Formula

4. Add formula to FORMULA fill line. Optional: Add 1.5 oz of OXY Boost.

5. Screw the cap back on. Secure tightly.

6. Push clean tank down. Ensure it is seated securely on the base.


Adding BISSELL easyfill^™ ANTIBACTERIAL Formula

4. Screw the cap back on. Secure tightly.

5. Add ANTIBACTERIAL formula to ANTIBACTERIAL FORMULA line.

   Note: Not compatible with OXY Boost.

6. Push clean tank down. Ensure it is seated securely on the base.

*Compatible BISSELL formulas include: Clean + Refresh, PET Stain & Odor, PRO MAX Clean + Protect, PET PRO OXY Urine Eliminator, PET Stain Pretreat, PET PRO OXY Stain Destroyer, PET Pretreat + Sanitize, Pet Stain & Odor + Antibacterial, OXY Boost, PET OXY Boost

Cleaning Your Carpet

Tips Before Cleaning

• Use a dry vacuum cleaner over area before using your upright carpet & upholstery cleaner. Remove any large, solid debris before wet cleaning.
• To prevent damage to Berber carpets, avoid repeated strokes in the same area.
• Before cleaning area rugs, check the manufacturer's tag and test an inconspicuous spot on the rug for colorfastness. Don't use on silk or delicate rugs.
• It is common to refill the clean water tank and empty the dirty water tank multiple times during cleaning. Room size and cleaning speed both affect how often the tank may need to be refilled and/or emptied.
• Ensure clean water tank is full. Water might not come out of the nozzle if water level is too low.
• For a quicker dry time, release trigger and make "dry passes" by pushing machine forward and back across carpet until water can no longer be seen through the nozzle.

1. Plug into a proper outlet.

2. Turn the machine ON by pressing the power switch.

3. Step on the recline pedal located below the power switch.

4. Make cleaning passes following the steps below. Repeat these passes until solution being pulled up appears clean. Repeat dry passes (with the spray trigger released) until there is a noticeable reduction in the amount of liquid being pulled up.


With BISSELL Formula

Make 4 cleaning passes:

1. Forward with the trigger pressed.
2. Backward with the trigger released.
3. Repeat step 1.
4. Repeat step 2.

With BISSELL ANTIBACTERIAL Formula

1. Hold Spray Trigger
   • 1 pass forward
   • 1 pass back
   • 1 pass forward
   • 1 pass back

For full benefit

ATTENTION
If you experience no suction, empty the dirty water tank and remove and reinsert the nozzle.
Ensure both tanks are secured and latched properly. This machine is gravity fed. Pulling the spray trigger while the clean water tank has solution in it will cause water to leak from the bottom of the machine regardless of whether the machine is ON or OFF. of ANTIBACTERIAL formula, do not make any dry passes. Dry time may be longer.

To reduce the risk of injury from moving parts while the machine is turned ON, always move the machine via the rolling wheels by using the upper handle at the back of the machine. Do not carry the machine while it is running.

Cleaning with the Hose and Tool

Tips Before Cleaning

• Check for colorfastness in an inconspicuous place before cleaning larger area.
• If possible, check upholstery stuffing. Colored stuffing may bleed through fabric when wet.
• Vacuum thoroughly to pick up loose debris and pet hair.
• Check manufacturer's tag before cleaning. Do not use on velvet or silk.
• The brush roll remains on while cleaning with the hose and tool. Ensure the machine remains in an upright position to minimize the potential for damage to the machine. Do not allow the machine to sit in one location for an extended period of time, as this can result in damage to the floor.

1. Lift the accessory hose door on top of foot on the front of the machine. The door flips toward the machine to open.

2. Insert the hose until it "clicks" into place. Be sure the colored hose release clip is facing out, away from machine.

3. Choose your cleaning method: Use the bristle block for everyday soft surface cleaning, or the rubberized block (not included) to remove embedded pet hair and debris.

4. Pull bottom latch to release attachment from tool.

5. Insert your preferred tool attachment until it "clicks" into place.

6. Attach the tool to the end of the hose until it "clicks" into place.

7. Slide tool lever up to ensure tool is in SPRAY mode.

8. Plug into a proper outlet.

9. Press the power button to turn the machine ON.

10. While holding tool above desired area, press and hold trigger to spray solution.

11. Release spray trigger and gently scrub stain using bristles.

12. With trigger released, press tool firmly against surface and pull towards you to remove stain. Repeat as needed.


Cleaning the Machine with Self-Cleaning Tough Stain Tool

1. Turn machine ON. Position hand as shown using grip marks on tool. Slide tool lever down for CLEANOUT mode. Ensure there is water and formula in the clean water tank.

2. Press trigger to activate CLEANOUT function. Solution will flow through tool and hose.
   Tip: For a more thorough rinse, place suction nozzle on soft surface and tilt forward/ backward.

3. To continue cleaning with your machine, slide the tool's lever upward to return to SPRAY mode.


Emptying the Dirty Water Tank

1. Turn OFF and unplug your machine.

2. Release dirty water tank by pulling the latches on the side up and out.

3. Carefully remove tank by lifting up on the dirty water tank handle.

4. Lift tab on the top of the tank to open.

5. Empty the dirty water tank and refill the clean water tank as needed. Changes to motor noise and observed decrease in suction/water reclamation from the floor indicate that the machine's float has engaged. This prevents the dirty water tank from overfilling and leaking, which could harm the motor of the machine. To resolve, remove and empty dirty water tank. If not closed properly, you might experience water leaking, low suction, and/ or excessive foaming.

6. To continue cleaning, align the bottom of the tank to the base and secure into place with latches.


To reduce the risk of fi re, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

After-Cleaning Care

1. Turn OFF and unplug your machine. Follow steps 2-3 in "Emptying the Dirty Water Tank" to remove the dirty water tank.

2. Use a cloth to wipe debris from the red filter located beneath where the dirty water tank attaches.

3. Grab the top of the nozzle and pull it up and away from the machine. Use cloth to wipe clean.

4. Once steps 4-5 in "Emptying the Dirty Water Tank"are complete, ensure the dirty water tank is empty by gently unscrewing and removing the ring at the bottom of the tank.

5. Clean and rinse debris from the float. Keeping the float clean prevents the dirty water tank from overflowing and ensures the seal stays intact.

6. Once clean, assemble by aligning the arrow on the float with the notch on the tank. Then, return the ring and twist to lock. Make sure it's fully aligned, so water doesn't leak.

7. To reinstall the nozzle, align the ribs on the ends of the nozzle to the machine, then lower the nozzle into place.

8. With the bottom of the nozzle in place, lower the top of the nozzle onto the machine, ensuring it fits snugly.

9. Once dirty water tank is dry, align the bottom of the tank to the base and secure into place with latches.


To reduce the risk of fi re, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Replacing the Belt & Brush Roll

1. Turn OFF and unplug your machine. Use a Phillips-head screwdriver to remove the 4 screws.

2. Remove belt cover.

3. Pull brush roll out and remove belt from track.


4. Pull belt off of motor shaft.

5. Wrap new belt around motor shaft.

6. Put the belt on the brush roll track, ensuring it is centered within the ridges. Put the brush roll back into position.


7. Align brush roll mount to screw post.

8. Reposition belt cover.

9. Reinstall 4 screws.


Note: Other maintenance or service not included in this manual should be performed by an authorized service representative.

To reduce the risk of fi re, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Storing Your Machine

Store your machine in a protected, dry area. When finished using the product, wrap cord around cord wrap for storage.

Troubleshooting

Warranty

Limited 1-year warranty, may vary by state.
Visit support. BISSELL.com or call 1-800-237-7691 for complete warranty information.

NOTICE
To reduce the risk of a leaking condition, do not store unit where freezing may occur. Damage to internal components may result.

To reduce the risk of fi re, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Need more support?

Head to support.BISSELL.com to troubleshoot, register your product, order spare parts, view your warranty, and more.

support.BISSELL.com

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR APPLIANCE.

When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Connect to a properly grounded outlet only. See grounding instructions. Do not modify the three-prong grounded plug.
• Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.
• Use indoors only.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use for any purpose other than described in this user guide. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts of the appliance and its accessories.
• Turn OFF all controls before plugging or unplugging appliance.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
• Do not use appliance in an enclosed space filled with vapors given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use without filters in place.
• Use only BISSELL® cleaning products intended for use with this appliance to prevent internal component damage.
• Do not immerse. Use only on surfaces moistened by the cleaning process.
• Keep appliance on a level surface.
• Always install float before any wet pick-up operation.
• Do not carry the appliance while in use.
• Plastic film can be dangerous. To avoid danger of suffocation, keep away from children.
• Liquid must not be directed towards equipment containing electrical components.
• Use only the type and amount of liquids specified under the operations section of this guide.
• Do not turn your appliance ON until you are familiar with all instructions and operating procedures.
• Plastic tanks are not dishwasher safe. Do not put tanks in dishwasher.
• Do not apply liquid directly to any person or animal.

SAVE THESE INSTRUCTIONS

THIS MODEL IS FOR HOUSEHOLD USE ONLY.
COMMERCIAL USE OF THIS UNIT VOIDS THE MANUFACTURER'S WARRANTY.

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren't sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the illustration. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

IMPORTANT INFORMATION

• To reduce the risk of a leaking condition, do not store where freezing may occur. Damage to internal components may result.
• Brush roll continues to turn while product is turned ON and handle is in use. To avoid damage to carpet, rugs, furniture and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs, or carpeted stairs during tool use.
• With brush roll on, do not allow cleaner to sit in one location for an extended period of time, as damage to floor can result.
