LaCie d2 U&I AIT Drive

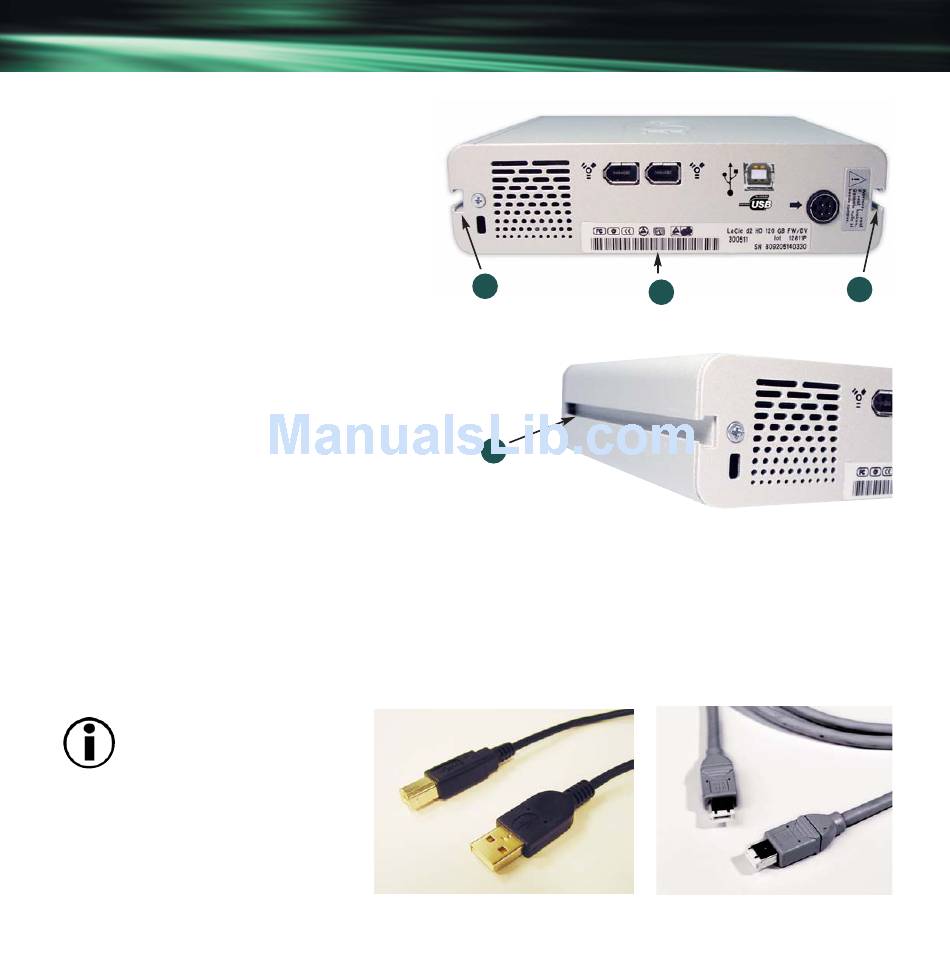

5 – Rackmount Grooves
For mounting your drive with the rackmount kit
(sold separately).
6 – Serial Number Sticker
This is where you will find your LaCie drive's
serial number. Write down the serial number and
keep it in a safe place, because you will need to
provide the number in the event you have to call
LaCie Technical Support for any reason in regard to
the drive's performance. The serial number would also
come in handy if your drive is lost or stolen.
Side View
1 – Rackmount Grooves - For mounting your drive
with the rackmount kit (sold separately).
2.3 USB Cables and Connectors
Your LaCie drive is shipped with a USB 2.0-certified
USB cable, to ensure maximum data transfer performance when connected to a USB 2.0 port. The cable will also work when
connected to a USB 1.1 port, but drive performance will be limited to USB 1.1 transfer rates.

2.4 FireWire Cables and Connectors

There are three types of FireWire cables on the market: 6-to-4-pin, 6-to-6-pin and 4-to-4-pin. LaCie FireWire peripherals are
supplied with a 6-to-6 pin FireWire cable. Most FireWire-equipped laptop computers feature 4-pin FireWire connectors, so to
connect your LaCie drive to a laptop, you will need to purchase a 4-to-6-pin cable.
Important Note: If the cable
supplied with your LaCie
drive does not meet your
requirements, please contact
your computer supply specialist.
5
1
USB Connector Type B
(Peripheral Side)
USB Connector Type A
(Computer Side)
Getting to Know Your AIT Drive
6
6-to-6-pin FireWire cable
page 9
5
