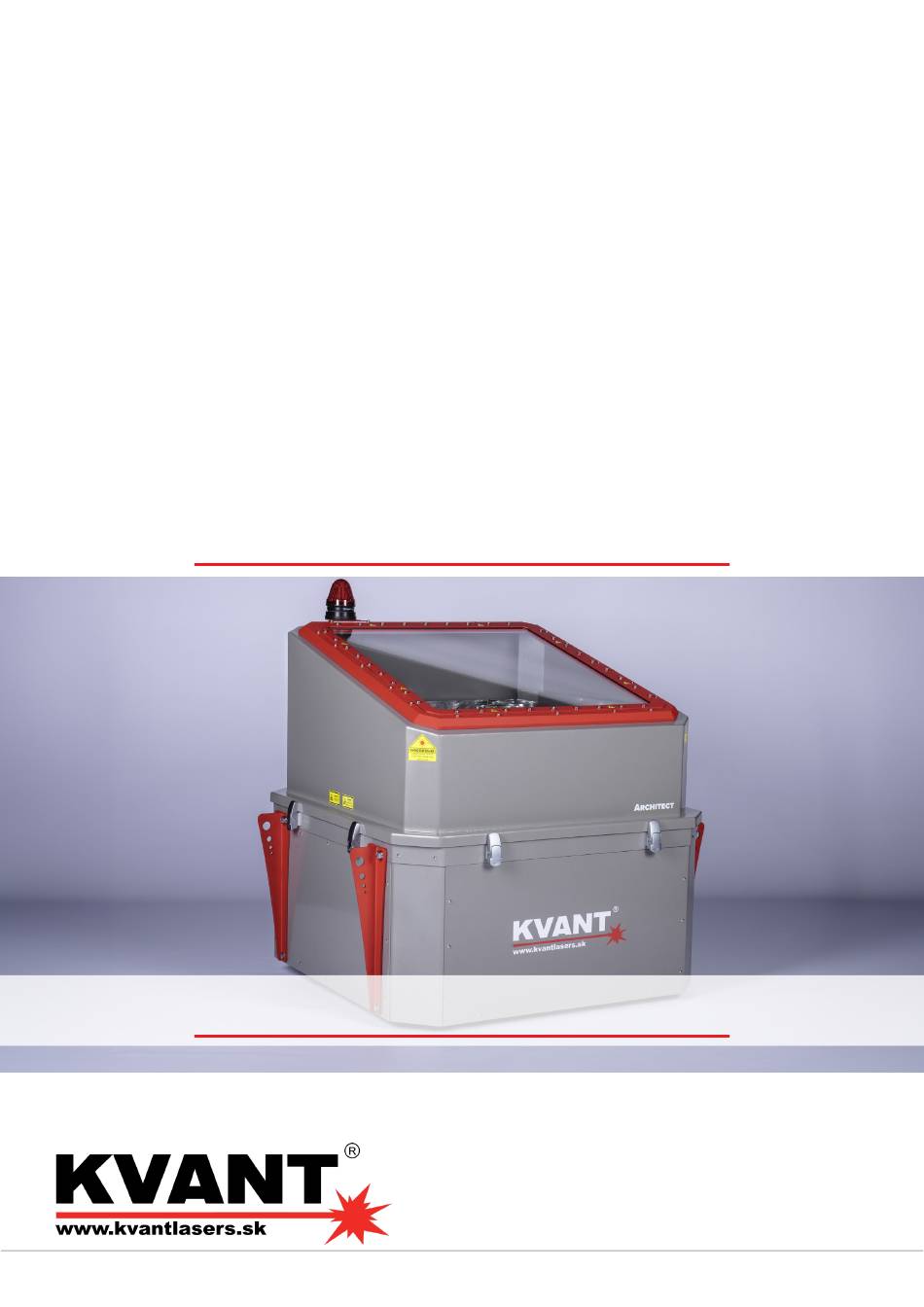

- Page 1 MODEL SPECIFIC OPERATIONAL MANUAL architect W 1500 Last updated: 07.02.2024...
-
Page 2: Table Of Contents
3. Item Checklist 4. System Overview 4.1 Front View [Architect W500B] 4.2 Front View[Architect W1500B] 4.3 Side View [Architect W500B] 4.4 Side View [Architect W1500B] 4.5 Back View [Architect W500B] 4.6 Back View [Architect W1500B] 5. Beam Alignment 6. FB4 control 7. -
Page 3: Introduction
Thank you for purchasing this KVANT product. To ensure proper operation, please read this manual carefully before using the product. After reading it, keep it in a safe place for future reference. -
Page 4: General Information
__ W MAX OUTPUT AT __ nm DANGER ___W AT ________nm IEC 60825 - 1:2014 KVANT This product is in conformity with performance standards for laser products under 21 CFR Part 1010.4 and 1040.11 except with respect to those characteristics authorized by... - Page 5 The manufacturer and its distributors cannot be held responsible for any Transportation handles damages caused by improper use or misuse of this KVANT laser system. The owner/user is fully responsible for During the handling, transportation and installation using this product in accordance to laser procedure use only dedicated foldable transportation safety regulations of the country or state...
-
Page 6: What Is A Laser And How Does It Work
What is a laser and hoW does it Work? What is a LASER? The laser is a device that creates continuous light energy waves (streams of photons that are referred to as “laser radiation”) with the same amplitude and phase that are flowing in the same direction; meaning they are coherent – they stick together and form a laser beam. -
Page 7: Laser Safety First
laser safety first! Any laser system classified as a Class Before proceeding any further, please 4 laser must be used with caution. read the following safety page very If you are an inexperienced laser carefully. It could help you avoid operator, we strongly recommend dangerous and hazardous situations that you attend a ... -
Page 8: Item Checklist
Item Number of units Descriptions Item Number of units Descriptions 1x Architect Remote Control KVANT Architect Laser System 1x 1x Emergency STOP remote and Remote Controller User manual USB drive US version BUS ID: 1647 BUS ID: 1054 EU version BUS ID: 1648 1x ... -
Page 9: System Overview
KVANT Architect is a full colour, semiconductor diode This laser is IP rated up to IP65 (depending on model). laser system designed for professional laser illumination It is however important to understand that this system purposes and static visual beam effects. -
Page 10: Front View
front vieW [architect W 1. Laser aperture. 2. Laser emission warning light. Never look directly into a laser beam. Never look directly This indicator must be plugged in for laser system to emit into laser aperture if the laser system is switched on. the laser radiation. - Page 11 front vieW [architect W 1500 1. Laser aperture. 2. Laser emission warning light. Never look directly into a laser beam. Never look directly This indicator must be plugged in for laser system to emit into laser aperture if the laser system is switched on. the laser radiation.
-
Page 12: Side View
side vieW [architect W 1. Laser aperture. 2. Laser emission warning light. Never look directly into a laser beam. Never look directly This indicator must be plugged in for laser system to emit into laser aperture if the laser system is switched on. the laser radiation. - Page 13 side vieW [architect W 1500 1. Laser aperture. 2. Laser emission warning light. Never look directly into a laser beam. Never look directly This indicator must be plugged in for laser system to emit into laser aperture if the laser system is switched on. the laser radiation.
-
Page 14: Back View [Architect W1500B]
Back vieW [architect W 2. Architect remote control. 1. Mains power input cable. 3x230/400V Kvant Architect systems use either analog input levels 0-5V or DMX siglnal to control the output power. This is model specific. 3. DMX connectors. 4. Ethernet. Use these ports to connect DMX control signal or to daisy... - Page 15 1500 7 8 9 2. Architect remote control. 1. Mains power input cable. 3x230/400V Kvant Architect systems use either analog input levels 0-5V or DMX siglnal to control the output power. This is model specific. 3. DMX connectors. 4. Ethernet. Use these ports to connect DMX control signal or to daisy...
-
Page 16: Control System
Please make sure all the laser settings in your control dependent on the control system that you use for operating system are set correctly before you start using your Kvant the laser as well as the correct device configuration in the laser display system. -
Page 17: Control Options
Analog control option = Architect remote control Kvant Architect laser system with analog control option is dedicated to display static beams with individually adjustable brightness for each R, G, or B colour. Architect Remote Controller with adjusters for each color is supplied with each fixture. - Page 18 Art-Net control option E-STOP Safety remote Art-net is a simple implementation of DMX512-A protocol over UDP (User Datagram Protocol) in which lightning control information in conveyed in IP packets, typically on private local network area such as Ethernet. In addition to the 5-pin XLR connector dedicated for DMX512, an Ethernet input conector can also be used for control from PC, located on the back side of the fixture.
-
Page 19: Connection Diagram
connection diagram Please check that all the control and power leads and interlock door circuitry are correctly connected. Please see i E-STOP Remote safety must following connection diagram. be inserted and switched to ON position in order to disable the interlock. Power input: Use supplied NAC3FX power cable to connect the laser system to mains power supply using the INPUT connector. -
Page 20: Multiple System Interlock
E-STOP Remote to each plugged Architect laser system and they are fully compatible with all Kvant laser systems using E-STOP Remote standard. The E-STOP splitter has two inputs, thus two E-STOP Remotes can be used and you can control the Architect laser systems... - Page 21 Interlock Bypass 4. Shutter switch turned to OFF position or DMX channel 4 changed to 0 value. Start 5. E-STOP Remote disconnected from KVANT Architect Button laser system. 6. Remote interlock circuitry connected to the E-STOP Analog controller DMX control Remote interlock connector is open.
- Page 22 "User E-Stop Connector" on "Kvant E-Stop Remote". (XLR Female) If "User E-Stop switch" is connected to "Kvant E-Stop Remote" and is in OPEN state, all "Kvant Laser projetors" connected to "Kvant E-Stop Remote" are disabled. In this case NO EMISSION is possible.
- Page 23 control Included Software: The Pangolin FB4 is a state-of-the-art control interface and media server for laser projector systems. Designed The FB4 comes equipped with Pangolin’s QuickShow to enhance versatility and operational efficiency, the FB4 software, a powerful software for creating and executing integrates seamlessly into professional environments, laser shows.
-
Page 24: Maintenance
KVANT laser system. You should perform a visual check of output window cleanness and clean up every day if the laser is used regularly or even more often if the situation requires it. - Page 25 Drying agent cartridge Drying agent cartridge (silica gel desiccant) helps to prevent water condensation inside the optical compartment of the Architect laser system, which is much needed in high temperatures and high humidity environments. The desiccant cartridge is installed on the inside of the optical compartment cover.
-
Page 26: Beam Alignment
Beam alignment It is possible that due to transportation or vibrations caused This Architect laser system is rated by various elements during a set up or laser performance as a Class IV laser product and some of the internal optical parts can move slightly resulting manufactured in accordance in an individual beam misalignment. to EN 60825-1:2014. -
Page 27: Technical Specifications
technical specifications All the technical specifications are subject to change without prior notice. -
Page 28: Technical Specifications [Architect W500B]
technical specifications [architect W Low divergent, high power, full colour, full diode, static architectural laser source Total optical power 486 W consisting of: 152 W red, 188 W green, 146 W blue Total luminous flux: 130 200 lm Liquid cooled version. General specifications Green Blue... - Page 29 technical specifications [architect W 1500 Low divergent, high power, full colour, full diode, static architectural laser source Total optical power 1499 W consisting of: 304 W red, 611 W green, 584 W blue. Total luminous flux: 403 300 lm Liquid cooled version. General specifications Green Blue...
-
Page 30: Warranty
KVANT Lasers Ltd. warranty on materials and production defects of the laser is 24 months from the date of shipment. If you do not return an “end of life” unit to KVANT Lasers During this warranty period KVANT Lasers Ltd. will repair or Ltd. -
Page 31: Copyright
KVANT Lasers Ltd. has all rights reserved for this user This manual may not be reproduced or translated to manual. another language, either as a whole or in parts, without the prior written permission of KVANT Lasers Ltd. The content of this manual is regularly updated and adapted to reflect the current development of our products. -
Page 32: Contact Information
Software: PANGOLIN Address: Address: Kvant Lasers s.r.o. Pangolin Laser Systems, Inc. Odborárska 23 1265 Upsala Road, suite 1165 831 02 Bratislava Sanford, FL 32771 Slovakia, Europe Technical support contact: e-mail: info@kvant.sk e-mail: support@pangolin.com Telephone: 00421-2-654 113 55 Telephone: +(407) 299-2088 Technical support contact: e-mail: micek@kvant.sk ...
