Summary of Contents for KVANT EPIC Series

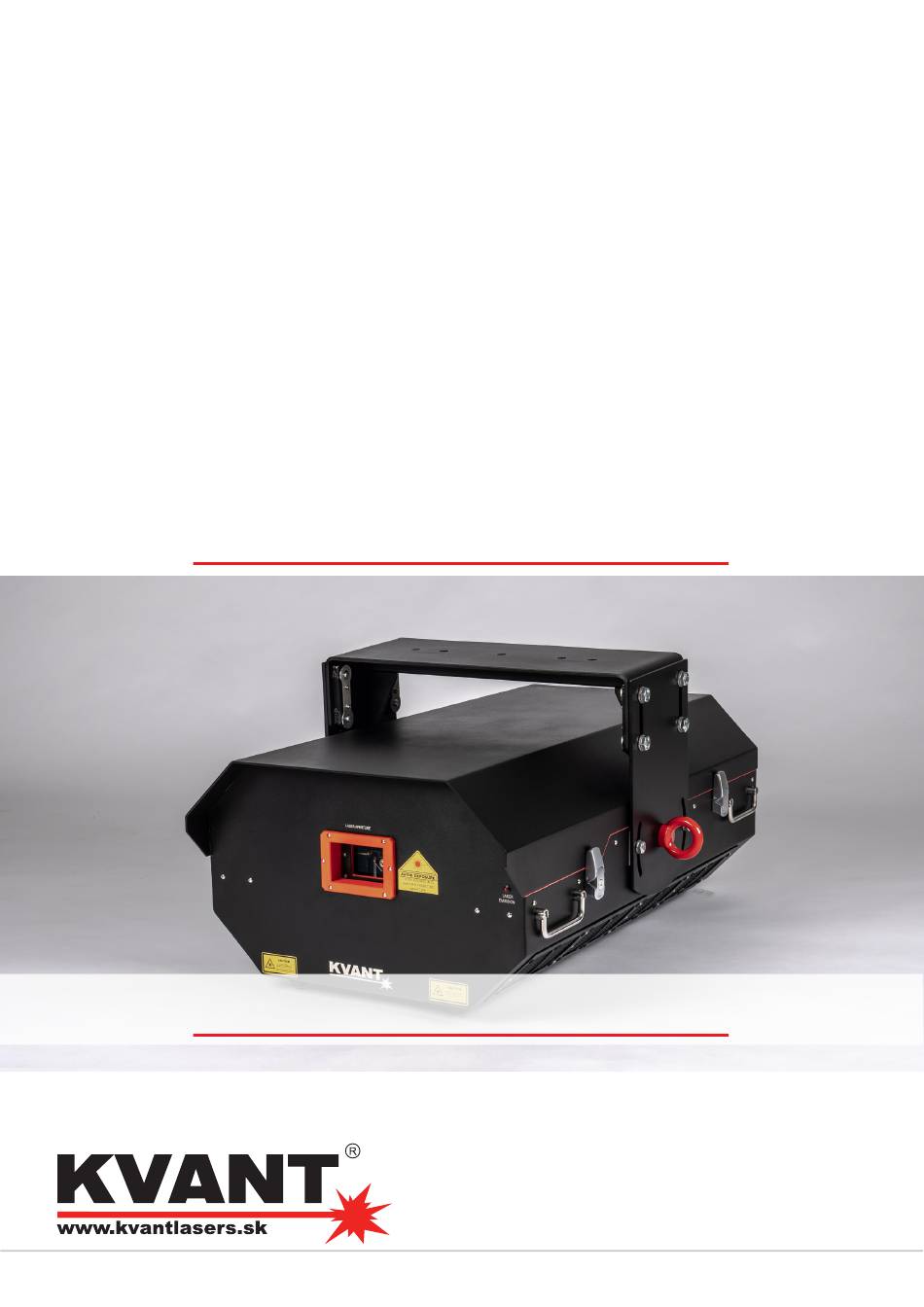

- Page 1 MODEL SPECIFIC OPERATIONAL MANUAL epic series Last updated: 17.01.2024...
-
Page 2: Table Of Contents
table of contents 1. Introduction 2. General information 2.1 What is a laser and how does it work? 2.2 Laser Safety first! 2.3 Installation ofthe System 2.4 Control System 2.5 Scanning System 2.6 Connection Diagram 2.7 Multiple System Interlock 2.8 Switching ONsequence and User Interlock 2.9 Maintenance 2.10 Disposal of the Equipment 3. -
Page 3: Introduction
Thank you for purchasing this KVANT product. To ensure proper operation, please read this manual carefully before using the product. After reading it, keep it in a safe place for future reference. -
Page 4: General Information
BLINDING DO NOT SHINE AT AIRCRAFT OR VEHICLES AT IEC 60825 - 1:2014 ANY DISTANCE KVANT This product is in conformity with performance standards for laser products under 21 CFR Part 1010.4 and 1040.11 except with respect to those characteristics authorized by... - Page 5 The manufacturer and its distributors cannot be held responsible for any damages caused by improper use or misuse of this KVANT laser system. Please note that some other optical devices such The owner/user is fully responsible for as cameras, camcorders, video projector etc. can using this product in accordance to laser...
-
Page 6: What Is A Laser And How Does It Work
what is a laser and how does it work? What is a LASER? The laser is a device that creates continuous visible light energy waves (streams of photons that are referred to as “laser radiation”) with the same amplitude and phase that are flowing in the same direction; meaning they are coherent – they stick together and form a laser beam. -
Page 7: Laser Safety First
laser safety first! Unless you are very competent with the use of lasers and Before proceeding any further, please about the laser safety, make sure you at least follow these read the following safety page very basic laser safety rules: carefully. It could help you avoid dangerous and hazardous situations Never look directly into a laser beam which could lead to ... -
Page 8: Installation Ofthe System
installation of the system Please follow these rules during the installation: The manufacturer is not liable for damages or a injury caused by improper installation of the system. The installation should Do not connect the device to power supply during be carried by a qualified installer who the installation. -
Page 9: Control System
Please make sure all the laser settings in your control dependent on the control system that you use for operating system are set correctly before you start using your Kvant the laser as well as the correct device configuration in the laser display system. -
Page 10: Scanning System
scanning system How to establish correct Scan-rate and maximal The product warranty does not cover the damages to the scanning system caused by improper use of the number of points in an effect scanning system or by incorrect programming. Therefore Each effect (picture) contains a different number of graphical it is essential to understand how the scanning works and points which defines the actual shape of ... - Page 11 In the following pictures you see the same star effect scanned at different scan rates at full scanning angle (60 degrees). Picture 1: the scan rate and/or number Picture scan-rate and/ Picture 3: further increasing of the of points is too low. The corner or number of points is about right. scan-rate and/or ...
-
Page 12: Connection Diagram
connection diagram Please check that all the signal and power leads are correctly installed and that the safety keys are inserted in all necessary positions. Both E-STOP Remote safety key and i laser system safety key must be inserted and switched to ON position in order to disable the interlock. -
Page 13: Multiple System Interlock
multiple system interlock Multiple laser projectors may be daisy chained and controlled by a single E-STOP Remote. Any event which enables the Interlock on any laser projector in the daisy chain will trigger the safety Interlock for all the systems. After the event has been corrected the START button on the E-STOP Remote must be pressed by the operator to disable the Interlock. -
Page 14: Switching Onsequence And User Interlock
KVANT laser system is being used before switching the system ON. Power loss lasting greater than 2 seconds. 2. Mushroom emergency switch depressed. - Page 15 "User E-Stop Connector" on "Kvant E-Stop Remote". (XLR Female) If "User E-Stop switch" is connected to "Kvant E-Stop Remote" and is in OPEN state, all "Kvant Laser projetors" connected to "Kvant E-Stop Remote" are disabled. In this case NO EMISSION is possible.
-
Page 16: Maintenance
maintenance Maintenance: no user serviceable parts inside. Please note that a laser light entering the aperture of your It is essential to regularly inspect the laser projector (reflected or from another laser) or wrongly condition of the silica gel granules reflected beams inside the projector can permanently inside the cartridges. -
Page 17: Disposal Of The Equipment
2.10 disposal of the equpiment The equipment is made of components and materials such as metal, plastic, aluminium, which can be dismantled, sorted and recycled in accordance with the Waste Act at the end of the life of the equipment or when it is no longer functional. The equipment can also be handed over as a whole in a collection yard. -
Page 18: Item Checklist
Number of units Descriptions Item Number of units Descriptions Item 2x KVANT Epic Laser Display Set of Safety Keys System 1x Emergency STOP remote Network Signal Cable (cat5) US version / EU version 10m version / 25m version BUS ID: 1647 / BUS ID: 1648 BUS ID: 1041 / BUS ID: 1611 1x ... -
Page 19: Optional Accessories
optional accessories Here is a list of optional accessories that are compatible with Epic laser system. Item Descriptions Item Descriptions SafetyScan lens attachment bracket (lens is not included). Motorised Dichroic Filters for This item is compatible only Easy Colour Alignment with this model version. DiscoScan lens attachment bracket (lens is not included). -
Page 20: System Overview
KVANT Epic is a full colour, semiconductor diode laser The system is air-cooled and designed so that there system designed for professional laser displays. is no airflow going through the optical compartment of the system. This ensures that all important optical parts of the When operated correctly and in ... -
Page 21: Front View
front view 1. Laser aperture. 2. Laser emission indicator. To clean the laser aperture window from inside or to When this indicator is lit up, the laser system is ready to swap the aperture plate for different type of aperture (i.e. emit the laser radiation as soon as it recieves instructions DiscoScan lens attachment bracket), remove the six bolts from control software. -
Page 22: Rear View
rear view * under rain cover 1. Mains power INPUT/OUTPUT. Use supplied Neutrik 2. E-STOP Remote connector, Interlock status indicator powerCON TRUE1 power cable to connect the laser system and User Interlock. In order to use the laser system, the to mains power supply using the INPUT connector. The Interlock must be closed circuit. - Page 23 The Remote Interlock Bypass may be replaced by the The projector’s REMOTE Output is used to daisy-chain the user’s own interlock system using a switch or dry relay Remote signal when you want to use a single Emergency closure to connect pins 1 and 2. With pins 1 and 2 shorted, STOP Remote to control multiple systems.
-
Page 24: Beam Alignment Principle
beam alignment principle Various beam profiles. Please read the following information carefully and take your time to process them! If you are not 100% certain that you understand the beam alignment principle, DO NOT ATTEMPT to proceed with the beam alignment by yourself. Instead, contact our servicing department for help. - Page 25 It is important to note that the principle described in the following points is i generic and applicable to any laser type from manufacturer, so the diagram shown in the example may not be the same as your laser projector. Align the beams at the greatest projection distance 6.
- Page 26 Example: • Inside the laser projector there are five modules, in • Change the effect colour to Red. red, green and blue. The red and green modules are • Using dichroic filters DF4 and DF5, adjust the red in pairs of two. beams coming from modules R1 and R2 together •...
-
Page 27: Beam Alignment With Motorised Dichroic Filters
B: Create a full-size white circle (static tunnel effect). B: Go to : PROJECTOR SETTINGS -> KVANT DICHRO tab. There you will find all the information and control C: Find Beam Alignment options for the dichroic option in the menu and enter filters. -
Page 28: How To Control Yellow Colour
how to control yellow colour To control Yellow colour on RGBY Projector there are two ways. Below is described which should be used. • FB4 is built into every RGBY Projector, FB4 has 6 color • ILDA Input of FB4 is using only 3 input colors. Red, Green outputs. -
Page 29: Advanced Mode
advanced mode To control Yellow colour in Beyond/QS mode, it is neces- This is default setting for Yellow colour. If any yellow image sary to activate „Advanced Mode” in Color Settings tab for is projected by RGBY laser projector using this setting, selected projector. -
Page 30: Colour Balance Display Mode
colour balance display mode Primary function of Colour Balance Button is same • FB4 is in „ILDA Input” mode as on Beambrush projectors. It is to see same colors • FB4 is in „Beyond/QS mode” and Beyond software on projected image compared to computer screen. is used, BUT „Advanced Mode”... -
Page 31: Technical Specifications
technical specifications All the technical specifications are subject to change without prior notice. RGBY Low Divergence upgrade affects the laser beam, RGBY labelled systems come with an extra OPSL module so it is a bit thicker at the source, but much more coherent inside - the one that outputs 577nm yellow laser. In simple further away. -
Page 32: Technical Specification [Epic 100]
[epic Module Power KVANT Epic 100 – full colour, semiconductor diode laser system Colour Type Wavelenght installed Total Optical Power (installed): 107W 2x RLM-9kF 638nm 23 000mW Total Optical Power (guaranteed): 100W* Green 2xGLM-13kF6 525nm 34 000mW *Due to Advanced Optical Correction technology used... -
Page 33: Technical Specification [Epic 170]
[epic Module Power KVANT Epic 170 – full colour, semiconductor diode laser system Colour Type Wavelenght installed Total Optical Power (installed): 170W RLM-30kF 638nm 30 000mW Total Optical Power (guaranteed): 170W* Green GLM-60kF 525nm 60 000mW *Due to Advanced Optical Correction technology used... -
Page 34: Technical Specification [Epic 270]
[epic Module Power KVANT Epic 270 – full colour, semiconductor diode laser system Colour Type Wavelenght installed Total Optical Power (installed): 270W RLM-30kF 638nm 30 000mW Total Optical Power (guaranteed): 270W* Green GLM-60kF 525nm 60 000mW *Due to Advanced Optical Correction technology used... -
Page 35: Troubleshooting
Can I continue using my projector? operation? A: Laser beams hitting glass splits will be scattered into A: Yes, it’s OK. Kvant projectors have built-in automatic unwanted directions, creating a risk of damage to eyesight, regulation of the fan speed. After powering up the health or property. - Page 36 ILDA input. Please contact your distributor or technical power cord) for 10 minutes. assistance of Kvant Lasers, s.r.o. for further help. All PSUs should fully discharge and cool down. After 10 minutes, power up the projector. If overloaded Q: Projection is blurred or foggy. Static beams (points) PSUs caused the malfunction, it should now work correctly...
- Page 37 PIR sensor for observing the area around the fans on the main heatsink. laser projector. Q: Is this projector compatible with other Kvant projectors? Q: The projection suddenly lost a significant amount of blue colour. The colour tone of all RGB effects changed, A: All Kvant projectors manufactured from 06/2014 and and the total power output decreased too.
- Page 38 Rain Cover installed. at high ambient temperatures. What shall I do next? A: The operating temperature range for Kvant laser A: It is necessary to remove the laser projector from its projectors is +10°C (50°F) to +35°C (95°F). Using projectors flight case as soon as possible - within 24 hours at the in an environment with air temperatures within 35°C (95°F)
- Page 39 Q: Can anybody operate the laser projector? Q: How can I ecologically discard an old laser projector? A: No. The laser projector should be operated A: Laser projector doesn’t contain any poisonous materials by an adult person passed their training or dangerous components. Therefore, you can ecologically as ...
-
Page 40: Contact Information
Software: PANGOLIN Address: Address: Kvant Lasers s.r.o. Pangolin Laser Systems, Inc. Odborárska 23 1265 Upsala Road, suite 1165 831 02 Bratislava Sanford, FL 32771 Slovakia, Europe Technical support contact: e-mail: info@kvant.sk e-mail: support@pangolin.com Telephone: 00421-2-654 113 55 Telephone: +(407) 299-2088 Technical support contact: e-mail: micek@kvant.sk ... -
Page 41: Dimension Details
dimension details...
