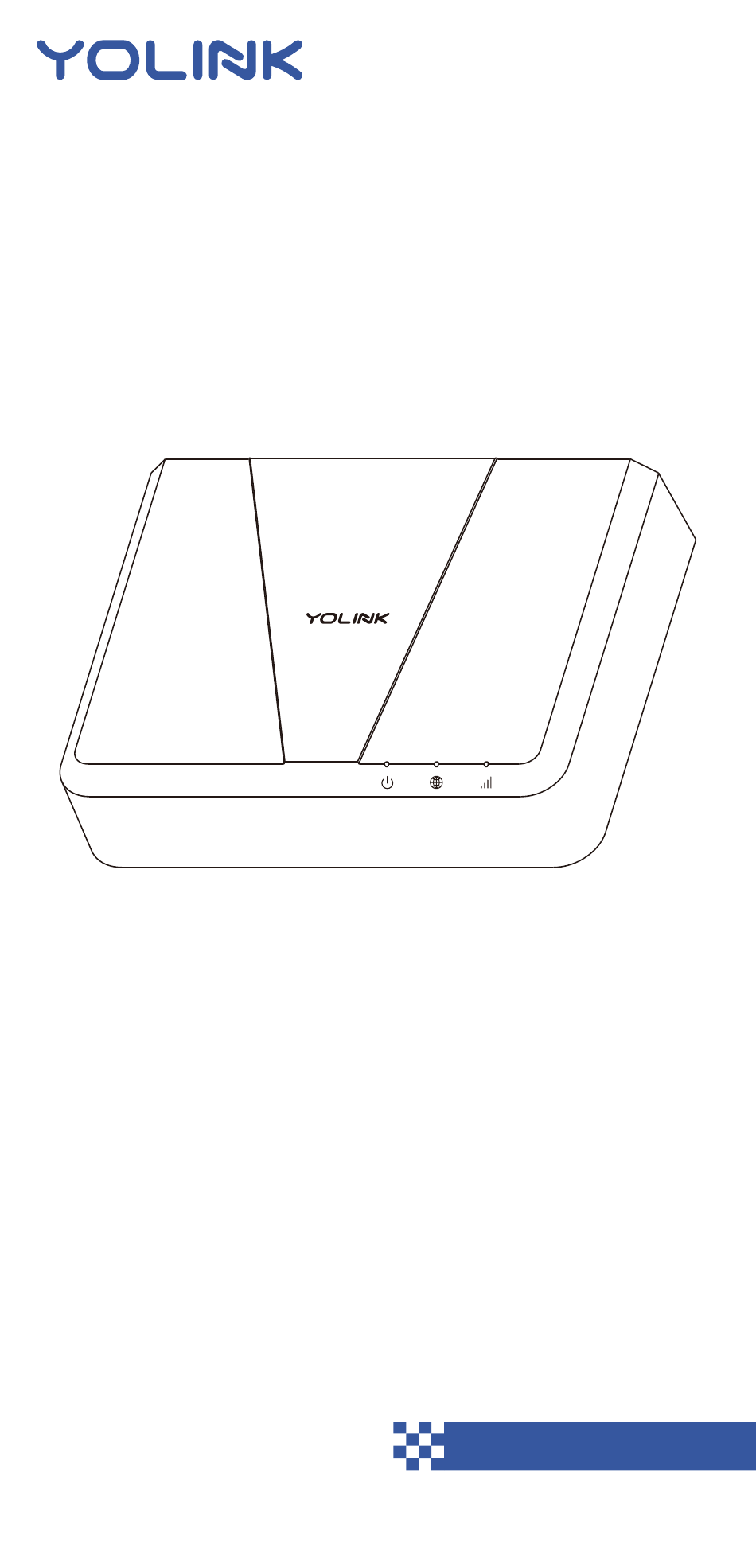

- Page 1 YoLink Hub 3 YS1605-UC Installation & User Guide Revision Apr. 20, 2024...
-
Page 2: Table Of Contents
Contents . Welcome! . Before You Begin . In the Box . Get to Know Your YoLink Hub . Install the App . Add Your Hub to the App . Installation . Connections & Power Up . WiFi Considerations . Mobile Device Settings . -
Page 3: Welcome
Welcome! Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away. -
Page 4: Before You Begin
Before You Begin Visit our Smart YoLink Hub 3 support page on our website, for the latest installation guides, additional resources, information and videos by visiting: https://www.yosmart.com/support/YS1605-UC Or by scanning the QR code: Download the most current version of the user... - Page 5 Before You Begin, Continued YoLink Hub 3 serves as a gateway connecting YoLink devices to the internet. Unlike many smart home systems where devices connect individually to the network or WiFi, YoLink devices communicate solely with the Hub, which in turn connects to the internet, cloud server, and the YoLink app.
- Page 6 Hubs, including a combination of the standard Hub and the Speaker Hub, may be necessary. Remember, the YoLink wireless network boasts an impressive quarter-mile open-air range. Be aware that multi-step authentication WiFi networks, commonly found in hotels or airports,...
-
Page 7: In The Box
In the Box YoLink Hub 3 Quick Start Guide AC Power Supply Adapter Ethernet Cable ("Patch Cord") (5V/2A) Li-On rechargeable Battery, Model 18650, 2500mAh, 3.6V... -
Page 8: Get To Know Your Yolink Hub
Get to Know Your Smart YoLink Hub Please take a moment to familiarize yourself with your new YoLink Hub, in particular the LED behaviors and SET button functions. PWR Status LED Internet Status LED LED Behaviors Green PWR LED Blue Internet LED On... - Page 9 Get to Know Your Smart YoLink Hub, Continued SET Button Press and Hold 5-10 seconds: WiFiSetting Press and Hold 20-30 seconds: Factory Reset (will erase all the WiFi connection history) Power Switch 5VDC 2A POWER Power Port Ethernet Ethernet Jack LED Behaviors...
-
Page 10: Install The App
Install the App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to the next section. Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store. -
Page 11: Add Your Hub To The App
Add Your Hub to the App 1. Tap Add Device (if shown) or tap the scanner icon: Scanner icon 2. Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app. 3. Hold the phone over the QR code so that the code appears in the viewfinder. - Page 12 Bind device. 5. If successful, the screen will appear as shown. Tap Done. YoLink Hub If you experience difficulties scanning in a new device, ensure the code is not dirty or smudged, and that the camera has adequate lighting. If...
-
Page 13: Installation
And should one Hub not be sufficient, you can add as many hubs as you want, later, to extend the coverage of the YoLink wireless network. The Hub will require a dedicated AC outlet for the included power adapter. - Page 14 Installation To maximize the battery's lifespan, the Hub is equipped with an automatic battery maintenance feature. This system is designed to discharge the battery for two hours every 30 days, starting from the initial power-up of the device. This regular discharging helps in preserving the battery's health and efficiency.
-
Page 15: Connections & Power Up
Connections & Power-Up 1. As shown, power up the Hub by connecting the adapter cable (A) to the power jack (B) on the Hub, and plug it into an outlet. 2. Turn the power switch to ON, the green status indicator should flash a few seconds: 3. - Page 16 4. In the app, the Hub is now shown to be Online, with the Ethernet icon green as shown: YoLink Hub 3 5. If you plan to connect your Hub to the internet via the Ethernet cable, only, and your Hub is online, refer to the full Installation &...
-
Page 17: Wifi Considerations
WiFi connection with your Hub: Changes to your internet provider, internet equipment may require updating the WiFi-related settings in the YoLink app again. Changing your WiFi passwords or SSID name will require updating the WiFi-related settings in the YoLink app again. - Page 18 WiFi Considerations, Continued If you have a mesh and/or WiFi 6 type network, like a Google Nest, TP-Link Mesh, or Eero, you will most likely need to disable the 5GHz WiFi band while connecting your Hub. Helpful information can be found on the Hub’s product support page, or contact our customer support department.
-
Page 19: Mobile Device Settings
To check or edit Location Services on your phone: iOS: Go to Settings, tap Privacy, tap Location Services Ensure Location Services is on/enabled. Scroll down to and tap the YoLink app Select While Using the App Enable Precise Location Android: Go to Settings, tap Location. - Page 20 Mobile Device Settings, Continued Ensure you are logged into your WiFi: 1. In your phone, open WiFi settings (Settings, WiFi). 2. Identify your 2.4 GHz network, if possible. If there is only one SSID (network ID) you recognize, you will use that one. 3.
- Page 21 Mobile Device Settings, Continued Some routers allow you to 'white list' a device based on its MAC address. The MAC address for the Wireless LAN Driver can be determined by combining 'D88B4CFA' with the last four digits of the EUI number. The MAC address for the Ethernet LAN Driver can be determined by combining 'D88B4C05' with the last four digits of the EUI number.
-
Page 22: Wifi Set-Up
WiFi Set-Up 1. In the app, from the Rooms or Favorites screen, tap the YoLink Hub icon. 2. Refer to WiFi icon, it should read “Not Connected” – tap this icon. - Page 23 4. As directed in the app, press the Hub’s SET button for 5 seconds or until the Blue Internet LED flashes. 5. Without closing the YoLink app, go to your phone’s WiFi settings and log into the Hub’s WiFi hotspot. It is identified as YS_1605######.
- Page 24 WiFi Set-Up, Continued 6. If you see a “connect to device timeout” message, tap Close. 7. Promptly return to the YoLink app. Check the “Please confirm the above operation” checkbox. Tap Continue. The Enter WiFi Password screen appears as shown.
- Page 25 WiFi Set-Up, Continued 8. In the Choose a WiFi box, select your 2.4 GHz SSID from the drop-down menu list, or enter your 2.4GHz SSID (unless it is hidden, it should appear in the list, when you tap in this area). It's important to note that if you opt for manual entry, you must also select your WiFi security type from the options displayed, as shown...
- Page 26 WiFi Set-Up, Continued 9. Enter your WiFi password, then tap Continue. 10. After a short process, the Set up WiFi successfully message is displayed, Tap Done. 11. If your Hub was not already connected to internet, the Hub’s blue internet LED should now be on solid, indicating the Hub is connected to the internet.
- Page 27 WiFi Set-Up, Continued If you experience difficulties connecting the Hub to your WiFi, try temporarily disabling or turning off your 5 GHz band. Check for this option in your router’s app, or by connecting to your router via a browser interface (refer to your router documentation, as needed).
-
Page 28: App Functions: Device Screen
App Functions: Device Screen In the app, tap on your YoLink Hub icon. Your main screen should be similar to the one shown below. Tap to Exit This Screen Device Name Tap for Contact & Support Resources Tap for Device Details... -
Page 29: App Functions: Device Details Screen
Details screen. Your screen should be similar to the one shown below. Device Type Device Name (Tap to Edit) YoLink Hub 3 Room (Tap to Edit) Favorite (Red if Favorite, Tap to Edit) Alarm strategy for this device... - Page 30 Screen, Continued Power Supply Connection Connected or Disconnected Battery Status Model Number Device EUI Unique Identifier Number Device Serial Number Firmware Revision (Refer to page 35) Remove Device From Current Account Tap to delete the device from your YoLink account...
-
Page 31: App Functions: Alarm Strategy
App Functions: Alarm Strategy (Hub Offline Alarm) To configure offline notifications for your hub, follow these steps: 1. Navigate to the 'Device Details' screen. 2. Select 'View your alarm strategies' to access alarm strategy settings. 3. Tap the '+' icon located in the lower right corner to create a new alarm strategy specifically for your hub. -
Page 32: Adding Devices
Adding Devices Your Hub will be awfully lonely without some devices, like smart locks, light switches, water leak sensors or sirens to interact with. Now is the time to add your devices). You already know how to do this, because you added your Hub to the app;... - Page 33 Adding Devices, Continued 2. When directed in the manual, turn on your device (typically by pressing the SET button). 3. Always confirm your device is online in the app before proceeding to the next device. Refer to Figure 1, for an example of of online and offline devices.
-
Page 34: Factory Reset
Factory Reset Factory reset will erase device settings and restore it to factory default settings. Doing a factory reset will not remove the device from your account and it will not harm the device, or lose any data or require you to redo your automations, etc. -
Page 35: Firmware Update
Firmware Update Your YoLink products are constantly being improved, with new features added. It is periodically necessary to make changes to your device's firmware. For optimal performance of your system, and to give you access to all available features for your devices, these firmware updates should be installed when they... -
Page 36: Specifications
Specifications Controller: MT7628: router-on-a-chip includes embedded high-performance CPU Color: White Power Supply: DC 5V/2A Li-on rechargeable Battery, 18650, 2500mAh, 3.6V Dimensions, Imperial 4.88 x 3.66 x 1.22 (L x W x D): inches Dimensions, Metric 124 x 93 x 31 mm (L x W x D): Operating Temperature Range:... - Page 37 Specifications, Continued 3.66” (93mm) 4.88” (124mm) FRONT SIDE 1.22” (31mm) 4.88” (124mm) FRONT...
-
Page 38: Warnings
Warnings Power the Hub with the provided adapter, only The hub is designed and intended for indoor use and is not waterproof. Install indoors, avoiding subjecting the Hub to water or damp conditions Do not install the hub inside or near metals, ferromagnetism or any other environment which may interface with the signal Do not install the Hub near flames/fire or... -
Page 39: Warranty
Warranty 2 Year Limited Electrical Warranty YoSmart Inc. warrants to the original user (“customer”) of this product that it will be free from defects in materials and workmanship, under normal use, for 2 year from the date of purchase. This warranty does not apply to devices that have been improperly installed, modified, put to a use other than designed, or subjected to acts of God (such as floods,... -
Page 40: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 41 To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. PRODUCT NAME: YOLINK HUB 3 PARTY: YOSMART, INC. TELEPHONE: 831-292-4831 MODEL NUMBER:...
-
Page 42: Contact Us
Support Home Page Finally, if you have any feedback or suggestions for us, please email us at feedback@yosmart.com Thank you for trusting YoLink! YoLink Customer Support 25172 Arctic Ocean Drive, Suite 106 Lake Forest, CA 92630 © 22023 YOSMART INC. CALIFORNIA, USA...
