Hovr SLIM Basic Installation Manual

BASIC INSTALLATION GUIDE BASIC INSTALLATION GUIDE
www.hovrsolutions.com
contact@hovrsolutions.com
Have a question? Visit our help
center at hovrsolutions.com/learn

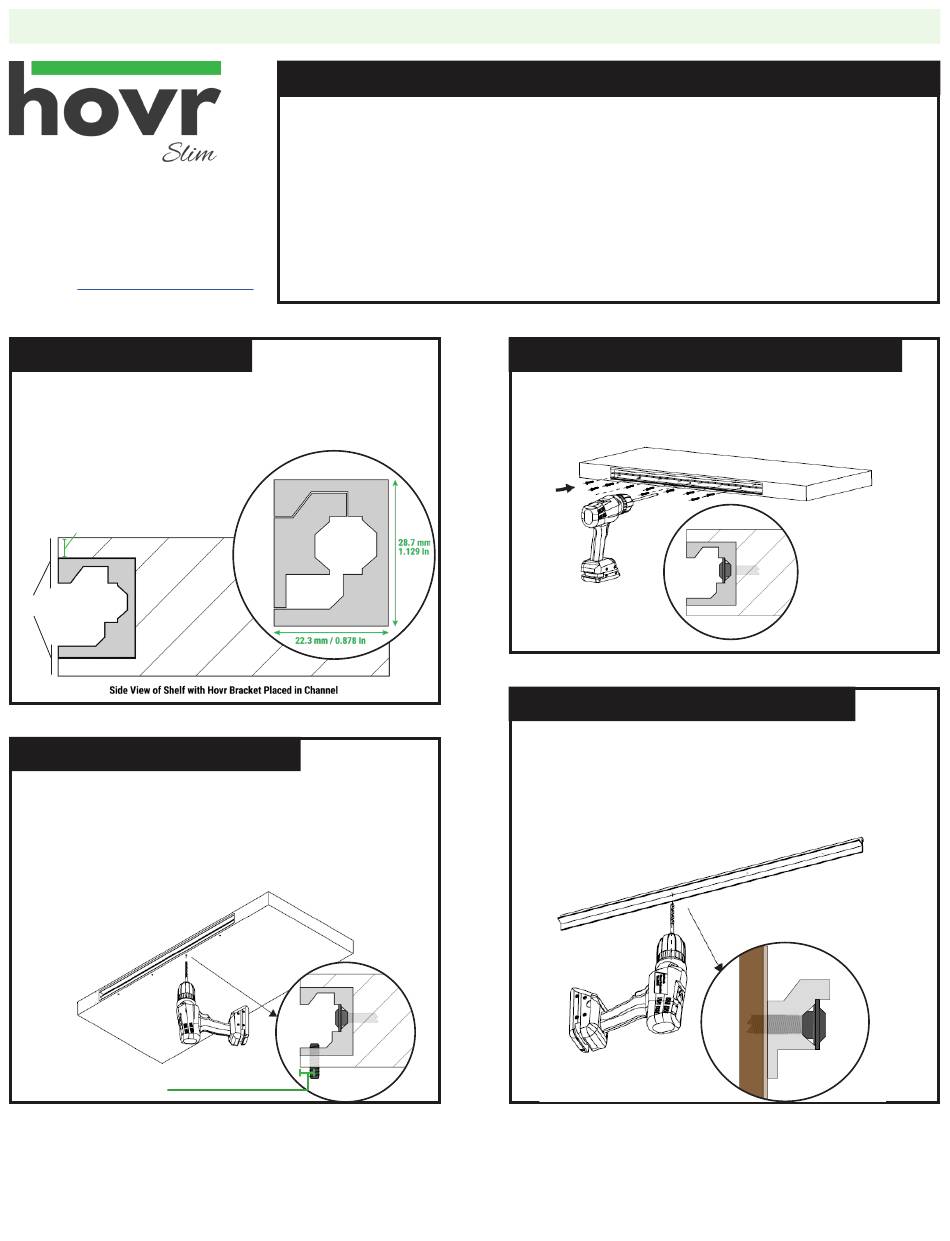

STEP 1 - CREATE CHANNEL STEP 1 - CREATE CHANNEL
The most common method is to router out a 1 and 3/16" tall
channel at the back of your shelf to make room for the female
bracket. This channel should be between 1/8" and 3/8" from the
top of the shelf so the brackets can connect properly.
Note that the top and bottom must
be flush against the material on the
back of the shelf.
1/8" - 3/8"
Flush
STEP 3 - DRILL SET SCREW HOLES STEP 3 - DRILL SET SCREW HOLES
Drill & tap the holes in the bottom of the shelf to accommodate
the set screws for the bracket that will be used to secure the two
components together later in the install (as a general rule, use 1 set
screw per foot of bracket). Use a 17/64" drill bit to predrill the tap
hole, and then use a 5/16" tap bit to thread the hole. These should
be about 6.35mm or 1/4" in from the bottom lip of the female
bracket.
6.35mm
or 1/4"
Hovr Strong Solutions (the "Company") makes no representation or warranty as to the suitability of its products for any particular purpose, use, or installation, nor does it make any suggestion as to the method by
which any of its products should be installed. The Company makes no suggestion nor shall be taken to provide any instruction on any tools, equipment or machinery used in any way in connection with its products,
and strongly suggests that the consumer consult with and abide by any user manuals or instructions provided by the manufacturer of any utilized tools, equipment or machinery and at any time they are used, that
such use is conducted in a safe and lawful manner. It is the responsibility of the consumer to ensure the correct usage of any tools, equipment, or machinery utilized at any time in connection with any Company
products.
The information provided in any video by the Company is not intended as, and shall not be understood or construed as, advice or instruction in the operation of any tools, equipment, or machinery for use in connection
with any Company products. Neither the Company, nor any of its employees, agents or anyone else for whom it is at law responsible shall be held liable or responsible for any loss, damage, or injury stemming from the
use of any tool, equipment, or machinery utilized by a consumer in connection with any Company products.
BASIC INSTALLATION GUIDE - HOVR SLIM - 1 1/8" TALL BRACKET BASIC INSTALLATION GUIDE - HOVR SLIM - 1 1/8" TALL BRACKET
WHAT YOU NEED WHAT YOU NEED
INCLUDED HARDWARE INCLUDED HARDWARE
4 x 3 1/8" GRK #10 RSS Screw (per 4 ft of
bracket)
12 x 2 1/2" GRK #10 R4 Screw (per 4 ft of
bracket)
4 x 1/2" - Set Screws - 5/16" #18 Course
Thread (1 set screw per foot)
1 x Hex Key - 5/32"
BITS REQUIRED BITS REQUIRED
Drill Bit - 3/16" - HSS
(Optional: To drill extra holes in the
male bracket)
Drill Bit - 17/64" HSS Jobber
(To pre-drill tap hole)
Tap Bit - 5/16" HSS #18
(To thread the tap hole)
T-25 Torx 2" Star Drive
STEP 2 - ATTACH FEMALE BRACKET TO SHELF STEP 2 - ATTACH FEMALE BRACKET TO SHELF
Use the 2 1/2" GRK screws to secure the bracket to your shelf.
Starting from the outer edges, use 1 screw every other hole. Pre-
drilling screw holes may be necessary for harder woods.
STEP 4 - PREPARING THE MALE BRACKET STEP 4 - PREPARING THE MALE BRACKET
It is recommended to anchor to a minimum of 2 studs. There
is a hole every 2" along the bracket. If by chance the predrilled
holes in the male bracket do not match up with the stud location,
please mark the location on the male bracket. Use a 1/4" drill bit
to drill a hole at the required location.
Hovr 1.125" Bracket - Version B
TOOLS REQUIRED TOOLS REQUIRED
Tape Measure
Electric Drill
Level
Stud Finder
(Router)
(Table Saw)
