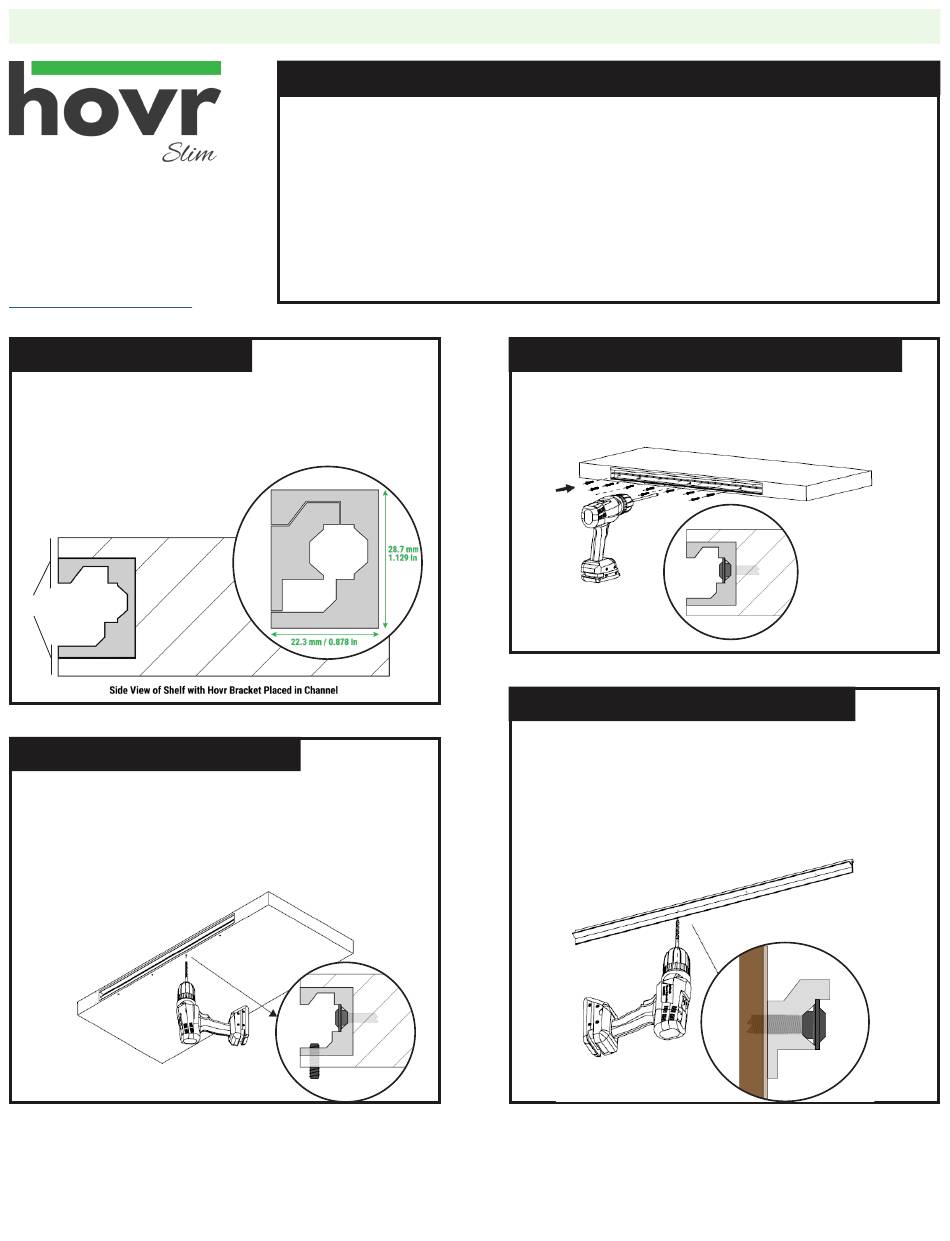

Hovr SLIM Basic Installation Manual

BASIC INSTALLATION GUIDE BASIC INSTALLATION GUIDE
hovrsolutions.com
contact@hovrsolutions.com
Have a question? Visit our fully
searchable online help center at
hovrsolutions.com/learn

STEP 1 - CREATE CHANNEL

STEP 1 - CREATE CHANNEL
There are 3 methods to create the channel. Hand chisel, router,
or, for the professionals, using a dado blade/table saw. The most
common method is to router out a 1 and 3/16" channel at the
back of your shelf to make room for the female bracket.
Note that the top and bottom must
be flush against the material on the
back of the shelf.
Flush

STEP 3 - DRILL SET SCREW HOLES

STEP 3 - DRILL SET SCREW HOLES
Drill & tap the holes in the bottom of the shelf to accommodate
the set screws for the bracket that will be used to secure the two
components together later in the install. Use the 17/64" drill bit to
predrill the tap hole, and then use the tap bit to thread the hole.
Hovr Strong Solutions (the "Company") makes no representation or warranty as to the suitability of its products for any particular purpose, use, or installation, nor does it make any suggestion as to the method by
which any of its products should be installed. The Company makes no suggestion nor shall be taken to provide any instruction on any tools, equipment or machinery used in any way in connection with its products,
and strongly suggests that the consumer consult with and abide by any user manuals or instructions provided by the manufacturer of any utilized tools, equipment or machinery and at any time they are used, that
such use is conducted in a safe and lawful manner. It is the responsibility of the consumer to ensure the correct usage of any tools, equipment, or machinery utilized at any time in connection with any Company
products.
The information provided in any video by the Company is not intended as, and shall not be understood or construed as, advice or instruction in the operation of any tools, equipment, or machinery for use in connection
with any Company products. Neither the Company, nor any of its employees, agents or anyone else for whom it is at law responsible shall be held liable or responsible for any loss, damage, or injury stemming from the
use of any tool, equipment, or machinery utilized by a consumer in connection with any Company products.
BASIC INSTALLATION GUIDE - HOVR SLIM - 1 1/8" TALL BRACKET BASIC INSTALLATION GUIDE - HOVR SLIM - 1 1/8" TALL BRACKET

WHAT YOU NEED

WHAT YOU NEED
INSTALLATION HARDWARE INSTALLATION HARDWARE
4 x 3 1/2" #12 Wood Screw (per 4 ft of
bracket)
12 x 2 1/2" #12 Wood Screw (per 4 ft of
bracket)
4 x 1/2" - Set Screws - 5/16" #18 Course
Thread (1 set screw per 8-10")
1 x Hex Key - 5/32"
BITS REQUIRED BITS REQUIRED
Drill Bit - 3/16" - HSS Jobber
(Optional: To drill extra holes in the
male bracket)
Tap Bit - 5/16" HSS #18
(To thread the screw hole)
Drill Bit - 17/64" HSS Jobber
(To pre-drill tap hole)
#2 Square Drive (Not included)

STEP 2 - ATTACH FEMALE BRACKET TO SHELF

STEP 2 - ATTACH FEMALE BRACKET TO SHELF
Use the 2 1/2" wood screws to secure the bracket to your shelf.
Use 1 screw per hole.

STEP 4 - PREPARING THE MALE BRACKET

STEP 4 - PREPARING THE MALE BRACKET
It is recommended to find a minimum of 2 studs. There is a hole
every 2" along the bracket. If by chance the predrilled holes in
the male bracket do not match up with the stud location, please
mark the location on the male bracket. Use a 3/16" or a 1/4" drill
bit to drill a hole at the required location.
Hovr 1.125" Bracket - Version B
TOOLS REQUIRED TOOLS REQUIRED
Tape Measure
Electric Drill
Level
Stud Finder
(Router)
(Table Saw)
