Page 1 ATSC-mini HDTV Tuner QIP-D Installation Manual Product Manual 972-931-2728 | 888-972-2728 | www.contemporaryresearch.com...
Page 2: Table Of Contents
Contents 1. Overview ......................................3 2. Installing the ATSC-mini .................................. 4 3. ATSC-mini Control and Setup ................................4 4. Front Panel Operation..................................5 5. Rear Panel Connections .................................. 6 6. Setup Notes ..................................... 7 7. On-Screen Text Menus ..................................9 8.
Page 3: Overview

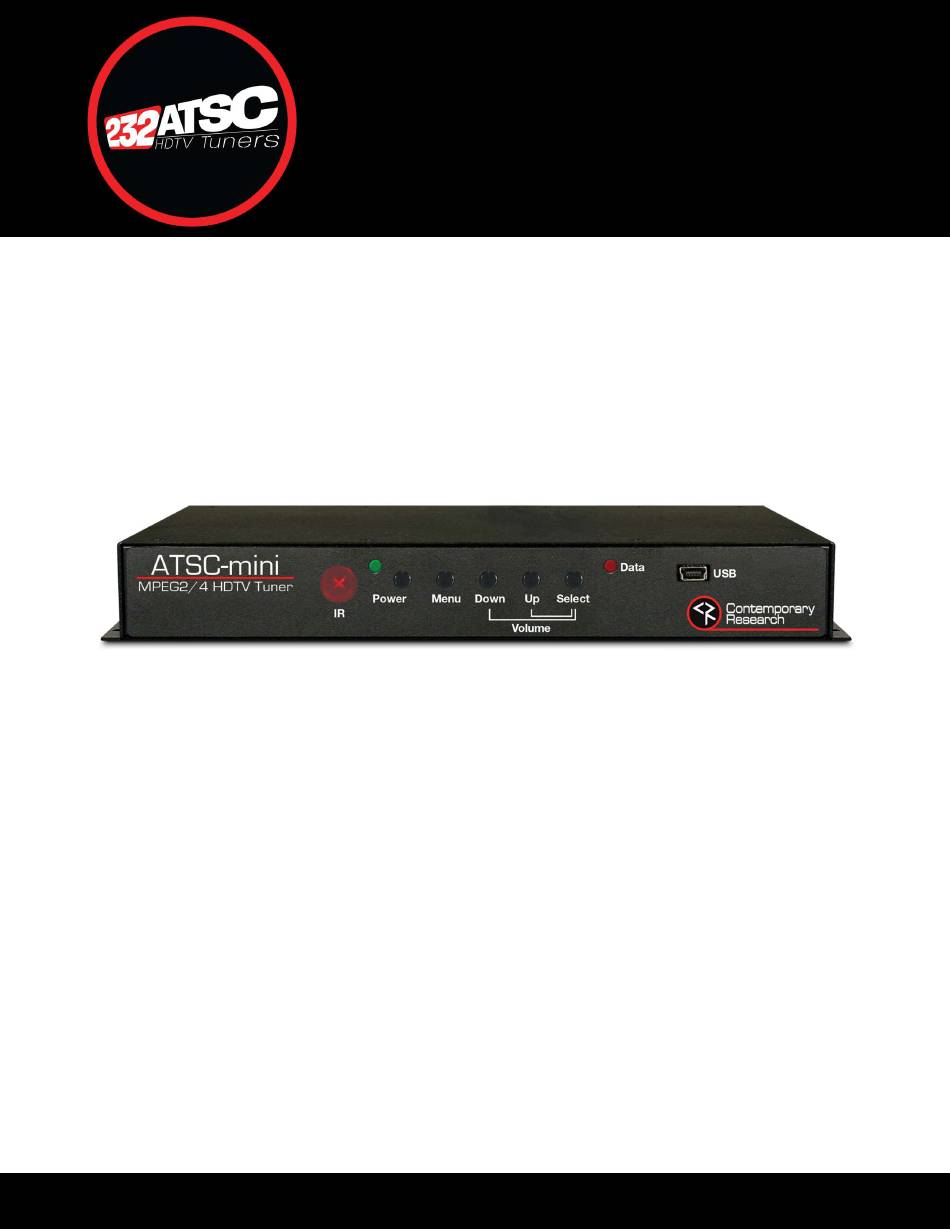

1. Overview The Contemporary Research ATSC-mini HDTV Tuner is a full featured ATSC/NTSC HDTV tuner for professional applications. The ATSC-mini will tune ATSC air, clear QAM cable, and NTSC air and cable channels. The low-profile design allows for mounting behind flat panel displays.
Page 4: Installing The Atsc-Mini
2. Installing the ATSC-mini The slim profile of the ATSC-mini allows for mounting behind a flat panel display. The unit may be attached to the flat panel display with user provided hook and loop fastener adhesive tape or attached to the wall using the mounting ears. The unit may also be set flat on a suitable shelf or other stable flat surface.
Page 5: Front Panel Operation
On-screen Menu (Blink-Blink-Pause sequence) Red Fast Blink Bootloader Mode (uses RS-232 connector) Red/Green Alternating Firmware Update Mode Data LED Operation Mode Status Red Flash RS-232 Data Transmit Green Flash RS-232 Data Receive Page | 5 ATSC-mini HDTV Tuner Product Manual 042025...
Page 6: Rear Panel Connections
3.5 mm TRS jack for optional external IR receiver or wired IR from a control system processor. Tip= +5v DC (50mA max) Ring= Input Sleeve= Ground 12VDC Power input 2.1mm coaxial jack (inside center conductor positive). May be used in lieu of Ethernet PoE. Page | 6 ATSC-mini HDTV Tuner Product Manual 042025...
Page 7: Setup Notes
Air/Cable The ATSC-mini has separate channel memories for air and cable channels. It is possible to toggle between the two channel memories. A separate channel scan for each mode will be required. The scan of analog channels may be skipped by pressing Select after the scan has started.
Page 8 RS-232 Display Control The RS-232 serial com port may be used for display control. The ATSC-mini can receive iCC-Net control commands via Ethernet from an ICE- HE-DXL Display Control Center, Display Express Server PC, or third-party control system processor. A command is available that will send custom command strings from the RS-232 serial com port.
Page 9: On-Screen Text Menus
Set the mode for the channel scan Analog & Digital | Analog, Keep Digital | Analog, Del Digital Digital, Keep Analog | Digital, Del Analog Chan Scan Press Select to initiate channel scan Page | 9 ATSC-mini HDTV Tuner Product Manual 042025...
Page 10: Network Menu
Press Select to initiate channel scan Analog channels will be scanned first, then digital channels. The channel list will be populated as channels are found. Press Select during scan to skip analog channels. Page | 10 ATSC-mini HDTV Tuner Product Manual 042025...
Page 11: Favorite Channels
Color — 8 shades of background, foreground, and edge colors Opacity — foreground and background Edge — 6 style options Version Info Displays the hardware type of the decoder/demodulator board and HD firmware version. Also displays the AC-3 firmware version. Page | 11 ATSC-mini HDTV Tuner Product Manual 042025...
Page 12 Screen Format —16:9 or 4:3  Time  Sound Settings  Video Noise Reduction — Available only for analog channels  Menu Language Screen Format Select the appropriate aspect ratio for the connected display. Page | 12 ATSC-mini HDTV Tuner Product Manual 042025...
Page 13 On-screen Info banner may be accessed by the following:  Info button press on IR remote or control web page  Hold Select button on the front panel  RS-232 command Page | 13 ATSC-mini HDTV Tuner Product Manual 042025...
Page 14 Guide button press on IR remote  RS-232 command Use Up/Down to highlight a program. Info button press or equivalent will bring up a program description. Guide list is limited to twelve hours of programming. Page | 14 ATSC-mini HDTV Tuner Product Manual 042025...
Page 15: Hd3-Rc Handheld Ir Remote
9. HD3-RC Handheld IR Remote The optional HD3-RC IR Remote (5024-004) may be used for setup of the ATSC-mini and for daily operation. The ATSC-mini is equipped with a front panel IR sensor and a rear panel IR input jack for connection to an optional IR-RXD (5034-001) or compatible remote IR receiver. Each of the functions on the remote have equivalent commands in RS-232 and wired IR formats.
Page 16: Edit Ip Address Settings
11. Web Pages The ATSC-mini has on-board web pages for control, monitoring, and configuration. The web pages may be accessed using a web browser by entering the unit’s IP address in the browser’s address field. The web pages may also be accessed through CR Toolbox. Double-clicking on a tuner in the equipment list will launch the default web browser and navigate to the tuner.
Page 17  Press Up or Down until Firmware is displayed, then press Select.  Press Up or Down until ATSC-mini V1.xx is displayed in the lower row of text.  Simultaneously press Power and Up. Alternately, the factory default settings may be reloaded by RS-232 serial command string. Refer to Section 12 for additional information.
Page 18 Control Web Page Network Web Page A/V Web Page Page | 18 ATSC-mini HDTV Tuner Product Manual 042025...
Page 19 About Web Page Page | 19 ATSC-mini HDTV Tuner Product Manual 042025...
Page 20: Bidirectional Rs-232/Telnet/Udp Control Protocol
Communications parameters are 1200 to 230,400 baud, 8 data bits, no parity, and 1 stop bit. Factory default is 9600 baud. All settings are saved to NVRAM in the ATSC-mini tuner. The RS-232 port will accept non-standard control such as voltage that swings from 0 to +5 VDC, commonly found when IR ports are used to send RS-232 commands.
Page 21 XA=<major>,<minor>,<physical> Add channel to list Examples: >XA=38,1,0 adds 38‐1, physical channel 0 will be the same as major >XA=8,0,13 adds virtual channel 8, found on physical channel 13 Channel delete XD=<major>,<minor> Remove channel from list Page | 21 ATSC-mini HDTV Tuner Product Manual 042025...
Page 22 Define Telnet port UDP Reply Enables reply string to UDP port 31932 UDP Reply Disable reply strings UDP port 31932 (default) Web Page Disable 0=Web Page Access Enable 1=Web Page Access Disable Page | 22 ATSC-mini HDTV Tuner Product Manual 042025...
Page 23 156=16:9 Ratio Full Wide 85=Audio 4:3 Ratio Full 88=Favorite 157=16:9 Ratio V Zoom 95=List 4:3 Ratio H Zoom 96=Add/Delete Channel 158=AC=3 98=Air/Cable 159=PCM 99=Dash 160=PCM Variable 100=Info 161=Display 16:9 101=Previous Channel 162=Display 4:3 Page | 23 ATSC-mini HDTV Tuner Product Manual 042025...
Page 24 < The ATSC-mini channel status is split into Major Channel and Minor Channel sections. The Minor Channel will always be 000 for analog channels. The Minor Channel status will display “F00” if the Major channel is a special “one-part” digital channel. Also, as one-part channels can go higher than 999, the Minor status will indicate how many thousands (up to 63) should be added to the Major number.
Page 25: Unidirectional Icc-Net Control Protocol
The ATSC-mini will respond to ICC-Net protocol command strings sent from an ICE-HE-DXL, IP-DXL, Display Express Server, or third-party control system processor. The ATSC-mini is compatible with iCC-Net commands sent via Ethernet. The unit is not compatible with iCC-Net commands sent over the RF network.
Page 26 All display controllers will respond to a command sent to this display device number Setting the Display Device Number via Web Page The device number may be set in the Network web page. The display device number is entered in four-digit decimal format. Page | 26 ATSC-mini HDTV Tuner Product Manual 042025...
Page 27 RTI = Select port, Hex mode, enter A5 01 18 05 54 48 02 0C 03 - Note that when you go back to normal editing mode, the app inserts a \x before each Hex character. Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart. Page | 27 ATSC-mini HDTV Tuner Product Manual 042025...
Page 28 "$A5,1,183,10,'UX','m c ',$00,$20,$AF,$0D" Display 439, sends command in hex 6D 63 20 00 20 AF 0D. This is the string for an LG TV to set the display mode to zoom. Page | 28 ATSC-mini HDTV Tuner Product Manual 042025...
Page 29: Firmware Update
Download button will turn red. Click on the ATSC-mini to view connected devices. If no devices are found, verify the appropriate network adaptor has been selected from the drop-down menu and that the network adaptor and ATSC-mini devices are set for the same subnet.
Page 30: Atsc-Mini Specifications
Tip= +5 VDC (50 mA max) Ring= Input Sleeve= Ground 12VDC: Power input 11.5 to 15 VDC, 12 VDC typical, 0.6 A max 2.1 mm coaxial jack (inside center conductor positive) Page | 30 ATSC-mini HDTV Tuner Product Manual 042025...
Page 31 CC-COM-B RS-232 Null Modem Serial Cable DB-9 F to DB-9 F 6 ft. (5061-003) IR-RXD External IR Receiver (5034-001) Trademarks HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC Page | 31 ATSC-mini HDTV Tuner Product Manual 042025...
Page 32: Safety Instructions And Warranty
National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible. Page | 32 ATSC-mini HDTV Tuner Product Manual 042025...
Page 33 Product Service: Contemporary Research will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Contemporary Research will test, and then repair the product or products. The parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
Page 34 The RMA number must appear clearly on the shipping label when the product is returned.  Products received at Contemporary Research that do not have a valid RMA number clearly marked on the outside of the shipping container may be refused and returned to sender.
