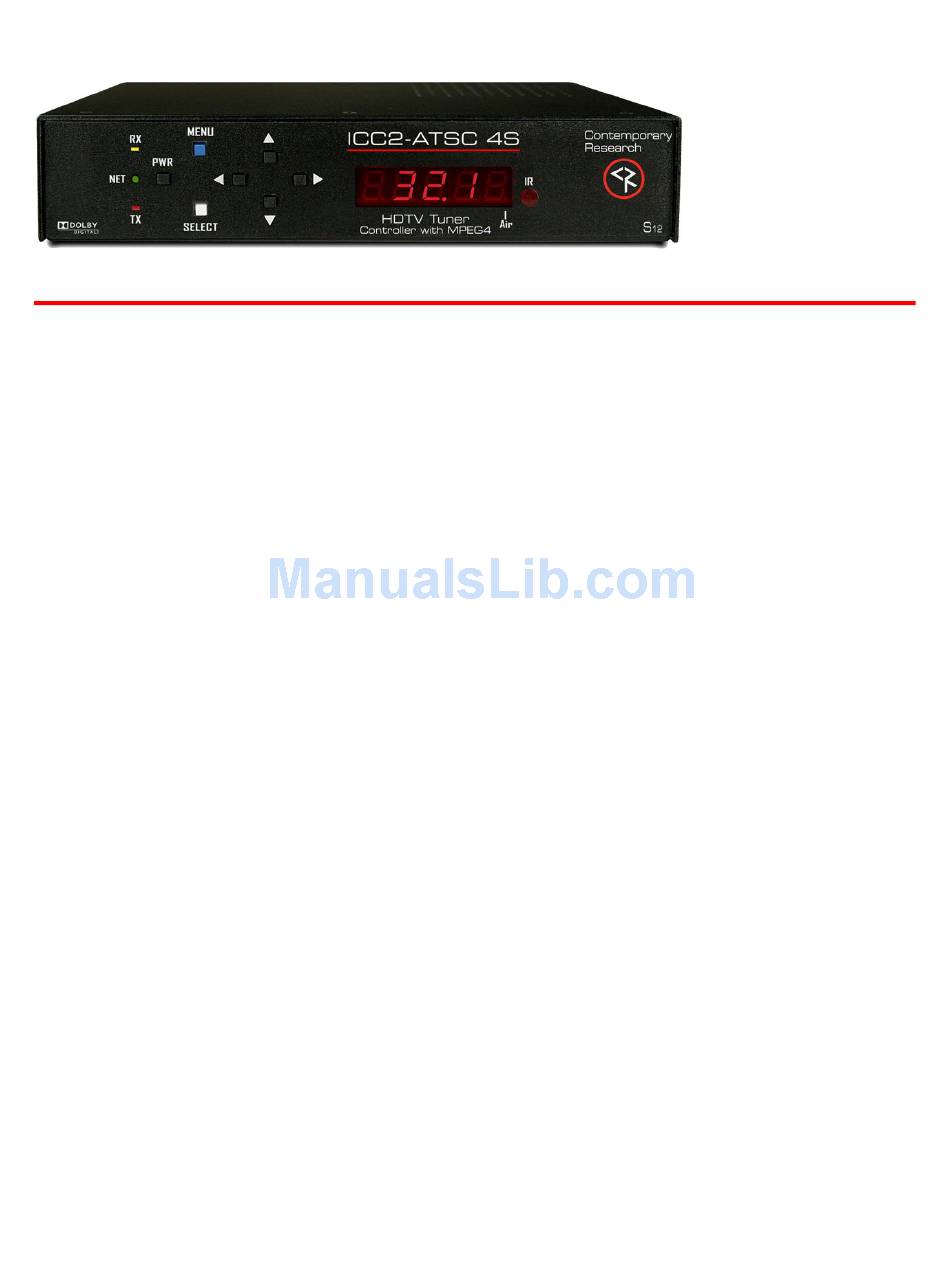

- Page 1 Product Manual ICC2-ATSC 4S/ICC2-ATSC 4 HDTV Tuner/Controller October 3, 2017 S12 Control Version 6.9 HD Processor Version 6.38 Contemporary Research ICC2-ATSC 4S...
-
Page 2: Table Of Contents
Caption Menus ............................... 20 V-Chip Settings Menus ............................20 Setup Menus ................................. 21 Overview .................................. 23 Specifications ................................24 Physical – ICC2-ATSC 4S ............................24 Physical – ICC2-ATSC 4 ............................24 Front Panel ................................24 Rear Panel ................................25 Tuning .................................. 25 Includes ................................ -
Page 3: Setup Guide
• ICC-Net commands from Display Express, iC Send software, or custom control system The ICC2-ATSC 4S is designed to offer advanced analog/digital tuning, yet be compatible with existing iCC-Net systems. IR Remote Operation The optional HD2-RC IR Remote is designed for control and setup of ATSC-series HDTV tuners, and normally, the tuner will respond to the remote in the same way as other ATSC-series tuners. -
Page 4: Faq
Display Express or a custom control system – it is likely not at the correct address. If an All Zones command (4095) is sent, and the unit responds – the address is incorrect. Check the settings via the front panel menu, or enable the IC-RC mode to display the current setting using an IR remote. Contemporary Research ICC2-ATSC 4S... -
Page 5: Rf Wiring Options
RF Wiring Options There are two ways to wire RF feeds to the ICC2-ATSC 4S. Single RF Feed Most applications will use a single RF feed, either Cable or Air (Antenna). • Connect the RF feed to RF In on the top of the tuner. This allows the tuner to receive the iCC-Net control signal. -
Page 6: Front Panel Setup
To Enter Front Panel Programming Mode: 1. Press and hold the Power button, then press the Volume Up (Right Arrow) button 2. Release all buttons, the ICC2-ATSC 4S will now be in the front-panel programming mode. The Air LED will flash, indicating programming mode. -
Page 7: Rs-232 Control Library
RS-232 Control Library The ICC2-ATSC 4S includes a full library of make/model codes, noted by the Type number. The tuner is shipped pre-set to the type required for the order. The integrator can change the types from the front panel or IC-RC mode with an IR remote, or from a T0 command send to the tuner over RF. - Page 8 On-Screen Menus (IC-RC Mode) The remaining installation steps use the IR remote and the built-in character generator of the ICC2-ATSC 4S. 1. Change the IR Remote mode in front-panel menu 18 to IC-RC (18.0). This will enable the character generator to display the menus below.
-
Page 9: Hd2-Rc Ir Remote
A/C selects Air or Cable tuning • Fav Displays list of favorite channels • Guide displays on-screen Guide Features of many of the Special Function commands depend on whether the current channel is analog or digital. Contemporary Research ICC2-ATSC 4S... -
Page 10: Icc-Net Control Protocol
Zone 1, would be expressed as $A5, 1, 0 (first zone, device zero). A command sent to 257 would be $A5, 1, 1 (first zone, device 1 in the zone). See iCC-Net Zones following this section. Contemporary Research ICC2-ATSC 4S... -
Page 11: Writing Your Own Control Code
RTI = Select port, Hex mode, enter A5 01 04 05 54 48 02 02 03 - note that when you go back to normal editing mode, the app inserts an \x before each Hex character Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart. Contemporary Research ICC2-ATSC 4S... -
Page 12: Icc-Net Commands
Set Baud Rate 1=300 2=600 3=1200 4-2400 5=4800 6=9600 7=19200 Inputs “$A5,<dh>,<dl>,3,’LQ’,<IR Code>” (7 bytes) 200=TV/Tuner 209=RGB 2 201=Video1 210=RGB3 202=Video2 211=HDMI1 203=Video3 212=HDMI2 204=S-Video1 213=HDMI3 205=S-Video2 214=HDMI4 206=Component1 215=HDMI5 207=Component2 220=DisplayPort DTV 208=RGB 1 221=DisplayPort PC Contemporary Research ICC2-ATSC 4S... -
Page 13: Tuning
1=Caption 1 (normal setting for most captioning) 2=Caption 2 3=Caption 3 4=Caption 4 5-8= Text 1-4 (rarely used) Volume Check with CR Support to see if Control Type supports external volume control 0=Tuner volume 1=External volume (such as video projector) Contemporary Research ICC2-ATSC 4S... -
Page 14: Tuning
Moves cursor down to the first column of the next row. Text Timeout “$A5,<dh>,<dl>,3,’DQ’, <time>” (7 bytes) Sets screen timeout to specified time in seconds (1-254). If time is 0 or 255, any text on the screen will persist indefinitely, or until cleared. Contemporary Research ICC2-ATSC 4S... -
Page 15: Hd2-Rc Remote Emulation
23=Ch Dn 154=Cable 24=Vol Up 155=Aspect ratio pillar/letter box 25=Vol Dn 156=Aspect ratio full/wide 26=Vol Mute (tog) 157=Aspect ratio zoom 27=Power On 158=AC-3(Dolby 5.1) 28=Power Off 159=PCM 29=Menu 160=PCM Variable 63=Guide 161=16:9 80=Freeze 162=4:3 81=Signal 82=Ratio 85=Audio Contemporary Research ICC2-ATSC 4S... -
Page 16: Icc-Net Response
4 = Frame Search 11 = Channel 21 = Page Zone 22 = Page Room 25 = Go 21 = Attach Zone 32 = Attach Room Tip: The Menu entries are active even if the TV power is off. Contemporary Research ICC2-ATSC 4S... -
Page 17: Icc-Net Zones, Units And Device Addresses
While many applications can use just the Zone number, it’s a good practice to assign a unique Unit number to each controller in the zone This allows the system software to address individual controllers if necessary. Contemporary Research ICC2-ATSC 4S... -
Page 18: System Map
1024 E253 1025 E254 1026 Cafes 1280 G100 1281 G150 1282 G151 1283 Entrance 1536 TV 1 1537 TV 2 1538 Hallways 1792 1793 1794 1795 1796 Concession 2048 Lower 2049 Upper 2050 All Zones 4095 Contemporary Research ICC2-ATSC 4S... -
Page 19: On-Screen Menus
Menu is also displayed from the List command, selects channels advanced by the FAV Favorite Channels favorite channel command. Use the Up, Down arrows to move through the list, press Select to add a channel to Favorites. Contemporary Research ICC2-ATSC 4S... -
Page 20: Caption Menus
Opacity – foreground and background • Edge – 6 style options Version displays current version of tuner firmware V-Chip Settings Menus Manages access to programming for US and Canadian standards. The default PIN number for access is 0000 (four zeros). Contemporary Research ICC2-ATSC 4S... -
Page 21: Setup Menus
• Time • Sound Settings • Video Noise Reduction - On/Off (if tuned to analog) Set to On – helps to clean up analog channels • Menu Language – English, Spanish, French Contemporary Research ICC2-ATSC 4S... - Page 22 Digital Out – AC-3 (Dolby 5.1), PCM, or variable-level PCM. Set to PCM when using audio through the HDMI connection – most displays cannot decode AC-3 (Dolby 5.1). • Auto Volume – On or off Pop-Up Menus Info Guide Contemporary Research ICC2-ATSC 4S...
-
Page 23: Overview
The unit can be controlled locally with an IR remote, and can receive remote control commands over the same RF coax that carries the TV channels from an ICE-HE or an ICE-HE-DXL. The ICC2-ATSC 4S fits 2-across in 1RU rack space or can be mounted to a TV monitor or projector. -
Page 24: Specifications
Specifications Physical – ICC2-ATSC 4S Size (HWD): 8.5” [216mm] wide x 1.74” [44mm] height (1 RU) x 8.0” [203mm] deep Weight: 1.86 lbs [845 g] Enclosure: Steel with black powder coat paint Mounting: Rack mounting for one or two units side-by-side optional (RK1, RK2EZ Physical –... -
Page 25: Rear Panel
RK2EZ Dual Rack Kit, 1RU RF-AB RF A-B Switch, self-terminating, closure controlled (if system has dual Air and Cable feeds) IR-RXC External IR Receiver CC-COM or CC-232 RS-232 Control Cable CC-COM 3.5 or CC-COM 3.5x with 3.5mm mini plug Contemporary Research ICC2-ATSC 4S... -
Page 26: Safety Instructions
Limited Warranty and Disclaimer Warranty: Three (3) year limited warranty on all parts and labor for Contemporary Research manufactured products from the day of purchase by authorized dealer. Manufactured products are warranted against defects in materials and workmanship. If Contemporary Research receives notice of such defects during the warranty period, Contemporary Research will repair or replace, at its option, products that prove to be defective.
