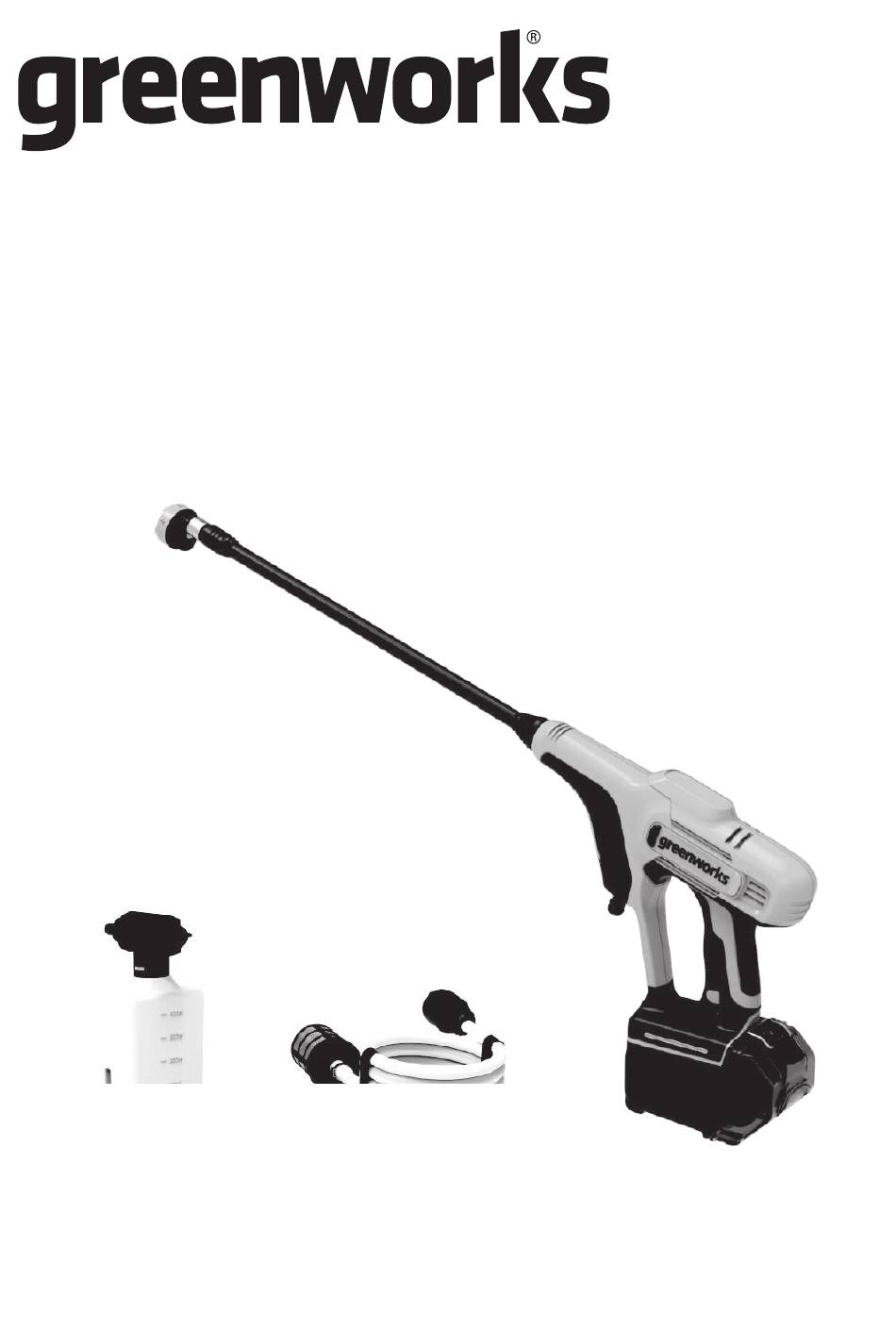

- Page 1 POWER CLEANER OPERATOR MANUAL PC24B00 www.greenworkstools.com...
-
Page 2: Table Of Contents
English Description......... 4 Use the self-siphon hose........6 Use the garden hose........... 7 Purpose.............. 4 Operation........... 7 Product overview..........4 Packing list............4 Use the power cleaner........7 General power tool safety Adjust the spray nozzle........8 5-in-1 Nozzle............. 8 warnings..........4 Install the soap applicator........ -
Page 3: Description
English DESCRIPTION • Do not overreach or stand on unstable support. Keep good footing and balance at all times. PURPOSE • Follow the maintenance instructions specified in the manual. The machine is used to used to clean vehicles, boats, • Risk of Injection or Injury–... -
Page 4: Recycle
English 5. Discard the box and packing material in compliance with SYM- SIGNAL MEANING local regulations. CAUTION Indicates a potentially hazard- INSTALL THE SPRAY WAND ous situation, which, if not avoided, may result in minor or moderate injury. CAUTION (Without Safety Alert Sym- bol) Indicates a situation that may result in property dam- age. -
Page 5: Install The Battery Pack
English INSTALL THE BATTERY PACK USE THE SELF-SIPHON HOSE 1. Add water to the bucket. 1. Pull back on the hinge lock lever (12). 2. Insert one end of the self-siphon hose (8) into the water 2. Unhook the hinge (12) from the battery door (13). inlet coupler (4). -
Page 6: Use The Garden Hose
English 2. Uncoil the garden hose. USE THE GARDEN HOSE 3. Install and tighten the end of the garden hose to the water For easy operation, please use a self-coiling garden hose (not inlet connector. provided). 4. Turn the water supply off. WARNING When you operate the self-coiling hose, make sure that the hose has no blockage. -
Page 7: Adjust The Spray Nozzle
English Mode APPLICATION Narrow fan mode (15° ) • This mode provides high versatility with 15 degree angle. It provides ade- quate pressure to remove dirt from surfaces, but is designed to not dam- age many surfaces. This mode is de- signed for “sweeping”... -
Page 8: Maintenance
English • When storing the machine and accessories, take care to NOTE prevent frost. If it is necessary, use a funnel to prevent the spill of detergent. Clean and dry the spilled detergent when you fill TROUBLESHOOTING PROBLEM POSSIBLE SOLUTION 1. - Page 9 English • When storing the machine and accessories, take care to NOTE prevent frost. If it is necessary, use a funnel to prevent the spill of detergent. Clean and dry the spilled detergent when you fill TROUBLESHOOTING PROBLEM POSSIBLE SOLUTION 1.
-
Page 10: Technical Data
480 C.U. by Greenworks. Battery Mode BAG701/BAG702/ USA address: Canadian address: BAG708/BAG709/ BAG710/BAG711/ Greenworks Tools Greenworks Tools Canada, Inc. BAG714/ P.O. Box 1238 P.O. Box 93095, Newmarket, BAG715/29842/2902702 Ontario and other BAG series Mooresville, NC 28115 L3Y 8K3 Charge Mode... -
Page 11: Exploded View
English EXPLODED VIEW Part No. Description Qty. C1107178-00 5-in-1 spray nozzle C1107024-00 Spray wand assy C1100521-00 Water inlet connector assy C1107642-00 Power Cleaner assy C1104825-00 Self-siphon hose assy C1104657-00 Detergent tank 33201671 Spray tip cleaning tool... - Page 12 www.greenworkstools.com P0803662-01 Rev B2...
