A&D FS-i Series Instruction Manual

A&D FS-i Series Instruction Manual

Check weighing scales
Hide thumbs Also See for FS-i Series:

Advertisement

Quick Links

Download this manual
Check Weighing Scales
FS-6Ki
FS-15Ki
FS-30Ki
1WMPD4001332C

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS-i Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A&D FS-i Series

Summary of Contents for A&D FS-i Series

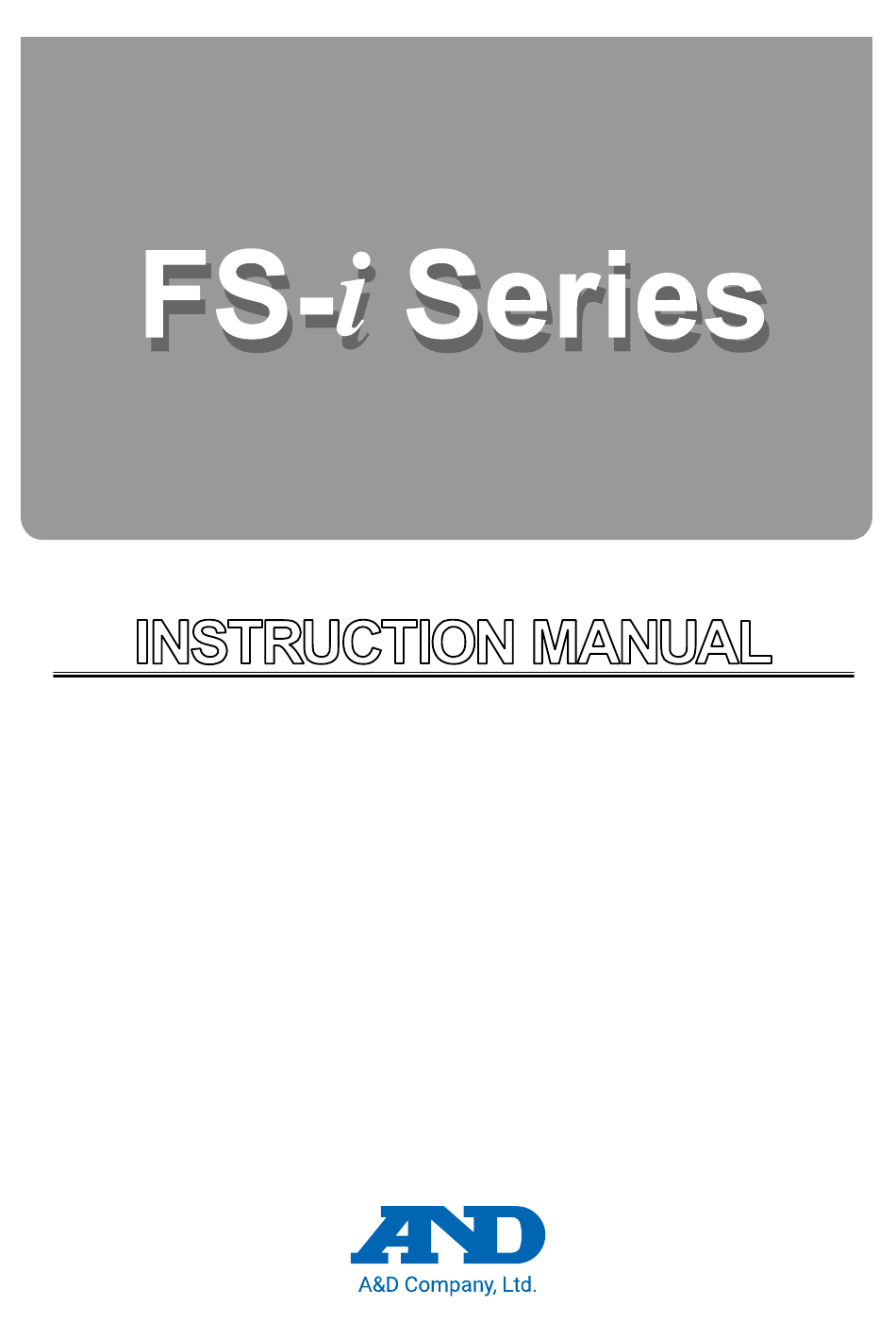

  • Page 1 Check Weighing Scales FS-6Ki FS-15Ki FS-30Ki 1WMPD4001332C...
  • Page 2 This Manual and Marks All safety messages are identified by the following, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: A potentially hazardous situation which, if not avoided, could result in WARNING death or serious injury.

  • Page 3: Table Of Contents

    Contents 1. COMPLIANCE ....................5 2. INTRODUCTION ....................6 3. UNPACKING ....................6 4. CAUTION ......................7 4-1. Precautions for Installing the Scale ............7 4-2. Precautions for Operating the Scale ............7 4-3. Precautions for Storing the Scale .............. 7 5.
  • Page 4 13-2. FS-03i Specifications ................35 13-3. Command Mode ..................38 13-4. Using UFC (Universal Flex Coms) function ........... 42 14. FS-04i RS-422 / 485 / RELAY OUTPUT ............45 14-1. Installation ..................... 45 14-2. FS-04i Specifications ................46 14-3. Data output .................... 47 15.

  • Page 5: Compliance

    1. COMPLIANCE Compliance with FCC rules  Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of Class A digital devices pursuant to Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when equipment is operated in a commercial environment.

  • Page 6: Introduction

    FS-i series check weighing scales have the following features:  The FS-i series has three kinds of weight display resolution, 1/3,000, 1/6,000 (~1/7,500) and 1/12,000 (~1/15,000) to cover various applications.  There are 2 sizes of weighing pan. The FS-30Ki has a larger pan and the FS-6Ki / FS-15Ki has a smaller pan.

  • Page 7: Caution

    4. CAUTION 4-1. Precautions for Installing the Scale  Ground the scale so that the user will not be subjected an electric shock.  Do not handle the main power cord with wet hands.  The AC plug is not water-resistant. Install it in an area where it does not get wet. ...

  • Page 8: Setting Up

    5. SETTING UP 5-1. Attaching a display pod to the display support column 1. Take out whole of the scale from the box taking care not to pull the load cell cable. 2. Remove 2 clamps and 2 M4x12 screws. Display pod 3.

  • Page 9: Names And Functions

    6. NAMES AND FUNCTIONS Display pod (SUS304) CAL switch cover Cable hook Display column (SUS304) Earth terminal Weighing pan (SUS304) Column support foot Spirit level Leveling foot...
  • Page 10 WEIGHT DATA DISPLAY. This display shows the weight on the weighing pan. WEIGHING UNIT INDICATOR. This display area shows the weighing unit in use. ANALOG WEIGHT DISPLAY. This scale has a 60 segments analog sweep display representing zero to full scale when the simple weighing mode display is selected.
  • Page 11 Description of Key Operations ON/OFF Key The ON/OFF key turn the power on or off. When turned on, the scale will be automatically set to zero (power-on zero). ZERO / ± Key The ZERO key zeros the scale when the weight is stable (STABLE annunciator ON).
  • Page 12 STORE / 4 Key The STORE key is used to store target weight and/or HI/LO limits. In the data entry sequence this key displays the number DISP. / 3 Key When the DISP. key is pressed the analog weight display steps through the 4 available modes of simple weighing, target weighing, limit check weighing and display off.

  • Page 13: Basic Operation

    7. BASIC OPERATION 7-1. Turning the power ON and OFF 1. Press the ON/OFF key to turn the power ON. All the display symbols are displayed and the scale waits for the weighing data to become stable. After the weighing value internally becomes stable, the display turns off for a moment and zero is shown with the ZERO annunciator (power-on zero).

  • Page 14: Weighing With Preset Tare

    Note for the Legal for Trade Models  The range for power-on zero is within ±10% of the weighing capacity around the calibrated zero point.  The ZERO key will zero the scale if the weight is within ±2% of the weighing capacity around the power-on zero point.

  • Page 15: Weight Display Resolution

    7-6. Weight display resolution The FS-i series has three kinds of weight display resolution, NORMAL, HIGH and HIGHER. The following is about “kg” and “lb” display for reference. See the “15. SPECIFICATIONS” in detail. NORMAL: 1/3,000 HIGH: 1/6,000 ~ 1/7,500 (depending on capacity)

  • Page 16: Check Weighing

    8. CHECK WEIGHING The FS-i series provides for easy check weighing of products. There are two comparison modes according to number of parameters to set, “Target weight setting mode” and “Upper & lower limits weight setting mode”. The comparator results are indicated by HI (yellow), OK (green) or LO (red) lights on the display.
  • Page 17 Setting the target weight by sample -000. 0 00 1. Press the ZERO key to zero the weight display if necessary. ◄ 2. Place the sample on the weighing pan. The display -003. 0 00 shows the sample item’s weight. 3.
  • Page 18 5tored 4. The display shows for a few seconds and returns to weighing mode. -000. 0 40 5. Press the key. Then, the last LO limit weight entered will flash and the left part of analog display turns on. 6. Enter the LO limit weight via the 10-key pad. -000.

  • Page 19: Upper & Lower Limits Weight Setting Mode

    5. Press the key. Then, the last LO % weight -0000 . 6 0 entered will flash and the left part of analog display turns on. 6. Enter the LO limit weight via the 10-key pad. -0000 . 5 0 ...

  • Page 20: The Comparator Memory

    3. Press the ENT key to store the HI limit weight in memory. -5tored 5tored 4. The display shows for a few seconds and returns to weighing mode. 5. Press the key and the last LO limit weight -003. 5 60 entered will flash.
  • Page 21 Recalling a set of limits from memory 1. Press the RECALL key. Then the display will -frd-00 show rd 00 . 2. Press the memory number, for example 3. -frd-03  If you stop to recall, press the key, the scale returns to the weighing mode.

  • Page 22: Auto-Tare Function

    8-4. AUTO-TARE FUNCTION The auto-tare function will be used with comparator function enabled. If the weight value is within the OK range and stable for seconds of time, then the scale will automatically tare the weight and show zero. The Function “f22” designates the timing to tare automatically.

  • Page 23: Analog Sweep Display

    9. ANALOG SWEEP DISPLAY The FS-i series has a 60 segments analog sweep display. The DISP. key switches its display mode. Simple weighing display Except the UPPER & LOWER Target weighing display LIMIT WEIGHT SETTING MODE (F07-0). Limit check weighing display Analog display OFF ...

  • Page 24: Example Of The Analog Sweep Display

    9-2. Example of the analog sweep display Simple weighing display mode 00005 . 0 0 FS-30Ki / d=0.01 kg NET ◄ TARGET WEIGHT SETTING MODE ◄ ZERO (F07-1 or F07-2) Target weight Target weight = 15.00 kg Net weight display (tare entered) 00015 .
  • Page 25 Below the lower limit FS-30Ki / d=0.01 kg 00009 . 8 0 UPPER & LOWER LIMIT WEIGHT SETTING MODE (F07-0) Target weight = 5.00 kg Upper limit HI = 10.10 kg, LO = 9.91 kg Lower limit Within the limits Above the upper limit 00010 .

  • Page 26: Sensitivity Adjustment

    10. Sensitivity Adjustment This function adjusts the scale for accurate weighing. Calibrate the scale in the following cases. (CAL) switch  When the scale is first used. CAL switch  When the scale has been moved. cover  When the ambient environment has changed.

  • Page 27: Gravity Acceleration Correction

    7. To calibrate with the different weight, change the -00020. 0 0 displayed value using the 10-key pad.  If you hit the wrong number, press the C key. The value returns to the capacity and enter again. 8. Place the sensitivity adjustment weight on the pan with the same value as displayed, and wait until the STABLE annunciator turns on.

  • Page 28: Functions

    11. FUNCTIONS The scale has Function settings to expand your applications. The parameters set in the Function settings are maintained even if the power switched off. -f01-01 Function number Parameter 11-1. The procedure for setting parameters 1. Turn the power off. -f01-01 2.

  • Page 29: Function List

    11-2. Function list Item Description Function number  f 1- 0 Auto power-off disabled Auto power-off Automatically f 1- 1 Auto power-off enabled function power off  f 2- 0 Normal (1/3,000 class) Legal for trade is Display f 2- 1 High (1/6,000~1/7,500 class) Normal only.
  • Page 30 Item Description Function number f11- 0 Stability detection Condition to Narrow  f11- 1 width detect stability f11- 2 Wide f12- 0 Stability detection Short  f12- 1 time f12- 2 Long f13- 0 Zero tracking Zero tracking OFF Legal for trade ...
  • Page 31 Item Description Function number f22- 0 Immediately after OK and stable Timing to tare Auto-tare f22- 1 automatically 0.5 sec. after OK and stable timing f22- 2  after the comp. 1.0 sec. after OK and stable f22- 3 OK and weight 1.5 sec.

  • Page 32: Hc-02I Battery

    12. HC-02i BATTERY 12-1. Using the HC-02 i SLA Battery  The scale can be operated with an SLA (Sealed Lead Acid) battery that will be commercially available.  The scale (with no other options) can be operated with a fully charged battery for; LCD backlight OFF and Comparator light OFF: approximately 80 hours LCD backlight OFF and Comparator light ON: approximately 55 hours LCD backlight ON and Comparator light ON: approximately 25 hours...
  • Page 33 1. Disconnect the main power cord from the outlet. 2. Remove the ten hexagon head screws and open the rear cover. Take care not to drop the rear cover or the wires connecting between front display and rear cover will be damaged. 3.

  • Page 34: Fs-03I Rs-232C / Relay Output

    13. FS-03i RS-232C / RELAY OUTPUT This interface allows the FS-i series to be connected with a multifunction printer or a personal computer, and the relay outputs for comparator result are obtained.  The FS-03i unit includes an interface board, a connector cable, two cable glands and two screws (M3x6).

  • Page 35: Fs-03I Specifications

    1. Disconnect the main power cord from the outlet. 2. Remove the ten hexagon screws and open the rear cover. 3. Connect the cable from external device through the cable gland to the terminal blocks on the interface board. Also connect a yellow/green wire inside the display pod directly to “FG”...
  • Page 36 Circuit diagram 1 Receive data RXD 2 Transmit data TXD 3 Data set ready DSR 4 Signal ground SG 5 Frame ground FG 6 Shield SHLD  FS-i is designed as DCE (Data Communication Equipment). 1 Relay output HI 2 Relay output LO 3 Relay output OK 4 Relay common COM Solid sate relay...
  • Page 37 Data output mode (F06)  Stream Mode (F06-0) Data is sent continuously. The data-update rate is approximately 20 times per second. But for 2400 bps, it is too slow to send 20 times. If necessary, set the baud rate 4800 bps or more.

  • Page 38: Command Mode

    13-3. Command Mode  In the command mode, the scale is controlled by commands that come from an external device, computer etc. Command List Command Definition Notes Send data immediately. Zero the scale when the weight is stable. Same as the ZERO key. Tare the scale when the data is stable.
  • Page 39  Tare the scale. (No reply for F20-1.) Command Reply The scale shows positive and stable data.  Switch the weighing unit. (No reply for F20-1.) Command Switch the weighing unit to the next weighing unit. Reply  Switch the analog sweep display mode. (No reply for F20-1.) Command Reply Switch the display mode to the next display mode.
  • Page 40  Send a HI limit value or upper limit weight in-use. Command ? H I C Reply , + 0 0 0 3 . 0 5 0 _ k g C Upper limit weight (F07-0) , + 0 0 0 0 . 0 5 0 _ k g C HI limit weight (F07-1) , + 0 0 0 0 1 .
  • Page 41 F07-2 is set, the command should have “+” and 5 digit number without decimal point. Command L O , + 0 0 1 0 0 C Assume 2 decimal place number. Reply L O , + 0 0 1 0 0 C 1.00% will be set as LO limit %.

  • Page 42: Using Ufc (Universal Flex Coms) Function

     The scale is not in a state where a command could be executed. Then, the scale will reply “I”. Command Reply The scale is not within the zero range or unstable.  Command does not exist for the scale. Then, the scale will reply “?”. Command Undefined command for the scale.
  • Page 43  These parameters must be used in capital letters.  ASCII text string A text string is described in single quote marks as ‘Data’. The single quote itself is written as ’’(2 single quotes). Example: Text ABC is described as ‘ABC’. Text ‘ABC’...
  • Page 44 (FS-i  AD-8127) (Computer  FS-i ) PF,‘Weight’,$CR,$LF,& Weight $SP 4,$WT,$CR,$LF,& üüüüüüü+1.234ükg ‘CHECK’,$CR,$LF,& CHECK $SP 7 ,$CP,$CR,$LF,& üüüüüüüOK $CR,$LF,& #1B,#44,$CR,$LF,& DATEü09/18/2006 #1B,#54,$CR,$LF,& TIMEüüü12:34:56 $CR,$LF,& ‘ ~~ A&D ~ FS-15Ki’,$CR,$LF üüA&DüFS-15Ki Terminator code "~" shows "Space.".  Normally the printer needs to receive the terminator, and do not forget to add the terminator code to the end of text data.

  • Page 45: Fs-04I Rs-422 / 485 / Relay Output

    14. FS-04i RS-422 / 485 / RELAY OUTPUT This interface allows a personal computer to connect and control up to 16 FS-i scales, and the relay outputs for comparator result are obtained.  The FS-04i unit includes an interface board, a connector cable, two cable glands and two screws (M3x6).

  • Page 46: Fs-04I Specifications

     Installation is similar to the FS-03i. See “13-1. Installation”.  Set the function parameters F04, F05, F06, F18, F19 and F20 according your application.  The function setting F19-1 must be set for RS-422 and F19-2 must be RS-485. To connect more than one scale with a computer, set a different address to each scale by F18-##.

  • Page 47: Example Of Connection

    Example of connection RS-422 RS-485 Terminator (may be Terminator (may be built in the computer). built in the computer). Host computer Host computer FS-i FS-i Address 01 Address 01 (F18-01) (F18-01) FS-i FS-i Address 02 Address 02 (F18-02) (F18-02) FS-i FS-i Address 16 Address 16...
  • Page 48 Examples of command and reply ( “_” shows “Space” (20H).) Following examples are for F20-0 (Reply to command is sent.) The address ## = 23 (F18-23).  Request a weight data. Command @ 2 3 Q C Reply @ 2 3 S T , + 0 0 1 2 . 3 4 5 _ k g C Stable data @ 2 3 U S , + 0 0 0 7 .

  • Page 49: Specifications

    15. SPECIFICATIONS 15-1. Specifications MODEL FS-6Ki FS-15Ki FS-30Ki Capacity 0.002 * 0.005 * 0.01 * Min. display 0.001 0.002 0.005 0.0005 0.001 0.002 Capacity 6000 15000 30000 10 * Min. display Capacity 0.005 * 0.01 * 0.02 * Min. display 0.002 0.005 0.01...

  • Page 50: Dimensions

    15-2. Dimensions FS-6Ki FS-15Ki FS-30Ki Unit: mm...

  • Page 51: Gravity Acceleration Map

    16. GRAVITY ACCELERATION MAP Values of gravity at various locations Amsterdam 9.813 m/s Manila 9.784 m/s Athens 9.807 m/s Melbourne 9.800 m/s Auckland NZ 9.799 m/s Mexico City 9.779 m/s Bangkok 9.783 m/s Milan 9.806 m/s Birmingham 9.813 m/s New York 9.802 m/s Brussels 9.811 m/s...

  • Page 52: World Map

    World map...
  • Page 53 MEMO...
  • Page 54 MEMO...
  • Page 55 THIS PAGE INTENTIONALLY LEFT BLANK.
  • Page 56 A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 47747 Warm Springs Blvd, Fremont, California 94539, U.S.A. Tel: [1] (800) 726-3364 Weighing Support:[1] (888) 726-5931 Inspection Support:[1] (855) 332-8815 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420...
