DuTCH audio TBM1 Manual

True bypass machine

DuTCH audio TBM1 manual

Table of Contents

Need help?

Do you have a question about the TBM1 and is the answer not in the manual?

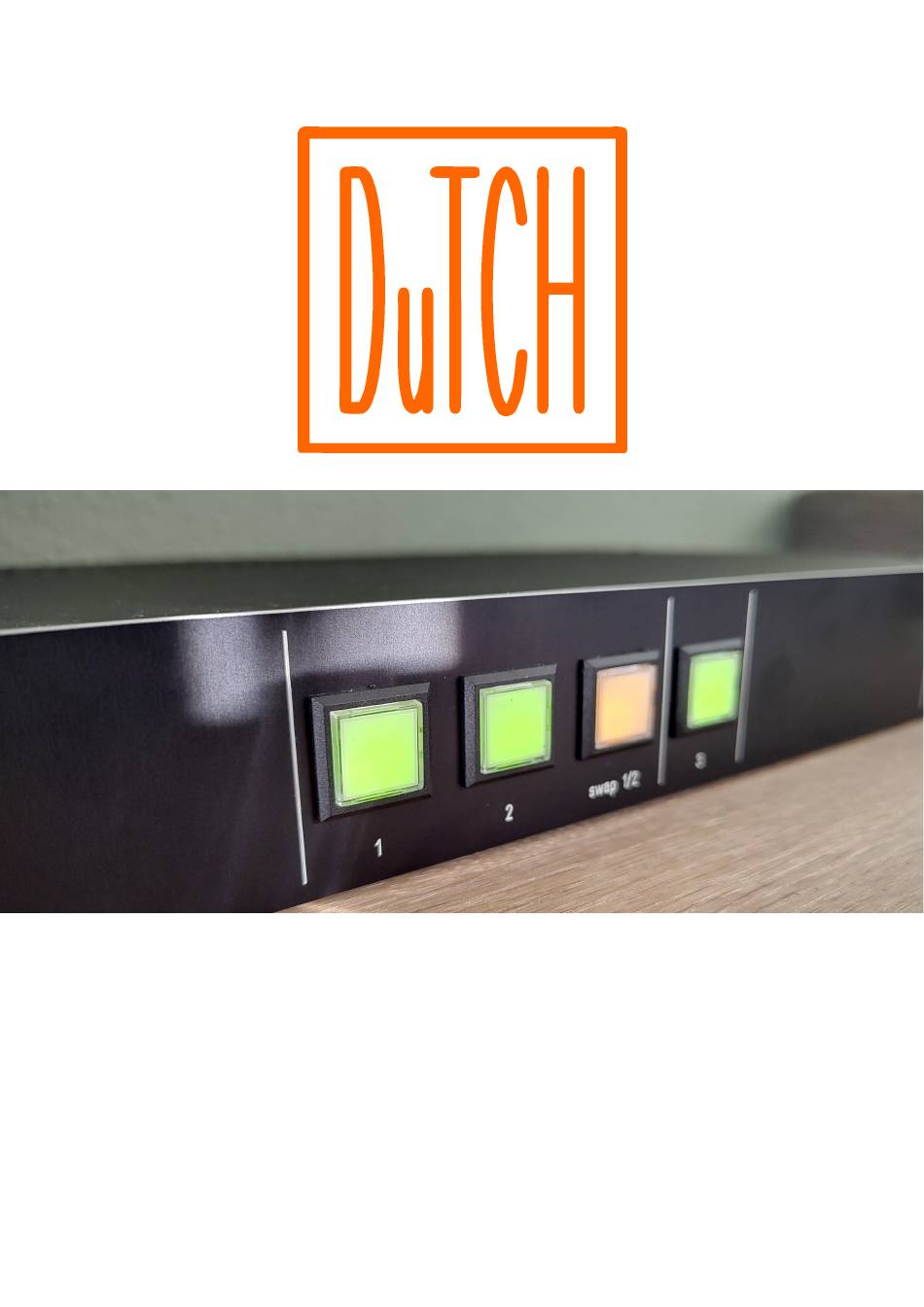

Page 1 DuTCH audio TBM1 manual...
Page 2: Important Safety Instructions
DuTCH audio TBM1 manual (v1.0 05-11-2024) Introduction: Thank you for purchasing the DuTCH audio TBM1. In this manual we will explain how this device works and how to use it. Important Safety Instructions: Please follow these precautions when using this product: Read and keep these instructions.
Page 3: Operation
Operation: The TBM1 True Bypass Machine is the perfect solution for those looking to switch easily between 3 stereo processors. The TBM1 is fully passive relay-switched, designed straight- forward and delivers exceptional transparency. Buttons and functions: Insert 1 and 2: This is a 100% passive insert section with just relays.
Page 4: Service And Warranty
Remote switching: For remote switching we make use of Neutrik RJ45 connectors, any standard (cat5 and up) RJ45/UTP cable will work. Switching in/out of the inserts is done by connecting the relay coil to ground but for powering LED’s we also added a 5v line to the RJ45 connector. We can provide an optional PCB with a RJ45 socket with easy to connect switches and LED’s.
