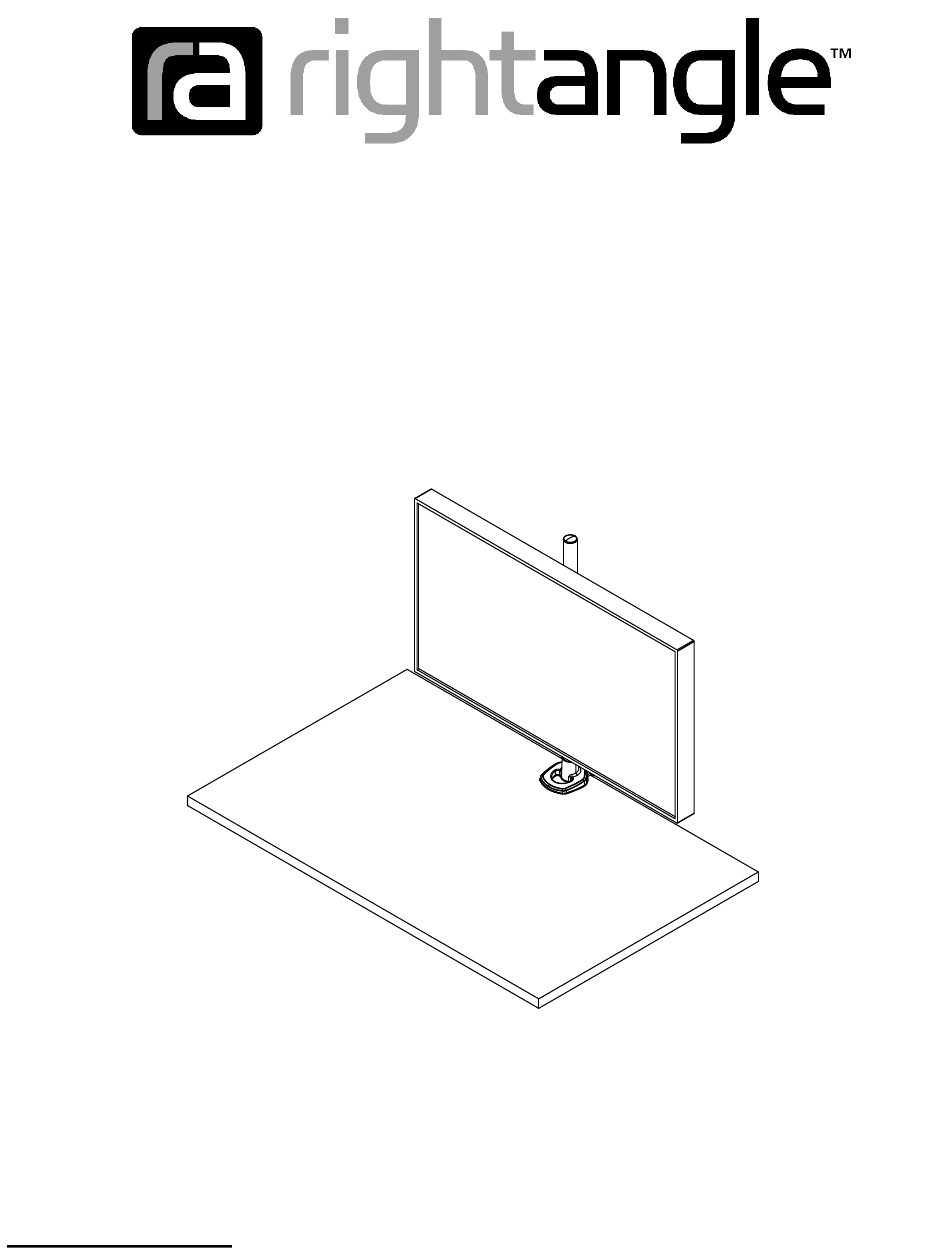

- Page 1 HSTVMT Monitor/TV Hover Mount Assembly Instructions Instruction # 53578 Page1 OF 5...
- Page 2 Tools Required for Assembly: Power Driver W/Adjustable Torque 5/32" Hex Head Driver Bit or Allen Wrench 10mm Wrench or Socket Parts ITEM # PART # DESCRIPTION QTY. 801507 Monitor/TV Hover Mounting Plate 801508 Monitor/TV Hover Side Wing 52721 M6-1.0x8mm Truss Head Machine Screw 53252 M6-1 Hex Jam Nut 3mm Thick 801510 Monitor/TV Hover Mount Pole Joint 52743 Hover 27.6"...
- Page 3 Step 1a: If you are mounting a small TV or monitor with 100mm or 200mm distance between the mounting holes, use Step 1a. This setup will not use the side wings 2 . Attach the pole joint 5 to the raised side of the mounting plate 1 using (4) machine screws 3 .
- Page 4 Step 2: Do this step only if you have a large TV or monitor with greater than 200mm between the mounting holes. Insert (4) machine screws 3 through the holes in the narrow flange of the side wings 2 and the outermost holes in the mounting plate 1 .
- Page 5 Step 4: Attach the pole 6 to the worksurface using the instructions that came with it. Step 5: With the help of an assistant, place the mounting assembly's pole joint 5 onto the pole 6 . Set it at the height desired and tighten the clamp on the pole joint.
