Page 2: The St-1 As A Ptl Remote

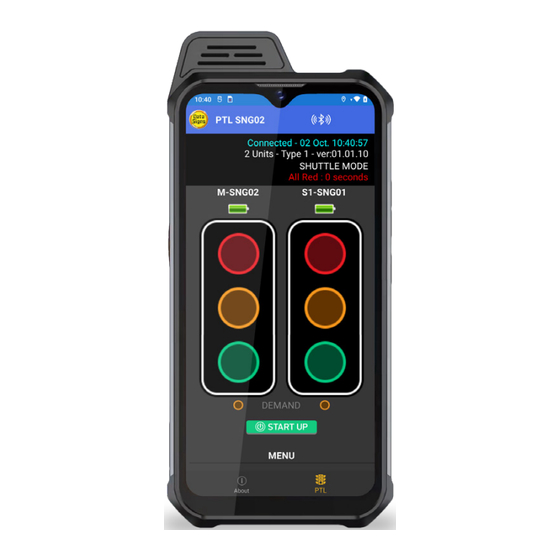

The ST-1 as a PTL Remote Your PTL Remote is normally set to pair to the Master PTL on startup, or see 'Switching ON and PAIRING the Remote'. Status screen The top line shows date and time, if this count is active your device is paired.
Page 3: Switching On And Pairing The Remote
Switching ON and PAIRING the Remote A Start-up page and sequence is displayed when the ST-1 is turned ON, this is done by pressing and holding the lower-right side button. After the Startup sequence, press the button to start the Local Connect App.
Page 4 Pairing to the PTL continued... To pair to the PTL, tap the PTL icon in the footer. If Auto Connect is enabled in Settings, the ST1 will start scanning immediately. If Auto Connect is not enabled, tap the button to begin scanning.
Page 5: Shuttle Mode
SHUTTLE MODE A demand for Green or Red signal on the Master or Slave is entered on the Remote Control unit. For Shuttle Control, on start- up, both the Master and Slave will rest on Red until a demand for Green is entered. To enter a demand for either Red or Green, tap the STOP or GO buttons on the Remote Control.
Page 6: Plant Crossing (Copy Mode)
PLANT CROSSING (OR COPY MODE) Plant-Crossing scenario is used to enable both directions of traffic flow along a roadway to be simultaneously stopped, e.g. to allow road construction vehicles (or pedestrians in a controlled environment) to cross. On start-up, the Master is Red and the Slave copies this and is also RED.
Page 7: Settings Menu
Settings Menu To change the settings, tap the button at the bottom of the screen then tap on the Settings Menu button: • Logging Enabled – enables logging to diagnose issues • Auto Connect – will automatically connect with the last connected device •...
Page 8: Press-To-Talk Walkie Talkie
Press-to-Talk Walkie Talkie Push-To-Talk (PTT) is a new feature in DS-LCT that allows users to communicate with each other. PTT uses a special (orange) button on the ST-1 and requires internet access. Log into DS-Live and go to the >...
Page 9 After connecting to a Secure Channel, push the orange PTT button on the ST-1 to communicate. P T L - S T - 1 O P E R A T I O N S M A N U A L...
Page 10: Battery And Charging The
Also as referred to as Master. Suggestions & Improvements Data Signs develops its products with the end users in mind. As such, we are always open to suggestions for product improvement. Contact Data Signs, Head Office in Australia at: datasigns.com.au/help Disclaimer The information contained in this document is proprietary information of Data Signs Pty Ltd unless otherwise indicated.
Page 11 APPENDIX A Cycle and Phase Intervals for Shuttle and Plant Crossing Modes MASTER PHASE SHUTTLE OPERATION GREEN MASTER FLASHING BEACON MASTER SIGNAL DISPLAY RADIO LINK SLAVE SIGNAL DISPLAY SLAVE FLASHING BEACON GREEN SLAVE PHASE CYCLE GREEN PHASE PLANT CROSSING or COPY Mode GREEN MASTER FLASHING BEACON MASTER SIGNAL DISPLAY...
