Summary of Contents for Kogan NBROTATOOLA

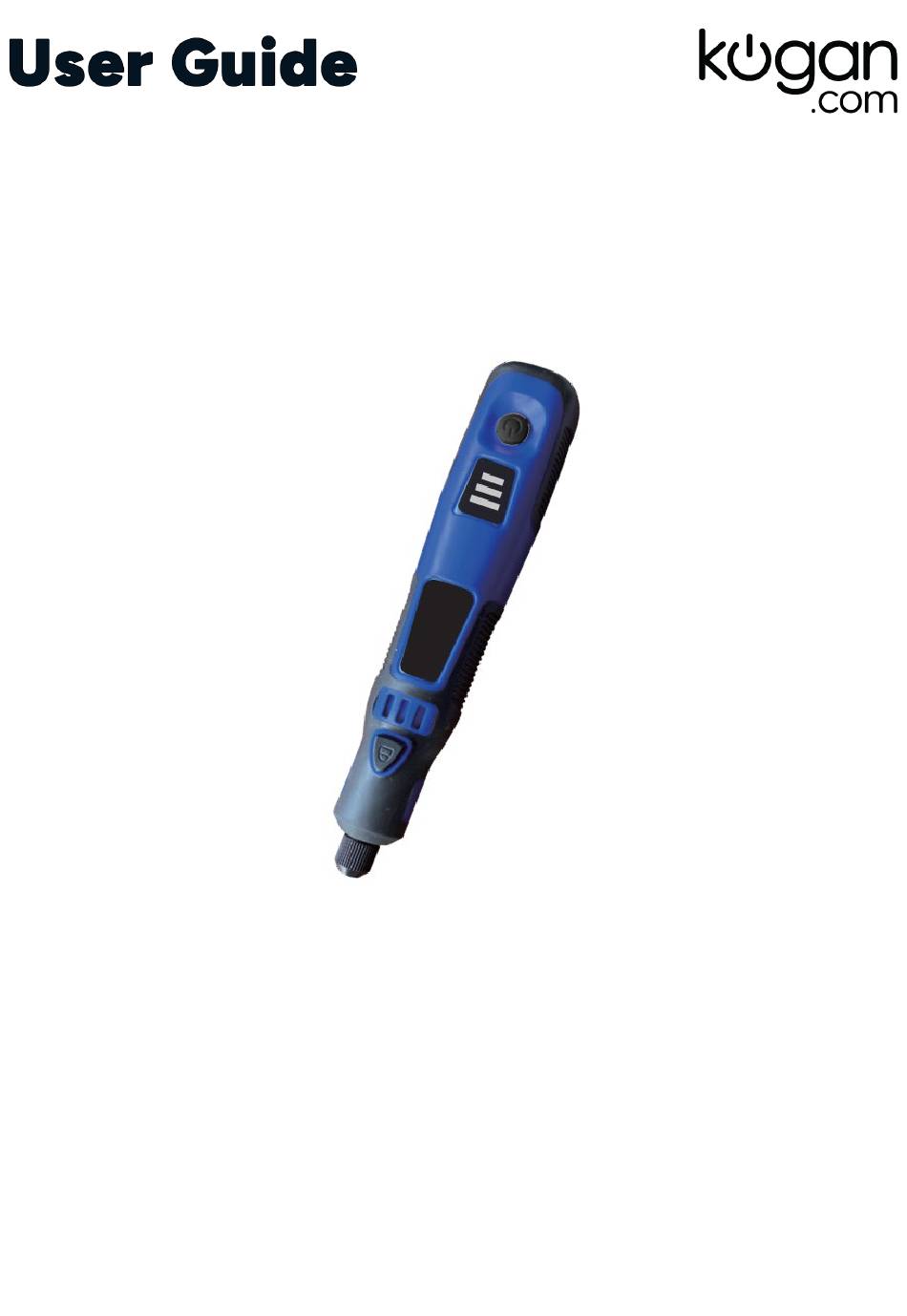

- Page 1 Mini Cordless Rotary Tool Kit NBROTATOOLA...
-
Page 2: Table Of Contents
Safety & Warnings Overview Operation Cleaning & Care Specifications Notes... -
Page 3: Safety & Warnings
Safety & Warnings Please read these instructions Please use hearing protection Please use eye protection Please use a dust mask Warning • Read all safety warnings and all instructions and retain this user guide for future reference. • Violation of warnings and instructions may result in an electric shock fire or serious injury. - Page 4 Electronic Security • The plug of an electric tool must match the outlet. Do not modify the plug in any way. Do not share a grounded plug with a non-grounded adapter. Original plugs and matching outlets can reduce the risk of electric shock. •...
- Page 5 Use and Repair of Battery Tools • Charge only using the charger specified by Kogan.com. If the charger is suitable for one type of battery pack, there may be a fire risk when used for other types of battery packs.
-
Page 6: Safety Instructions For All Operations
• Do not use accessories that are not specifically designed and recommended by Kogan.com. Even if the accessory can be connected to your power tool, it does not ensure safe operation. • The rated speed of the grinding parts shall be at least equal to the maximum speed marked on the power tool. - Page 7 • Please keep unrelated personnel at a safe distance from the work area. Anyone who wishes to enter the work area must wear personal protective equipment. Debris from workpieces or broken parts may fly out, causing injury to bystanders close to the operating area •...
- Page 8 point may enter the surface of the material and cause the grinding wheel to crawl out or rebound. The wheel may fly towards or away from the operator, depending on the direction of movement of the wheel at the sticking point. In this case, the grinding wheel may also break.
- Page 9 Grinding and Grinding Wheel Cutting Operation • Only for the type of cutting wheel recommended for your power tools and only for recommended applications. For example: do not grind with the side of the cutting wheel. Cutting wheels are suitable for peripheral grinding and the force applied to the side of the wheel may cause it to break.
- Page 10 • Steer the debris from the rotating wire brush away from you. During the process of using a wire brush, some small particles and small sections of wire may be created when turning at high speed and enter your skin. •...
-
Page 11: Overview
Overview Shaft lock button Power button Speed / Charge indicators Toggle clip Ventilator scoop Charging port Grip USB charging cable... -
Page 12: Operation
If it still does not charge properly, please send or mail the tool to the after-sales service centre. Do not use with chargers or battery packs that are not sold by Kogan.com. Battery charging Coulomb meter: This tool is equipped with an electricity meter that displays the battery level. - Page 13 Note Charging the battery for too long may cause the battery temperature to be too high and damage the battery. If the battery is too hot or too cold, the tool cannot be used. Wait until the battery returns to the normal operating temperature and continue to th t Power Button •...
- Page 14 Changing Clips Press the shaft lock key and rotate the spindle downward with your hand until it is attached to the shaft lock. Do not operate the shaft lock key while the multitool is running. When the shaft lock key is pressed, the grip nut can be loosened and removed. Use a grip wrench if necessary Remove the clip by pulling it away from the spindle.
- Page 15 Changing Accessories Press the shaft lock button and rotate the spindle by hand until it is attached to the shaft lock. Do not operate the shaft lock button while the multitool is running. When the shaft lock key is pressed, the grip nut can be loosened (do not remove). Use a grip wrench if necessary.
- Page 16 Usage The first step in using a multitool is to feel it. Hold it in your hand and feel its weight and balance. Feel the tapering base. This tapered design allows the tool to feel more like a pen or pencil. Always keep the tool away from your face.
-
Page 17: Operating Speed
Operating speed To choose the right speed for each job, first practice on similar materials. Speed control indicator light Speed control and charging indicator Speed Control • The product is equipped with a speed control key. Press the power button at the bottom of the tool during operation to adjust the speed. - Page 18 Balance Fittings For jobs that require high precision, all parts must be in good balance (very similar to the tires of a car). To calibrate or balance the fitting, slightly loosen the clip nut and turn the fitting or clip by 1/4. Tighten the clip nut and run the rotating tool. If the accessory is running in a balanced state, you will know by the sound and feel.
- Page 19 • Solid wood should be cut at high speed. • Iron or steel should be cut at high speeds. If the high-speed steel tool starts to wobble, it usually means that it is running too slowly. • Depending on the type of cut, aluminium, copper, lead, zinc and tin can be cut at different speeds.
-
Page 20: Cleaning & Care
Cleaning & Care Preventive maintenance by unauthorised personnel can cause serious problems and lead to personal injury. To avoid injury caused by accidental starting or electric shock, always remove the plug from the wall socket before performing maintenance or cleaning work. •... -
Page 21: Notes
Notes... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
