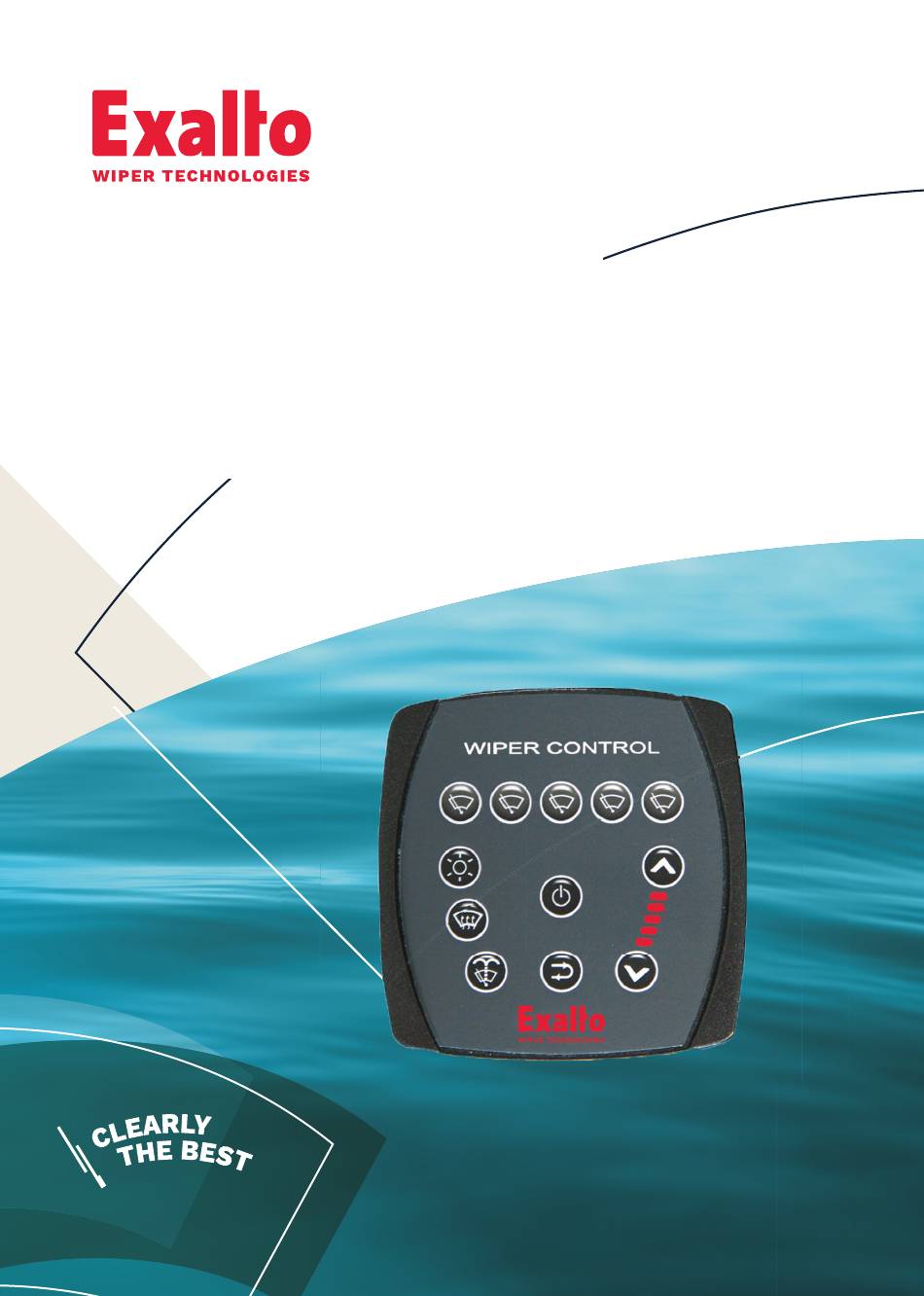

MANUAL WIPER SYSTEMS
USER MANUAL
Exalto wiper
control type CT3N
ITEM NO. 11054/12803/12808/11101
1
Exalto type CT3N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT3N Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Exalto CT3N Series

  • Page 1 MANUAL WIPER SYSTEMS USER MANUAL Exalto wiper control type CT3N ITEM NO. 11054/12803/12808/11101 Exalto type CT3N...
  • Page 2: Table Of Contents

    MANUAL WIPER SYSTEMS Contents General 1. 1 general description 1.2 standard supply 1.3 functions 1.4 power supply 1.5 technical specifi cations 1.6 declaration of conformity Installation 2.1 dimensions 2.2 installation Electric connections 3.1 general layout 3.2 wiring diagrams Wash program 4.
  • Page 3: General

    1 x 4-poles female connector for Relay box to motors connection (1 for each motor) • 1 x female 6,3mm fast-on terminal for washing pump connection • 2 x (or 4 if more than 3 wipers) female 9,5mm fast-on terminal for power supply connection Exalto type CT3N...
  • Page 4: Functions

    MANUAL WIPER SYSTEMS 1.3 Functions Single wiper ON/OFF button 2. General ON/OFF button Backlighting color and brightness button Heaters button (additional relay box required) 5. Wash /Wipe button 6. Single wipe buttonall wipers Decrease speed 8. Increase speed 9. Selected mode led bar 1.4 Power supply This wiper control is available to operate under a power supply of 12 or 24V DC.
  • Page 5: Technical Information

    MANUAL WIPER SYSTEMS 1.5 Technical information EXALTO CT3N WIPER CONTROL SYSTEM Voltage supply 10V to 30V DC Internal fuses 12A self-resetting fuse for each motor Stand-by current Less than 70 mA at 10V and less than 40 mA at 30V...
  • Page 6: Declaration Of Conformity

    MANUAL WIPER SYSTEMS 1.6 Declaration Of Conformity This wiper control is in conformity at requisition of electromagnetic compatibility and of security with directives, 2014/30/EU 9EMC) and 2011/65/EC (RoHS) Harmonize norms apply: • CEI EN 60945 ed 2003 + IEC 2018-04: MARITIME NAVIGATION EQUIPMENT AND SYS- TEMS •...
  • Page 7: Installation

    MANUAL WIPER SYSTEMS 2. Installation 2.1 Dimensions Exalto type CT3N...
  • Page 8: Installation

    MANUAL WIPER SYSTEMS 2.2 Installation The control panel is to be fi tted at a location that is within reach to allow ease of operation. Make sure that suffi cient room is available for the cables and the connectors. The required mounting hole for the control panel is 90mm dia.
  • Page 9: Electric Connections

    • Pump or solenoid connects to position WP terminal of the control box Always refer to the User Manual as supplied with the Exalto Wiper before connecting the Exalto wiper to the wiper control. The schemes detail the connections from 2 to 5 wiper motors.
  • Page 10 MANUAL WIPER SYSTEMS 11051/210321224 for 2 wipers PUMPS / HEATERS OUTPUT RELAY BOX SRM2P Additional relay box for heated window operation CONTROL 210321224 -- + CAN BUS CABLE CAVOT8XX05 L = 5 mt. WASH PUMP POWER SUPPLY...
  • Page 11 NB: Please note that for window heat, wash jet or individual screen wash an extra relay box is re- quired. This is not supplied in the standard kits and will be project specifi c. For this option please contact Exalto for further information. Exalto type CT3N...
  • Page 12: Operation

    MANUAL WIPER SYSTEMS 4. Operation 4.1 Functions and push bu ons Single wiper ON/OFF button 2. General ON/OFF button Backlighting color and brightness button Heaters button (additional relay box required) 5. Wash /Wipe button 6. Single wipe buttonall wipers Decrease speed 8.
  • Page 13: Increase/Decrease Speed And Intermittent Mod Selection

    The button 3 performs the brightness adjustment and the color selection. Pushing it momentary the brightness level will change. Four brightness levels are available. Keeping it pushed the backlighting color will change. The available colours are Red, Green, Blue. In non operational mode the panel is always illuminated. Exalto type CT3N...
  • Page 14: Power Supply

    MANUAL WIPER SYSTEMS 5. Power supply The Exalto wiper control will operate correctly if powered from 10V to 30V. Insert the motor connec- tors before applying power source. When powered the control will execute a lamp test and then will go into standby mode.
  • Page 15: Available Models

    + cable) 11051/210321224 11054/210321224.P 210321224.R 11057/210331224 12803/210331224.P 210331224.R 11070/210341224 12808/210341224.P 210341224.R CAVOT8EX05 11092/210351224 11101/210351224.P 210351224.R If the operator requires two stations, this can be completed by adding an extra panel via a CAN BUS to the relay box. Exalto type CT3N...
  • Page 16 MANUAL WIPER SYSTEMS Exalto Wiper Technologies Exalto Wiper Technologies P.O. Box 40 P.O. Box 40 3370 AA Hardinxveld-Giessendam 3370 AA Hardinxveld-Giessendam The Netherlands The Netherlands +31 (0)85 203 1700 +31 (0)85 203 1700 wipers@exalto.com wipers@exalto.com exaltowipers.com exaltowipers.com...
