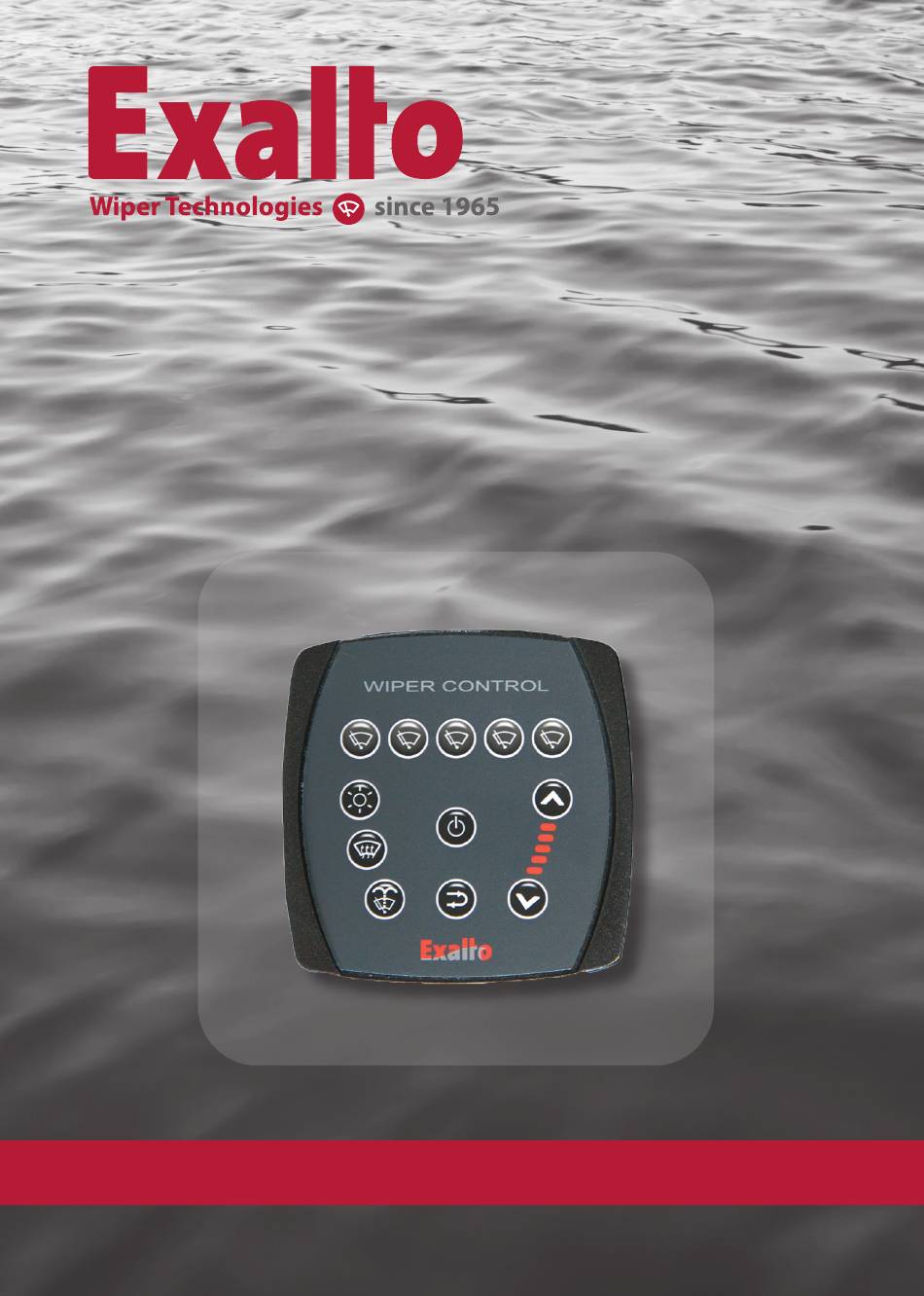

- Page 1 User manual for Exalto wiper control type CT3N (Item no. 210321224 / 210351224)
-
Page 2: Table Of Contents
4.3 increase/decrease speed and intermittent mod selection 4.4 wash/wipe program 4.5 single wipe function 4.6 heating function (optional) 4.7 backlight brightness and colour function Power supply Failures and signallings 6.1 reset function 6.2 motor fault 6.3 communication error Available models - Exalto Wiper Technologies type CT3N... -
Page 3: General Description
(1 for each motor) • 1 x female 6,3mm fast-on terminal for washing pump connection • 2 x (or 4 if more than 3 wipers) female 9,5mm fast-on terminal for power supply connection Exalto Wiper Technologies type CT3N - 3... -
Page 4: Functions
1.4 Power supply This wiper control is available to operate under a power supply of 12 or 24V DC. Check the power supply of the unit supplied, before connecting it to the ship’s elec- tric system. - Exalto Wiper Technologies type CT3N... -
Page 5: Declaration Of Conformity
This wiper control is in conformity at requisition of electromagnetic compatibility and of security with directives, 2014/30/EU 9EMC) and 2011/65/EC (RoHS) Harmonize norms apply: • CEI EN 60945 ed 2003 + IEC 2018-04: MARITIME NAVIGATION EQUIPMENT AND SYSTEMS • EN 50581 ed 2012: RoHS Exalto Wiper Technologies type CT3N - 5... -
Page 6: Dimensions
CT3N3 210331224.P 210331224.R 210331224 CT3N4 210341224.P 210341224.R 210341224 CT3N5 210351224.P 210351224.R 210351224 If user need two stations, wire up the adding panel (optional) via CAN BUS to the relay box. 2. Installation 2.1 Dimensions - Exalto Wiper Technologies type CT3N... -
Page 7: Electric Connections
3. Fix the panel to the support by the supplied bolts and connect it to the relay box by the 8-pole cable. 3. Electrical connections To make the connection between the control panel and control box a 5 mtr cat5 cable as part of the supply as standard. Exalto Wiper Technologies type CT3N - 7... -
Page 8: Wiring Diagrams
• High Speed (53B) connects to position F of the control box • Pump or solenoid connects to position WP terminal of the control box Always refer to the User Manual as supplied with the Exalto Wiper before connecting the Exalto wiper to the wiper control. - Page 9 210321224 for 2 wipers PUMPS / HEATERS OUTPUT RELAY BOX SRM2P Additional relay box for heated window operation CONTROL 210321224 -- + CAN BUS CABLE CAVOT8XX05 L = 5 mt. WASH PUMP POWER SUPPLY Exalto Wiper Technologies type CT3N - 9...
- Page 10 NB: Please note that for window heat, wash jet or individual screen wash an extra relay box is required. This is not supplied in the standard kits and will be project specific. For this option please contact Exalto for further information. - Exalto Wiper Technologies type CT3N...
-
Page 11: Functions And Push Buttons
Switching off: By selecting button 2 all wipers active will return to park position and stop. By press- ing the selected button 1 the respective wiper motor will return to park position and stop. Exalto Wiper Technologies type CT3N - 11... -
Page 12: Increase/Decrease Speed And Intermittent Mod Selection
(not supplied in standard system). The button 4 actives the heaters when pushed. To deactivate push the button again. When the heaters are active, the button is illuminated. This feature is project specific and cannot be installed to a operational system due to programming features. - Exalto Wiper Technologies type CT3N... -
Page 13: Backlight Brightness And Colour Function
Green, Blue. 5. Power supply The Exalto wiper control will operate correctly if powered from 10V to 30V. Insert the motor connectors before applying power source. When powered the control will execute a lamp test and then will go into standby mode. -
Page 14: Communication Error
210321224.R 210331224 210331224.P 210331224.R CAVOT8EX05 210341224 210341224.P 210341224.R 210351224 210351224.P 210351224.R If the operator requires two stations, this can be completed by adding an extra panel via a CAN BUS to the relay box. - Exalto Wiper Technologies type CT3N... - Page 15 Exalto Wiper Technologies type CT3N - 15...
- Page 16 Exalto Wiper Technologies B.V. Nijverheidsstraat 12 3371 XE Hardinxveld-Giessendam The Netherlands Phone: +31 (0)184 615 800 E-mail: wipers@exalto.com www.exaltowipers.com...
