Patriot VRM12 User Manual

Viewer/reader/multimedia
Hide thumbs

Advertisement

Table of Contents

Patriot
VRM12
®
Viewer/Reader/Multimedia
User Manual
1-800-364-1608
Ver 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VRM12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Patriot VRM12

Summary of Contents for Patriot VRM12

  • Page 1 Patriot VRM12 ® Viewer/Reader/Multimedia User Manual 1-800-364-1608 Ver 1.1...

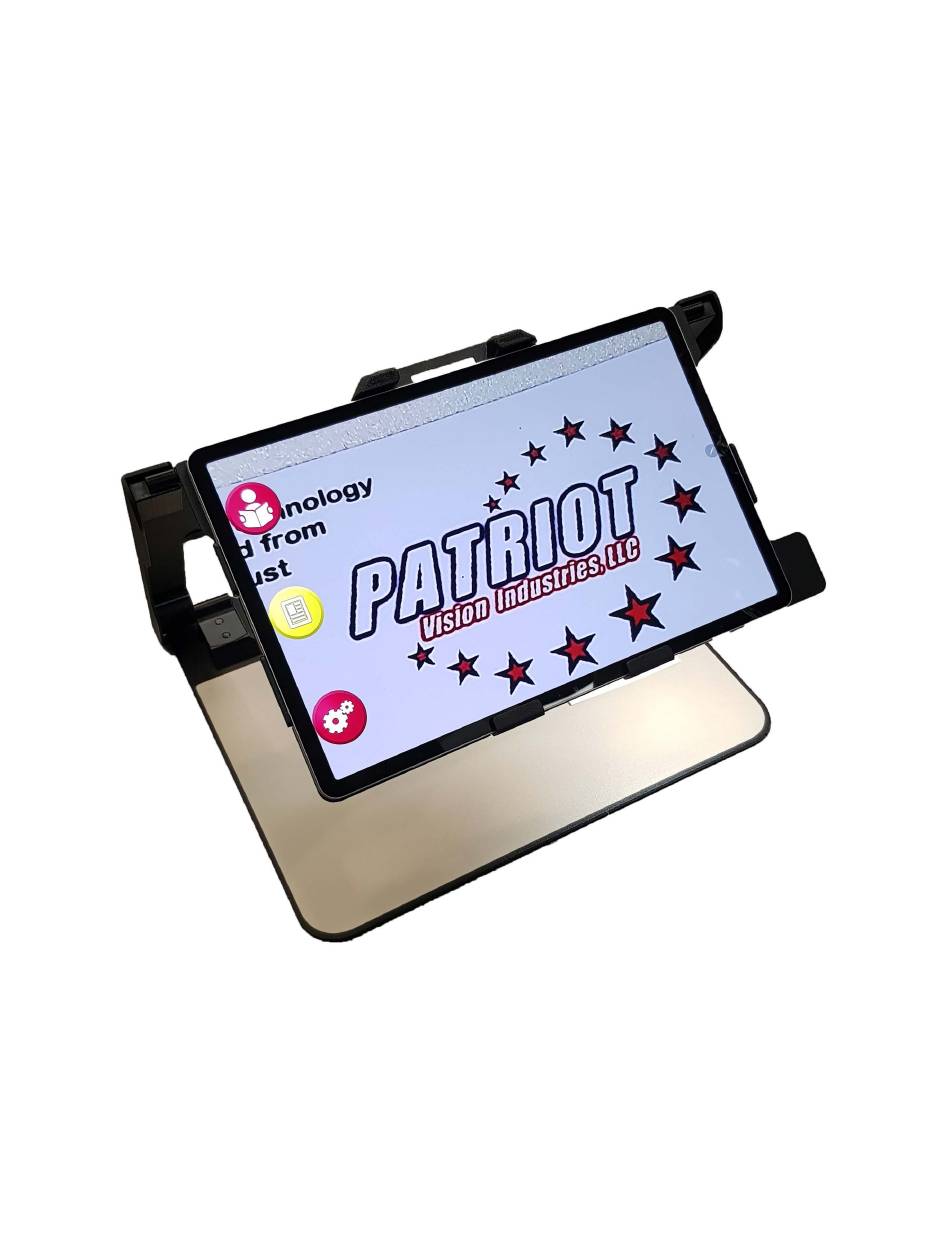

  • Page 2 What’s in The Box? Included is a 12.4” high definition touchscreen system that is mounted on a custom folding stand with adjustable torque positioning hinges, a carrying case, a power adapter for the Patriot®, a USB powering cable, and this User Manual. ‐ 1 ‐ ...

  • Page 3: Power Cable

    Power Cable One power cable is all that is required to use the Patriot®. It is a SAMSUNG® USB cable with SAMSUNG® power block. The power adapter is black with a white USB cable for charging your Patriot®.

  • Page 4: Using The Magnifier

    The Patriot® will boot directly into the magnifier, pictured below along with the image in view of what you have placed beneath the camera. Using the Magnifier: Hold your reading material under the screen with one hand. With your other hand, use one finger and single tap onto the screen to set the focus onto your reading material.
  • Page 5 Next, using three fingers single tap in succession will change the color mode as follows: Full Color Brighter Full Color Positive (Black text on white background) Negative (White text on black background) Black text on Yellow background Yellow text on Black background Black text on Green background Green text on Black background Blue text on Yellow background...

  • Page 6: Hand Gestures

    Magnifier Buttons: Switch to Reader Freeze Image Settings Menu Hand gestures: - 5 -...

  • Page 7: Using The Reader

    Using the Reader Touch the icon in the upper right corner. You will hear “Reader Started”. This will bring you to the screen pictured below along with the image in view of what you have placed beneath the camera. Raise the adjustable arm so that it is parallel to the platform below.
  • Page 8 When the document to be photographed appears centered onto the screen, then DOUBLE TAP with one finger on the center of the screen and it will photograph the document to begin the process of converting to speech. You will hear a shutter sound.
  • Page 9 Reader Buttons: Light on / off Switch to Magnifier Save picture to Reading mode Settings Read across Saved pictures columns the Patriot® "original" or "wrapped" - 8 -...

  • Page 10: Specifications

    Specifications Samsung Tab S7+ (Model #SM-T970) Android 13 12.4” WQXGA+ 120Hz Display 2800x1752 / 256 DPI FULL HD 1080P Playback and Recording GPS Location Li-Po 10,090 mAh, non-removable Battery Fast charging 25 watt IR LED 8GB RAM 128 Gig Storage (Approx. 100GB available to use) Qualcomm Snapdragon 865 CPU 8 Core - 3.09GHz Bluetooth 5.0 Headphone jack...

  • Page 11: Glossary Of Terms

    Glossary of Terms PINCH – technique using two fingers, namely the thumb and the pointer finger in a spreading apart or squeezing together manner to achieve magnification zoom in and out SWIPE – using one finger and quickly sliding across screen right left, left right DRAG –...
  • Page 12 SLEEP BUTTON – identical button as POWER BUTTON when pressed quickly puts unit to sleep and wakes unit up POWER OFF – can only be performed using POWER BUTTON by long pressing. A menu will come up asking if you want to power off or restart.
  • Page 13 ® and Magnifying America ® are registered Patriot trademarks of Low VisionAids, Inc. Patriot Vision Industries, LLC. is an affiliate manufacturer for Low VisionAids, Inc. Samsung ® is a registered trademark of Samsung, Inc. This manual is © Copyrighted 2025. All Rights Reserved.
  • Page 14 NOTES _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ -13-...
  • Page 15 Patriot® Device Registration To register you new Patriot® device, please use a mobile device to scan the QR code above. This will bring you to our website to register. Inside of the packing you will find a Product Registration Card. Please fill out this card and mail it...

  • Page 16: For Further Information

    For Further Information: Contact your authorized Patriot Dealer or us at: ® Patriot Vision Industries, LLC. 2125 SW Highway 484 Ocala, FL 34473 1-800-364-1608 Outside United States 954-629-2977 Fax 1-352-203-4617 www.patriotvision.com Email: info@patriotvision.com Dealer Inquiries Welcome   ‐   15 ‐...
