Summary of Contents for Patriot 5 EZ

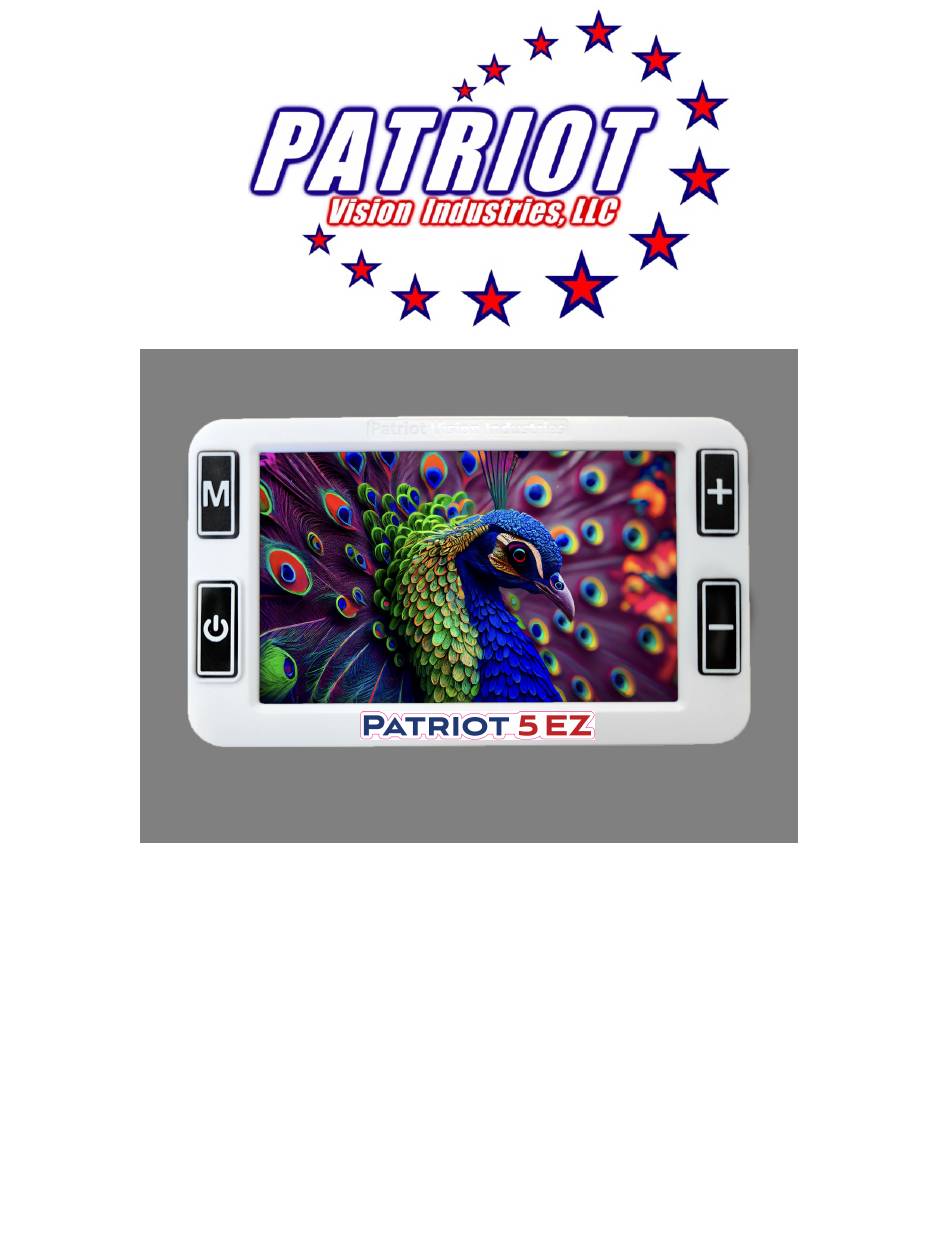

- Page 1 Patriot 5 EZ User Manual Ver 1.1...
-
Page 2: Table Of Contents
How to Use ..............7 1. Install handle ............7 2. Install battery ............8 3. Battery charging............9 4. Power on/off............. 9 5. Using Patriot 5 EZ............10 Functions Introduction ..........11 1. Color mode switch............11 2. Zoom rate adjustment..........11 3. Image freeze and unfreeze........13 4. - Page 3 6. Low battery tips..........14-15 7. Handwriting.............15 HDMI connecting to TV..........16 System Menu Guide............16 ● LCD brightness adjustment........17 ● White LED brightness adjustment......18 ● Beep volume adjustment..........18 ● Date and time setting..........19 ● Color mode setting............19 ● Battery power display..........20 ● Version information display........
-
Page 4: Welcome
Please read this manual carefully and keep it for reference. Product Features This Full HD 5.0 Patriot 5 EZ portable digital video magnifier is the most powerful and easy to use digital magnifier at an affordable price. 5 inch large anti-glare screen, 800*480 resolution, high definition ●... - Page 5 Fold out stand for angle viewing and rotatable handle. ● Handle can be relocated for left handed users. ● Multiple color modes. ● Color mode customization capable. ● Picture freeze feature. ● ● Large icon user interface. ● Backlight adjustable, White LED light brightness adjustable, suitable for reading all materials.
-
Page 6: Packaging & Accessories
Packaging & Accessories ● ● Digital video magnifier 1PC User Manual ● ● HDMI cable Protective bag ● ● USB charging cable Cleaning cloth ● Power adapter Technical Specifications ● Screen size: 5.0 HD colorful LCD screen(800*480); ● Pixel size: 8 mega pixels; Zoom rate: 2X to 32X variable;... -
Page 7: Product Illustration
Product Illustration 1.Mode button 9. Handle bracket 2.Zoom in button Left handed mount 3.Zoom out button Near focus White LED 4.Power on button Flashlight light 5.LCD Near focus lens 6.Indicator light(power/charging) Speaker 7.TYPE-C USB interface Battery cover 8.HDMI-C interface... -
Page 8: How To Use
How to Use 1. Relocate handle Option (LEFT HANDED USERS ONLY) Handle may be mounted on the opposite side for left handed use. Left hand use Right hand use 1.Loosen the handle screw and remove the handle 2.Take out the rotating shaft and the rotating shaft cover, and exchange the two positions;... -
Page 9: Install Battery
2.Install battery Rotate handle out of Install battery Close the battery cover 1.Invert Patriot 5 EZ, rotate handle out of the way from battery compartment; 2.Press the battery cover compartment and slide the battery cover off. (down); 3.Install the battery according to the positive and negative tips;... -
Page 10: Battery Charging
3.Charging light( red light) is on when charging; 4.Charging light(red light) will be off when completely charged; 5.Please charge the battery to 100% before using the Patriot 5 EZ for the first time; 6.When low battery signals, please charge the battery;... -
Page 11: Using Patriot 5 Ez
1. Long press bottom left power on button , Patriot 5 EZ will turn on, the green indicator lights up, ready to use; 2. Aim Patriot 5 EZ toward the reading material to magnify; 3. Optimal reading can be attained through adjusting magnifying power and colors;... -
Page 12: Functions Introduction
Functions Introduction 1.Color mode switch You may cycle different color modes by pressing the Mode button There are 26 different mode; 1)Color mode 10)Black on yellow 19)Orange on black 2)Color enhancement mode 11)Yellow on blue 20)Black on orange 3)Negative mode 12)Blue on yellow 21)Yellow on green 4)Monochrome mode... - Page 13 "click" sound to use;z Put away the handle after using: Put away the handle after using: Zoom in or zoom out can adjust zoom rate to achieve the best magnifying effect； Patriot 5 EZ can zoom in or zoom out variably between 2X～32X.
-
Page 14: Image Freeze And Unfreeze
Short press Power button can freeze image and can observe the image at close distance, again to unfreeze image and return Short press Power button to real-time view. 4.Memory function for settings. After turning off, Patriot 5 EZ will remember your setting. -
Page 15: Power Saving
You will see this screen Under sleep mode, press any key to wake up Patriot 5 EZ. If left idle for three minutes, it will shut down automatically to save power. -
Page 16: Handwriting
Reading on incline stand bracket Writing on incline stand bracket The incline stand bracket makes Patriot 5 EZ into a stand magnifier that can be slid across the page. -
Page 17: Hdmi Connecting To Tv
8.HDMI connecting to TV HDMI HDMI connecting to TV If you want to connect Patriot 5 EZ to the TV by HDMI cable, please use the provided cable. When Patriot 5 EZ enters the HDMI output mode, the Patriot 5 EZ screen will turn off automatically. -
Page 18: Lcd Brightness Adjustment
POWER M button Zoom-in Zoom-out Operation/Pre button button button ssing button Color Single Short Freeze/U Single time VIEW mode time press nfreeze zoom-out switch zoom-in Continuo Long Power Enter into Continuous press on/off Menu zoom-out zoom-in MENU Short Next Previous Confirm Next option press... -
Page 19: White Led Brightness Adjustment
LED Light brightness adjustment ● Turn off Brightness 1 Brightness 3 Brightness 5 LED Light As shown above, zoom in button and zoom out button can adjust between 1 ~ 5 levels. Attention：Level 0 will disable the LED light. This is mainly for reading mobile phones or laminated glossy surfaces to eliminate the glare. -
Page 20: Date And Time Setting
● Date and time setting Year setting Month setting Date setting Hour setting Minute setting Second setting As shown above, zoom in button and zoom out button can adjust value.Short press button to move setting option. ● Color mode setting Color mode Open black on Turn off black on... -
Page 21: Battery Power Display
Hold handle pin and pull out handle as above figure； Rotate the handle 180 degrees, re-insert the handle slot, hear "click" sound to use;z Attention：Color mode cannot be turned off. Put away the handle after using: ● Battery power display Low power, Low power Half power... -
Page 22: Precautions
Precautions In order to keep your Patriot 5 EZ in the best condition, please read the following notes carefully: ● Please do not expose it directly to high temperatures or sunlight; ● Please keep it away from moisture, rain, liquids and chemicals;... -
Page 23: Troubleshooting
Make sure if the volume is at 1 to 5 in No sound the menu setting; Make sure the environment is not dark; Patriot 5 EZ focus is blurred Make sure the lens is properly focus on Image is too dark or too bright the reading;... -
Page 24: Contact Us
Fax: 352-203-4617 Email: info@patriotvision.com Email: info@patriotvision.com Patriot Vision Industries, LLC, is an affiliate of Low VisionAids, Inc. Patriot, Patriot Vision Industries, LLC, is an affiliate of Low VisionAids, Inc. Patriot, Magnifying America, the words and their symbols/logo/mark are licensed Magnifying America, the words and their symbols/logo/mark are licensed trademarks owned by Low VisionAids, Inc.
