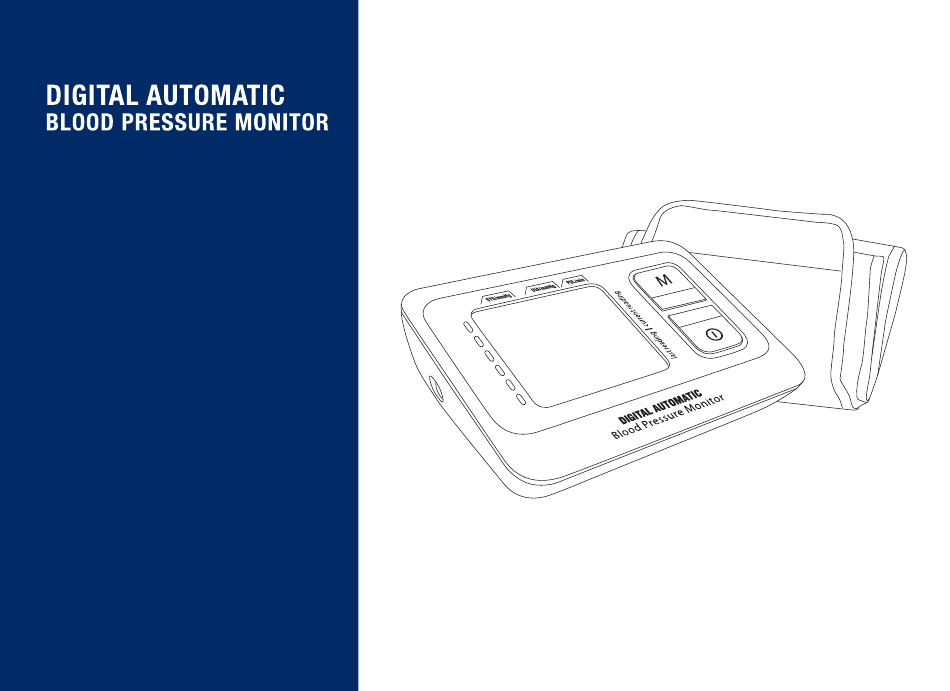

- Page 1 INSTRUCTION MANUAL MODEL : MD6200 / MD6210 / MD6220 / MD6230 MD6240 / MD6250 / MD6260 / MD6270 MD6280 / MD6290...
- Page 3 INTRODUCTION Thank you for purchasing this blood pressure monitor. Please read this manual thoroughly before use. Contact your physician if you have any queries about your blood pressure. This fully automatic instrument utilizes the non-invasive oscillometric method, which detects your blood movement through you brachial artery, for measuring your blood pressure and pulse rate, and the result will display on a digital panel.
- Page 4 Note: The effectiveness of this sphygmomanometer has not been established in pregnant (including pre-eclamptic) patients, please consult your doctor before using the device. Please contact the manufacturer at sales@grandway.com.hk if a copy of the summary of the clinical investigation is needed.
-
Page 5: Safety Notes
SAFETY NOTES WARNING indicates a hazardous situation which, if not avoided, WARNING could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided, CAUTION may result in minor or moderate injury. WARNING • Consult your physician before starting to measure your blood pressure. •... - Page 6 SAFETY NOTES • Please note that technically related measuring tolerances are possible. Please see the section “TECHNICAL SPECIFICATION”. • Any cuff related blood pressure measurement in high repetition rates, can lead to severe measurement side effects, e.g. - A nerve compression with temporary wrist/ hand paralysis - The release of an arterial or venous thrombus, which can cause a life threatening situation.
- Page 7 SAFETY NOTES • Proper cuff size is important for accurate measurements. Only use the device on adults who have the right upper arm circumference for this unit. See “TECHNICAL SPECIFICATION” for suitable arm circumferences. • Electromagnetic interference: Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g.
- Page 8 SAFETY NOTES CAUTION • This device should not be used when your arm has been wounded/ injured or when a catheter has been inserted. Such use may result in injury. • Remove any kind of arm jewellery or the like before taking a measurement. This could cause bruises. •...
-
Page 9: Maintenance And Storage
MAINTENANCE AND STORAGE • The blood pressure monitor is constructed by precision electronic components. Accuracy of readings and the instrument’s service life depend on careful handling. Protect the unit against hard knocks (e.g. dropping the unit), moisture, water, dirt, dust, chemicals, extreme hot or cold temperatures, major temperature fluctuations, direct exposure to sunlight and heat sources which are too close (e.g. -
Page 10: Part Identification
PART IDENTIFICATION Display Memory Button Start / Stop Air Connector Plug Arm Cuff Button Air socket Index Mark Air Hose USB port for power supply Battery Door... -
Page 11: Display Readings
DISPLAY READINGS Systolic Pressure Diastolic Pressure Severe Hypertension Irregular Heartbeat Indicator Moderate Hypertension Pulse Rate Mild Hypertension High Normal Memory USER Normal Optimal Bluetooth Icon Date Time Average of Previous Battery Indicator Measurement... -
Page 12: Install/ Change Batteries
INSTALL/ CHANGE BATTERIES 1. Push the battery cover located on the bottom side on the unit as shown in the figure. 2. Remove old batteries and insert new ones. Use LR03 or AAA alkaline batteries and use batteries of the same type only. - Page 13 USING ADAPTOR (Accessory item sold separately) 1. Plug the power adaptor into a 110-240 V, 50/60Hz power socket. 2. Plug the Micro USB plug into the USB port at the device. Micro USB port is for power supply only. The USB port can’t be used for data downloading.
- Page 14 TO SET DATE / TIME (Model: MD6200 / MD6210 / MD6240 / MD6250) When new batteries are installed 1. “YEAR” will blink on the display. 2. Press [M] key to set the current Year. 3. Press [ ] key to confirm and then "MONTH" will start to blink.
- Page 15 TO SET DATE / TIME / LANGUAGE / VOLUME (Model: MD6220 / MD6230 / MD6260 / MD6270) When new batteries are installed Language number Volume number 1. “YEAR” will blink on the display. 2. Press [M] key to set the current Year. 3.
- Page 16 TO SET DATE / TIME / BLUETOOTH (Model: MD6280) When new batteries are installed Bluetooth “On” Bluetooth “Off” 1. “YEAR” will blink on the display. 2. Press [M] key to set the current Year. 3. Press [ ] key to confirm and then "MONTH" will start to blink.
- Page 17 TO SET DATE / TIME / LANGUAGE / VOLUME / BLUETOOTH (Model: MD6290) When new batteries are installed Language number Volume number 1. “YEAR” will blink on the display. 2. Press [M] key to set the current Year. 3. Press [ ] key to confirm and then "MONTH"...
- Page 18 TO APPLY ARM CUFF 1. Pass the end of the cuff furthest from the tubing through the metal ring to form a loop. The smooth cloth should be the inside of the cuff loop. 2. Put your left arm through the cuff loop. The bottom of the cuff should be approximately 2 – 3 cm above the elbow.
- Page 19 BEFORE MEASURING BLOOD PRESSURE 1. Apply the arm cuff following the instruction in “TO APPLY ARM CUFF”. 2. Rest at least for 5 minutes before each measurement. Otherwise there may be erroneous results. 3. Sit down in a comfortable position, which your legs should be uncrossed, feet should be feet on the floor and your back should be supported by a chair.
- Page 20 TO MEASURE YOUR BLOOD PRESSURE 1. Follow the instruction in “BEFORE MEASURING BLOOD PRESSURE” to make yourself ready. 2. Press [ ] button to turn the device from clock mode to standby mode. Press and hold [ ] button to enter user selection mode (Model: MD6240/ MD6250/ MD6260/ MD6270/ MD6280/ MD6290) Press [M] button to to select user memory 1 or 2.
-
Page 21: Pressure Bar Indicator
PRESSURE BAR INDICATOR The indicator monitors the progress of Pressurizing Releasing Air pressure during measurement. Inflation in progress Inflation complete Measurement in progress WHO CLASSIFICATION INDICATOR Each of the six segments of the bar indicator Severe Hypertension corresponds to the WHO blood pressure classification. - Page 22 TO RECALL AVERAGE AND PREVIOUS MEASUREMENT DATA This device has a memory capability to store the measurement readings for each user. Every time you complete the measurement, the device automatically stores the measurement result. 1. Press [M] button in standby mode to enter the memory mode, the average blood pressure for all measurements is displayed.
- Page 23 TRANSFER MEASUREMENT DATA TO SMART DEVICE (Model: MD6280 / MD6290) For the first time use 1. Download and install the free “G.LAB Health” app on your smart device. 2. Turn on the Bluetooth feature of the smart device. 3. Open the “G.LAB Health” app on your smart device and sign up a new account. 4.
-
Page 24: What Is An Irregular Heartbeat
WHAT IS AN IRREGULAR HEARTBEAT This blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. -
Page 25: About Blood Pressure
ABOUT BLOOD PRESSURE What Is Blood Pressure? Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg). -
Page 26: Troubleshooting
TROUBLESHOOTING Batteries are drained Replace all batteries with new ones Nothing appears in the display, even Battery polarities are not in Re-install the batteries with their when the power is the correct position negative and positive ends matching turned on their indicated in the battery compartment Loose in plug or contact with... - Page 27 TROUBLESHOOTING If you have a very weak or irregular The unit does not measure ERROR code 4 heart beat, the device may have (E4) difficultly in determining your blood appears pressure There is a measuring Error Sit comfortably and still. Fasten the cuff again carefully The measurement range is over Cuff over inflated...
-
Page 28: Technical Specification
TECHNICAL SPECIFICATION Display : LCD Display Measurement Range : Systolic Pressure: 60-250 mmHg ; Diastolic Pressure: 30-200 mmHg Pulse : 40-180 beats/minute ; Cuff Range: 0-300 mmHg Measurement Accuracy : Pressure : +/-3 mmHg Pulse : +/-5% of reading Resolution : Pressure : 1 mmHg Pulse : 1 beat / minute Measurement Method... - Page 29 INSTRUCTIONS FOR USE ： ： ： ： ：...
- Page 30 Appendix I The Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) should assure that it is used in such an environment.
- Page 31 Appendix II The Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) should assure that it is used in such an environment.
- Page 32 Appendix III The Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) should assure that it is used in such an environment.
- Page 33 The Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) is intended for use in the electromagnetic environment specified below. The customer of the user of Sphygmomanometer (MD6200/MD6210/MD6220/MD6230/MD6240/MD6250/MD6260/MD6270/MD6280/ MD6290) should assure that it is used in such an environment.
- Page 34 Appendix IV...
- Page 36 The device, accessories and the packaging have to be disposed of waste correctly at the end of the usage. Please follow Local Ordinances or Regulations for disposal. 0123 Grandway Technology (Shenzhen) Limited No. 5, the Second Industrial Zone, Zhukeng Community, Longtian Street, Pingshan District, Shenzhen, 518118, The People’s Republic of China...
