  • Page 1 EEWP-VH100-T 100m HDMI+VGA HDBaseT Wallplate Transmitter User Manual Ver. 1.0...

  • Page 2: Table Of Contents

    EEWP-VH100-T User's Manual 100m HDMI+VGA HDBaseT Wallplate Transmitter Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    EEWP-VH100-T User's Manual 100m HDMI+VGA HDBaseT Wallplate Transmitter Introduction This HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio inputs over HDBaseT(RJ45) output. It also supports two working modes: manual and auto. The resolution can be up to 4k@30hz, with the POC(power over cable) function, users can power up the unit by powering on the connected HDBaseT receiver.

  • Page 4: Specifications

    EEWP-VH100-T User's Manual 100m HDMI+VGA HDBaseT Wallplate Transmitter 2. Specifications Product name 100m HDMI+VGA HDBaseT Wallplate Transmitter Model number EEWP-VH100-T Input 1*HDMI, 1*VGA+3.5mm audio, 1*switch button Output 1*HDBaseT(RJ45) Control Switch button or auto sources detection/switch Transmission distance 100m at 1080p60, 70m at 4K30 via Cat5e/Cat6 Bandwidth 10.2 Gbps...

  • Page 5: Panel Description

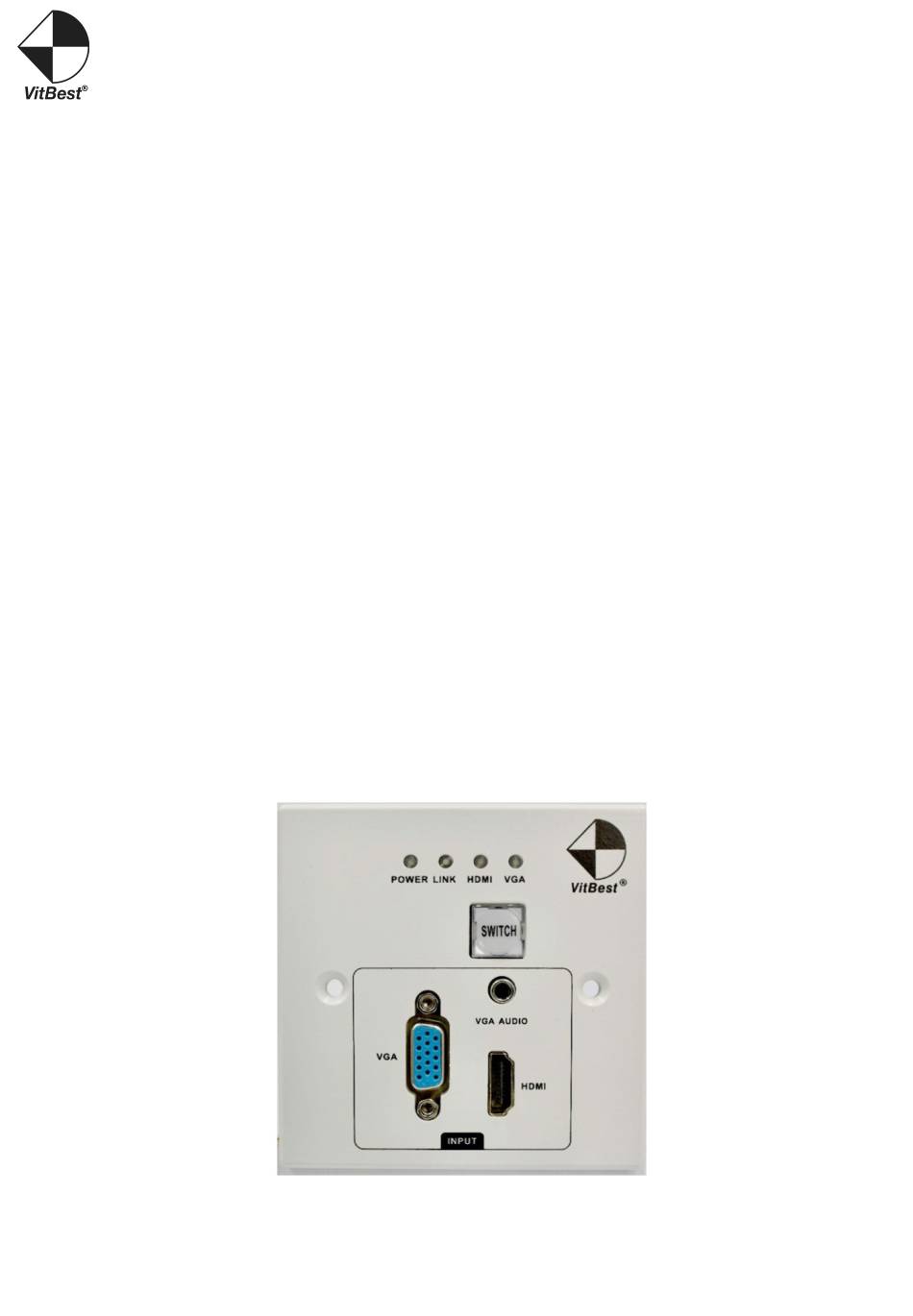

    EEWP-VH100-T User's Manual 100m HDMI+VGA HDBaseT Wallplate Transmitter 3. Panel description ˙ POWER: Indicator for the power supply ˙ LINK: Indicator for the LAN cable connections ˙ HDMI: Indicator for HDMI source ˙ VGA: Indicator for VGA source ˙ Switch Button: For the manually switch Website:www.vitbest.com...

  • Page 6: Operations

    EEWP-VH100-T User's Manual 100m HDMI+VGA HDBaseT Wallplate Transmitter 4. Operations Step 1: Long-press and hold the “Switch” button for about 7 seconds until the VGA indicator flashing, it will enter the EDID setting mode: Step 2: Select HDMI indicator mode:...
