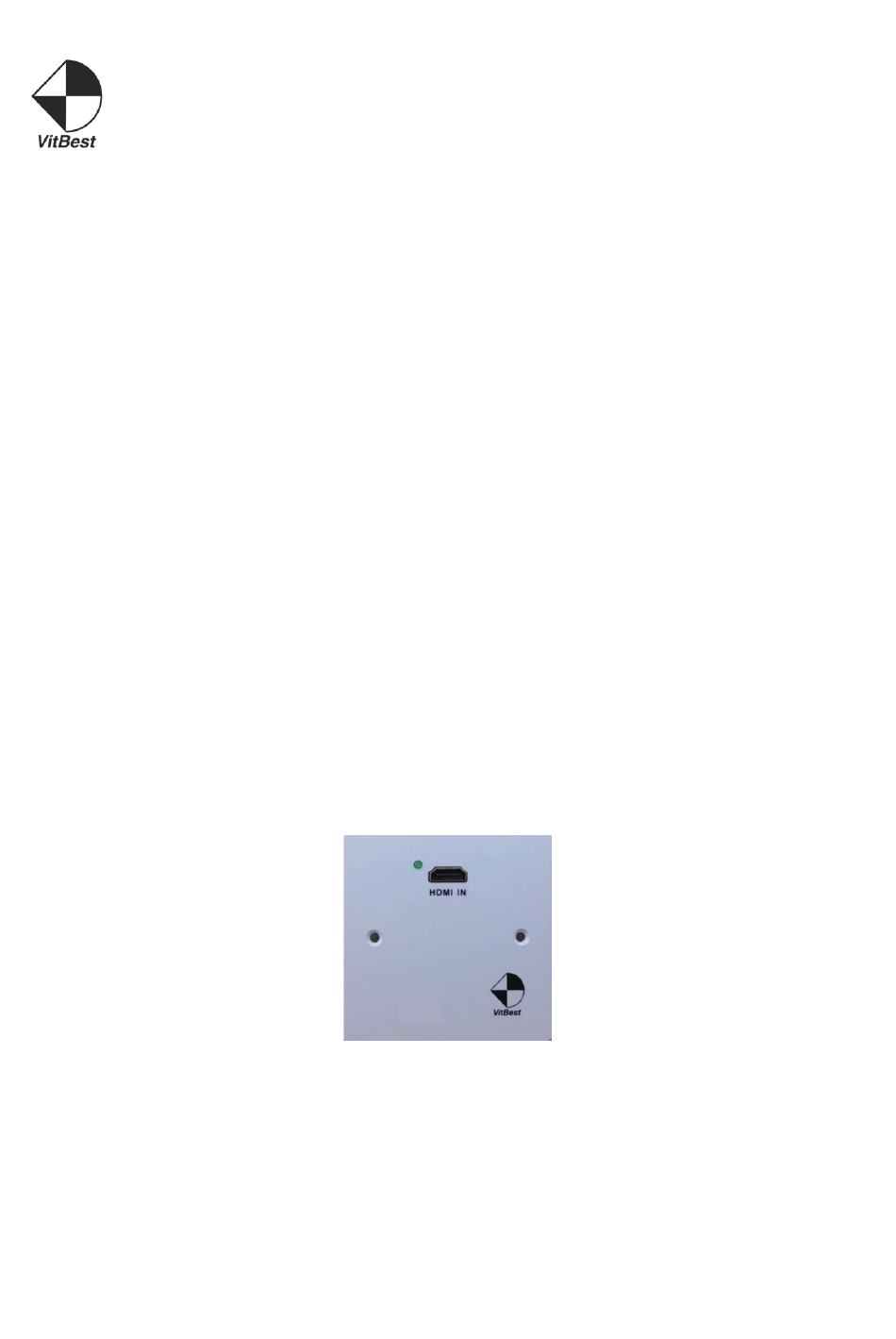

- Page 1 HDBaseT 1 Gang Wall Plate for HDMI with POL EAWP-70-T Transmitter & EAWP-70-R Receiver User Manual...
-
Page 2: Table Of Contents
Contents Introduction ................................. 2 Package Contents ..............................2 Features ................................2 Panel Descriptions EAWP-70-T ................................ 3 EAWP-70-R................................ 4 Connection and Installation ..........................5 Specification ................................. 5 Safety Information ............................... 6 Warranty ................................6 Return and RMA Policies ............................. 6... -
Page 3: Introduction
Cat wall plate. It provide a cleaner wiring solution for HDMI, IR and Power transmission. The design allows the system to be powered via a DC adapter from either side! With a single CAT 5e/6/7 cable, the EAWP-70-T/R can go up to 230ft, 1080p@60Hz 48bit color depth and also support 4K, PoL. -
Page 4: Panel Descriptions
Panel Description EAWP-70-T a. Front Panel 1. Link: Blinking when HDBT connect without video signal, stable on when video active; 2. HDMI In: Connect to HDMI source; b. Rear Panel 1. Power: Connect to DC adapter here to power up device;... -
Page 5: Eawp-70-R
EAWP-70-R a. Front Panel 1. Link: Blinking when HDBT connect without video signal, stable on when video active; 2. HDMI Out: Connect to display; b. Rear Panel 1. Power: Connect to DC adapter here to power up device; 2. HDBaseT: Connect HDBaseT source here. -
Page 6: Connection And Installation
Connection and Installation IR Emitter IR Sensor Specification Video HDMI Compliance HDMI 3D, 4K HDCP Compliant Distance 230ft [70m] on 1080p@60Hz Max Resolution 4K*2K Connectors TX Connectors (1) HDMI, (1)Rj45(HDBT),(1)IR, RX Connectors (1) HDMI, (1)Rj45(HDBT),(1)IR, Mechanical Dimensions European:86*86mm Net Weight 0.49lbs[220g] Package Size 240 x 180 x 70 mm(L/W/H) -
Page 7: Safety Information
Warranty time is One year and from the date of original shipment. This warranty shall be void if a serial number has been removed from the product. Upon determination of a legitimate defect covered by this warranty and at VitBest’s sole discretion, user should bear the transport cost...
