Summary of Contents for Honda Electronics HE-670

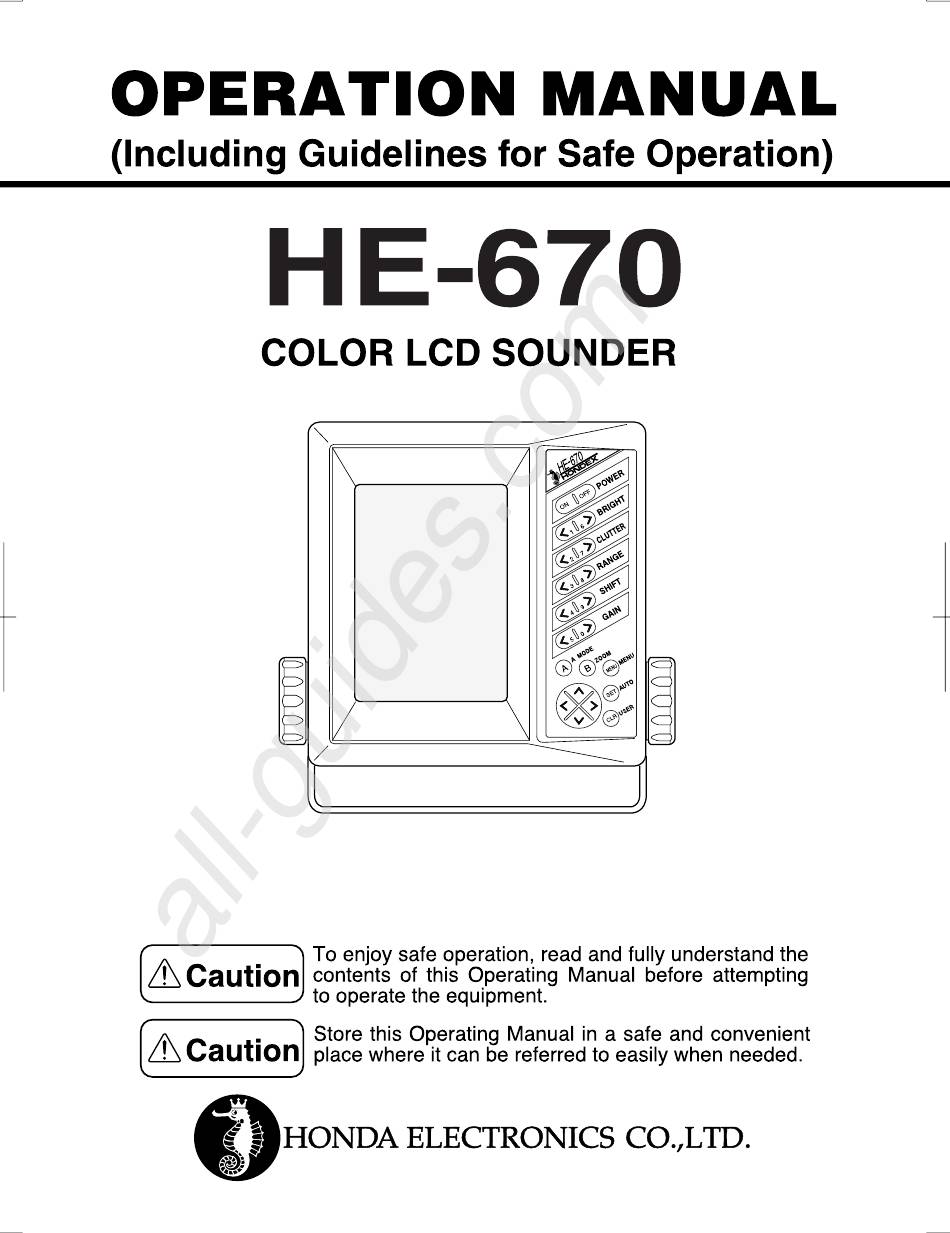

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 All manuals and user guides at all-guides.com INTRODUCTION We thank you very much for your purchasing our product HE-670. ■ Please be sure to read this operation manual carefully and understand what it describes before you operate this unit in order to keep your safety.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents 1. CAUTION ON SAFETY (PLEASE MAKE SURE TO READ.) ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 1-1. CAUTION ON SAFETY ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・... - Page 4 All manuals and user guides at all-guides.com 14. OPERATION OF THE UNIT ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・...
- Page 5 All manuals and user guides at all-guides.com ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ 3.
-
Page 6: Caution On Safety (Please Make Sure To Read.)
All manuals and user guides at all-guides.com 1. CAUTION ON SAFETY (PLEASE MAKE SURE TO READ.) This section explains the important cautions in order to prevent the person who will use our product or other persons from human damage or damage to their property. -
Page 7: Handling Of Cables
All manuals and user guides at all-guides.com CAUTION Do not install at the place where rain or spray dashes directly. (It is not water- proof.) It causes to electric shock. Do not install at the place where it becomes hot. It causes to firing, human damage or electric shock due to increasing temperature inside the unit. -
Page 8: Handling Of Transducer And Water Temperature Sensor
All manuals and user guides at all-guides.com 1-3. HANDLING OF TRANSDUCER AND WATER TEMPERATURE SENSOR WARNING Work on the board is too unstable and risky. Installation and maintenance of transducer and water temperature sensor should be done after you land and fix the boat. Unless you keep it, human damage resulting in death or serious wound will occur. -
Page 9: Caution On Operation
All manuals and user guides at all-guides.com 1-5. CAUTION ON OPERATION Be sure to put the power switch off when you start to run the engine! When the engine starts to run, voltage of battery varies heavily. It may influence to the unit. -
Page 10: General Imforation Of Echo Sounder/Fish Finder
All manuals and user guides at all-guides.com 2. GENERAL IMFORATION OF ECHO SOUNDER/FISH FINDER THEORY OF ECHO SOUNDER/FISH FINDER Theory of echo sounder/fish finder is same as echo. Ultrasonic pulses transmitted from the transducer into the water are reflected from fish school or the sea bottom and then they are received by transducer. -
Page 11: How To Distinguish The Fish School
All manuals and user guides at all-guides.com HOW TO DISTINGUISH THE FISH SCHOOL Important is comparison between display of fish school and catch It is possible to distinguish the fish sort by display of fish school to some extent. But even if fish sort is same, it’s form making school is different according to difference of fishing ground and difference of time (day and night, four seasons, variation of current). -
Page 12: How To Distinguish The Nature Of Bottom
All manuals and user guides at all-guides.com HOW TO DISTINGUISH THE NATURE OF BOTTOM There are different natures of bottom such as rock, sand, mud or etc. In case you distinguish the nature of bottom, you judge from the thickness of bottom image and the situation of second reflection. At the hard bottom like rock, reflection of transmitted wave becomes strong and bottom image becomes thick and the second reflection becomes easily to appear. -
Page 13: Features Of The Unit
All manuals and user guides at all-guides.com 3. FEATURES OF THE UNIT • It is possible to display dual frequency (50KHz and 200KHz). • Brilliant 6 inch TFT color LCD • Automatic function makes you to adjust sensitivity and depth range automatically. • Aluminum mounting bracket which is strong for shock is supplied as standard. -
Page 14: Specifications
All manuals and user guides at all-guides.com 4. SPECIFICATIONS Display 6 inch color LCD Number of pixel 320 x 240 Operating Voltage 11~35V DC Power Consumption 15 W Dimension (Unit) 217 (H) X 234 (W) X 78 (D) mm Weight (Unit) Approx. -
Page 15: Standard Composition
All manuals and user guides at all-guides.com 5. STANDARD COMPOSITION Transducer Display Unit (with bracket and clamping knobs) Mushroom-head screw x 4 3P 8m (50/200kHz) Cable Cover Power Supple Cable (Fuse 5A) Pan-head tapping screw Disk Plate x 2 Brand Plate Operations Manual... -
Page 16: Dimensional Drawings
All manuals and user guides at all-guides.com 6. DIMENSIONAL DRAWINGS 195mm 78mm 234mm Unit:mm (Drawing of holes for installing bracket) 140±0.3mm 113±0.3mm 8-φ6 Hole φ25 Hole 196±0.5mm... -
Page 17: Installation Of The Unit
All manuals and user guides at all-guides.com 7. INSTALLATION OF THE UNIT WARNING Do not install it simply. It causes to the accident like wound. • Please install correctly according to [Installation of the Unit]. [Procedure of installation] 1.<Decision of place you install> While the bracket is mounted with unit, you decide the place you install and put the mark. -
Page 18: Connection With The Unit
All manuals and user guides at all-guides.com 8. CONNECTION WITH THE UNIT NMEA (GGA,VTG) Output Device Power Supply Cable White （＋） Black （−） Battery 〜35V Thru-hull Transom Water Transducer Water Temp. Sensor (TD26) Temp. Sensor (Option) (Option) Cable Cover to Display Unit... -
Page 19: Installation Of Transducer (Thru-Hull)
All manuals and user guides at all-guides.com 9. INSTALLATION OF TRANSDUCER (THRU-HULL) Install as near center position of boat as possible. After installation, put the seal for water proof Block Put the seal at joint point for waterproof Put the seal at joint point 30cm for waterproof Keep the inclination of bottom... -
Page 20: Installation Of Water Temperature Sensor
All manuals and user guides at all-guides.com 10. INSTALLATION OF WATER TEMPERATURE SENSOR • Water temperature sensor is option. DANGER Work on the boat is too unstable and risky. Installation and maintenance of the water temperature sensor should be done after you land and fix the boat Unless you keep it, human damage resulting in death or serious wound will occur. -
Page 21: Connecting Diagram
All manuals and user guides at all-guides.com 11. CONNECTING DIAGRAM CONNECTOR FOR INPUT/OUTPUT It is used for connecting NMEA output device. Transmission Rate Transmission Format Data Format Star bit=1, Data bit=8, NMEA0183 4800 bps (GGA、VTG) Parity bit=nil, Stop bit=1 Display Unit Output Device Data Output DC Power... -
Page 22: Descriptions Of Control Keys
All manuals and user guides at all-guides.com 12. DESCRIPTIONS OF CONTROL KEYS POWER ON key (→page 19) MENU key (→page 27) Switch the power on. Show the menu mode. POWER OFF key (→page 19) AUTO key (→page 27) Switch the power off. Set the sensitivity and depth range automatically. -
Page 23: How To See The Display
All manuals and user guides at all-guides.com 13. HOW TO SEE THE DISPLAY In case of displaying the dual frequency mode Frequency readout on left screen Variable Time Marker When the display mode is set, either set mode Bar appears or disappears every 30 sec. (Bottom lock, Auto Exp. -
Page 24: Operation Of The Unit
All manuals and user guides at all-guides.com 14. OPERATION OF THE UNIT 14-1. POWER KEY ON/OFF OF THE POWER This switches the power ON/OFF When you press ON key for more than 1 sec., alarm sounds and the power is ON. Then, if display appears, starting is good. -
Page 25: Clutter Key
All manuals and user guides at all-guides.com 14-3. CLUTTER KEY Clutter [Clutter] Fish school or bottom is displayed while the strength of reflected echo is corresponded with pre-set color configuration. As this can delete colors in turn from color of weakest echo, it will be enable to distinguish this school easily be deleting the weak echoes like plankton, stain in the water or etc. -
Page 26: Range Key
All manuals and user guides at all-guides.com 14-4. RANGE KEY [Depth (Display Range)] This sets the depth (display range; how deep from the surface of water is displayed?). 19 ranks of display range from 0-5m to 0-500m are available. Depth (Display Range) 500m Depth range is changed by pressing RANGE key. -
Page 27: Shift Key
All manuals and user guides at all-guides.com 14-5. SHIFT KEY Shift (Shift of display range) [Shift (Shift of display range)] You can shift the initial displaying depth downward. For example, when you shift 10m downward at 0-8m depth range, initial display depth becomes to 10m and display range becomes to 10-18m. -
Page 28: Gain Key
All manuals and user guides at all-guides.com 14-6. GAIN KEY [Gain] This adjusts the sensitivity to distinguish the bottom or fish school easily. 41 steps of sensitivity from 0 to 40 is displayed in bar or digit. (→ 41 Page ) Optimum sensitivity is that second reflection from bottom is barely displayed. - Page 29 All manuals and user guides at all-guides.com Adjustment of sensitivity Sensitivity is adjusted be pressing GAIN key. [To increase the sensitivity] Each time when you press key, gain bar becomes long and the sensitivity increases. (In case of digital readout, number increases.) [To decrease the sensitivity] Each time when you press key, gain bar...
-
Page 30: A-Mode Key
All manuals and user guides at all-guides.com 14-7. A-MODE KEY It is displayed on the right side of screen and it’s width changes according to strength of reflected signal. When you press key (A-MODE), A-mode switches ON/OFF. A-MODE display A-MODE... -
Page 31: Zoom Key
All manuals and user guides at all-guides.com 14-8. ZOOM KEY You can select three image modes (Bottom lock expansion, Automatic expansion or Manual expansion). In case of Auto Exp. and Manual Exp., expansion range marker is indicated on the right edge of screen. When you press key (ZOOM key), image mode changes. -
Page 32: Menu Key
All manuals and user guides at all-guides.com 14-9. MENU KEY Menu item is selected using key, UP/DOWN, RIGHT/LEFT 〔 、 、 、 〕 key, / key and key. It is used for setting each function of the unit. Each time when you press tkey (MENU), setting mode of MENU 1 and MENU 2 are shown. -
Page 33: User Key
All manuals and user guides at all-guides.com 14-11. USER KEY You can allocate often used functions at USER key. Just only USER key makes you quick operation. You do not need to set on the menu mode. Press key (USER). Selected setting item is shown on the screen. -
Page 34: List Of Menu And Meaning Of Setting
All manuals and user guides at all-guides.com 15. LIST OF MENU AND MEANING OF SETTING Items of MENU 1 Meaning of setting 1.SWEEP Set the sounding rate per one sweep. FRZ 1 2 3 4 2.PICTURE Set the frequency of display on the screen. 50 200 200+50 50+200 3.SCALE LINE Indicate the line on graduation of depth. OFF ON 4.TEMP GRAPH Show the water temp. graph. (Water temp. sensor is option.) OFF ON 5.COLOR Select the color configuration which shows strength of reflected echo. 1 2 3 4 6.BACK GRD Select the background color of display. Black Blue White Dark blue Green Items of MENU 2 Meaning of setting 1.EXP RATE Set the expansion rate at expansion mode. ×2 ×4 ×8 2.TEMP ALARM 1.ALARM SET ... - Page 35 All manuals and user guides at all-guides.com 3.発振出力 発振出力を切り替えます。 Items of MENU 2 Meaning of setting 低 高 4.PULSE LENGTH Select the pulse length. S M L 5.AUTO KEY SET Set the auto key. Auto key switches ON/OFF as below setting. 1.AUTO G : Adjust sensitivity OFF L M H 2.AUTO R : Adjust depth OFF RNG SFT 4.READOUT 1 1.DEPTH DIG Select the size of depth digit. OFF S L 2.GAIN Select the style of gain readout. BAR DIGIT 3.SUPER RANGE When the depth range changes, rewrite whole image to after change. OFF ON 4.DEPTH MARKER Select color of variable depth marker. OFF WHITE RED GREEN BLUE YELLOW LIGHT BLUE MAGENTA 5.COLOR BAR Switch color bar readout ON/OFF OFF ON 5.READOUT 2 ※When NMEA output device is connected with the unit, ...
-
Page 36: How To Select Menu
All manuals and user guides at all-guides.com HOW TO SELECT MENU How to show menu mode? Selection mode of MENU 1 is shown by pressing key. How to change content of menu? Selected items are shown. key makes you select or 〔... -
Page 37: Setting The Function By Menu
All manuals and user guides at all-guides.com 17. SETTING THE FUNCTION BY MENU 17-1. MENU 1 SWEEPING SPEED [Sweeping Speed] On echo sounder/fish finder, the newest display (display just under the boat) is shown on the right edge of screen. At the same time previous display moves leftward. -
Page 38: Scale Line
All manuals and user guides at all-guides.com SCALE LINE Horizontal lines are shown at the position of depth scale on the screen. [3. SCALE LINE] is selected on MENU 1. Set the scale line. ON : Scale line is shown. OFF: Scale line is not shown. -
Page 39: Menu
All manuals and user guides at all-guides.com 17-2. MENU 2 EXPANSION RATE Expansion rate of enlarged image can be selected to X2, X4 or X8. [1. EXP RATE] is selected on MENU 2. Expansion rate is selected. Select from X2 (two times), X4 (four times) and X8 (eight times). -
Page 40: Depth Alarm
All manuals and user guides at all-guides.com DEPTH ALARM [Depth Alarm] Alarm goes off within or out of two depths (DEPTH SET 1, DEPTH SET 2). [3. DEPTH ALARM] is selected on MENU 2. Example） Depth 10m In range Alarm setting is established. Alarm IN RANGE : Alarm goes off when it is within... -
Page 41: Battery Alarm
All manuals and user guides at all-guides.com BATTERY ALARM When voltage of battery decreases, alarm goes off. [5. BATT ALARM] is selected on MENU 2. 12V: When voltage of battery becomes less than 10V, alarm goes off and voltage readout flashes. 24V: When voltage of battery becomes less than 21V, alarm goes off and voltage readout flashes. -
Page 42: Correction
All manuals and user guides at all-guides.com CORRECTION: KEEL OFFSET It enables to set the draft value of boat when you want to indicate the depth from sea surface. You can set draft value at 0.1m step from range of 0~+2.0m. [6. -
Page 43: Other Setting
All manuals and user guides at all-guides.com OTHER SETTING: AUTO RANGE MAX. DEPTH Set the depth which sea bottom is searched when auto range is set. When auto range maximum depth is set to deep, it takes long time to indicate the depth digit and depth range sometimes becomes deep range due to malfunction. -
Page 44: Pulse Length
All manuals and user guides at all-guides.com OTHER SETTING: PULSE LENGTH It selects pulse length. Theory of fish finder is same as echo in water. Length of transmitted ultrasonic wave is called pulse length. Selection of pulse length (long, medium or short) enables you to change vertical resolution. [6. -
Page 45: Setting Of Auto Keys
All manuals and user guides at all-guides.com OTHER SETTING: SETTING OF AUTO KEYS Condition of ON/OFF is set when AUTO key is pressed. Example 1) In case AUTO G (HIGH) and AUTO R (RNG) are set, AUTO G (HIGH) and AUTO R (RNG) are set at the same time when AUTO key is pressed. -
Page 46: Depth Readout
All manuals and user guides at all-guides.com READOUT SETTING1: DEPTH READOUT It can change size of depth digit. [6. OTHERS] → [4.READOUT 1] → [1.DEPTH DIG] is selected on MENU 2. OFF : Depth digit is not shown. Depth digit is shown in small number. Depth digit is sown in large number. -
Page 47: Readout Setting 2
All manuals and user guides at all-guides.com READOUT SETTING1: DEPTH MARKER [6. OTHERS] → [4.READOUT 1] → [4.DEPTH MARKER] is selected on MENU 2. White~Magenta: Depth marker is shown at selected color. OFF : Depth marker is not shown. READOUT SETTING1: COLOR BAR [6. -
Page 48: Setting Of Initialization
All manuals and user guides at all-guides.com SIMULATION MODE This select whether simulation mode is or is not shown. [6. OTHERS] [6.SYSTEM MENU] → → SIMULATION]is selected on MENU 2. OFF : Simulation mode is canceled. : Simulation mode is shown. ※... -
Page 49: Caution On Safety (Please Make Sure To Read)
All manuals and user guides at all-guides.com 18. CAUTION ON SAFETY (PLEASE MAKE SURE TO READ) When the condition of this unit is bad, please check the following points before asking to repair. Symptoms Causes Remedy Power can not be Voltage of battery is lower tan Recharge the battery. - Page 50 All manuals and user guides at all-guides.com Symptoms Causes Remedy Image does not Transducer is not immersed Install the transducer where it is always immersed under into water well. sometimes appear. waterline. When installation of transducer is Check the installation of bad, air bubbles wind easily at high transducer.
