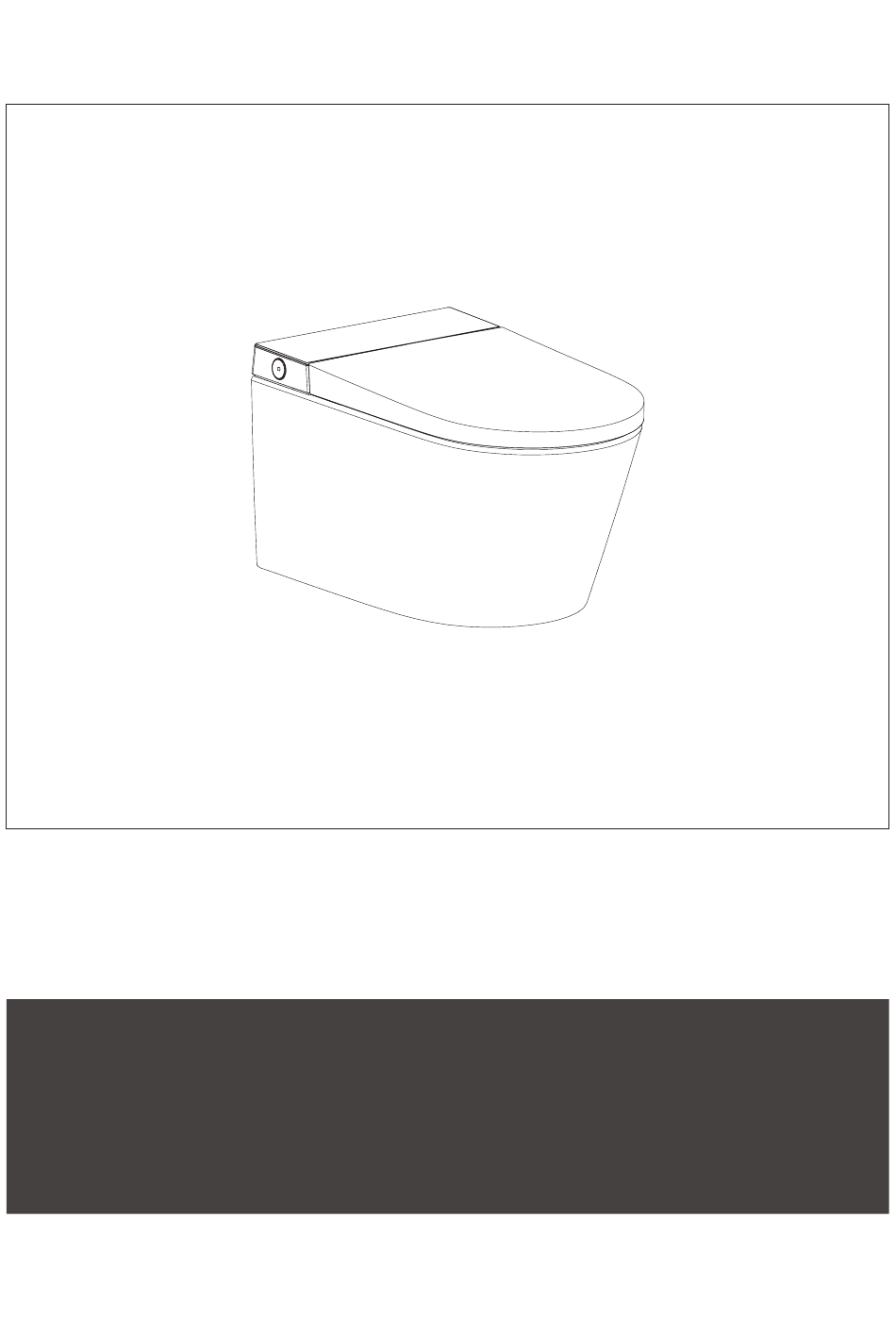

- Page 1 User manual H140000001...
-
Page 2: Installation
Assembly mAnuAl H140000001 INSTALLATION: • Safety instructions • List of materials • Technical drawings • Required accessories for in-wall carrier • Installation tools • Installation dimensions • Pre-installation confirmation • Before installation • Installation procedures Assembly mAnuAl H140000001... -
Page 3: Safety Instructions
Assembly mAnuAl Warranty conditions SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1. The appliance is not to be used by persons (including WARNING –... -
Page 4: Grounding Instructions
Assembly mAnuAl Warranty conditions GROUNDING INSTRUCTIONS CAUTION - Failure to follow the instructions may cause bodily injury or property damage. This product should be grounded. In the event of an electrical 1. Do not install or use the product in wet places such as a short circuit, grounding reduces the risk of electric shock by steam room etc. - Page 5 Assembly mAnuAl list of materials Main Unit Remote Control Components Installation Manual Installation Manual Velcro Cover caps Plastic guide ring Ball Valve Locking Nut (M12) Flat Washer Hose Assembly mAnuAl list of materials...
- Page 6 Assembly mAnuAl Technical drawing Ground oor Ground oor Ground oor Assembly mAnuAl Technical drawing...
-
Page 7: Installation Tools
Assembly mAnuAl Required accessories Required accessories for in-wall carrier Extended drain pipe Flush pipe Bolts Silicone sponge (with protective sleeve) Gasket Gasket Installation tools Drill Caulk gun Marker Tape measure Assorted spanners Wire stripper File Assorted screwdrivers Cutter Te on tape Spirit level Ruler Installation dimensions... -
Page 8: After Installation
Assembly mAnuAl Pre-installation confirmation Pre-installation confirmation (Unit: mm) Circuit pre-installation: Install a fixed electrical supply circuit (Neutral wire, live wire and ground wire included.): - Confirm the electrical connection location. - Reserve pipeline for electrical circuit. Circuit breaker pre-installation: - Connect a separate upstream circuit breaker. - Pre-connect an earth leakage circuit breaker or grounding protector for other independent circuits. - Page 9 Assembly mAnuAl before installation 1. Minimum static water pressure: 0.08+MPa (8.5+L/min), failure to meet this pressure will not achieve the best flushing effect. Note: Apply the methods below if you don’t have water pressure testing device. Open the angle valve to check the water volume. If the water volume after 10 seconds is greater than 1.42L, then it is OK to proceed installation.
- Page 10 Assembly mAnuAl Installation 1. Unpack and confirm the list of materials. 2. Open lid, then remove screws. 3. Close lid and seat, and then remove the bidet. Be careful not to damage the product. Assembly mAnuAl Installation...
- Page 11 Assembly mAnuAl Installation 4. Measure the flush pipe. 5. Cut off the excess pipe. L1+5mm 6. Measure the drain pipe. 7. Cut off the excess pipe. Assembly mAnuAl Installation...
- Page 12 Assembly mAnuAl Installation 8. Bevel and deburr the sharp edges. 9. Apply silicone oil on the cutting surface. 10. Install the pad. 11. Remove the protective sleeve on bolts. Apply silicone oil on the in-wall flush pipe and drain pipe orifice. Assembly mAnuAl Installation...
- Page 13 Assembly mAnuAl Installation 12. Mount the flush pipe and drain pipe. 13. Apply silicone oil on the flush pipe and drain pipe. 14. Place the toilet against the wall. 15. Pass the water supply hose, power cable, air pump flush pipe and deodorizing line through the toilet.
- Page 14 Assembly mAnuAl Installation 16. Level the toilet. 17. Install the washer and tighten the nut. 18. Cut off the excess pad. 19. Seal gap around toilet with sealant. Assembly mAnuAl Installation...
- Page 15 Assembly mAnuAl Installation 20. Connect the power cord and water inlet hose. Caution! The power cord cannot cross or overlap with other connection lines! 1. Unscrew 2 screws and remove the power cord cover. Screws Power cord cover 2. Install the power cord rubber pad, connect the ground wire/live wire/neutral wire of the power cord. After pressing the power cord with a crimping piece, install the power cord cover.
- Page 16 Assembly mAnuAl Installation 21. Installation of connect the water inlet hose, air pump flush pipe, deodorizing line, foot sensor line. Foot sensor line/deodorizing line connection sensor cable connector (4 cores) ：Lead from Foot the foot sensor line. Only models with foot sensor function need install the foot sensor line.
- Page 17 Assembly mAnuAl Installation 23. Place the electronic bidet seat into the toilet and adjust the alignment so that the gaps are even. The power cord is wrapped with double-sided self-adhesive magic tape and attached to the right wall of the toilet. The excessively long foot sensor line, Paste the rectangular magic tape on deodorizing line and air pump ushing...
- Page 18 Assembly mAnuAl Installation 25. Close lid and seat. Finish installation. Assembly mAnuAl Installation...
- Page 19 Fabrikant Ben Design Worldwide Gragtmansstraat 3 5145 RA Waalwijk Distributeur De Badenman Van Harenstraat 1 5145 RH Waalwijk Manufacturer Ben Design Worldwide Gragtmansstraat 3 5145 RA Waalwijk Distributor De Badenman Van Harenstraat 1 5145 RH Waalwijk Hersteller Ben Design Worldwide Gragtmansstraat 3 5145 RA Waalwijk Verteiler...
