INSTALLATION + USE
√ Instructions
Thule Double Step 12V
380 - 440 - 500 Aluminium
307571 - 307572, 307579
DDS901-12 | 3380005900
2025-02-04
Bring your life
thule.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Double Step 12V 380 Aluminium and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thule Double Step 12V 380 Aluminium

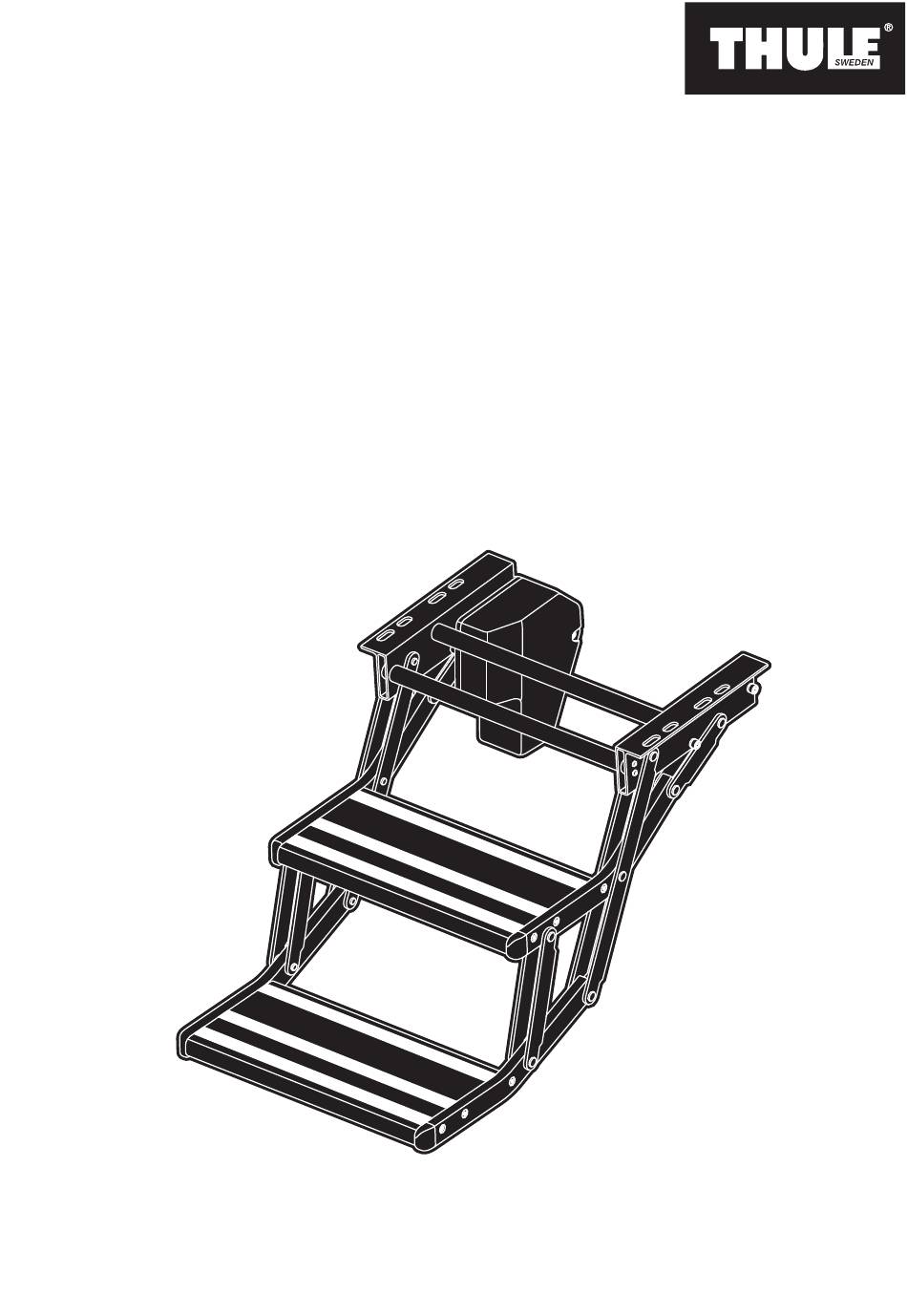

  • Page 1 INSTALLATION + USE √ Instructions Thule Double Step 12V 380 - 440 - 500 Aluminium 307571 - 307572, 307579 Bring your life DDS901-12 | 3380005900 thule.com 2025-02-04...
  • Page 2 Stufe - Stopień - Anleitung Instrukcje STEP - INSTRUCTIONS Opstaptrede - Degrau - Instructies Instruções Marche-pied - Schod - Instructions Návod Gradino - Stopnica - Istruzioni Navodila Safety Escalón - Basamak - Steps Instrucciones Talimatlar 台阶 - Fotsteg - 说明 Instruktioner ステッ...
  • Page 3 ELECTRICAL INSTALLATION Elektrische Installation / Elektrische installatie / Installation électrique / Installazione elettrica / Instalación eléctrica / Elinstallation / Sähköasennus / Elektrisk montering / Elektrisk montering / Instalacja elektryczna / Instalação eléctrica / Elektroinstalace / Električna namestitev / Elektrik Montajı / 电气装置 / 電動取り付け / 전기적 설치 ACCESSORIES Zubehör / Accessoires / Accessoires / Accessori / Accesorios / Tillbehör / Lisävarusteet / Tilbehør / Tilbehør / Akcesoria / Acessórios / Příslušenství...
  • Page 4 USER USER 1 WARNINGS & INFO Instructions Safety STEP STEP DDS901-12...
  • Page 5: Open & Close

    USER 2 OPEN & CLOSE Sec. Sec. 3 MAINTENANCE DDS901-12...
  • Page 6: Manual Release

    USER 4 MANUAL RELEASE DDS901-12...
  • Page 7 USER DDS901-12...
  • Page 8: Installation

    USER INSTALLATION 5 CONTENT M10 x 50 mm 2,9 x 9,5 mm F4,8 x 0,5 mm TX10 6 TOOLS Ø 9mm Ø48mm N° 13 N° 13 TX10 DDS901-12...
  • Page 9 INSTALLATION 7 INSTALLATION EN 1646-1 MIN. 200 mm & MAX. 300 mm MAX. 400 mm 380/446/502 75/90 30/50 410/476/532 (±2) 435/501/557 DDS901-12...
  • Page 10 INSTALLATION orange Ø 9 mm ANGE / N° 13 N° 13 ANGE / purple RANJA / ANSSI / Sec. ANSJE / ORANGE / ORANGE / ORANGE / ORANGE / OWY / ORANJE / ORANGE / ORANJE / ORANGE / ARANCIA / NARANJA / ARANCIA / NARANJA / ORANGE / ORANSSI / URUNCU...
  • Page 11 INSTALLATION Ø 9 mm Ø 9 mm DDS901-12...
  • Page 12: Electrical Installation

    INSTALLATION 8 ELECTRICAL INSTALLATION Ø 48 mm TX10 DDS901-12...
  • Page 13 INSTALLATION THULE STEP with WARNING LAMP (or BUZZER) Dashboard START Key S3 START Step S2 grey Switch S1 brown orange purple 2.5 mm F 20A PURPLE / VIOLETT / PAARS / VIOLET / Battery 12V DC VIOLA / MORADO /...
  • Page 14 INSTALLATION THULE STEP with OPTIONAL RELAY (308200) for AUTOMATIC RETRACTION Dashboard Key S3 START Bosch Type 0 986 332 400 Bosch Type 0 332 209 150 START Capacity 2200µF Step S2 grey Relay brown orange Switch S1 purple 2.5 mm...
  • Page 15 INSTALLATION 9 ACCESSORIES Electronic Control Unit (308812) Relay for Automatic retraction x10 (308200) Control box for Step 12V Relay Kit for Step 12V DDS901-12...
