Installation Guide

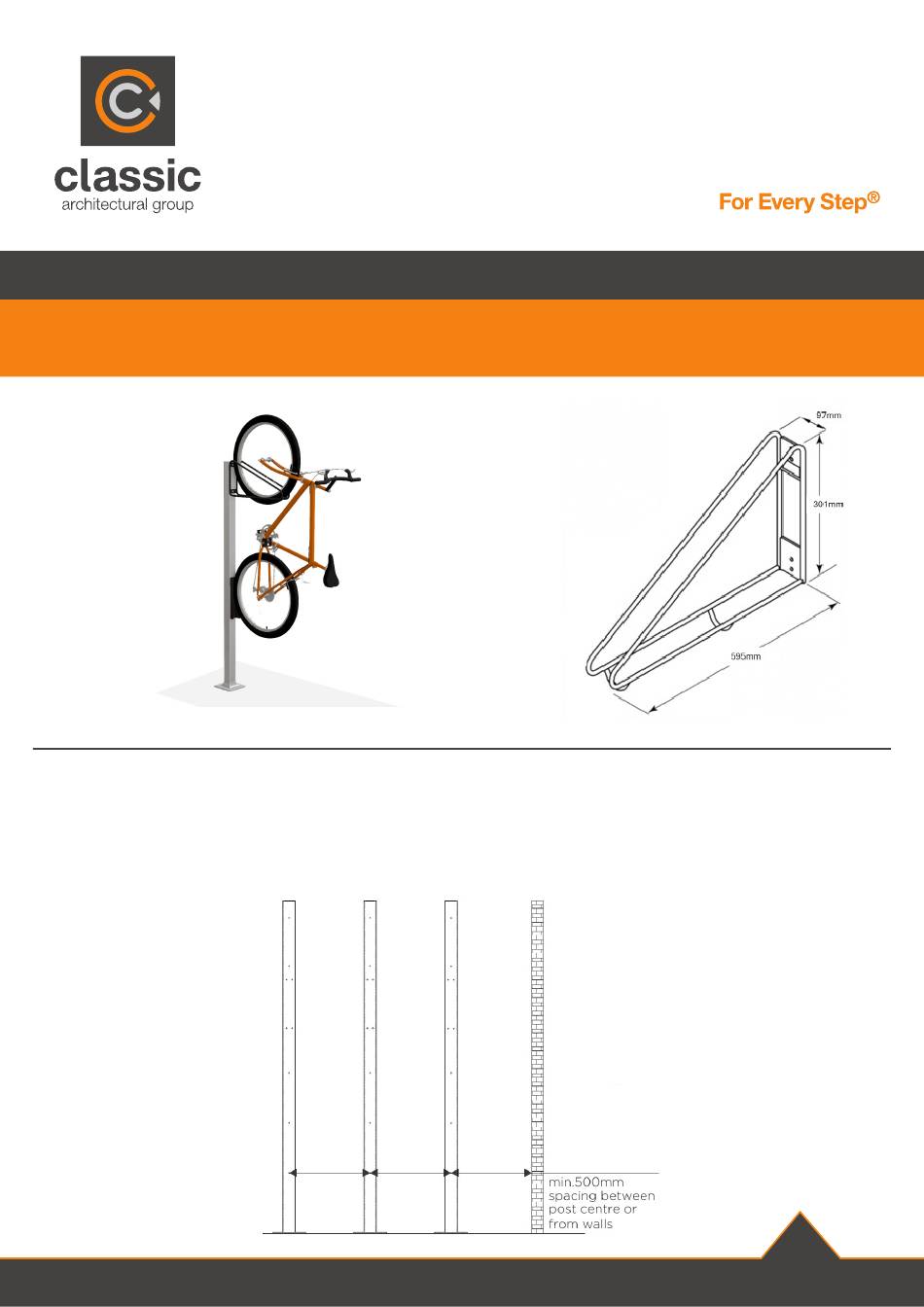

EziHold Tri Post Mount Bike Rack
Post Layout
- If mounting multiple posts, measure mounting distance between posts and other obstructions
- If racks are installed at offset heights, a minimum 500mm spacing is required between post centres (and to the edge of walls or other
obstructions).
- If post is installed next to a side wall, 500mm spacing from the wall to the post centre is required.
NOTE: If racks are not installed at offset heights ie. all racks are at the same height, then a minimum 700mm spacing is required between post
centres (and to the edge of walls or other obstructions).
www.classic-arch.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the EziHold Tri and is the answer not in the manual?

Questions and answers

Related Manuals for Classic EziHold Tri

Summary of Contents for Classic EziHold Tri

  • Page 1 Installation Guide EziHold Tri Post Mount Bike Rack Post Layout - If mounting multiple posts, measure mounting distance between posts and other obstructions - If racks are installed at offset heights, a minimum 500mm spacing is required between post centres (and to the edge of walls or other obstructions).
  • Page 2 Installation Guide EziHold Tri Post Mount Bike Rack Fix Posts to Substrate - Drill holes in floor for location of anchor bolts - Use base plate dimensions for anchor bolt drill hole locations - Drill or core hole 10mm diameter and 75mm min. depth...
  • Page 3 Installation Guide EziHold Tri Post Mount Bike Rack Rack Layout & Fixing - Locate center of bottom hole placement of the first rack - Make a mark with pencil at approximately 1520mm from the floor to the first mounting hole position on the post...
  • Page 4 Installation Guide EziHold Tri Post Mount Bike Rack Rack Positions for Single or Multiple Post For Single mounted post: - If mounting only one post, the rack should be fixed in lower position to minimise lifting for cyclist For Multiple mounted posts: - If multiple posts are mounted in a row.
  • Page 5 Installation Guide EziHold Tri Post Mount Bike Rack Access and Clearance - Posts are to be mounted with minimum clearance zones for user access - A minimum of 1200mm clearance from the post is required, and a further 1500mm minimum is needed, for an access aisle (see diagram below).
