EziHold Tri Wall Mount Bike Rack
Wall Layout
- If racks are installed at offset heights, a minimum 500mm spacing is required (and to the edge of walls or other obstructions)
- The second rack will need to be offset by 300mm (see diagram)
- If racks are not installed at offset heights, then a minimum 700mm spacing is required (and to the edge of walls or other obstructions).
www.classic-arch.com.au
Advertisement
Related Manuals for Classic EziHold Tri
Summary of Contents for Classic EziHold Tri

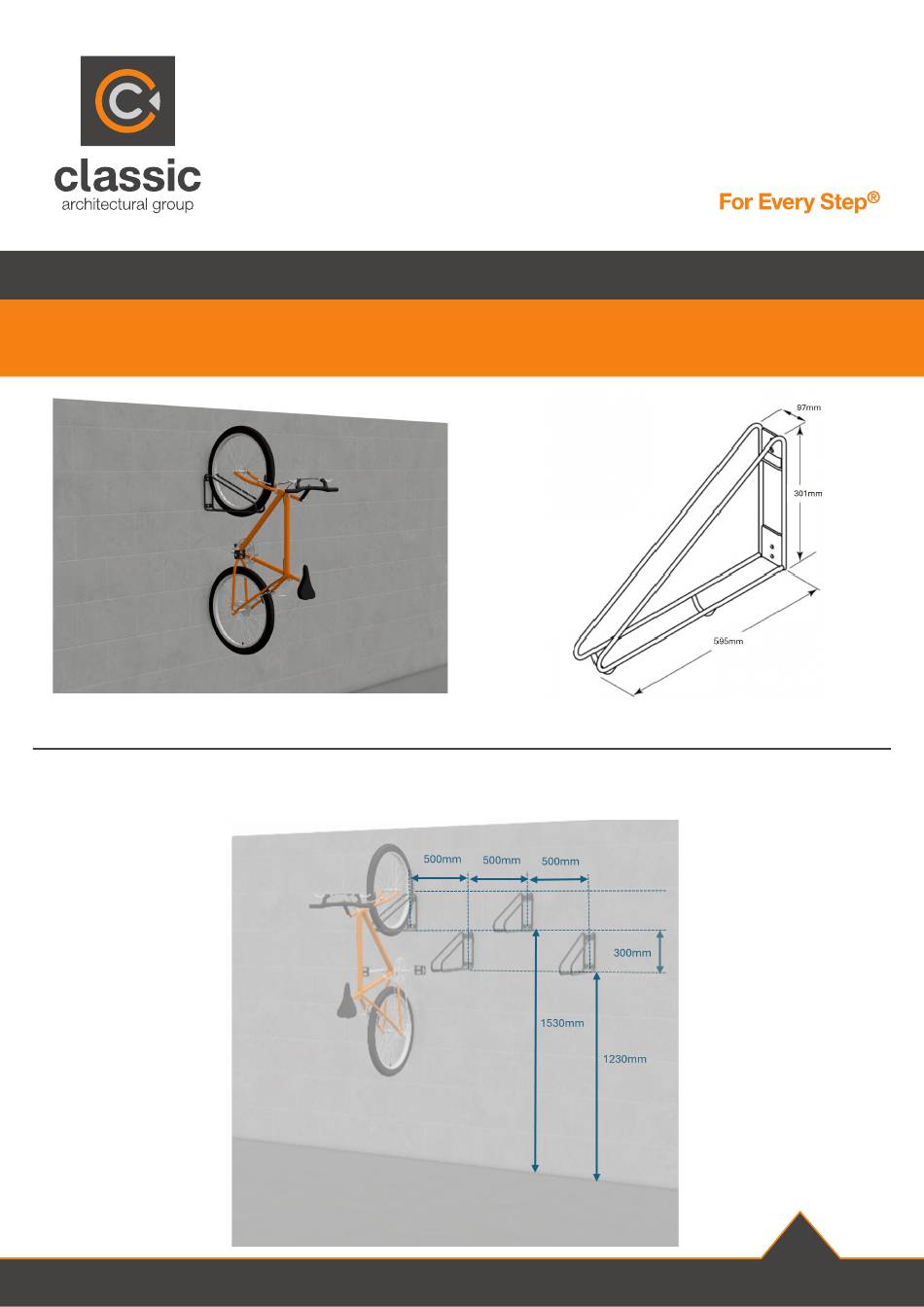

- Page 1 Installation Guide EziHold Tri Wall Mount Bike Rack Wall Layout - If racks are installed at offset heights, a minimum 500mm spacing is required (and to the edge of walls or other obstructions) - The second rack will need to be offset by 300mm (see diagram) - If racks are not installed at offset heights, then a minimum 700mm spacing is required (and to the edge of walls or other obstructions).
- Page 2 Installation Guide EziHold Tri Wall Mount Bike Rack Access & Clearance - Racks are to be mounted with minimum clearance zones for user access - A minimum of 1200mm clearance from the wall is required, and a further 1500mm minimum is needed, for an access aisle (see diagram below).
- Page 3 Installation Guide EziHold Tri Wall Mount Bike Rack Installation - Locate center of bottom hole placement of the first wall rack - Make a mark with pencil at approximately 1540mm from the floor to the first mounting hole position (this is the higher position)
