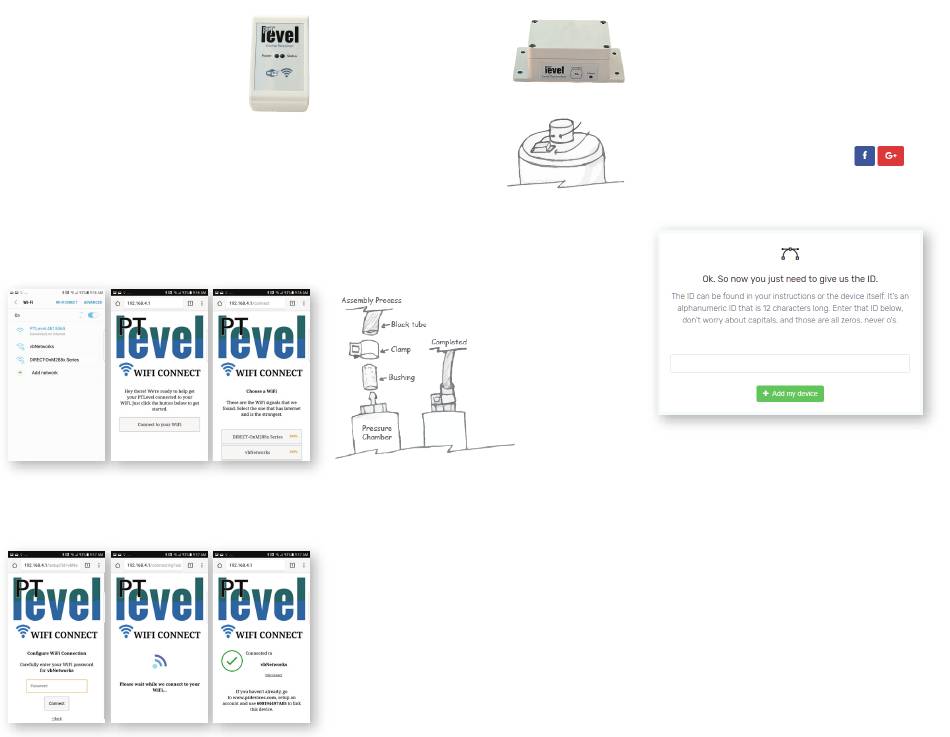

Paremtech PTLevel Manual

1
Connect the Home Receiver
Placement
Place the receiver somewhere inside where there is a
power outlet and WiFi signal.
WiFi Connection Setup
Depending on the device you are using, find where you
can see the list of available WiFi signals. If you need
more help with this, see our YouTube videos.
Use a phone or Open a browser
tablet or PC to and enter in
connect to 192.168.4.1 into
PTLevel WiFi the address bar
Enter the Wait for the
password for the PTLevel to
selected WiFi connect
2
Setup the Transmitter
Mounting the transmitter
Mount the transmitter onto the
tank you would like to
measure/monitor. Use screws or
other means to mount it properly.
Pic 1 is an example for a typical
cistern.
After the PTLevel is mounted, run the black tube through
any necessary holes before proceeding to the next step.
Select the
strongest WiFi
Setup the pressure chamber
signal that has
Below is an illustration on how to connect the pressure
internet
chamber using the provided clamp, bushing, and tube.
When you see the Lower the pressure chamber
screen below,
Once the black tubing is fully connected and sealed
you're done! If not,
tight, lower the pressure chamber into the liquid volume
try again or see and allow it to lower to the bottom slowly.
troubleshooting.
See the Overview on the other side.
Note: Do not drop the chamber in an empty tank or it
could break.
Note: You can cut the black tube shorter if you need, just
pull it out of the liquid before you disconnect any of the
tubing.
Check the wireless connection
Press the connect button on the side of the PTLevel
transmitter. If the status LED blinks three times slowly,
you are connected! See the troubleshooting on the other
side if the LED does not blink three times slowly.
3
Setup Online
Create an account
Visit www.ptdevices.com and select "Sign Up" if you
Drill hole for
don't already have an account. Fill out the required
tubing
PTLevel
inputs or click on a social login option for a simpler
transmitter
process.
Add your device
Cistern
Once in your account, select "Add PTLevel" from the
Pic 1
menu or "Connect It" from the dashboard. On the next
screen, add the following ID of the PTLevel.
Note: Make sure all
tubing connections
are setup and
sealed properly or
the PTLevel will not
read accurately.
After you have selected the "Add my device" button, you
should see a "Waiting for device to connect" screen. If
the PTLevel receiver is all setup properly, the waiting
screen should disappear within a minute. If it does not,
click on the "Remove this" and try adding it again. If it
still does not work, try connecting the WiFi again.
Final setup!
If everything setup properly, you should see a level
reading online. Press the connect button on the
transmitter for a more recent reading.
Click on the "Please Setup" button near the level
reading. Enter in the full depth of the tank and configure
anything else.
You should be all setup. See the calibration section on
the other side to do your first calibration.
Congratulations!
