This manual is for use by trained LEVO dealers. Read these Instructions
carefully before servicing a customer wheelchair. Failure to follow these
instructions could result in injury to the customer and/or damage to the
wheelchair. Alterations outside of the written guidelines can also invalid the
CE and ISO conformities and void the product warranty.
If you have questions or difficulties, please contact LEVO AG.
LEVO AG
LEVO AG
A
NGLIKERSTRASSE
S
CH-5610 W
WITZERLAND
Content
Service Manual
LEVO LCEV
EU SRN: CH-MF-000008751
20
T
+41 (0)56 618 44 11
EL
F
+41 (0)56 618 44 10
OHLEN
AX
@
.
OFFICE
LEVO
CH
.
.
WWW
LEVO
CH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCEV and is the answer not in the manual?

Questions and answers

Related Manuals for Levo LCEV

Summary of Contents for Levo LCEV

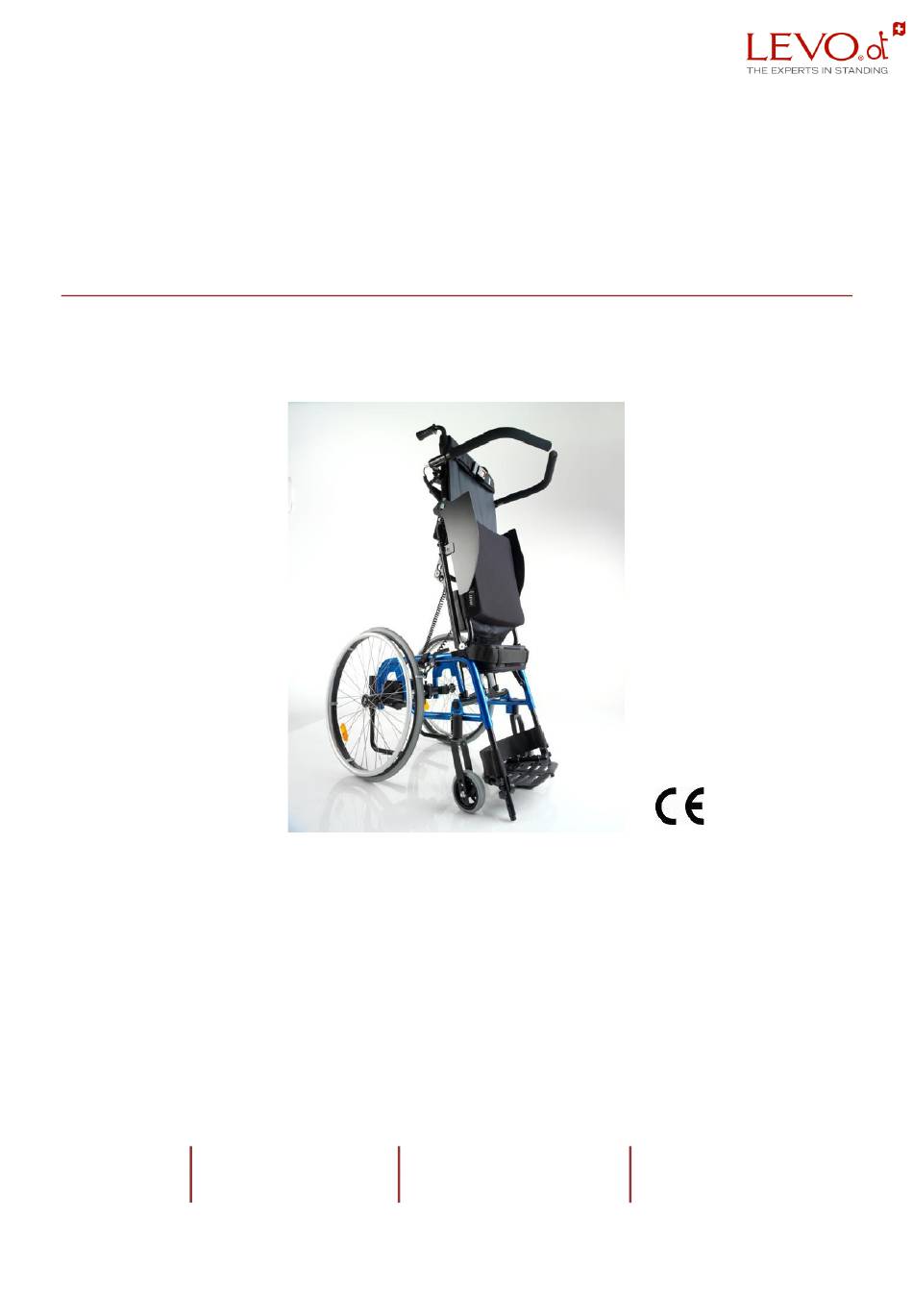

  • Page 1 Service Manual LEVO LCEV This manual is for use by trained LEVO dealers. Read these Instructions carefully before servicing a customer wheelchair. Failure to follow these instructions could result in injury to the customer and/or damage to the wheelchair. Alterations outside of the written guidelines can also invalid the CE and ISO conformities and void the product warranty.

  • Page 2: Table Of Contents

    1. Introduction ..............................3 1.1. Accident prevention & Safety ......................3 1.2. Adjustments - General Advice ......................3 1.3. Repairs – General Advice ........................3 1.4. Tools & Torques ..........................4 1.5. Important Notes ..........................4 2. Safety Checks .............................. 4 3.

  • Page 3: Introduction

    Introduction Aside from the regular charging of the battery and normal cleaning, the LEVO LCEV is generally maintenance-free. To insure the safety and proper function of the wheelchair, it should be checked at least once a year by trained service personnel.

  • Page 4: Tools & Torques

    It is preferred that thread locker (like blue LocTite) is utilized on screws/nuts. • For replacement parts, use recommended components and spare parts supplied from LEVO. • Always replace main components like frames, seat rails, armrests, backrests and legrest parts. They are never to be modified or repaired.
  • Page 5 4. Check the condition of straps, belts and catches and replace, if necessary. 5. Check that all nuts, screws, joints and plastic parts are secured and in proper operating condition. 6. Check that push handles are properly secured and the covers fit tightly. 7.

  • Page 6: Adjustments

    3. Adjustments 3.1. Rear wheel position – Axle adapter types The axle adapter mounted as standard on the LEVO LCEV depends on the seat depth. • Seat depth S: axle adapter S mounted. Seat depth • Seat depth M: axle adapter M mounted.

  • Page 7: Axle Adapter Adjustment - Seat / Backrest Inclination

    3.2. Axle adapter adjustment - Seat / Backrest inclination To adjust the seat inclination the axle adapter is adjusted in height as follows: The standard pre-set inclination is to the rear. By adjusting the height of the axle adapter it is possible to set the backrest inclination between 2° and 10° to the rear (see chart below).

  • Page 8: Front Caster And Legrest Adjustment

    In the uppermost standing position, the leg supports must be resting on the ground. • Bring the LEVO LCEV into the standing position. • Unscrew and remove the cylindrical screws using a 4 mm hex key, then set the plastic legrest foot either higher or lower so that the leg supports are standing on the ground.

  • Page 9: Legrest Support Adjustment

    This is important for a straight, comfortable and correct standing position. Attention: An incorrect seat depth adjustment can cause pain, pressure sores or malposition. The seat depth adjustment should only be carried out by a LEVO dealer! • Drive the seat up into a comfortable working position.

  • Page 10: Replacement And Repair

    Replacement and Repair 4.1. Rear wheel tire/inner tube replacing • Remove the wheel and open the valve by pressing down to let out the air. • Using a tire wedge, ease both sides of the tire over the wheel rim and pull the inner tube out of the tire.

  • Page 11: Gas Spring Replacement

    • Check that the inner tube is not caught between tire and rim before pumping it up in line with the manufacturer’s recommended tire pressure. 4.3. Gas Spring replacement Warning: The gas springs are pressurized and are potentially dangerous. Always drive the actuator into fully-standing position to extend and release the gas springs before disassembling.

  • Page 12: Actuator Replacement

    4.4. Actuator replacement Warning: The gas springs are pressurized and are potentially dangerous. NEVER disassemble the Actuator in the seated position when the gas springs are compressed. Only disassemble the actuator if the chair is in the fully standing position and the gas springs are released.

  • Page 13: Battery-Controller Replacement

    4.6. Battery-Controller replacement • Disconnect the actuator plug and the battery plug from the battery-controler. • Push the two buttons to the outside • Take off the battery-controler. • Install the the battery-controller in reverse order. Attention: In the case of an electronic defect the complete battery-/ electronic box must be replaced! No repairs should be attempted (warranty voided and safety issues).

  • Page 14: Final Check

    • For disinfecting the surface, we recommend an alcohol-based spray. After a thorough pre-cleaning, smaller areas can be disinfected as necessary. Please consult the LEVO AG service centre if you have further questions. 7. Version Management Version-No. Date Description...
