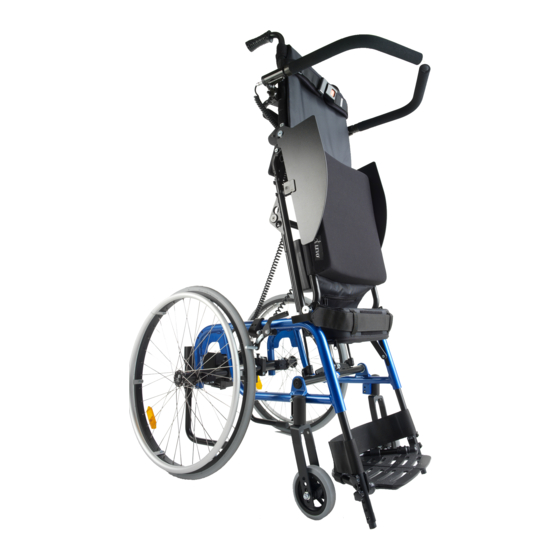

LEVO compact-easy LCEV
Please read these User Instructions carefully before operating your
wheelchair! Failure to follow these instructions can result in serious
personal injury and/or damage to the wheelchair! This is a type-approved
medical device. Alterations to the construction or electronics will void the
warranty and the product liability.
In case of difficulty please contact:
Manufacturer
LEVO AG
Anglikerstrasse 20
CH-5610 Wohlen
Tel: +41 (0)56 618 44 11
office@levo.ch
www.levo.ch
LEVO AG
A
NGLIKERSTRASSE
S
CH-5610 W
WITZERLAND
User Manual
20
T
+41 (0)56 618 44 11
EL
F
+41 (0)56 618 44 10
OHLEN
AX
Agent:
@
OFFICE
.
WWW
LEVO
.
LEVO
CH
.
CH
