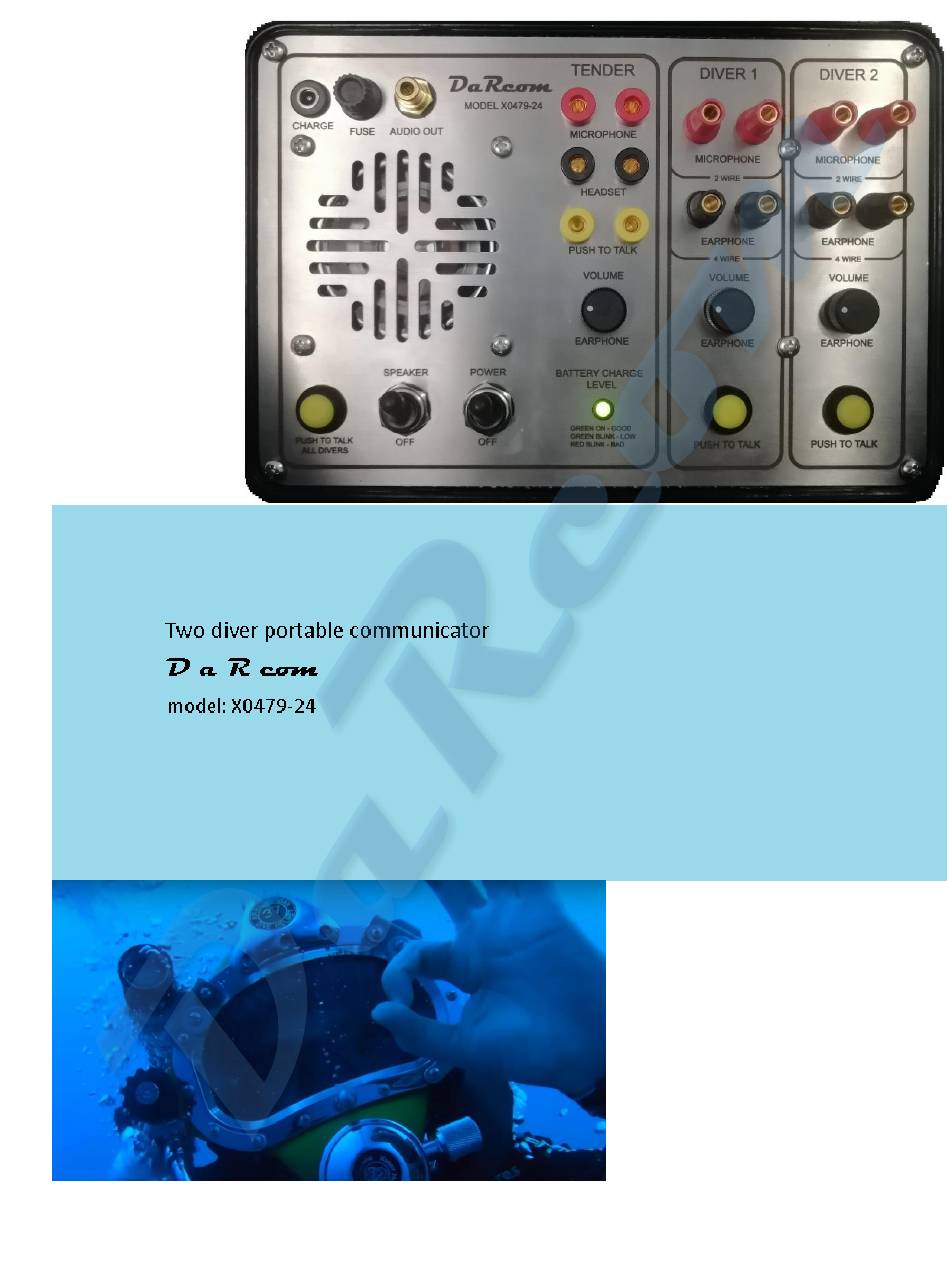

- Page 1 Battery installation manual...
- Page 2 This manual is intended for use in operation and maintenance. There is no copy protection and it is not intended for sale. DaR electronics-bg reserves the right to change it, without notice. _________________________________ DaRcom Two diver portable communicator X0479-24 Battery installation manual ver. 2.0...
- Page 3 Internal view of X0479-24 communicator 1. Front panel and communicator electronics; 2. Battery compartment; 3. AGM lead-acid battery; 4. Additional fuse. _________________________________ DaRcom Two diver portable communicator X0479-24 Battery installation manual ver. 2.0...
- Page 4 Fig.1 AGM lead-acid battery Fig.2. Front panel screw removal _________________________________ DaRcom Two diver portable communicator X0479-24 Battery installation manual ver. 2.0...
- Page 5 Fig.3. AGM battery connecting terminals Fig. 4. Correct position of the battery _________________________________ DaRcom Two diver portable communicator X0479-24 Battery installation manual ver. 2.0...
- Page 6 Compatible battery – AGM lead acid rechargeable battery 12V 7Ah. Dimensions (mm): 151 x 65 x 100 (see Fig. 1) with correct terminals (see Fig. 3). Screwdriver “PH2“ Protective gloves and goggles (recommended) _________________________________ DaRcom Two diver portable communicator X0479-24 Battery installation manual ver. 2.0...
-
Page 7: Troubleshooting
LED shows low Partially charged or old Charge the battery or replace battery battery with a new one If the problem persists, contact DaR electronics-bg at the provided email address. _________________________________ DaRcom Two diver portable communicator X0479-24 Battery installation manual ver. 2.0...
