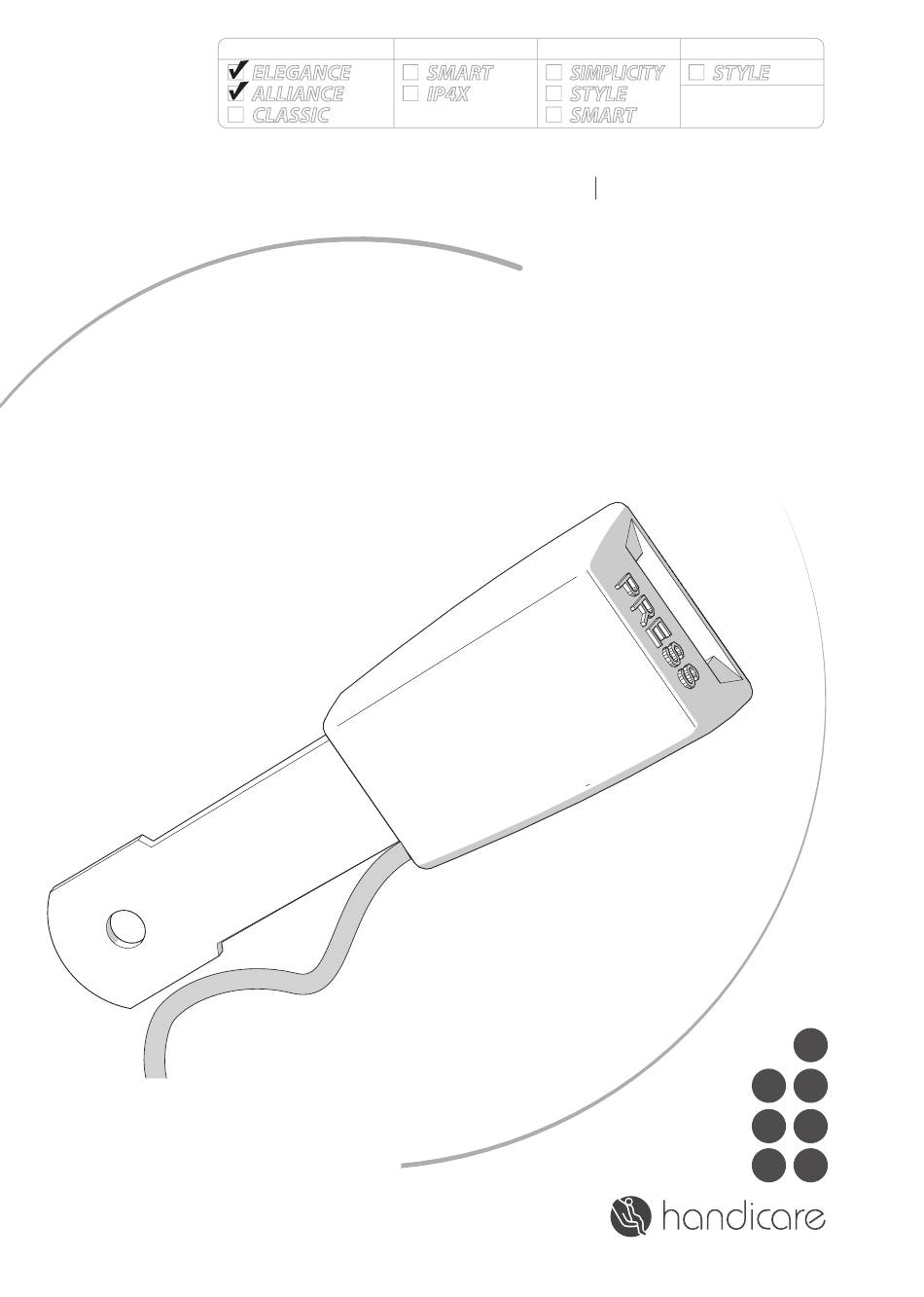

FREECURVE
ELEGANCE
ALLIANCE
CLASSIC
Cintura di sicurezza (interblocco)
Ceinture de sécurité (verrouillage)
Sicherheitsgurt (Verriegelung)
Veiligheidsgordel (interlock)
Cinturón de seguridad (entrelazarse)
Seat belt interlock
1000
SMART
IP4X
HANDICARE
4000
1100
SIMPLICITY
STYLE
STYLE
*AA29821*
SMART
AA29821
S PA R E PA R T S
PIEZAS DE REPUESTO
RESERVE-ONDERDELEN
ERSATZTEILE
PIÈCES DE RECHANGE
PEZZI DI RICAMBIO
ES
I T
NL
FR
US
DE
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the FREECURVE ELEGANCE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Handicare FREECURVE ELEGANCE

Summary of Contents for Handicare FREECURVE ELEGANCE

  • Page 1 SMART SIMPLICITY STYLE ALLIANCE IP4X STYLE *AA29821* CLASSIC SMART AA29821 HANDICARE S PA R E PA R T S PIEZAS DE REPUESTO RESERVE-ONDERDELEN ERSATZTEILE PIÈCES DE RECHANGE PEZZI DI RICAMBIO Cintura di sicurezza (interblocco) Ceinture de sécurité (verrouillage) Sicherheitsgurt (Verriegelung) Veiligheidsgordel (interlock) Cinturón de seguridad (entrelazarse)
  • Page 2 SEAT BELT INTERLOCK AA29821 USED TOOLS 5 mm 1 SEAT BELT INTERLOCK SPAREPARTS...
  • Page 3 EXPLANATION Only a technician certified for this lift should install this lift (for more detailled information about the required competence see attachment of the installation manual). General required knowledge can be found in the 1100 Techical Manual. The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [1]Check that all the components of the concerning kit are present.
  • Page 4 SEAT BELT INTERLOCK 89 Lb-In 10 Nm 5 mm 13 mm 89 Lb-In 5 mm 10 Nm 5 mm 3 SEAT BELT INTERLOCK SPAREPARTS...
  • Page 5 EXPLANATION [4]Only older chair types: drill a 13 mm hole in the armrest, near the seat belt attachment. [5]Fit the new buckle together with the nut (new!) and washer{A}. Mount the bolt and secure the safety belt in place{B}. [6]Loosen the old seat belt drum{A}. Remove the drum{B}. [7]Fit the new seat belt drum together with the bolt and washer{A}.
  • Page 6 SEAT BELT INTERLOCK...
  • Page 7 EXPLANATION [8]Guide the cable through the armrest. [9]Disconnect the armrest loom. [10]Connect the seat belt loom with the arm rest loom and with the seat loom. [11]Fit the supplied cableguide on the inside of the armrest. [12]Fasten the seat belt cable with the tiewrap. [8]Leid de kabel door de armleuning.
  • Page 8 SEAT BELT INTERLOCK 7 SEAT BELT INTERLOCK SPAREPARTS...
  • Page 9 EXPLANATION [13]Refit the cover. [14] Check the functionality of the seat belt interlock. [13]Herplaats de kap. [14]Check de functionaliteit van de stoelriem-interlock. [13]Vuelva a montar la cubierta. [14]Compruebe el funcionamiento del bloqueo del cinturón de seguridad. [13]Bringen Sie die Abdeckung wieder an. [14]Überprüfen Sie Funktionalität der Verriegelung des Sicherheitsgurtes.
  • Page 12 Deutschland Canada Tel: +49 (0) 571 973398-55 T : 905.850.9003 Fax: +49 (0) 571 973398-56 F : 416.260.0256 data@handicare.com Handicare Montascale Italia Via Chiaviche 17 46020 Pegognaga (MN) SEAT BELT INTERLOCK SPAREPART Italy *AA29819* Tel: +39 (0) 376 143 3516 AA29819 _ 0 _ handicare-montascale.it...
