Summary of Contents for Lenze AC Tech PositionServo E94 040S1N Series

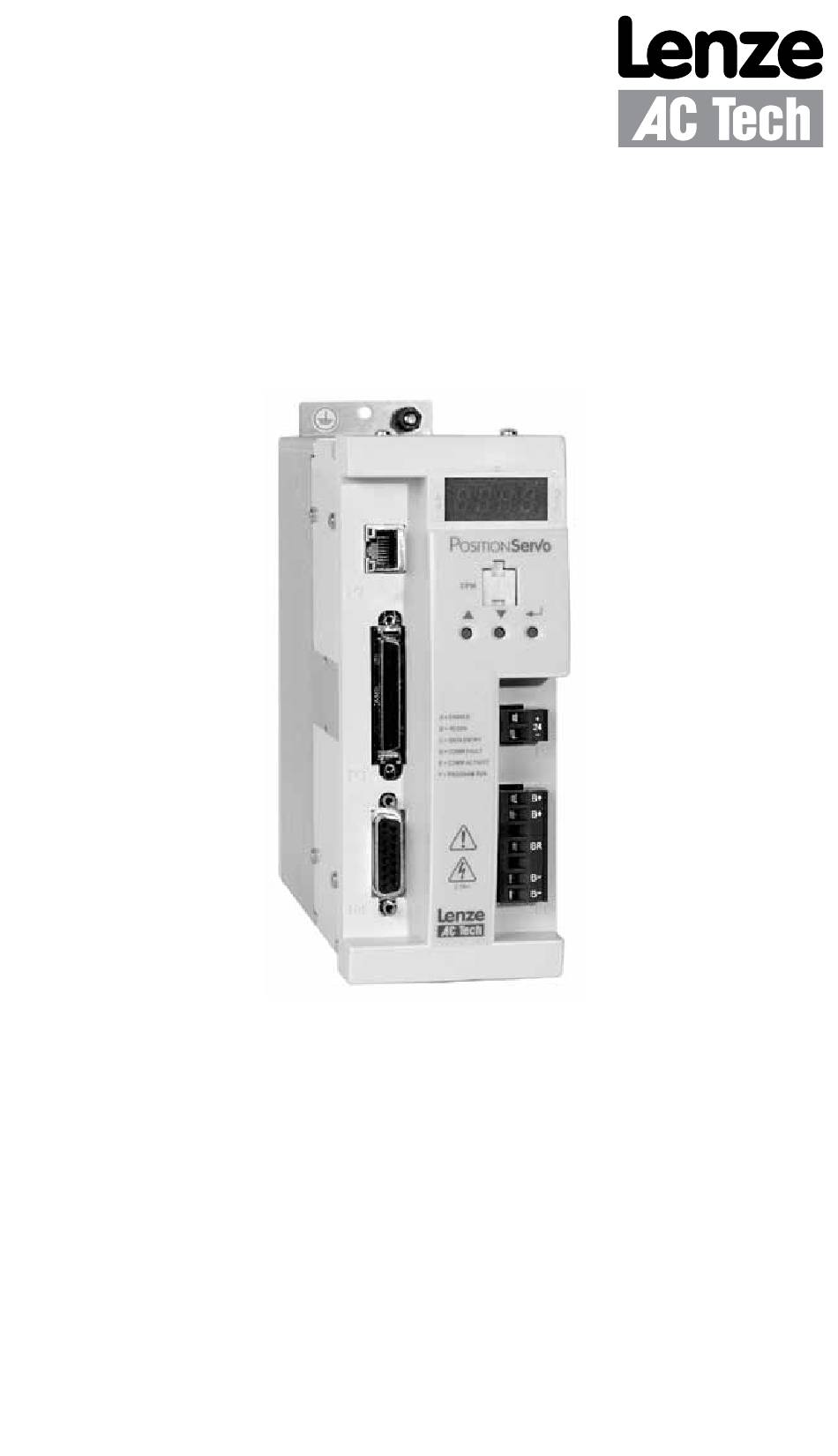

Page 1 PositionServo (MVCD) Users Manual...
Page 2 Lenze AC Tech Corporation. The information and technical data in this manual are subject to change without notice. Lenze AC Tech makes no warranty of any kind with respect to this material, including, but not limited to, the implied warranties of its merchantability and fitness for a given purpose.
Page 3: Table Of Contents
Contents Introduction..........5 About These Instructions .
Page 4 Contents Using a Custom Motor ..........33 4.6.1 Creating Custom Motor Parameters .
Page 5 Contents Compensation ...........51 5.9.1 Velocity P-gain (proportional) .
Page 6 Safety Information All safety information given in these Operating Instructions has a similar layout: Signal Word! (Characteristics the severity of the danger) Note (describes the danger and informs on how to proceed) Pictographs used in these instructions: Signal Words Icon DANGER! Warns of impending danger.
Page 7: Introduction
Introduction Introduction The PositionServo line of advanced general purpose servo drives utilizes the latest technology in power semiconductors and packaging. The PositionServo uses Field Oriented control to enable high quality motion. The PositionServo is available in four mains (input power) configurations: 400/480V (nominal) three phase input.
Page 8: About These Instructions
Introduction About These Instructions These Operating Instructions are provided to assist the user in connecting and commissioning the PositionServo drive with model number ending in “EX” or “RX”. Read this manual in its entirety and observe all safety instructions contained in this document. All persons working on or with the controller must have the Operating Instructions available and must observe the information and notes relevant for their work.
Page 9: Warranty
Introduction Liability • The information, data, and notes in these instructions met the state of the art at the time of publication. Claims on modifications referring to controllers that have already been supplied cannot be derived from the information, illustrations, and descriptions. •...
Page 10 Introduction Filter Part Number Designation E94Z Electrical Option in the 94 Series F = EMC Filter Filter Current Rating in Amps: 04 = 4.4 Amps 12 = 12 Amps 07 = 6.9 Amps 15 = 15 Amps 10 = 10 Amps 24 = 24 Amps Input Phase: S = Single Phase...
Page 11: Technical Data
Technical Data Technical Data Electrical Characteristics Single-Phase Models 1~ Mains 1~ Mains Rated Peak Current Current Output Output Type Mains Voltage (doubler) (Std.) Current Current E94_020S1N_X 120V or 240V E94_040S1N_X E94_020S2F_X E94_040S2F_X 120 / 240V (80 V -0%...264 V +0%) E94_080S2F_X 15.0 E94_100S2F_X...
Page 12: Power Ratings
Technical Data Power Ratings Power Loss at Power Loss at Output kVA at Rated Output Rated Output Type Rated Output Leakage Current Current Current Current (8kHz) (8kHz) (16 kHz) Units Watts Watts E94_020S1N_X E94_040S1N_X E94_020S2F_X E94_040S2F_X E94_080S2F_X E94_100S2F_X E94_020Y2N_X Typically >3.5 mA. Consult factory for E94_040Y2N_X applications requiring...
Page 13: Digital I/O Ratings
Technical Data Digital I/O Ratings Scan Input Voltage Linearity Temperature Drift Offset Current Times Impedance Range Units Digital Inputs Depend on load 2.2 k 5-24 Digital Outputs 15 max 30 max Analog Inputs ± 0.013 0.1% per °C rise ± 0 adjustable Depend on load 47 k ±...
Page 14: Positionservo Dimensions
Technical Data PositionServo Dimensions dia = 4.57 4.57 S923 Type A (mm) B (mm) C (mm) D (mm) Weight (kg) E94_020S1N_X E94_040S1N_X E94_020S2F_X E94_040S2F_X E94_080S2F_X E94_100S2F_X E94_020Y2N_X E94_040Y2N_X E94_080Y2N_X E94_100Y2N_X E94_120Y2~_X E94_180T2~_X E94_020T4N_X E94_040T4N_X E94_050T4N_X E94_060T4~_X E94_090T4~_X The first “_” equals “P” for the Model 940 encoder based drive or “R” for the Model 941 resolver based drive. When the 10th digit is marked by “~”, “N”...
Page 15: Clearance For Cooling Air Circulation
Technical Data Clearance for Cooling Air Circulation >25mm >3mm >25mm S924 S94P01G...
Page 16: Installation
Installation Installation Perform the minimum system connection. Please refer to section 6.1 for minimum connection requirements. Observe the rules and warnings below carefully: DANGER! Hazard of electrical shock! Circuit potentials are up to 480 VAC above earth ground. Avoid direct contact with the printed circuit board or with circuit elements to prevent the risk of serious injury or fatality.
Page 17: Wiring
Installation Wiring DANGER! Hazard of electrical shock! Circuit potentials are up to 480 VAC above earth ground. Avoid direct contact with the printed circuit board or with circuit elements to prevent the risk of serious injury or fatality. Disconnect incoming power and wait 60 seconds before servicing the drive.
Page 18: Emi Protection
Installation Compliance with EN 61800-3:2004 In a domestic environment this product may cause radio interference. The user may be required to take adequate measures Noise emission Installation according to EMC Requirements Drive Models ending in the suffix “2F” are in compliance with class A limits according to EN 55011 if installed in a control cabinet and the motor cable length does not exceed 10m.
Page 19: Line Filtering
Installation Line Filtering In addition to EMI/RFI safeguards inherent in the PositionServo design, external filtering may be required. High frequency energy can be coupled between the circuits via radiation or conduction. The AC power wiring is one of the most important paths for both types of coupling mechanisms.
Page 20: Interface
Interface Interface The standard PositionServo drive contains seven connectors: four quick-connect terminal blocks, one SCSI connector and one subminiature type “D” connector. These connectors provide communications from a PLC or host controller, power to the drive, and feedback from the motor. Prefabricated cable assemblies may be purchased from Lenze to facilitate wiring the drive, motor and host computer.
Page 21: P2 - Ethernet Communications Port
Interface P1 Pin Assignments (Input Power) Standard Models Doubler Models Name Function Name Function Protective Earth Protective Earth (Ground) (Ground) AC Power Neutral AC Power in (120V Doubler only) AC Power in AC Power in AC Power in AC Power in L2/N (3~ models only) (non-doubler operation)
Page 22: P3 - Controller Interface
Interface 4.1.3 P3 - Controller Interface P3 is a 50-pin SCSI connector for interfacing to the front-end of the controllers. It is strongly recommended that you use OEM cables to aid in satisfying CE requirements. Contact your Lenze representative for assistance. P3 Pin Assignments (Controller Interface) Name Function...
Page 23: P4 - Motor Feedback / Second Loop Encoder Input
Interface 4.1.4 P4 - Motor Feedback / Second Loop Encoder Input For encoder-based 940 drives, P4 is a 15-pin DB connector that contains connections for an incremental encoder with Hall emulation tracks or Hall sensors. For synchronous servo motors, Hall sensors or Hall emulation tracks are necessary for commutation. If an asynchronous servo motor is used, it is not necessary to connect Hall sensor inputs.
Page 24: P5 - 24 Vdc Back-Up Power Input
Interface P4B Pin Assignments (Resolver Feedback - E94R Drives) Name Function Ref + Resolver reference connection Ref - No Connection Cos+ Resolver Cosine connections Cos- Sin+ Resolver Sine connections Sin- PTC+ Motor PTC Temperature Sensor PTC- 4.1.5 P5 - 24 VDC Back-up Power Input P5 is a 2-pin quick-connect terminal block that can be used with an external 24 VDC (500mA) power supply to provide “Keep Alive”...
Page 25: Connector And Wiring Notes
Interface 4.1.7 Connector and Wiring Notes Note 1 - Buffered Encoder Inputs Each of the encoder output pins on P3 is a buffered pass-through of the corresponding input signal on P4, Refer to section 4.2.2 “Buffered Encoder Outputs”. This can be either from a motor mounted encoder/resolver, (primary feedback), or from an auxiliary encoder/resolver when an optional feedback module is used.
Page 26: P11 - Resolver Interface Module (Option)
Interface 4.1.8 P11 - Resolver Interface Module (option) PositionServo drives can operate motors equipped with resolvers from either the (P4) connection, for a resolver-based (E94R) drive, or from the Resolver option module for an encoder-based (E94P) drive. The option module connections are made to a 9 pin D-shell female connector (P11) on the resolver option module E94ZARSV2 (scalable) or E94ZARSV3 (standard).
Page 27: Setting The Dip Switches
Interface Setting the Dip Switches To change the DIP SWITCH SETTING Loosen the three set screws on the module Detach the PCB board from the plastic cover Change the SW1 positions according to the table above Put the PCB board back in the plastic cover Tighten the three set screws When using a Lenze motor with resolver feedback and a Lenze resolver cable, the pins are already configured for operation.
Page 28: Digital I/O Details
Interface Digital I/O Details 4.2.1 Step & Direction / Master Encoder Inputs (P3, pins 1-4) You can connect a master encoder with quadrature outputs or a step and direction pair of signals to control position in step / direction operating mode (stepper motor emulation).
Page 29: Buffered Encoder Output (P3, Pins 7-12)
Interface 4.2.2 Buffered Encoder Output (P3, pins 7-12) There are many applications where it is desired to close the feedback loop to an external device. This feature is built into the PositionServo drive and is referred to as the “Buffered Encoder Output”. If a motor with encoder feedback is being used, the A+, A-, B+, B-, Z+ and Z- signals are directly passed through the drive through pins 7-12 with no delays, up to a speed of 25MHz.
Page 30: Digital Inputs
Interface 4.2.4 Digital Inputs IN_Ax, IN_Bx, IN_Cx (P3.26-30, P3.31-35, P3.36-40) The PositionServo Drive has 12 optically isolated inputs. These inputs are compatible with a 5 - 24V voltage source. No additional series resistors are needed for circuit operation. The 12 inputs are segmented into three groups of 4, Inputs A1 - A4, Inputs B1 - B4, and Inputs C1 - C4.
Page 31: Analog I/O Details
Interface Analog I/O Details 4.3.1 Analog Reference Input AIN1+, AIN1- (P3.24 and P3.25) The analog reference input can accept up to a ±10V analog signal across AIN1+ and AIN1-. The maximum limit with respect to analog common (ACOM) on each input is ±18VDC.
Page 32: Analog Output
Interface 4.3.2 Analog Output AO (P3.23) The analog output is a single-ended signal (with reference to Analog Common (ACOM) which can represent the following motor data: • Not Assigned • Phase R Current • Iq Current • RMS Phase Current •...
Page 33: Rs485 Communication Setup
Interface 4.4.3 RS485 Communication Setup When establishing communication between MotionView and a PositionServo drive, a communication method must be selected. The connection choice can be either “UPP over RS485/RS232” or “Ethernet”. The “UPP over RS485/RS232” selection establishes a RS485 connection between MotionView and the first drive on the network. Multiple drives can then be added to the network via RS485.
Page 34: Motor Over-Temperature Protection
Interface 4.5.2 Motor Over-temperature Protection If using a motor equipped with an encoder and PTC thermal sensor, the encoder feedback cable will have flying leads exiting the P4 connector to be wired to the P7.1 (T1) and P7.2 (T2) terminals. If using a motor equipped with a Resolver and a PTC sensor, the thermal feedback is pased directly to the drive via the resolver 9-pin D shell connector.
Page 35: Using A Custom Motor
Interface Using a Custom Motor You can load a custom motor from a file or you can create a new custom motor. • To create a custom motor click “CREATE CUSTOM” and follow the instructions in the next section “Creating custom motor parameters”. •...
Page 36: Autophasing
Interface 4.6.2 Autophasing The Autophasing feature determines important motor parameters when using a motor that is not in MotionView’s database. For motors equipped with incremental encoders, Autophasing will determine the Hall order sequence, Hall sensor polarity and encoder channel relationship (B leads A or A leads B for CW rotation). For motors equipped with resolvers, Autophasing will determine resolver angle offset and angle increment direction (“CW for positive”).
Page 37 Interface 4.6.3.1 Electrical constants Motor Torque Constant (Kt) Enter the value and select proper units from the drop-down list. NOTE Round the calculated result to 3 significant places. Motor Voltage Constant (Ke) The program expects Ke to be entered as a phase-to-phase Peak voltage. If you have Ke as an RMS value, multiply this value by 1.414 for the correct Ke Peak value.
Page 38 Interface Nominal Bus Voltage (Vbus) The Nominal Bus Voltage can be calculated by multiplying the Nominal AC mains voltage supplied by 1.41. When using a model with the suffix “S1N” where the mains are wired to the “Doubler” connection, the Nominal Bus Voltage will be doubled. Example: If the mains voltage is 230VAC, Vbus = 230 x 1.41 = 325V This value is the initial voltage for the drive and the correct voltage will be...
Page 39 Interface The Halls Order is obtained as follows: Look at the “Vrs” Output Voltage and determine the Hall Voltage that is lined up with (or in phase with) this voltage. To determine which Hall Voltage is in phase with the Vrs Output Voltage draw vertical lines at those points where it crosses the horizontal line (zero).
Page 40 Interface 4.6.3.3 For Resolver Equipped Motors Only If parameter “Resolver” is checked, following parameters appear on the form: Offset in degree (electrical) This parameter represents offset between resolver’s “0 degree” and motor’s windings “0 degree”. CW for positive This parameter sets the direction for positive angle increment. “Offset in degree”...
Page 41: Parameters
Parameters Parameters The PositionServo drive is configured through an RS485 or Ethernet interface. The drive has many programmable features and parameters accessible via a universal software called MotionView. Refer to the MotionView Manual for details on how to make a connection to the drive and change parameter values. This chapter covers the PositionServo’s programmable features and parameters in the order they appear in the Parameter Tree of MotionView.
Page 42: Motor Group
Parameters Motor Group The motor group shows the data for the currently selected motor. Refer to section 4.5 for details on how to select another motor from the motor database or to configure a custom motor. Parameters 5.3.1 Drive Operating Modes The PositionServo has 3 operating mode selections: Torque, Velocity and Position.
Page 43: Drive Pwm Frequency
Parameters 5.3.2 Drive PWM frequency This parameter sets the PWM carrier frequency. Frequency can be changed only when the drive is disabled. Maximum overload current is 300% of the drive rated current when the carrier is set to 8kHz. It is limited to 250% at 16kHz. 5.3.3 Current Limit The CURRENT LIMIT setting determines the nominal currents, in amps RMS per phase,...
Page 44: Accel/Decel Limits (Velocity Mode Only)
Parameters 5.3.7 ACCEL/DECEL Limits (velocity mode only) The ACCEL setting determines the time the motor takes to ramp to a higher speed. The DECEL setting determines the time the motor takes to ramp to a lower speed. If the ENABLE ACCEL/DECEL LIMITS is set to DISABLE, the drive will automatically accelerate and decelerate at maximum acceleration limited only by the current limit established by the PEAK CURRENT LIMIT and CURRENT LIMIT settings.
Page 45: Regeneration Duty Cycle
Parameters 5.3.14 Regeneration Duty Cycle This parameter sets the maximum duty cycle for the brake (regeneration) resistor. This parameter can be used to prevent brake resistor overload. Use the following formula to calculate the maximum value for this parameter. If this parameter is set equal to the calculated value, the regeneration resistor is most effective without overload.
Page 46: Encoder Repeat Source
Parameters 5.3.15 Encoder Repeat Source This parameter sets the feedback source signal for the buffered encoder outputs (P3.7 -P3.12). The source can be the drive’s feedback input (P4) or an optional feedback module (resolver, second encoder etc.) 5.3.16 System to Master Ratio This parameter is used to set the scale between the reference pulse train (when operating in position mode) and the system feedback device.
Page 47: Current Limit Max Overwrite
Parameters The number entered into this field, 0-15, directly correlates to a different encoder resolution. Please reference the table herein. Resolver Track Configuration Resolver Resolution Resolver Track Resolution Track Before Quad Before Quad 1024 1000 1024 2000 2048 2500 2880 4096 5.3.23 Current Limit Max Overwrite If this parameter is set to “Disable”, the parameters “Current limit”, “8 kHz peak current...
Page 48: Set The Pc's Ip Address
Parameters 5.4.1.1 Manually Obtain the PositionServo Drive’s IP Address The PositionServo drive can be connected to a local PC or a private network if setting DHCP=0. In this mode, make sure to set DHCP = 0 via the diagnostic display LED, refer to section 7.1 for details.
Page 49 Parameters Select the connection you wish to set: “Local Area Connection”, the PC Default Port or “Local Area Connection x” your additional Ethernet port. Then double-click the icon to open the [Connection Status] details. To view the connection properties click the [Properties] button.
Page 50: Configuration
Parameters Select “Use the following IP address” and enter [192.168.124.1] for the IP address. Now enter the subnet mask [255.255.255.0], and then click the [OK] button. Note that one can use “Obtain an IP address automatically” after the PositionServo drive’s IP address has been configured under the same subnet to which the PC is connected.
Page 51: Analog Output Current Scale (Volt / Amps)
Parameters 5.5.2 Analog Output Current Scale (Volt / amps) Applies scaling to all functions representing CURRENT values. 5.5.3 Analog Output Current Scale (mV/RPM) Applies scaling to all functions representing VELOCITY values. (Note: that mV/RPM scaling units are numerically equivalent to volts/kRPM). 5.5.4 Analog Input Dead Band Allows the setting of a voltage window (in mV) at the reference input AIN1+ and AIN1-...
Page 52: Hard Limit Switch Action
Parameters 5.6.2 Hard Limit Switch Action Digital inputs IN_A1 and IN_A2 can be used as limit switches if their function is set to “Fault” or “Stop and Fault”. Activation of these inputs while the drive is enabled will cause the drive to Disable and go to a Fault state. The “Stop and Fault” action is available only in Position mode when the “Reference”...
Page 53: Compensation
Parameters Compensation 5.9.1 Velocity P-gain (proportional) Proportional gain adjusts the system’s overall response to a velocity error. The velocity error is the difference between the commanded velocity of a motor shaft and the actual shaft velocity as measured by the primary feedback device. By adjusting the proportional gain, the bandwidth of the drive is more closely matched to the bandwidth of the control signal, ensuring more precise response of the servo loop to the input signal.
Page 54: Gain Scaling Window
Parameters 5.9.7 Gain Scaling Window Sets the total velocity loop gain multiplier (2 ) where n is the velocity regulation window. If, during motor tuning, the velocity gains become too small or too large, this parameter is used to adjust loop sensitivity. If the velocity gains are too small, decrease the total loop gain value, by deceasing this parameter.
Page 55: Operation
Operation Operation This section offers guidance on configuring the PositionServo drive for operations in torque, velocity or position modes without requiring a user program. To use advanced programming features of PositionServo please perform all steps below and then refer to the PositionServo Programming Manual for details on how to write motion programs. Minimum Connections For the most basic operation, connect the PositionServo to mains (line) power at terminal P1, the servomotor power at P7 and the motor feedback as appropriate.
Page 56 Operation To configure drive: Ensure that the control is properly installed and mounted. Refer to section 4 for installation instructions. Perform wiring to the motor and external equipment suitable for desired operating mode and your system requirements. Connect the Ethernet port P2 on the drive to your PC Ethernet port. If connecting directly to the drive from the PC, a crossover cable is required.
Page 57: Position Mode Operation (Gearing)
Operation Position Mode Operation (gearing) In position mode the drive will follow the master reference signals at the 1-4 inputs of P3. The distance the motor shaft rotates per each master pulse is established by the ratio of the master signal pulses to motor encoder pulses (in single loop configuration). The ratio is set by “System to Master ratio”...
Page 58: Enabling The Positionservo
Operation Enabling the PositionServo Regardless of the selected operating mode, the PositionServo must be enabled before it can operate. A voltage in the range of 5-24 VDC connected between P3 pins 26 and 29 (input IN_A3) is used to enable the drive, refer to section 4.1.7, note 3. The behavior of input IN_A3 differs depending on the setting of “Enable switch function”.
Page 59: Tuning The Drive In Velocity Mode
Operation WARNING! During both the Velocity and Position tuning procedures the PositionServo drive will perform rotation (motion) of the motor shaft in the forward and reverse directions at velocities based on the settings made by the user. Ensure that the motor and associated mechanics of the system are safe to operate in the way specified during these procedures.
Page 60 Operation Compile and Download Indexer Program to Drive In the [Indexer program] folder in MotionView, select [Compile and Load with Source] from the pull down menu. The TuneV program will be compiled and sent to the drive. Select [Run] from the pull down menu to run the TuneV program. Do NOT enable the drive (via input A3) at this stage.
Page 61 Operation Gain Scaling set OK Motor Velocity resembles Commanded Velocity. Motor Velocity is reasonably close with a slight overshoot. Gain Scaling set too HIGH Motor Velocity shows significant overshoot following the acceleration periods. Gain Scaling set significantly too HIGH Motor Velocity exhibits instability throughout the steady state Commanded Velocity.
Page 62 Operation Step 2: Fine Tuning the Velocity P-Gain Slowly alter the Velocity P-Gain (increase and decrease) and observe the motor velocity waveform on the oscilloscope. As the P-Gain increases the gradient of the velocity during acceleration and deceleration will also increase as will the final steady state velocity that is achieved.
Page 63 Operation I-Gain set OK No error between Commanded steady state velocity and Actual steady state velocity with excellent stability. I-Gain set too HIGH Additional overshoot and oscillations are starting to occur. Steady state velocity regulation Step 4: Check Motor Currents Finally check the motor currents on the Oscilloscope.
Page 64: Tuning The Drive In Position Mode
Operation Good Current Trace Uniform current pulses during accel/ deceleration and stable current during steady state velocity. Instability in Drive Output Current (Note: Channel 2 trace has been removed for clarity). End Velocity Tuning Remove the Enable Input from input A3 (disable the drive). In MotionView, click on the [Indexer] folder for the drive.
Page 65 Operation Importing the Position Tuning Program Before importing the Position Tuning Program, the example programs must be installed from the Documentation CD that shipped with the drive. If this has not been done then please do so now. To load the TuneP program file to the drive, select [Indexer Program] in MotionView. Select [Import program from file] on the main toolbar.
Page 66 Operation Oscilloscope Settings Open the [Tools] folder]in MotionView and select the [Oscilloscope] tool. Click the [Set on Top] box to place a checkmark in it and keep the scope on top. In the Scope Tool Window, make the following settings: Channel 1: Signal = “Position Error”...
Page 67 Operation Increased Position P-Gain Shows improvement to the maximum error and the final positioning accuracy At some point while increasing the P-Gain, additional oscillations (Average Error) will start to appear on the position error waveform. Further Increased Position P-Gain Shows very good reduction to the maximum error but with additional oscillations starting to occur.
Page 68 Operation Step 3: Setting the Position I-Gain and Position I-Gain Limit The objective here is to minimize the position error during steady state operation and improve positioning accuracy. Start to increase the Position I-gain. Increasing the I-gain will increase the drive’s reaction time while the I-Limit will set the maximum influence that the I-Gain can have on the Integral loop.
Page 69 Operation Setting the Position Error Limits Look at the position error waveform on the oscilloscope. Note the maximum time that position errors exist (from the time axis of the scope) and the maximum peak errors being seen (from the value at the top of the screen). Use this values to set the position error limits to provide suitable position error protection for the application.
Page 70: Quick Start Reference
Reference Quick Start Reference This section provides instructions for External Control, Minimum Connections and Parameter Settings to quickly setup a PositionServo drive for External Torque, Velocity or Positioning Modes. The sections are NOT a substitute for reading the entire PositionServo User Manual. Observe all safety notices in this manual. Quick Start - External Torque Mode Mandatory Signals: These signals are required in order to achieve motion from the motor.
Page 71: Quick Start - External Velocity Mode
Reference Optional Parameter Settings: These parameters may require setting depending on the control system implemented. Folder / Sub-Folder Parameter Name Description Parameters Resolver Track PPR for simulated encoder on 941 Resolver drive IO / Digital IO Output 1 Function Set to any pre-defined function required Output 2 Function Set to any pre-defined function required Output 3 Function...
Page 72 Reference Mandatory Parameter Settings: These parameters are required to be set prior to running the drive. Folder/Sub-Folder Parameter Name Description Parameters Drive Mode Set to [Velocity] Reference Set to [External] Enable Velocity Accel / Decel Limits Enable Ramp rates for Velocity Mode Velocity Accel Limit Set required Acceleration Limit for Velocity command Velocity Decel Limit...
Page 73: Quick Start - External Positioning Mode
Reference Quick Start - External Positioning Mode Mandatory Signals: These signals are required in order to achieve motion from the motor. Connector-Pin Input Name Description P3-1 Position Reference Input for Master Encoder / Step-Direction Input P3-2 Position Reference Input for Master Encoder / Step-Direction Input P3-3 Position Reference Input for Master Encoder / Step-Direction Input P3-4...
Page 74 Reference Mandatory Parameter Settings: These parameters are required to be set prior to running the drive. Folder / Sub-Folder Parameter Name Description Parameters Drive Mode Set to [Position] Reference Set to [External] Step Input Type Set to [S/D] or [Master Encoder]. (S/D = Step + Direction) Set ‘Master’...
Page 75: Diagnostics
Diagnostics Diagnostics Display The PositionServo drives are equipped with a diagnostic LED display and 3 push buttons to select displayed information and to edit a limited set of parameter values. Parameters can be scrolled by using the “UP” and “DOWN” ( ) buttons.
Page 76: Leds
Diagnostics LEDs The PositionServo has five diagnostic LEDs located around the periphery of the front panel display as shown in the drawing below. These LEDs are designed to help monitor system status and activity as well as troubleshoot any faults. S913 Function Description...
Page 77 Diagnostics Fault Code (Display) Fault Description Hardware overload Occurs when the phase current becomes higher than 400% of total drive’s F_15 protection current capability for more then 5ms. Arithmetic Error Statement executed within the Indexer Program results in a division by 0 F_18 Division by zero being performed.
Page 78: Fault Event
Diagnostics 8.3.2 Fault Event When drive encounters any fault, the following events occur: • Drive is disabled • Internal status is set to “Fault” • Fault number is logged in the drive’s internal memory for later interrogation • Digital output(s), if configured for “Run Time Fault”, are asserted •...
Page 79 Diagnostics Problem Ready LED is on but motor does not run. Suggested Solution If in Torque or Velocity mode: Reference voltage input signal is not applied. Reference signal is not connected to the PositionServo input properly; connections are open. In MotionView program check <Parameters> <Reference> set to <External> For Velocity mode only: In MotionView check <Parameters> <Compensation><Velocity loop filter> P-gain must be set to value more then 0 in order to run. Without load motor will run with P-gain set as low as 20 but under load might not. If P-gain is set to 0 motor will not run at all. In Position mode with master encoder motion source (no program) Reference voltage input signal source is not properly selected.
Page 80 Notes S94P01G...
Page 81 Notes S94P01G...
Page 82 Notes S94P01G...
