Summary of Contents for PowerXtreme X210

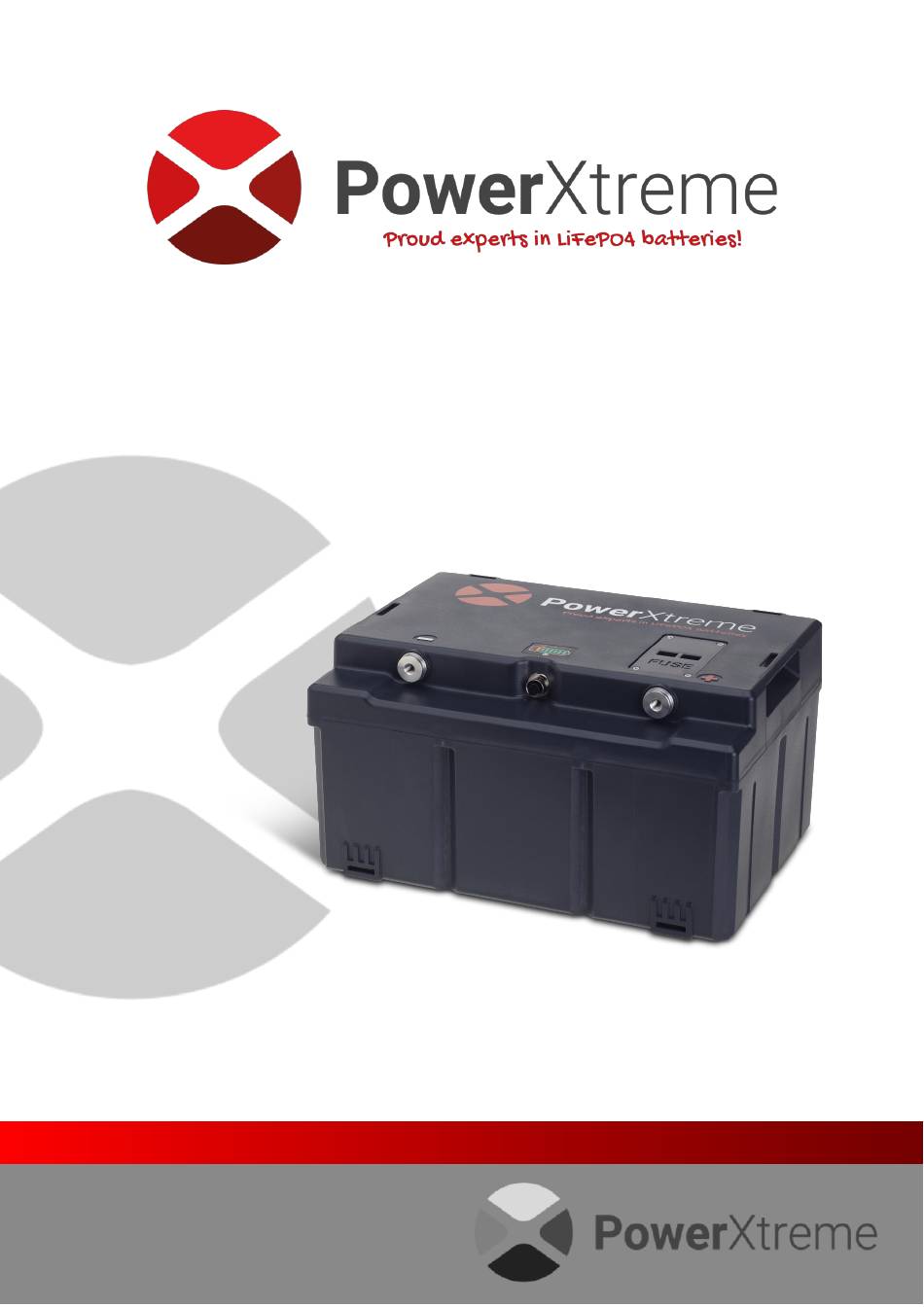

  • Page 1 User Guide PowerXtreme X210 LiFePO4 Battery 12V 210 Ah...
  • Page 2: Table Of Contents

    INSTALLATION General Installation Location Contents of the Package Fixing Parallel Connection Charging Test after Installation Charging the Battery Explanation of the Charging Indicator PowerXtreme Pro App 6.3.1 Status 6.3.2 Settings 6.3.3 Save mode 6.3.4 Create service report MAINTENANCE, INSPECTION AND CLEANING...
  • Page 3: Preface

    The following documentation is available for the battery pack: Document Location User Guide This document E04-X210-ENxx_MSDS Material Safety Data Sheet See our website (www.emergoplus.com) Used symbols Safety information is indicated using various risk levels. Refer to the table for the meaning of the safety symbols in this manual:...
  • Page 4: Introduction

    Product Description The PowerXtreme X210 is a lithium iron phosphate battery, also known as LiFePO4 or LFP. The battery is highly suitable for installation in vehicles or vessels as an onboard battery, but can also be used unmounted. It is easy to install and is protected by an integrated Battery Management System (BMS) against overloading, overvoltage, undervoltage, temperature fluctuations and short circuits.
  • Page 5: Key Specifications

    Key Specifications General Model PowerXtreme X210 Cell chemistry LiFePO4 (Lithium Iron Phosphate) Lifespan Minimum 3000 charge cycles (at 80% DoD) Dimensions 330 × 230 × 170 mm Weight 18.9 kg Connection Poles with M8 female thread IP rating IP65 Input (charging) Charging voltage 14.4 –...
  • Page 6: Dimensions

    Dimensions * The mounting feet are removable. Page 6 of 24...
  • Page 7: Safety

    Safety Safety Features The following safety features have been incorporated into the design of the battery: • The integrated battery management system (BMS) protects the battery against overload, overvoltage, undervoltage and short circuit. In addition, The battery automatically switches off if the temperature is outside the operating range. •...
  • Page 8 WARNING ⚠ The electrolyte in the cells is highly corrosive. In case of damage or improper use, the battery may leak. A leaking battery can cause injuries and is harmful to the environment: • Avoid damage to the battery housing. •...
  • Page 9: Storage And Transport

    Storage and Transport Storage Only remove the battery from its original packaging when you need it. If you are storing a (used) battery for an extended period (such as during winter storage), store it as follows: If the battery is installed in a vehicle or vessel, it can remain in place. Charge the battery to at least 80% (see section 6.1).
  • Page 10: Installation

    Installation General The following is important for the installation: WARNING ⚠ Always use the correct wiring with sufficient cross-section and properly sized cable lugs or battery clamps (to ensure no overheating or unnecessary losses occur). Always use the proper crimping tools to attach the cable lugs and follow the instructions from the cable lug manufacturer.
  • Page 11: Contents Of The Package

    NOTE Do not install the battery with the poles facing down. The position shown in the image below is the only position where the battery should not be installed. Contents of the Package Check that all components are undamaged and present in the packaging. Refer to the table below for the contents.
  • Page 12: Parallel Connection

    Parallel Connection To increase the capacity, up to a maximum of 4 batteries of the same model can be connected in parallel. Note that the voltage of the batteries must be equal when connecting (maximum 0.5V difference). If you wish to connect more than 4 batteries in parallel, please contact the supplier.
  • Page 13: Use

    WARNING ⚠ Risk of electric shock! A battery can carry a large current: • Never touch a terminal of a battery while it is connected. • Never touch both terminals of a battery at the same time. WARNING ⚠ Risk of injury! Using a damaged battery poses a danger to your health: •...
  • Page 14: Explanation Of The Charging Indicator

    Charge the battery as follows: Connect the positive terminal of the charger to the positive terminal of the battery. Connect the negative terminal of the charger to the negative terminal of the battery. Connect the battery charger to the mains power by plugging it into an electrical outlet or connecting it to an integrated onboard system.
  • Page 15: Powerxtreme Pro App

    PowerXtreme Pro App In the PowerXtreme Pro app, you can check the status of your battery on your phone or tablet. www.powerxtreme.eu/powerxtremeproapp Use the app as follows: Download the app from the App Store or Play Store onto your device.
  • Page 16: Status

    6.3.1 Status The battery summary appears. Data Meaning State of The current charge level of the battery. Charge Voltage Battery voltage. Temperature Current temperature of the battery. Capacity Current capacity of the battery. Disconnect The button to disconnect the Bluetooth connection between the device and the battery.
  • Page 17: Settings

    6.3.2 Settings Change the settings as follows: • Press Settings in the battery overview. Data Meaning Language Change the language of the app Change Bluetooth name Change the name of the battery Create service report If necessary, a service report can be created Activate storage mode Turning save mode on or off 6.3.3...
  • Page 18: Create Service Report

    6.3.4 Create service report ⓘ Tip! For the most accurate service report, it is best to create it shortly after the battery is fully charged. The battery is considered sufficiently charged when the voltage displayed in the app is at least 14.4 V.
  • Page 19: Maintenance, Inspection And Cleaning

    Maintenance, Inspection and Cleaning Maintenance The battery does not require special maintenance; it is maintenance-free, but it should be charged to at least 80% every six months. Inspection Check the wiring and connections at least once a year. Immediately address any issues such as loose connections, melted cable insulation, or burned cables.
  • Page 20 There is no voltage on the Battery is in storage mode Exit storage mode (section terminals and the orange LED is 6.3.1) flashing The charge indicator shows The battery is completely Charge the battery (section nothing when pressing the button empty (risk of irreversible 6.1) and eliminate standby damage)
  • Page 21: Warranty And Liability

    Warranty and Liability EmergoPlus B.V. guarantees that the PowerXtreme X210 is manufactured in accordance with all legally applicable standards and requirements. All batteries are thoroughly tested and inspected during and before delivery. Failure to comply with the instructions and provisions in this manual may result in damage and/or the product not performing to specification, which may void the warranty.
  • Page 22: Disposal

    The information in this document is subject to change without notice. EmergoPlus B.V. is not liable for technical errors or omissions in this document. The purchased product may differ from what is described in this manual. EmergoPlus B.V.'s liability is limited to the cost of repair and/or replacement of the product under warranty.
  • Page 23: Eu Declaration Of Conformity

    EU Declaration of Conformity Product model: PowerXtreme X210 2. Name and address of the manufacturer or his authorized representative: EmergoPlus B.V. Informaticastraat 20 4538 BT Terneuzen The Netherlands 3. This declaration of conformity is issued under the sole responsibility of the manufacturer.
  • Page 24 EmergoPlus B.V. Informaticastraat 20 4538 BT Terneuzen, Original manual English Nederland E09-X210-EN03_Manual www.emergoplus.com V3 - May 2025 info@emergoplus.com...
