PowerXtreme X210 User Manual

Lifepo4 battery 12,8v 210ah
Hide thumbs Also See for X210:

Advertisement

Quick Links

User Guide
PowerXtreme X210
LiFePO4 Battery 12,8V 210Ah

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PowerXtreme X210

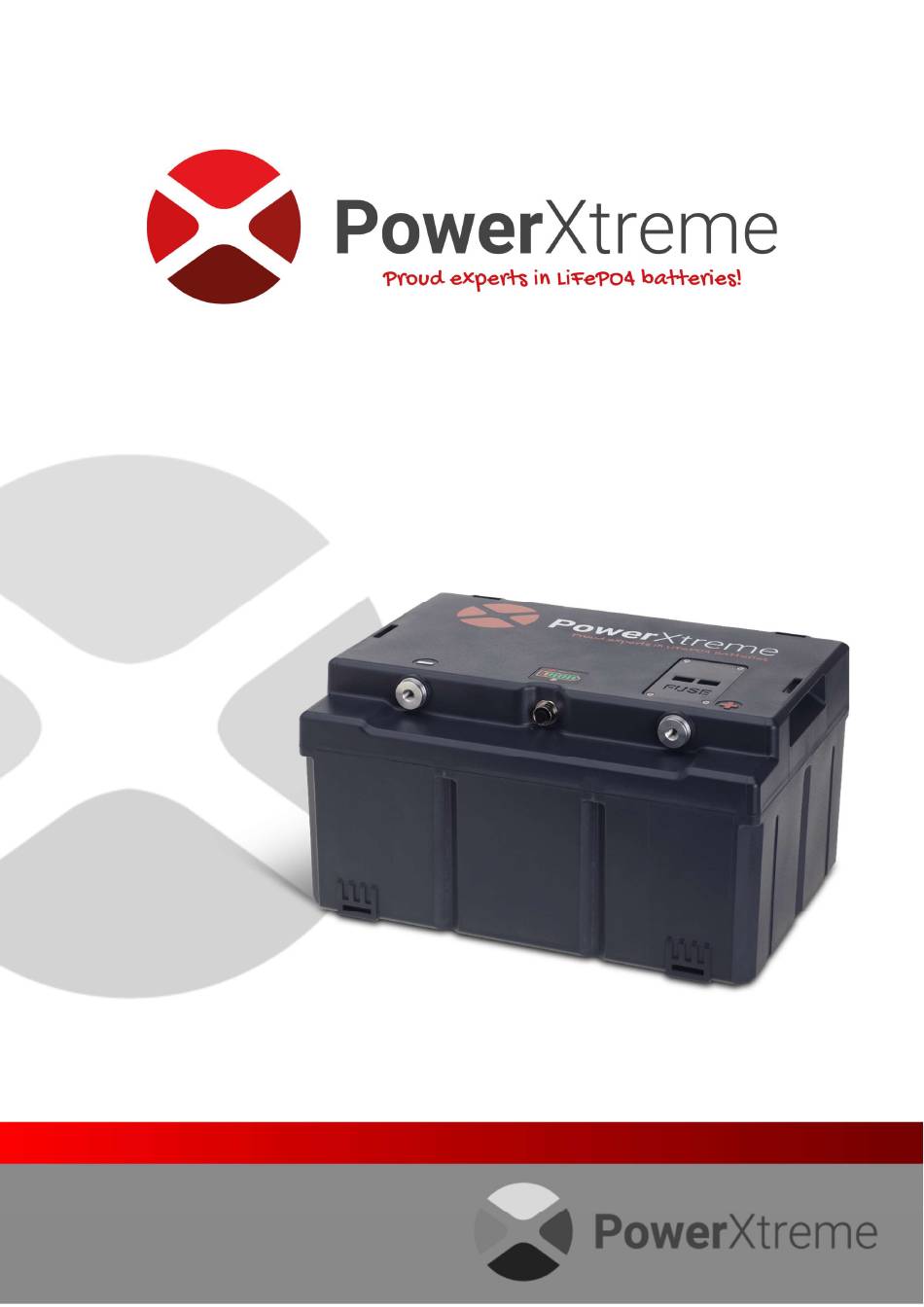

  • Page 1 User Guide PowerXtreme X210 LiFePO4 Battery 12,8V 210Ah...
  • Page 2: Table Of Contents

    Safety symbols on the battery Safety instructions STORAGE AND TRANSPORT Storage Transport INSTALLATION General Installation location Contents of the package Fixing Parallel connection Charging the battery Explanation of the charging indicator PowerXtreme Pro App 6.3.1 Status Page 2 van 26...
  • Page 3 6.3.2 Settings 6.3.3 Storage MAINTENANCE, INSPECTION AND CLEANING Maintenance Inspection Cleaning MALFUNCTION Replacing the fuse WARRANTY AND LIABILITY Warranty period Exclusions Invoking the warranty DEPOSIT EU DECLARATION OF CONFORMITY Page 3 van 26...
  • Page 4: Preface

    The following documentation is available for the battery pack: Document Location User Guide This document E04-X210-ENxx_MSDS Material Safety Data Sheet See our website Used symbols Safety information is indicated by different levels of risk. Refer to the table for the meaning of the safety symbols in this manual:...
  • Page 5: Introduction

    Product description The PowerXtreme X210 is a Lithium iron phosphate battery, also called LiFePO4 or LFP. The battery is very suitable for installation in, for example, a driving or marine vehicle, but can also be used unassembled. The battery can be easily installed and is protected against overload, overvoltage, undervoltage, temperature, and short circuit by the integrated battery management system.
  • Page 6: Key Specifications

    Key specifications General Model X210 Article number EM010210EN Cell chemistry LiFePO4 (Lithium Iron Phosphate) Lifespan Minimum 3000 charge cycles (at 80% DoD) Dimensions 330 × 230 × 170 mm Weight 18,9 kg Connection Poles with M8 female thread IP class...
  • Page 7: Dimensions

    Dimensions * The mounting feet are removable. Page 7 van 26...
  • Page 8: Safety

    Safety Safety features The following safety features have been incorporated into the design of the battery:  The integrated battery management system (BMS) protects the battery against overload, overvoltage, undervoltage and short circuit. In addition, the battery is automatically switched off if the temperature falls outside the working temperature. ...
  • Page 9 WARNING ⚠ Fire hazard! If the contacts are not properly secured to the terminals, this may cause arcing or the poles may become very hot. Always secure the contacts to the poles. We recommend using a torque wrench (M8, 16 Nm). WARNING ⚠...
  • Page 10 NOTE Risk of damage due to overheating:  Keep the battery away from dust and dirt and place it in a well-ventilated area. Never cover the battery with clothing or other materials. NOTE Incorrect use shortens the life of the battery: ...
  • Page 11: Storage And Transport

    Storage and transport Storage Do not remove the battery from the original packaging until you need it. To store the battery for a longer period of time, if you have already used the battery, proceed as follows: Charge the battery to at least 80% (see chapter 6.1). Disconnect the battery from all charges and, if present, the charger.
  • Page 12: Installation

    Installation General The following is important for the installation: WARNING ⚠ Always use the correct cabling with sufficient cross-section and correctly sized cable lugs or battery terminals (to ensure that no heating or unnecessary losses occur). Always use the correct crimping tool to crimp the cable lugs and follow the instructions of the cable lug manufacturer.
  • Page 13: Fixing

    Fixing WARNING ⚠ Risk of a dangerous situation! The battery can become a projectile in the event of an accident if it is not properly secured. Always fix the battery when using it in a vehicle. The battery can be used free-standing or fixed. If you do not want to fix the battery, you can skip this chapter.
  • Page 14: Use

    WARNING ⚠ Risk of electric shock! A large current can flow through a battery:  Never touch a terminal of a battery when the battery is connected.  Never touch both poles of a battery at the same time WARNING ⚠...
  • Page 15: Explanation Of The Charging Indicator

    Charge the battery as follows: Connect the positive connection of the battery charger to the positive terminal of the battery. Connect the negative connection to the negative terminal of the battery. Connect the battery charger to mains power by plugging it into a socket or connecting it to an integrated on-board system.
  • Page 16: Powerxtreme Pro App

    PowerXtreme Pro App You can read the status of your battery via your phone or tablet via the PowerXtreme Pro app. www.powerxtreme.eu/powerxtremeproapp To use the app: Download the app from the App Store or Play Store on your device. Turn on Bluetooth on your device.
  • Page 17: Status

    6.3.1 Status The battery summary appears. Data Meaning State of The current charge level of the battery Charge Voltage Battery voltage Temperature Current temperature of the battery Capacity Current capacity of the battery Disconnect De knop om de bluetooth verbinding te verbreken tussen het apparaat en de accu Current Current through the battery (red = discharging, green = charging)
  • Page 18: Settings

    6.3.2 Settings Change the settings as follows:  Press Settings in the battery overview. Data Meaning Language Change the language of the app Change bluetooth name Change the name of the battery Create service report If necessary, a service report can be created Activate storage mode Turning save mode on or off 6.3.3...
  • Page 19: Maintenance, Inspection And Cleaning

    Maintenance, inspection and cleaning Maintenance The battery does not require any special maintenance, this battery is maintenance-free, but must be fully charged at least every year. Inspection Check the wiring and connections at least once a year. Correct defects such as loose connections, melted cable insulation or burnt cables immediately.
  • Page 20: Malfunction

    Malfunction This table provides an overview of solutions for possible problems with the battery. If you cannot solve the problem using this manual, please contact your supplier. Problem Possible problem Possible solution The battery is not discharging The battery is too discharged Charge the battery (chapter (<...
  • Page 21: Replacing The Fuse

    Replacing the fuse If the fuse blows, the battery may be defective. Always contact your supplier if the fuse blows. Only replace the fuse if your supplier indicates so. NOTE Risk of irreparable damage to the battery. Always replace the fuse with a fuse of the same brand and the same torque (500 A).
  • Page 22: Warranty And Liability

    Warranty and liability EmergoPlus B.V. guarantees that the PowerXtreme X210 is built in accordance with the legally applicable standards and regulations. All batteries have been extensively tested and checked during production and before delivery. If you do not act in accordance with the instructions and provisions of this manual, damage may result and/or the unit may not meet our specifications.
  • Page 23: Invoking The Warranty

    Invoking the warranty If you wish to invoke this warranty, you must inform the point of sale where you purchased the product of the defect within a reasonable period after the defect has been discovered, but in any case before the end of the warranty period. You can also contact the head office of EmergoPlus B.V.
  • Page 24: Deposit

    Deposit WARNING ⚠ Risk of injury. The battery contains substances that are harmful to human health. Do not disassemble or shred the battery in any way when discarding it. WARNING ⚠ Failure to follow the instructions in this manual could result in injury or damage to the product. Make sure that this manual, a copy or a reference thereto is included if you resell the battery.
  • Page 25: Eu Declaration Of Conformity

    EU Declaration of Conformity Document: E03-EM010210-EN00_X210 EU Declaration of Conformity Page 25 van 26...
  • Page 26 EmergoPlus B.V. Informaticastraat 20 4538 BT Terneuzen, Original manual in English Nederland E09-X210-EN02_Manual www.emergoplus.com V2.0 – January 2024 info@emergoplus.com...
