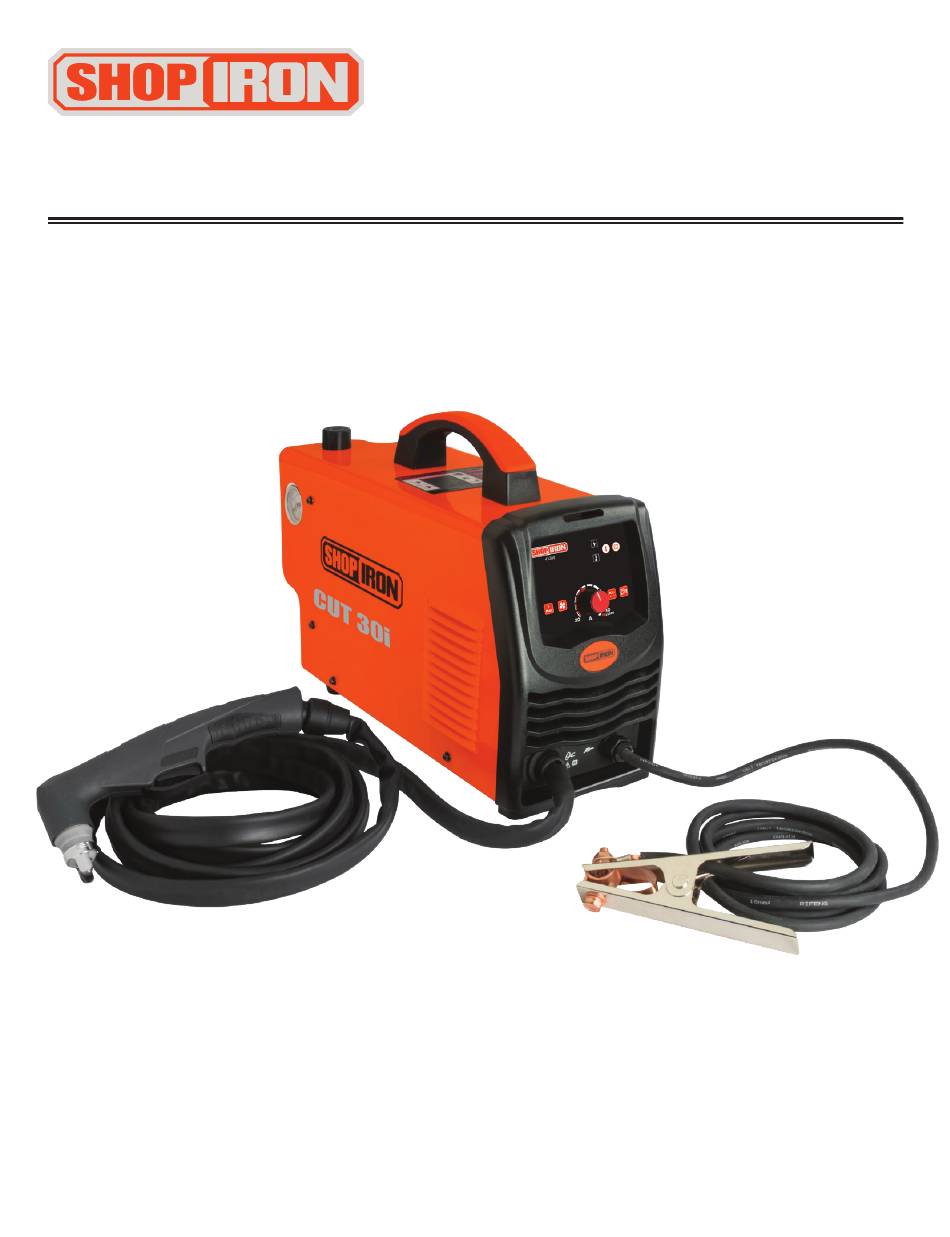

- Page 1 BUILT TO GET THE JOB DONE 30 Amp Plasma Cutter # 41200 Please read and understand this instruction manual carefully before the installation and operation of this equipment.
-
Page 2: Table Of Contents
BUILT TO GET THE JOB DONE CONTENTS PAGE Introduction / Safety - Cautions Air Plasma Cutting Technology Technical Data, Features and Speci cations Set Up and Operating Procedure Plasma Cutting 11-13 Procedure & Techniques Replacement Parts Notes Warranty... -
Page 3: California Proposition
Secondly they they will be well satis ed both now and in the future. SHOP IRON Plasma Cutting Machines are manufactured and compliant with - CAN/CSA E60974-1 & ANSI/IEC 60974-1, guaranteeing you electrical safety and performance. - Page 4 SAFETY (Continued) Electric shock: It can kill. Touching live electrical parts can cause fatal shocks or severe burns. The plasma nozzle and work circuit is electrically live whenever the output is on. The input power circuit and internal machine circuits are also live when power is on. Do not touch live electrical parts or electrodes with bare skin, gloves or wet clothing.
- Page 5 SAFETY (Continued) • approved covers if unable to be moved from the welding area. • Do not Plasma Cut closed containers such as tanks, drums, or pipes, unless they are properly prepared according to the required Safety Standards to vapors and substances are totally removed, these can cause an explosion even though the vessel has been “cleaned”.
-
Page 6: Working Environment
CAUTION 1. Working Environment. 1.1 The environment in which this welding equipment is installed must be free of grinding dust, corrosive ials etc, and at no more than maximum of 80% humidity. 1.2 When using the machine outdoors protect the machine from direct sun light, rain water and snow etc; the temperature of working environment should be maintained within -14°F to +104°F.. -
Page 7: Operation
AIR PLASMA CUTTING TECHNOLOGY Plasma cutters work by passing an electric arc through a gas that is passing through a constricted opening. The gas can be air, ni- trogen, argon, oxygen. etc. The electric arc elevates the temperature of the gas to the point that it enters a 4th state of matter. We part of the circuit, the electrical conductivity of the plasma causes the arc to transfer to the work. -
Page 8: Features And Speci Cations
BUILT TO GET THE JOB DONE FEATURES AND SPECIFICATIONS 1. Air Pressure Gauge 2. Air Vent 3. Torch and Cable 4. Work Clamp and Cable 5. Amperage Dial 6. Overload LED 7. Power LED 8. Handle 9. Air Pressure Dial 10. -
Page 9: Specifications
BUILT TO GET THE JOB DONE FEATURES AND SPECIFICATIONS (continued) SPECIFICATIONS Voltage Rating 115/230V AC Amperage Rating 20/30A Frequency Rating 60Hz Phase Single Input Rating 5.5-230V KVA Power Rating 3.9 to 4.6 KVA (115/230V) Cutting Capacity Clean Cut: 1/4 in., Sever Cut: 1/2 in. Cutting Speed Mild Steel: 18 in. -
Page 10: Cut Quality
BUILT TO GET THE JOB DONE especially suitable if your hands are unsteady, or if you wish to use a straight edge guide or pattern guide. It also helps extend tip life. Wear your safety gear. Generally you want the same Place and hold the torch vertical at the Connect the Earth Clamp securely to the type of protective gear as when welding. -
Page 11: Procedure & Techniques
BUILT TO GET THE JOB DONE ● Amperage Standard rule of thumb is the thicker the material the more amperage required. On thick material, set the machine to full output and vary your travel speed. On thinner material, you need to turn down the amperage and change to a lower-amperage tip to maintain a narrow kerf. - Page 12 Air pressure, ow rate and air quality are critical to quality plasma cutting and consumable life span. The required air pressure and volume can vary from model to model and the manufacturer will provide the specs. The Shop Iron plasma...
- Page 13 BUILT TO GET THE JOB DONE ● Piercing Hold the torch at an angle to the work piece, When sparks are exiting from the bottom of When the pierce is complete, proceed with pull the trigger to start the arc and slowly the work piece, the arc has pierced through the cutting.
-
Page 14: Replacement Parts
BUILT TO GET THE JOB DONE 30 AMP PLASMA CUTTER Replacement Parts PLRWSC2540 PLRWPD01168 (NOT USED WITH EXTENDED PLRWPR0110 ELECTRODES OR NOZZLES) PLRWPD1039 PLRWPR106 *Torch and cable not removable Cutting Nozzles Part # Description EAN CODE 5/Pack PLRWPD01168 Cutting Nozzle 0680474943876 Cutting Electrodes Part #... -
Page 15: Notes
NOTES... -
Page 16: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY Star Asia-USA, LLC (hereinafter “seller”) warrants to the original purchaser only, that this product will be free from defects in material or workmanship for a period of one year from date of purchase. Warranty Performance Warranty coverage is conditioned upon purchaser furnishing seller or its authorized service center with adequate written proof of the original purchase date.
