Summary of Contents for Mantracourt T24-AR

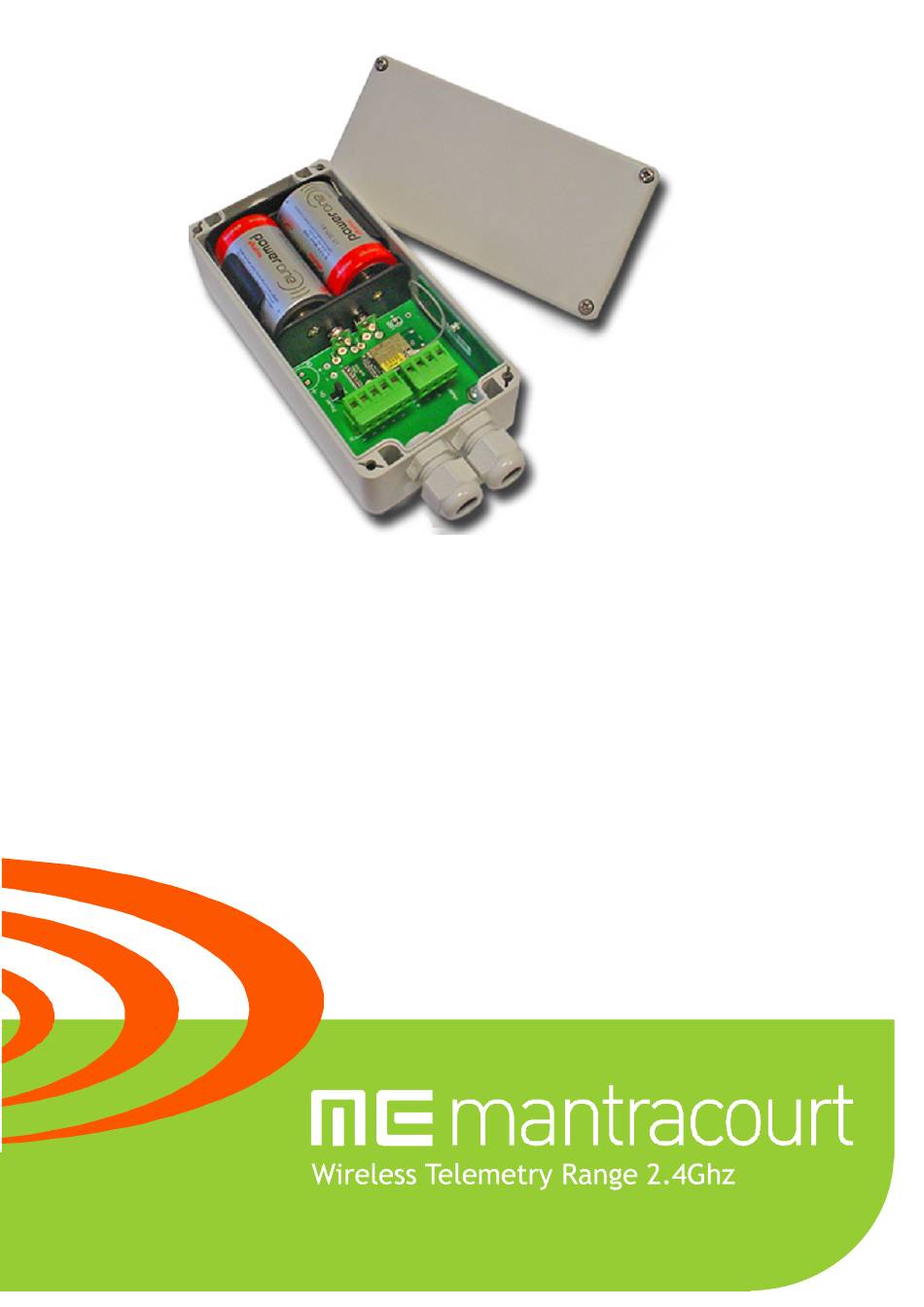

  • Page 1 T24-AR Active Repeater User Manual mantracourt.com...
  • Page 2: Table Of Contents

    OEM / Reseller Marking and Documentation Requirements ............17 FCC ..........................17 IC ..........................17 CE ..........................17 Declaration of Conformity ....................19 Worldwide Regional Approvals ....................20 Important Note ......................20 Warranty ......................... 20 Mantracourt Electronics Limited T24-AR User Manual...
  • Page 3: Introduction / Overview

    Introduction / Overview The T24-AR is an active repeater which will allow the T24 range of modules to span around obstacles or increase range or coverage. The connectivity module provides a battery holder for a pair of alkaline ‘D’ cells and has regulator circuitry for an external power supply.
  • Page 4: Combined Solutions

    Many Providers Power Options The T24-AR can operate permanently powered or can operate from on-board batteries. Permanently Powered This is the simplest way to operate the repeater. With a permanent supply you do not need to worry about the repeater sleeping or waking. You can optionally choose whether the repeater always wakes sleeping modules and then you could utilise the powering up of the repeater to wakeup those modules outside the normal radio range.
  • Page 5: Getting Started

    But some modules only wake specific single target modules such as the T24-HS handheld module and the T24-AO1 analog output module. For these modules to wake the repeater they must be fitted with at least v2.1 version radio modules. This only affects repeaters with a SleepDelay set. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 6: Configuration

    If you have a USB version of the base station (T24-BSu) then you just need to plug this into a USB socket on your PC. If you are using an alternative base station then please refer to the appropriate manual. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 7: T24 Toolkit

    T24 Toolkit The T24 Toolkit provides a means of simple configuration of the T24-AR along with useful tools to aid integration. Run the T24 Toolkit software application. General Pages Setup Base Station Communications Select USB as the interface and select 1 as the Base Station Address.
  • Page 8: Home

    • Click the Pair button on the toolkit. • You now have 10 seconds to re-apply power to the T24-AR module. If you connect successfully the toolkit will change to the Information page. If the pairing fails try again. NOTE: The act of Pairing with the toolkit will not change the radio configuration settings of the connected device.
  • Page 9: Analyser

    The above charts show the traffic from a Wi-Fi network and it can be seen to be operating over channels 6 to 9 and it would be best (though not essential) to avoid using these channels. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 10: Information

    Information This page shows you information about the connected device. Items you can change: Name You can enter a short descriptive name (11 characters) which may help you recognise this device in the future. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 11: Channel And Encryption

    Encryption Key Only devices with identical encryption keys can communicate. You can isolate groups of devices on the same channel or just use the key to ensure the data cannot be read by somebody else. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 12: Save And Restore

    All configuration information including calibration data will be overwritten. The file extension is tcf. Advanced Settings Click this button to enter the Advanced Settings Page. Here are settings which do not normally require changing. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 13: Battery And Radio Levels

    Items you can change: Low Battery Level Click this item to set the battery low level. Clicking the Advanced button will give more detailed information on the RSSI and CV levels of the received radio packets. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 14: Battery And Radio Levels Advanced Settings

    This page could be used when performing a site survey to determine the signal levels at both the repeater and other T24 modules. Just use the toolkit on a laptop to enable the signal to be tested at different locations. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 15: Settings

    The battery level applies to the voltage seen after 3V regulation. The default is 2.2V and can be left at this when the repeater is powered externally. If the repeater is battery powered and you wish to disable this feature select 2.0V Mantracourt Electronics Limited T24-AR User Manual...
  • Page 16: Specifications

    Usually using batteries the T24-AR would be utilising the SleepDelay to return to sleep. Therefore the actual daily usage would allow for far greater than the stated battery life. For example: If the T24-AR was used for 1 hour per day then the battery life would be 6840 hours or 288 days or nearly 10 months.
  • Page 17: Approvals

    (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: If the device is changed or modified without permission from Mantracourt Electronics Ltd, the user may void his or her authority to operate the equipment.
  • Page 18: Industry Canada

    Section 15.247 (emissions). Acquisition modules have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Changes or modifications not expressly approved by Mantracourt could void the user’s authority to operate the equipment.
  • Page 19 The CE marking must have a height of at least 5mm except where this is not possible on account of the  nature of the apparatus.  The CE marking must be affixed visibly, legibly, and indelibly. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 20: Declaration Of Conformity

    Radio and Telecommunications Terminal Equipment Directive 1999/5/EC, FCC CFR Title 47 part 15c BS EN 61000-4-2 and BS EN 61000-4-3 following the provisions of the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. December 2007 Brett James FCC ID:VHARAD24 Development Manager Mantracourt Electronics Limited. Mantracourt Electronics Limited T24-AR User Manual...
  • Page 21: Worldwide Regional Approvals

    Any corrective maintenance required after the warranty period should be performed by 'Mantracourt' approved personnel only. In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice. Code No. 517-925 Issue 1.3 11.04.14...
  • Page 22 @ metrolog.net metrolog @ metrolog.net Distribuidor no Brasil e América do Sul | Metrolog | www.metrolog.net | +55 (16) 3371-0112 | +55 (16) 3372-7800 | metrolog@metrolog.net www.metrolog.net / mantracourt.com metrolog@metrolog.net tel +55 (16) 3371-0112 www.metrolog.net / mantracourt.com metrolog@metrolog.net...
