divide
BUS Isolator & Repeater
Installation guide
INTRODUCTION
divide enables the separation of the KS-BUS with the purpose to:
•
separate a part of the system so that any troubles or the sabotage of a peripheral towards the BUS will
not affect the entire network but protect the remaining section instead;
•
repeat the BUS signal, this will allow to extend it by another 500 m. minimum.
Thanks to its design, there is no difference between the two BUS interfaces that can be connected directly
to the control panel. The system can contain multiple divide connected in parallel (up to 32 depending on
the control panel model).

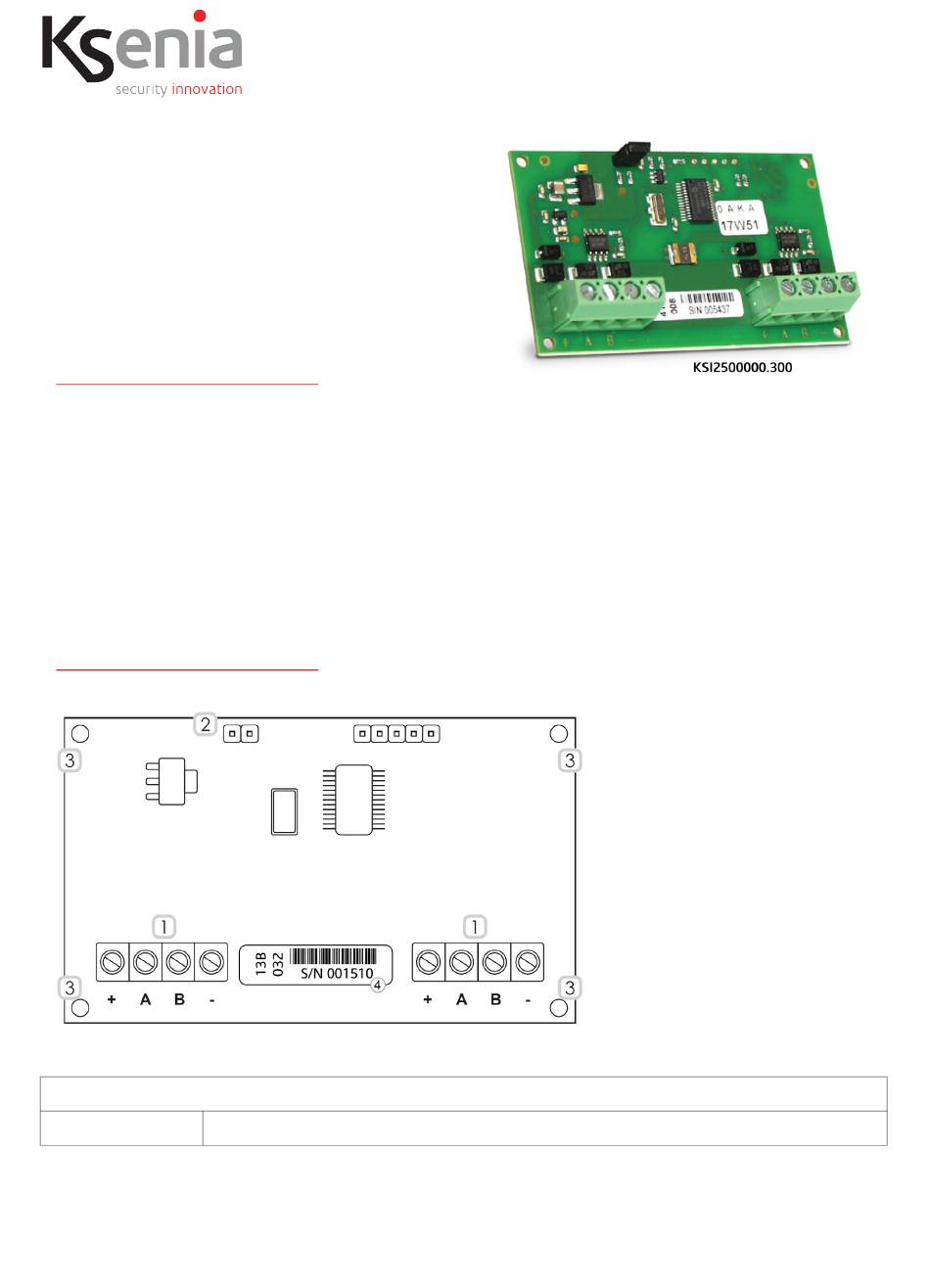

DESCRIPTION OF PCBA CONNECTIONS
TERMINAL DESCRIPTION
+ A B -
Connection terminals for lares 4.0 control panel or peripherals.
Thanks to its extremely compact dimensions, divide can be installed inside the plastic box for DIN rail
(KSI7300000.001) or, alternatively, in the plastic box slim version (KSI7302000.010) for housing up to 2
divide.
LEGENDE
1. Connection BUS to the control panel
or peripherals
2. Micro-switch connection jumper for
tamper detection
3. Fixing holes
4. Serial Number label
Advertisement
Related Manuals for Ksenia divide
Summary of Contents for Ksenia divide
- Page 1 Thanks to its design, there is no difference between the two BUS interfaces that can be connected directly to the control panel. The system can contain multiple divide connected in parallel (up to 32 depending on the control panel model).
- Page 2 4.0 models wls 96 40 wls 140 wls 644 wls Maximum number of expansion modules isolator divide CERTIFICATIONS Europe - CE EN50131 Grade 3 - Class II T031:2014 Technical data, appearance, functionality and other product characteristics may change without notice.
