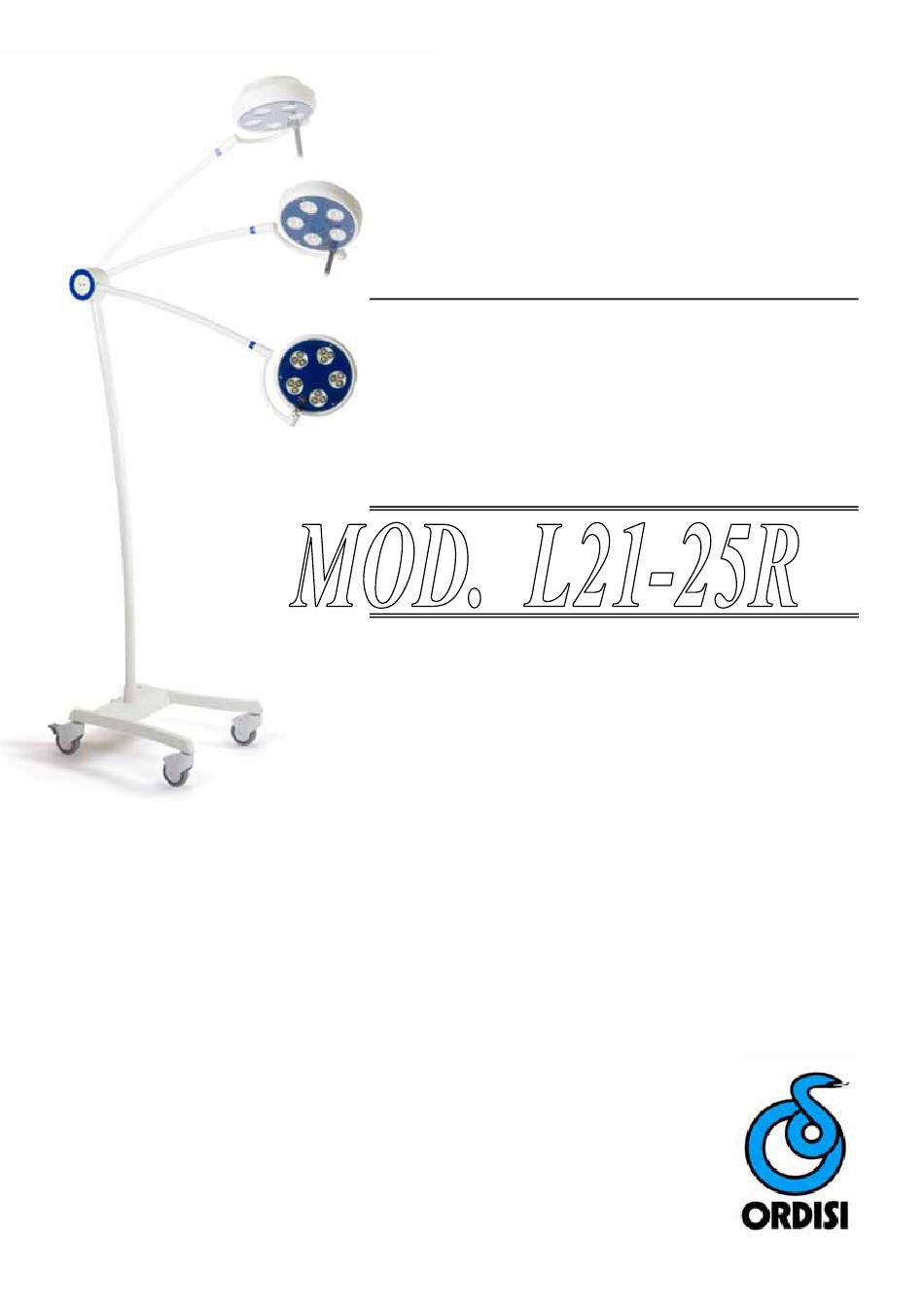

- Page 1 Manual de uso y mantenimiento Operation and Maintenance Manual Tecnología 2 – Nave 7 08780 Pallejá Barcelona - Spain (34) 93 334 01 12 FAX (34) 93 440 25 64 comercial@ordisi.com Mom-20 www.ordisi.com Edición 7 Fecha 2023/03/27...
- Page 2 1. - INTRODUCTION We would like to thank you for the trust you have placed in ORDISI, S.A. when you purchased a lamp from the L21-25 range. Your lamp model L21-25, has specially designed for a recognition, for any medical specialty, but mainly in places where a total absence of calorific radiation is required, conserving very good quality of light.
-
Page 3: Parts Description
TEMPERATURE RANGE OF STORAGE AND TRANSPORT 3. - MANUFACTURER’S LIABILITIES ORDISI, S.A. is responsible to whatever is related to the equipment safety, reliability and operation but only if: Installation is carried out in strict accordance with this manual. ... - Page 4 5.2. - MOUNTING 5.2.1. - MOUNTING THE LAMP For assembly the lamp, follow these instructions (see illustration 2 and 3): 1. Assemble the support pole No. 7 with the wheel base No. 12, joining the electrical connectors, hold the tube by screw no. IMPORTANT: This step must be carried out carefully so that the cables are well positioned inside tube (No.
-
Page 5: Adjustments And Maintenance
The equipment must be positioned in such a way that it is easy to access the plug to disconnect the equipment from the network. 5.4. - RECOMENDATIONS FOR USE Move the lamp gently, avoiding sudden movements, looking for the angle that best suits the user. If the lamp is not being used, do not keep it running, as in addition to uselessly wasting energy, the useful life of the bulb is considerably shortened and it unnecessarily overheats the dome. -
Page 6: Change The Fuses
Disconnect all the electrical terminals of the cable. Unscrew the cable gland and take out the cable. Replace it with another original spare cable provided by ORDISI. Connect again the electrical terminals, in the same order they were. Pay attention to the ground connection. -
Page 7: Operation
D10: Ø40 cm, D50: Ø20 cm Light source Lifetime LED 60.000 h Height of the lamp 200 cm Colour RAL 9002 Illustration 9. Dimensions of L21-25R. Approximate Weight Lamp 12.5 Kg 11. – OTHER MODELS AND WEIGHTS MODEL WEIGHT L21-25R MOVABLE LAMP 12.5 kg L21-25RE MOVABLE LAMP WITH EMERGENCY EQUIPMENT 20.5 kg... - Page 8 12. – PLANOS Y ESQUEMAS / PLANS AND DRAWINGS Pag. 8 / 8...
