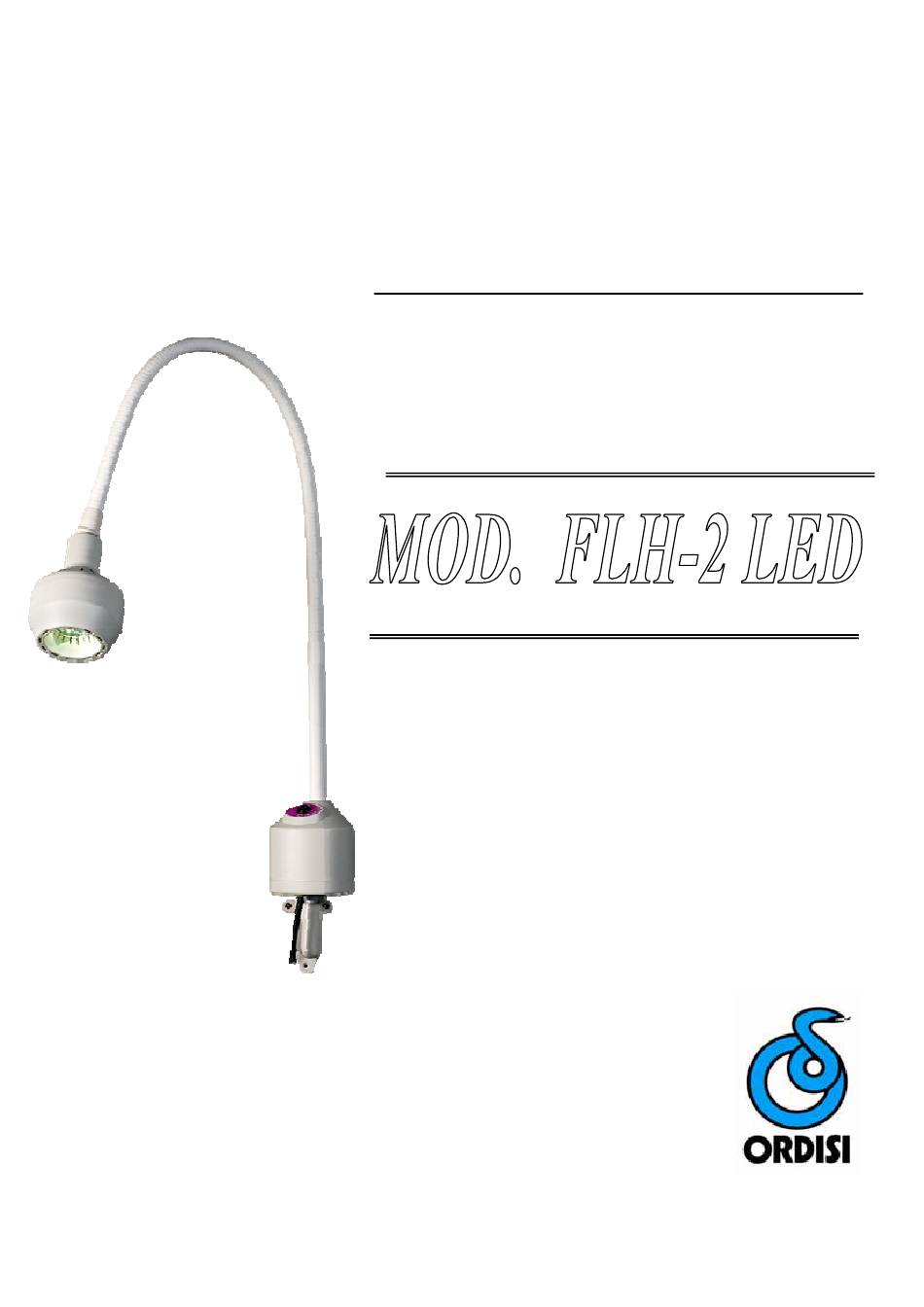

- Page 1 Operation and Maintenance Manual Mom-23 Tecnología 2 – Nave 7 Edición 5 08780 Pallejà Fecha 2023/03/21 Barcelona - Spain (34) 93 334 01 12 FAX (34) 93 440 25 64 comercial@ordisi.com www.ordisi.com Mom-23...
- Page 2 1. - INTRODUCTION We would like to thank you for the trust you have placed in ORDISI, S.A. when you purchased a lamp from the FLH-2 LED series. Your lamp model FLH-2 LED, has specially designed for a recognition, for any medical specialty, but mainly in places where a total absence of calorific radiation is required, conserving very good quality of light.
- Page 3 3. - MANUFACTURER’S LIABILITIES ORDISI, S.A. is responsible to whatever is related to the equipment safety, reliability and operation but only if: Installation is carried out in strict accordance with this manual. The readjustment or repair operations are carried out by persons and/or representative companies authorized by ORDISI, S.A.
- Page 4 1. Drill the wall following the template supplied by Ordisi. 2. Fix the wall bracket (No. 11) to the wall using the three plugs and three screws supplied by Ordisi. 3. Insert the lamp into the hole on the wall support (No. 11).
- Page 5 2. Remove the clamp that holds the network cable. 3. Disconnect all terminals. 4. Change the network cable. The replacement cable must be original supplied by ORDISI 5. Replace the clamp that holds the cable. 6. Close the housing of the light body with the 4 screws.
- Page 6 Picture 6. Electric connection 8.- ENVIRONMENTAL CONDITIONS OPERATION Min. Max. 10ºC 30ºC Temperature Humidity STORAGE Min. Max. Temperature -10ºC 50ºC Humidity 9.- WASTE The FLH-2 lamp does not contain any dangerous products. Components must be properly recycled at the end of their useful life.
- Page 7 FLH-2731W FLH-2131 FLH-2231 Picture 7. Dimensions FLH-2 LED series lamps MODELS Moveable Desk Wall Rail LED (std) manual switch FLH2131 FLH2231 FLH2331 FLH2431 LED (std) touchless FLH2135 FLH2235 FLH2335 FLH2435 LED L manual switch FLH2131L FLH2231L FLH2331L FLH2431L LED L touchless...
- Page 8 12.- PLANO DE DESPIECE / EXPLODED VIEW Pag 8 de 8...
