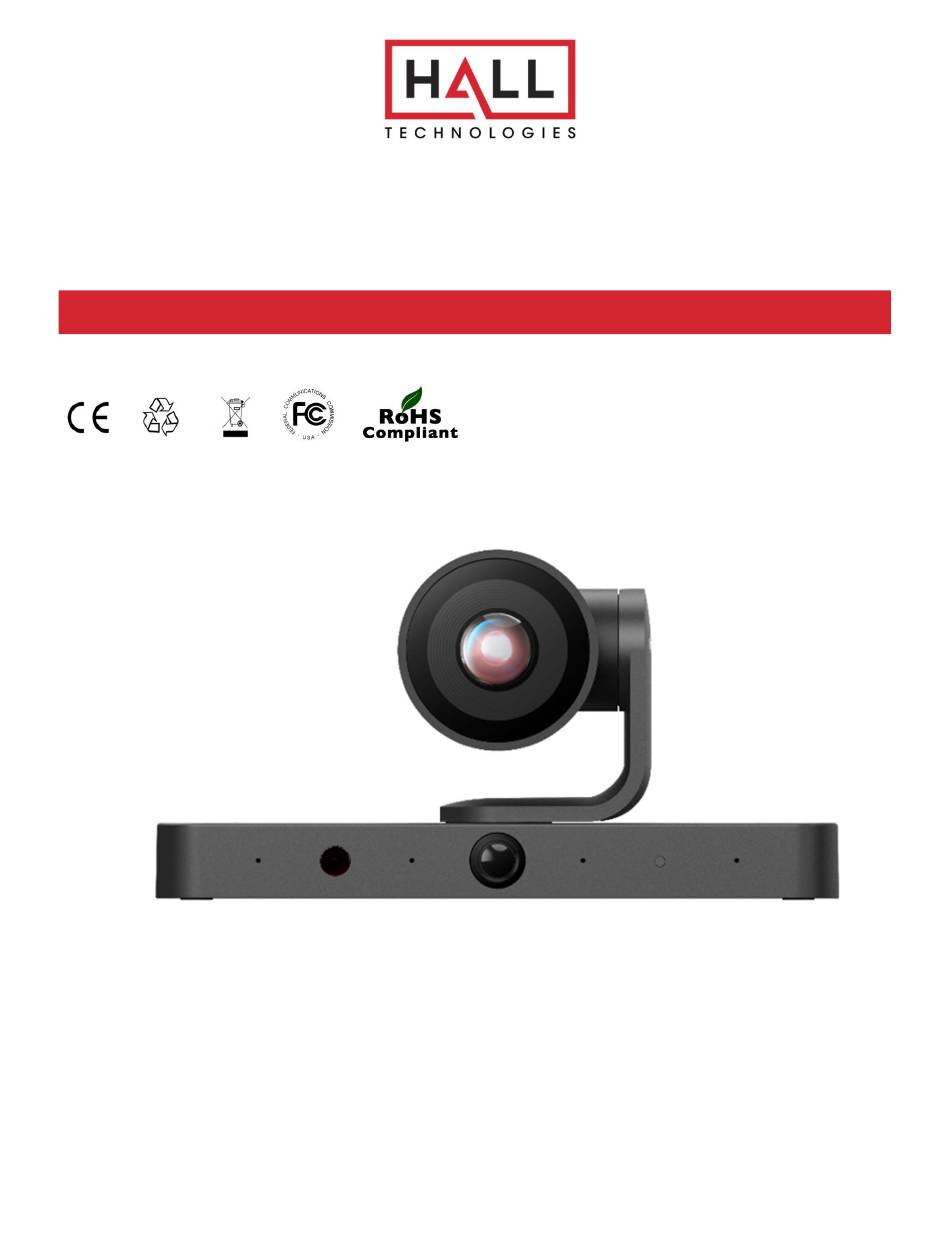

- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com HT-CAM-4K-DUAL 4K Dual-Lens AI PTZ Conference Camera USER MANUAL November 26, 2024 Hall Technologies November 26, 2024 Page 1 of 26...
-
Page 2: Important Safety Instructions
8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. 10. Refer all servicing to qualified service personnel. Hall Technologies November 26, 2024 Page 2 of 26... -
Page 3: Table Of Contents
Web UI – Support Tab ..........................21 Device Info & Firmware Update ....................21 Soft Codec Support ........................... 22 Google Meet ..........................22 Microsoft Teams ..........................22 Zoom ............................. 23 Specifications ............................24 Hall Technologies November 26, 2024 Page 3 of 26... - Page 4 Hall Technologies November 26, 2024 Page 4 of 26...
-
Page 5: Introduction
Introduction OVERVIEW The HT-CAM-4K-DUAL is a 4K dual lens tracking camera designed for medium-sized meeting rooms, providing a perfect display of the room along with zoomed in details. With built-in AI intelligence, the camera can automatically pan, tilt, and/or zoom to the best view to include all participants or track a presenter while displaying a wide fixed view of the room with picture-in-picture. -
Page 6: Connectors & Indicators
White LED “breathing”: the camera is in idle mode (note: color can be set to red or Status LED set to off using web UI.) White solid LED: the camera is active White LED blinking quickly: the camera is being upgrade. Hall Technologies November 26, 2024 Page 6 of 26... -
Page 7: Rear View
Press once to show IP address and tracking mode RESET Hold and press for at least 5 seconds to set the camera to factory default. LOCK Kensington security slot Hall Technologies November 26, 2024 Page 7 of 26... -
Page 8: Installation
Installation The HT-CAM-4K-DUAL can be installed onto the top of a display or on a wall using the included mounting brackets. INSTALLING CAMERA ONTO A DISPLAY 1. Step One Assemble the base bracket panel and base support bracket using the two bracket assembly screws provided, as shown in the following pictures. - Page 9 4. Step Four Place the camera on the display and adjust the base support bracket to rest against the back of the display. Hall Technologies November 26, 2024 Page 9 of 26...
-
Page 10: Installing Camera Onto A Wall
Follow the same method as in step 1 in the above section except for the wall installation flip the bottom bracket assembly 180° so the long portion can be snug against the wall: 2. Step Two Using the included wall mounting screws, secure the mount to the wall. Hall Technologies November 26, 2024 Page 10 of 26... -
Page 11: Application Wiring
UVC channel connected within 10s, the camera will enter Idle Mode. There are many applications for using the HT-CAM-4K-DUAL camera depending on the needs of the user. The following are some examples, which can also be used simultaneously. -
Page 12: Integrating With Ht-Ranger2
INTEGRATING WITH HT-RANGER2 INTEGRATING WITH DSCV1 Hall Technologies November 26, 2024 Page 12 of 26... -
Page 13: Integrating With Dscv2
INTEGRATING WITH DSCV2 Hall Technologies November 26, 2024 Page 13 of 26... -
Page 14: Control - Ir Remote Control
Note: This function is only available when tracking mode is set to Off. Home: This button returns the camera to the middle position, or, acts as the enter button in the OSD menu. Hall Technologies November 26, 2024 Page 14 of 26... -
Page 15: Web Ui
4. Input Username and Password (default: admin / admin) and click Login to enter the main page of Web UI. The Web UI main page consists of four tabs along the top: Overview, Camera, Settings, and Support. Hall Technologies November 26, 2024 Page 15 of 26... -
Page 16: Web Ui - Overview Tab
Web UI – Overview Tab OVERVIEW UI Element Description Firmware Shows version of installed firmware. Device Name Shows the name of the device (can be changed in settings). Hall Technologies November 26, 2024 Page 16 of 26... -
Page 17: Web Ui - Camera Tab
PIP layout mode by clicking on the desired layout diagram. (Not available in Auto Framing and Individuals Gallery tracking modes.) PIP Mode Mirror Click to set the camera’s mirror display function to on/off. The default setting is off. Hall Technologies November 26, 2024 Page 17 of 26... -
Page 18: Tracking Mode: Auto Framing
In Individuals Gallery mode, AI detects everyone in the meeting room and automatically frames each participant and displays them on the screen, allowing remote participants to see facial expressions of each. (NOTE: when there are more than 4 participants, Individuals Gallery behaves like Auto Framing.) Hall Technologies November 26, 2024 Page 18 of 26... -
Page 19: Tracking Mode: Off
Click to turn on or off the high-definition camera view. The default setting is on. The state HD Mode will automatically restart the device to apply the setting. Hall Technologies November 26, 2024 Page 19 of 26... -
Page 20: Web Ui - Settings Tab
Change the name of the camera. IP Setting Select between Static and DHCP mode. (Default is DHCP) IP Conflict Detection Enable or disable IP Conflict Detection of the device. (Default is enabled) Hall Technologies November 26, 2024 Page 20 of 26... -
Page 21: System Settings
SYSTEM SETTINGS UI Element Description Login Update the password of the camera. System Perform a factory reset, reboot the camera, and export a log file of the camera. Hall Technologies November 26, 2024 Page 21 of 26... -
Page 22: Web Ui - Support Tab
Click in the box to open the firmware file. When the file is loading a bar will appear to indicate the status of the update, and the LED on the front of the camera will blink fast. Firmware Update Support Click to access additional documentation. Hall Technologies November 26, 2024 Page 22 of 26... -
Page 23: Soft Codec Support
The following are instructions to utilizing the HT-CAM-4K-DUAL camera in the Google Meet, Microsoft Teams, and Zoom soft codec applications (connecting the camera’s USB-B output to the laptop’s USB input). The HT-CAM-4K-DUAL is not limited to these three. (For soft codec applications outside of these three please refer to their user manual.) GOOGLE MEET To use the camera in Google Meet, open “More Options”... -
Page 24: Microsoft Teams
ZOOM To use the camera in Zoom, click on the “up” arrow on the microphone and camera buttons located on the bottom left part of the Zoom screen. In the video settings, select the HT-CAM-4K-DUAL for the camera. Hall Technologies... -
Page 25: Specifications
4 x Built-in Microphones Sensitivity -26dbfs @ 94db SPL @ 1kHz 0.2% @ 94db SPL @ 1kHz General USB Protocol UVC1.1 Configuration & Management Web UI, IR Remote Control (included), API Commands Hall Technologies November 26, 2024 Page 25 of 26... - Page 26 Device Dimension (W x H x D) 7.87” x 4.25” x 2.64” (200mm x 108mm x 67mm) Product Net Weight 0.95lbs. (0.43kg) Environment Indoor © Copyright 2022. Hall Technologies All rights reserved. 1234 Lakeshore Drive, Coppell, TX 75019 halltechav.com / support@halltechav.com (714)641-6607 Hall Technologies...
