SDR-Kits EMI-Spy 2 Step By Step Assembly Instructions

EMI-Spy 2 Step by Step Assembly Instructions of Printed Circuit Board
This kit is produced by Funk Amateur Radio in Germany and comes with a 14 pages Assembly
and User information Manual, written in the format of a Technical Article. It is recommended
that EMI-Spy 2 kit builders familiarize themselves with this document first prior starting
assembly.
This document is written as result of feedback by several buyers who said they prefer to have
the PCB assembly instructions in a line by line format which can be ticked off once each step is
completed.
Once PCB assembly is done please refer to the EMI-Spy 2 Assembly Manual, starting on page 5
onward and follow the instructions in the chapters: First Functional Test,3 Final Assembly and
Commissioning and Operations.
1. Tools required
- Soldering Iron 40-60 Watt soldering iron with suitable pencil or chisel tip
- 0.25mm – 0.5mm solder with flux
- PCB type Side Cutters
- Small flat fliers
- Screw drivers
- Multimeter
- Magnifier Glass x5
2. Assembly prerequisites - Observe standard EMC antistatic handling procedures
2.1 Identify the parts received in your kit and check off quantities against the Parts list
of the kit against Table 1 on page 3 of the EMI-Spy 2 manual

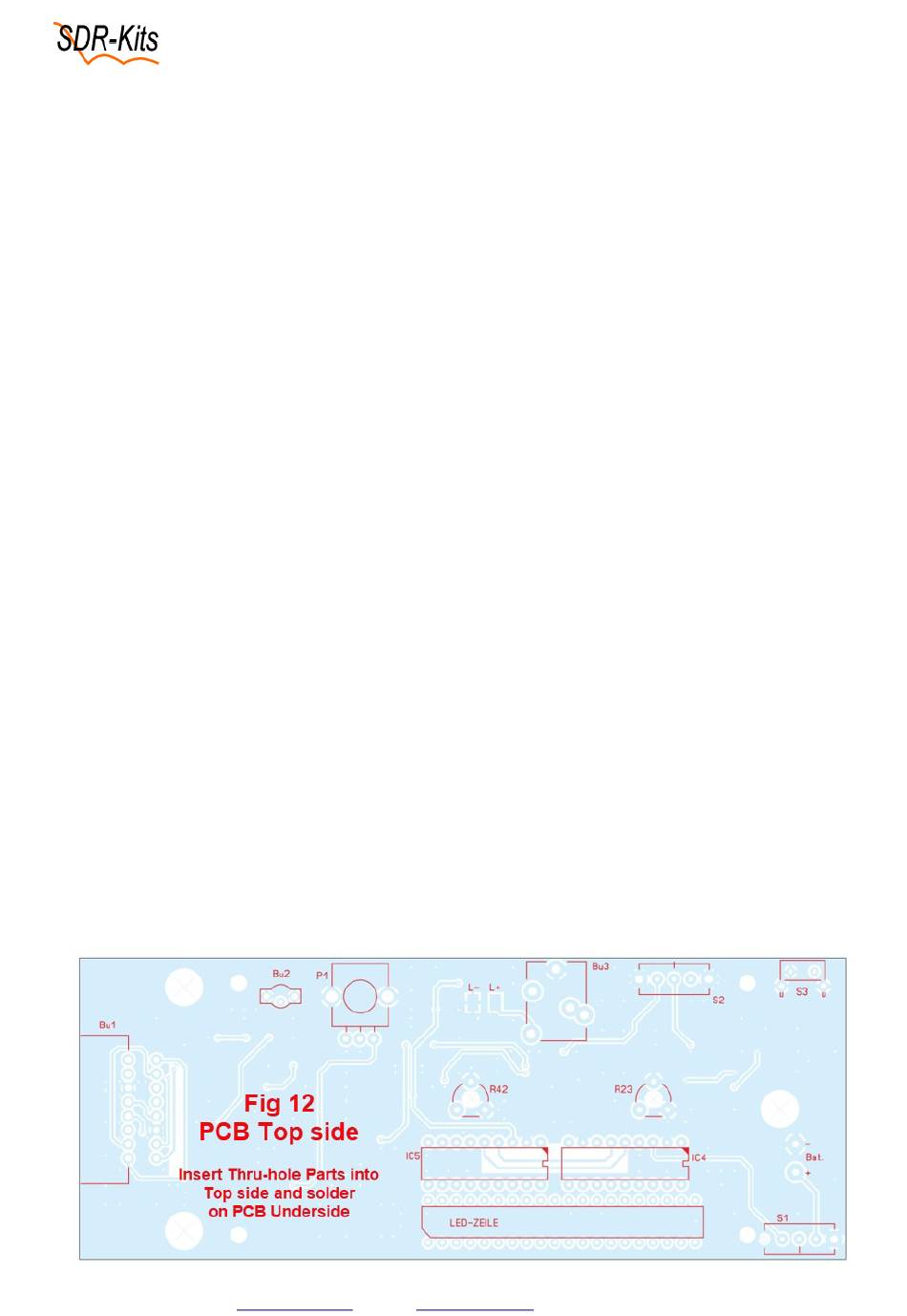

2.2 IMPORTANT – Unwrap the main PCB from ESD packaging and compare the layout
against Fig. 12 page 12 of the EMI-Spy 2 manual and note the following:
