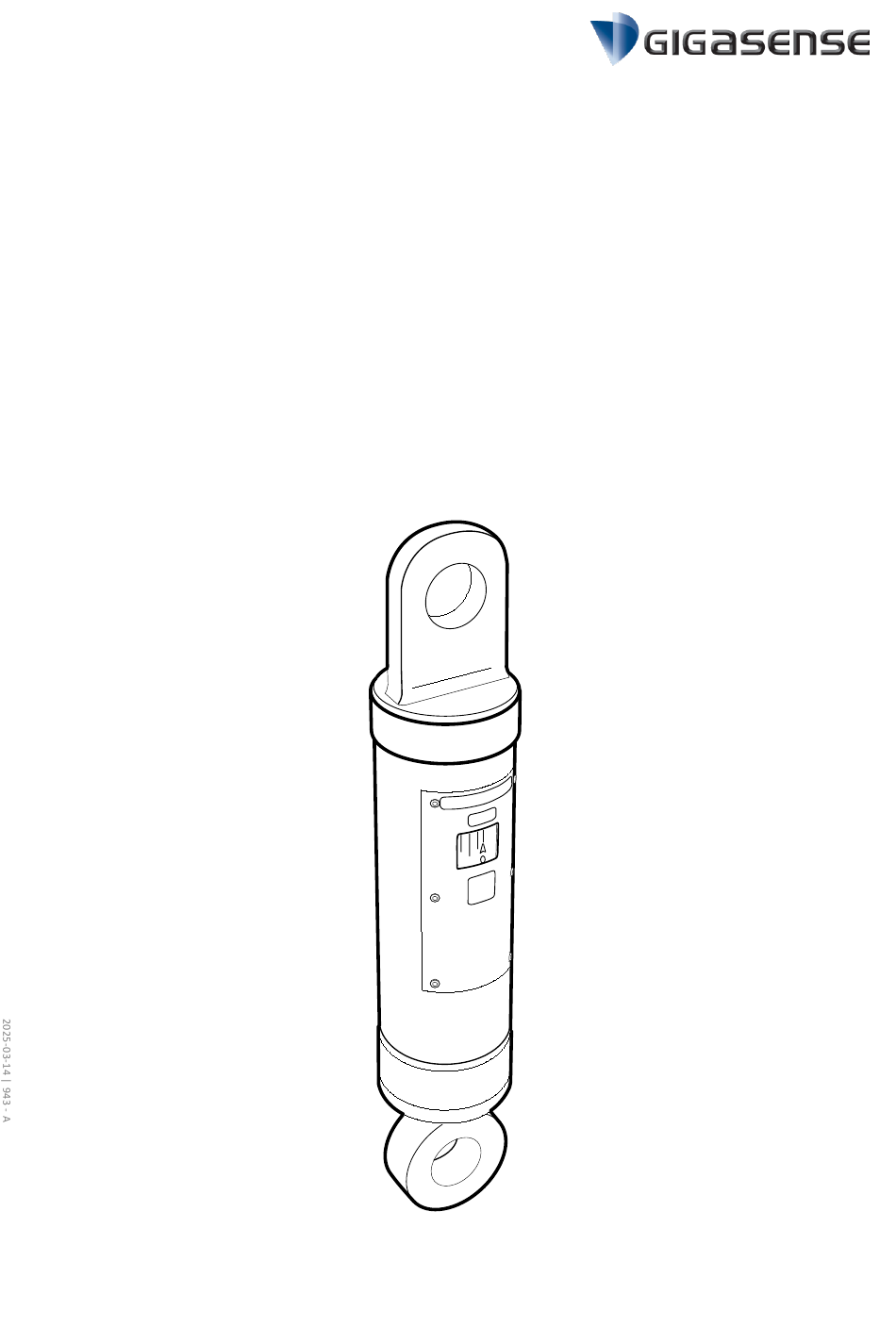

- Page 1 Dynamometer User Manual translation of original instructions...
- Page 2 © Gigasense 2025 This user manual is protected by copyright law. It is prohibited to copy the contents of the publication without the consent of Gigasense. This ban applies to all forms of copying and digitisation. www.gigasense.se Dynamometer...
-
Page 3: Table Of Contents
Design and function............... 7 Function................7 Overview................. 8 Dimensions ..............9 Measurements.............. 11 Operation and use ............... 12 Resetting the instrument to zero......... 12 Maintenance ................ 14 Recalibration..............14 Troubleshooting..............15 Technical data ..............16 Spare parts ................17 Dynamometer www.gigasense.se... -
Page 4: Introduction
Intended use Gigasense Dynamometer is an all-weather instrument used for weighing and measuring mechanical tensile forces. Gigasense AB does not accept responsibility for any use of the product other than that for which it is intended. Scrapping and recycling Comply with local recycling regulations when disposing of this product. -
Page 5: Safety
Safety Read the safety instructions before use. If you have questions about the safety or operation of the product, contact Gigasense or your authorised dealer. General safety information To ensure safe operation, this user manual and the applicable local industrial safety rules and regulations must be complied with. -
Page 6: Remaining Risks
If there are any questions or uncertainties, Gigasense AB should be contacted before the system is put into operation. Correct functioning must be verified before the system is put into normal operation. -
Page 7: Design And Function
To customise installation, brackets with 45° or 90° rotation can be ordered. See drawing Ba7168B for detailed information. The smaller sizes can be customised with fork brackets and swivels. Dynamometer www.gigasense.se... -
Page 8: Overview
Overview Fig. 1 1. Bracket 2. Scale 3. Nameplate 4. Pull rod with loop www.gigasense.se Dynamometer... -
Page 9: Dimensions
Dimensions Fig. 2 Dynamometer www.gigasense.se... - Page 10 Item no. Type Capacity Weight 300015 250kg 1.9kg 300017 550lb 1.9kg 300019 NK * 250daN 1.9kg 300020 500kg 1.9kg 300021 5,000N 1.9kg NA * 300022 1,100lb 1.9kg 300023 NA * 500daN 1.9kg 300025 1,000kg 1.9kg 300026 NB * 10kN 1.9kg...
-
Page 11: Measurements
All shipping and packaging costs associated with any repairs are paid by the buyer. Repairs of faults not covered by the warranty are paid for by the buyer. No responsibility is taken for damage to persons or property. Dynamometer www.gigasense.se... -
Page 12: Operation And Use
1. Load the dynamometer with a known weight corresponding to at least one or two scale divisions. 2. Check the reading. If the value is incorrect, remove the load from the dynamometer and adjust using Method A, Fig. 5 step 2. www.gigasense.se Dynamometer... - Page 13 3. Turn the dynamometer back and read the zero value. If the zero value is not reached, return to Method A, step 2. Dynamometer www.gigasense.se...
-
Page 14: Maintenance
Check the membrane on the underside of the dynamometer. Recalibration To maintain the measurement accuracy of the dynamometer, regular recalibration at Gigasense is recommended. The frequency of calibration depends on the frequency of use: • For normal use, recalibration every two years is recommended. -
Page 15: Troubleshooting
Troubleshooting If the dynamometer does not work as expected, check the following points before contacting Gigasense or your local authorised dealer: Error Cause Solution The scale is stuck Corrosion in the The instrument is discarded dynamometer 1. Damaged membrane 1. Send to Gigasense for... -
Page 16: Technical Data
-20°C to 60°C / -4°F to 140°F Tare Approx. 10% of full scale Scale Can be graduated in kg, t, kN, N, daN, lb IP67 Protection class (IEC 529, NEMA) Safety factor See table in the DIMENSIONS section www.gigasense.se Dynamometer... -
Page 17: Spare Parts
Spare parts Contact Gigasense. Dynamometer www.gigasense.se... - Page 18 Gigasense AB Stationsvägen 16 184 50 Åkersberga info@gigasense.se www.gigasense.se...
