Mullion Reader (ADC-AC-ET10) - Installation Guide
The Mullion Reader (ADC-AC-ET10) offers a modern aesthetic and a state-of-the-art feature set. Standard
technologies include Proximity (125 kHz), NFC (13.56 MHz), and Bluetooth. The Mullion Reader is fully OSDP compliant
and is enabled for Secure Channel.
Additionally, the reader offers a patented feature called OSDP Auto-Detect. The reader communicates OSDP and
Wiegand over the same wires to automatically detect and convert to OSDP Secure Channel protocol, eliminating the
need to rewire or reconfigure the reader.

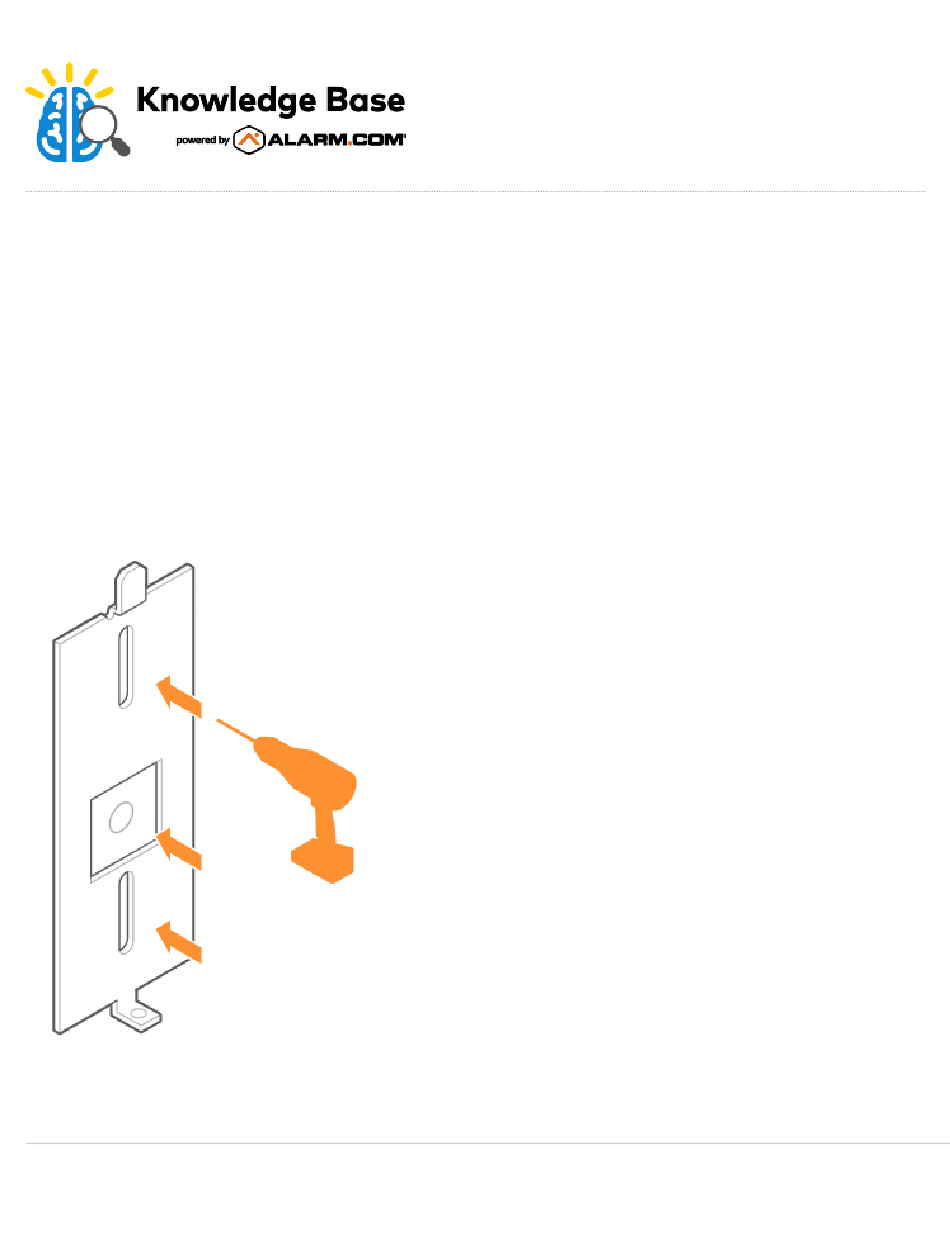

Mount the wall plate
Drill two mounting holes at a minimum of 1.7" apart. Drill a ½" hole in the center for the pigtail wire to pass through. Use
the wall plate as a guide for drilling.
Wire the reader
https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Access_Control/Access_Control_Entry%2F%2FExit_De...
Updated: Thu, 10 Apr 2025 20:54:18 GMT
1
Advertisement
Related Manuals for Alarm.Com ADC-AC-ET10
Summary of Contents for Alarm.Com ADC-AC-ET10
- Page 1 Mullion Reader (ADC-AC-ET10) - Installation Guide The Mullion Reader (ADC-AC-ET10) offers a modern aesthetic and a state-of-the-art feature set. Standard technologies include Proximity (125 kHz), NFC (13.56 MHz), and Bluetooth. The Mullion Reader is fully OSDP compliant and is enabled for Secure Channel.
- Page 2 *These wires are only used in Wiegand readers. Important: All wiring methods used must be in accordance with the National Electrical Code, ANSI/NFPA 70. Max Length to Panel Wiegand Length 200' (60 m) 300' 500' https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Access_Control/Access_Control_Entry%2F%2FExit_De… Updated: Thu, 10 Apr 2025 20:54:18 GMT...
- Page 3 Power the reader and wait for the power-up LED beep sequence to complete. Present a valid credential to the reader and the light bar will turn green. If the test fails, check the wiring. https://answers.alarm.com/Partner/Installation_and_Troubleshooting/Access_Control/Access_Control_Entry%2F%2FExit_De… Updated: Thu, 10 Apr 2025 20:54:18 GMT...
- Page 4 Set the reader for Wiegand or OSDP Note: Alarm.com readers are expected to ship in Weigand/Auto-Detect mode. Once a reader has been configured for OSDP using the Auto-Detect process, it will remain in OSDP until the reader is put back into Weigand/Auto-Detect mode.
- Page 5 4. When the reader has fully restarted, the new configuration will be applied. Reader Startup Sequence Upon a power reset, the Alarm.com Readers provide a reset sequence using the LED indicator and the beeper, to provide information about the reader type and its communication mode. The first sequence (sequence A) describes the credential technologies built-in the reader.
