Alarm.Com ADC-AC-ET20 Installation Manual

Keypad mode setup
Within one minute of reader reset, enter the keypad config code:
*88889999. The reader beeps three times, LED flashes amber for
each beep. Within 2 seconds of entering the keypad config code,
press the corresponding key code below for the desired format.
The reader then beeps three times, LED flashes amber for each beep.
4-Bit Format
*4
Note:
• Readers must be powered by a compatible UL Listed,
power limited, access control panel rated 5 – 16 VDC.
Approvals
EN302291, EN301489, EN300330, IP55, UL294
Patents
US9558377 & US9747738B1
Notices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de
brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
WARNING: This product can expose you to chemicals including arsenic, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
8-Bit Format 26-Bit Format
*8 #077

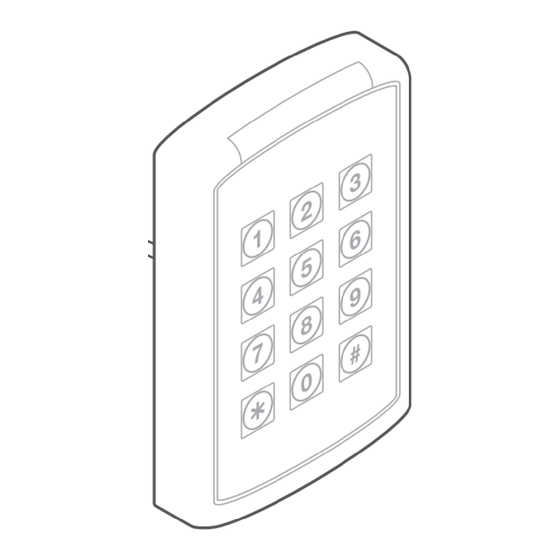

Single Gang Reader
Single Gang Reader
with Keypad
Installation Guide
ADC-AC-ET20
ADC-AC-ET25
