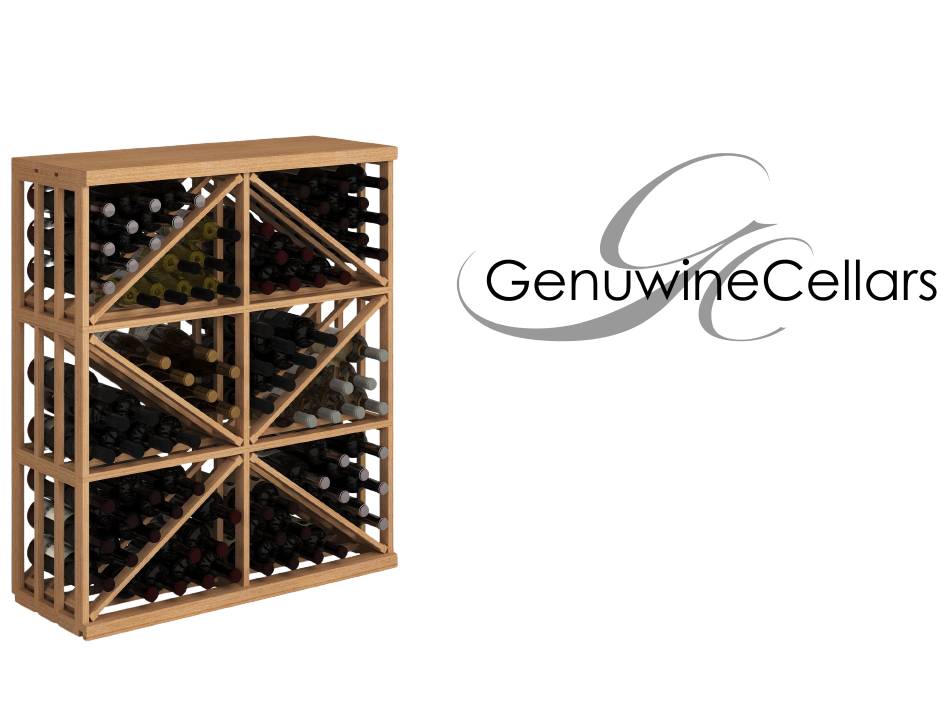

- Page 1 Reserve ELITE KIT RACK ASSEMBLY INSTRUCTION Elite Kit Rack Half-Height Double Diamond Bin Modular Wine Rack...
-
Page 2: Tools Required
HARDWARE ELITE KIT RACK ASSEMBLY INSTRUCTION Thank you for purchasing Elite Kit Rack by Genuwine Cellars. The following instructions will help you assemble the ARCH DISPLAY DIAMOND BINS. The following hardware is included in all kits: The same procedure can be applied to the following kits shown. - Page 3 STEP STEP Starting from the back of the racks, place the front of the ladders (7) on a flat, soft surface, so not to From the bottom and working your way up, place the back spacer bars (4b) according to the damage the front of the racks.
- Page 4 STEP STEP From the front and back of the rack, firmly apply pressure to With the help of another person, turn the rack so the back is on the floor, and the front is facing up. Starting from bottom up, place the front spacer bars (4a) according to the ladder notches. Make lock in the joint, then apply two nails with a nail gun to each joint.
- Page 5 STEP STEP Once the first row bin blocks are done, slide the bin uprights (8) into place, as shown. Now that the bin uprights are in place, flush the top of Again, work with the lower row first. the uprights to the outside of the ladder. Hold firmly in place, and apply two nails into the notch on top of the upright.
- Page 6 J ( 1 : 7 ) STEP STEP Insert three dowels into the three dowel Screw the side panels to the top and front holes in each side of the top and front panels with six #8 Robertson flat head panels (1)(2).
