Panasonic TX-P50G20E Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV
  5. Viera TX-P50G20E
  6. Service manual
Panasonic TX-P50G20E Service Manual

Panasonic TX-P50G20E Service Manual

Plasma television, gpf13de chassis
Hide thumbs Also See for TX-P50G20E:
Table of Contents

Advertisement

Quick Links

Download this manual
TX-P50G20E
Model No.
TX-P50G20ES
TX-PF50G20S
TX-PR50G20
GPF13DE Chassis
© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PCZ1002007CE
Plasma Television

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-P50G20E and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic TX-P50G20E

Summary of Contents for Panasonic TX-P50G20E

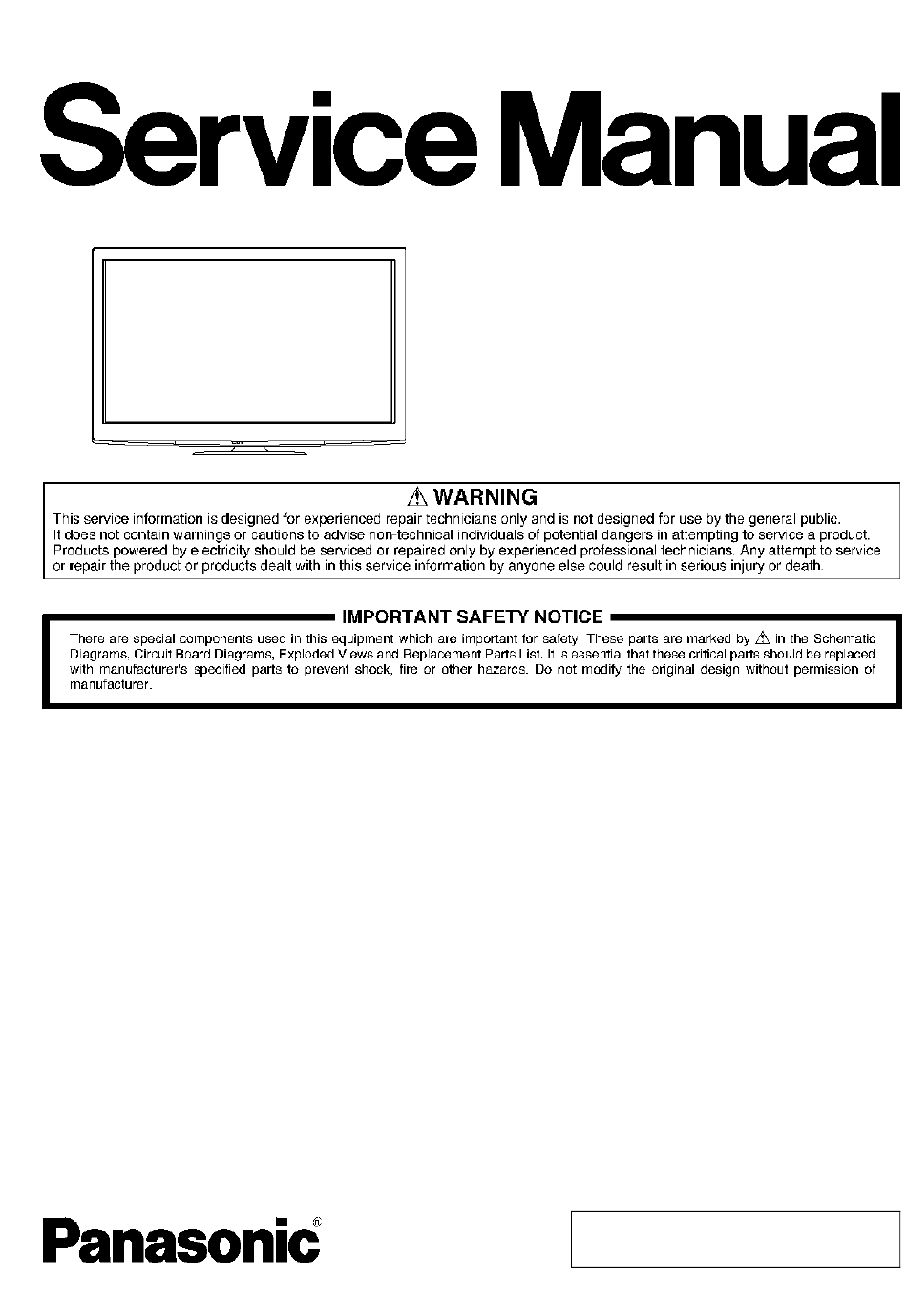

  • Page 1 ORDER NO.PCZ1002007CE Plasma Television TX-P50G20E Model No. TX-P50G20ES TX-PF50G20S TX-PR50G20 GPF13DE Chassis © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 12.2. Wiring (1) -------------------------------------------------- 39 1.1. General Guidelines ----------------------------------------3 12.3. Wiring (2) -------------------------------------------------- 39 1.2. Touch-Current Check--------------------------------------3 12.4. Wiring (3) -------------------------------------------------- 40 2 Warning --------------------------------------------------------------4 13 Schematic Diagram -------------------------------------------- 41 2.1. Prevention of Electrostatic Discharge (ESD) 13.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Data Driver (Lower Center) DC-DC Converter, Tuner Data Driver (Lower Left) Speaker out, AV Terminal, HDMI in, SD Card, PC in Scan Drive Digital Signal Processor, PEAKS-LDA2 Sustain Drive Format Converter, Plasma AI, Sub-Field Processor...

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, PB, PR), HDMI * Mark: Applicable input signal for Component (Y, PB, PR) and HDMI Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i...

  • Page 8: Specifications

    Digital cable services (MPEG2 and MPEG4-AVC(H.264)) Countries that DVB-C is available: Germany, Switzerland, Denmark, Sweden, Norway, Finland, Netherlands • Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/ Aerial - input VHF / UHF Operating Conditions 0 °C - 35 °C...
  • Page 9 DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic Dimensions (W × H × D) 1,218 mm × 808 mm × 335 mm (With Pedestal) 1,218 mm × 769 mm × 82 mm (TV only) Mass 29.0 kg Net (With Pedestal) 26.0 kg Net (TV only) Note •...

  • Page 10: Technical Descriptions

    3 seconds. TV will be forced to the factory shipment setting after this SELF CHECK. 5.1.3. Model and Keys: Model No. Keys CI Plus DTCP-IP One-to-One (For USB Rec.) TX-P50G20E TX-P50G20ES TX-PF50G20S None TX-PR50G20 None None None 5.2. USB HDD Recording 5.2.1.

  • Page 11: Service Mode

    6 Service Mode 6.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds. 6.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...

  • Page 12: Contents Of Adjustment Mode

    6.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 6.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

  • Page 13: Option - Mirror

    6.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 14: Hotel Mode

    6.4. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 15: Data Copy By Sd Card

    6.5. Data Copy by SD Card 6.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 16 6.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 17 6.5.4. Data copy from to SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 18: Troubleshooting Guide

    7 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 7.1. Check of the IIC bus lines 7.1.1. How to access 7.1.1.1. Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 19: Power Led Blinking Timing Chart

    7.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 20: No Power

    7.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

  • Page 21: No Picture

    7.4. No Picture...

  • Page 22: Local Screen Failure

    7.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 23: Service Fixture & Tools

    8 Service Fixture & Tools 8.1. SC jig Purpose: To find the failure board (SC or SU/SD) when the power LED is blinking 7 times. SC jig: Jumper connector to connect to SC50 connector on SC board Part number: TZSC09187 How to use: Caution: Remove SC jig from SC board after inspection.

  • Page 24: Disassembly And Assembly Instructions

    9 Disassembly and Assembly Instructions 9.1. Remove the Rear cover 9.4. Remove Side terminal cover and the Side shield metal 1. See Service Hint (Section 3) 9.2. Remove the AC inlet , ×1 , ×1 1. Remove the screws (×2 2.

  • Page 25: Remove The Tuner Unit

    9.5. Remove the Tuner unit 1. Remove the Side terminal cover and the Side shield metal. (See section 9.4.) 2. Unlock the cable clampers to free the cable. 3. Disconnect the connectors (A1, A6, A7 and A11). 4. Disconnect the flexible cables (A20, A31 and A32). 5.

  • Page 26: Remove The Sc-Board

    9.10. Remove the SC-Board 1. Remove the SU-Board and SD-Board. (See section 9.8. and 9.9.) 2. Unlock the cable clampers to free the cable. 3. Disconnect the connector (SC2). 4. Disconnect the flexible cable (SC20). 5. Remove the screws (×7 ) and remove the SC-Board.

  • Page 27: Remove The Cabinet Mount Metals

    9.14. Remove the Cabinet mount 9.16. Remove the C2-Board metals 1. Remove the Hanger metal R and the One leg bracket. (See section 9.13.) 1. Remove the One leg bracket. (See section 9.13.) 2. Remove the Cabinet mount metal bottom (See section 2.

  • Page 28: Remove The Plasma Panel Section From The Cabinet Assy

    9.18. Remove the Plasma panel sec- tion from the Cabinet assy 1. Remove the Cabinet mount metals fastening screws (×10 2. Remove the cabinet assy and the plasma panel fastening , ×8 screws (×3 9.20. Remove the K-Board 1. Remove the Contact metal bottom. (See section 9.19.) 2.

  • Page 29: Measurements And Adjustments

    10 Measurements and Adjustments 10.1. Adjustment 10.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.

  • Page 30: Sub-Contrast Adjustment

    10.1.2. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Adjustment of TV (RF system) Ref.: RF signal modulation spec. Note: B/L models: 80% In adjustment, you must setting to modulation of signal at 80%. Other models: 90% 1.
  • Page 31 Steps Remarks Another procedure Adjustment of AV system 1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below. 2. Goes into service adjustment mode. 3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ]. Adjustment 1.
  • Page 32 10.1.3. THX White balance adjustment Name of measuring instrument Connection Remarks W/ B pattern Panel surface Color analyzer (Minolta CA-100 or equivalent) Steps Remarks • Make sure the front panel to be used on the final set is fitted. Picture menu : Dynamic •...

  • Page 33: Block Diagram

    11 Block Diagram 11.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR CI SLOT HDMI1-4 10BASE-T/ ETHERPHY ETHERNET DATA ETHER_ TMDS DATA HDMI I/F ETHERPHY 100BASE-TX NET IF ETHERNET RECEIVER SD CARD DATA SD CARD SD CARD DATA SLOT SD LED ON Parallel_ USB_0,1 CI TS...

  • Page 34: Block (1/4) Diagram

    11.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R JK8301 D3015 JK4703 OPTICAL 10BASE-T/ JK8850 JK4700 JK4701 JK4702 AUDIO HDMI IN 4 100BASE-TX TU2901A JK8700 DIGITAL SIGNAL PROCESSOR SD CARD ANT IN (SIDE) HDMI IN 1 HDMI IN 2 HDMI IN 3 ETHERNET DVB TUNER 1 USB_0,1 IIC_TU...

  • Page 35: Block (2/4) Diagram

    11.3. Block (2/4) Diagram DIGITAL SIGNAL PROCESSOR LVDS DATA LVDS DATA PORT-Z(INPUT) Yport(Out2nd) IC4200 IC4211 IC4204 XOUT FRC-S X4200 DDR I/F DDR2 27MHz DDR1.8V IC9300 PD4H IC4205 IC4212 IIC1 IIC1 EEPROM MIIC FRC3.3V VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA MIIC CPG with SS D5436...

  • Page 36: Block (3/4) Diagram

    11.4. Block (3/4) Diagram POWER SUPPLY COLD COLD Q601,04,06 Q201,Q202 L603 F201 T201 Vsus RESONANCE Vsus D251 5A 250V SS11 VDET IC601 Vsus Q602,Q603 P+15V D401 D403 IC201 Vsus Q402 Q403 Q355 VR251 RESONANCE D351 L351 P+15V CONTROL Q404 L401 D402 IC403 Q405...

  • Page 37: Block (4/4) Diagram

    11.5. Block (4/4) Diagram SCAN DRIVE TPVSUS TP59,TP60 TP61,TP62 Vsus SC JIG IC16661 F16V Q16661 IC16771 D16618 COMPARATOR Q16607 Vad+5V Q16608 PC16603 SUSTAIN DRIVE CERS CRC1 PHOTO COUPLER PC16461 CRC2 D16901 PC16684 SCAN OUT (UPPER) CPH1 TPVSUS PHOTO PHOTO COUPLER IC16920 IC16692 D16316...

  • Page 39: Wiring Connection Diagram

    12 Wiring Connection Diagram 12.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 12.2. Wiring (1) 12.3.

  • Page 40: Wiring (3)

    12.4. Wiring (3)

  • Page 41: Schematic Diagram

    13 Schematic Diagram 13.1. Schematic Diagram Note...

  • Page 42: P-Board (1/3) Schematic Diagram

    13.2. P-Board (1/3) Schematic Diagram COLD P-BOARD ETX2MM816ESH (1/3) COLD CONTROL ERROR DET COLD...

  • Page 43: P-Board (2/3) Schematic Diagram

    13.3. P-Board (2/3) Schematic Diagram COLD SS-BOARD (SS11) SC-BOARD (SC2) RESONANCE CONTROL Vsus Vsus ERROR DET C3-BOARD (C35) CONTROL COMPARATOR A-BOARD (A6) P+15V P-BOARD ETX2MM816ESH (2/3) COLD...

  • Page 44: P-Board (3/3) Schematic Diagram

    13.4. P-Board (3/3) Schematic Diagram VISM42N04T POWER MICOM A-BOARD (A7) P-BOARD ETX2MM816ESH (3/3)

  • Page 45: A-Board (1/24) Schematic Diagram

    13.5. A-Board (1/24) Schematic Diagram A-BOARD (1/24) FRC_3.3V P3.3V SUB3.3V R0939 TO 21/24 IC8001 Adjustment Connector Development Connector R0956 R0955 R0960 R0959 R0958 R0957 AVC31 2.2k 2.2k 2.2k 2.2k 3.3k CN0100 CN0101 3.3k 400kHz R0948 R0953 PD_SCL2 PEAKS_SCL2 R0947 PD_SDA2 PEAKS_SDA2 R0954 TO 20/24...

  • Page 46: A-Board (2/24) Schematic Diagram

    13.6. A-Board (2/24) Schematic Diagram SUB5V A-BOARD (2/24) CI SLOT SUB5V_CI VJ8513 Command Inteface Buffers --> Level shifter IC C8409 0.1u VJ8517 AC_XPDWT PD_HSDOUT4 AC_XPDOE R8501 PD_HSVALOUT AC_XPDWE R8502 PD_HSDOUT0 TO 5/24 AC_IORD R8503 PD_HSDOUT2 R8459 AC_IOWR R8504 R8458 CI_DA3 CI_DA3 PD_HSDOUT3 CD1#...

  • Page 47: A-Board (3/24) Schematic Diagram

    13.7. A-Board (3/24) Schematic Diagram A-BOARD (3/24) Peaks-DEST TP8733 TO 21/24 VOUTENB PD_VOUTENB PG-DTV_VOUTENB TO 6/24 R8825 R8739 PEAKS-LDA2 PEAKS-LDA2 TP8104 PD_PWMA Achip TP8105 PD_PWMB TP8106 PD_PWMC TO 21/24 TP8107 PD_PWMD TO 21/24 SUB3.3V TP8108 PD_PWMK C8136 R8651 PA_VREFH0 PD_XECS2 TP8101 PD_WUC 0.1u...

  • Page 48: A-Board (4/24) Schematic Diagram

    13.8. A-Board (4/24) Schematic Diagram A-BOARD (4/24) USB,ETHERNET USB I/F USB1 SUB_OP_5V C8726 C8727 0.1u IC8701 USB5V C0DBZYY00365 /OC1 L8707 TP8707 SUB3.3V J0JHC0000045 TO 3/24 OUT1 TP8708 PEAKS-LDA2 C8728 C8731 R8741 6.3V ETHER_25M OUT2 2.7k TO 21/24 R8747 220u 0.1u /OC2 PD_USB1VBUS R8746...

  • Page 49: A-Board (5/24) Schematic Diagram

    13.9. A-Board (5/24) Schematic Diagram A-BOARD (5/24) CI SLOT,SD CARD,FLASH MEMORY USE Adress CI CONNECTOR Data Multi PleX Port USE short Length TP7002 PORT10[5] LOSDO10 MIHO2_XRST / SDRAM_CHK2 TO 2/24 TO 21/24 PD_LOSDO10 I,int PD SDRAM_CHK TP7004 JK8401A PORT1[0] XRTS0 FE_XRST / SDRAM_CHK1 R8918 EXB2HV680JV AA_FE_RST...

  • Page 50: A-Board (6/24) Schematic Diagram

    13.10. A-Board (6/24) Schematic Diagram A-BOARD (6/24) GenX8 SUB3.3V TO Sheet Peaks-COMMON R1224 R1225 TO 21/24 R1181 TP1107 PG-PEAKS_SERIAL_SBO PD_RXD1 TP1108 PG-PEAKS_SERIAL_SBI PD_TXD1 R1179 TO Sheet Peaks-DEST TO 3/24 RS232C_SBI PG-SD_BOOT_STS RS232C_SBO PG-SD_BOOT_STS PG-DTV_VOUTENB PG-DTV_VOUTENB TO Sheet ADV-MODEL TO 7/24 D1107 R1182 B0JCCE000008...

  • Page 51: A-Board (7/24) Schematic Diagram

    13.11. A-Board (7/24) Schematic Diagram A-BOARD (7/24) HDMI Standby-MPU TO 6/24 HDMI_CEC SG-HDMI_CEC sLD-STMCECO Q4700 R4739 R4703 B1ABCF000231 Q4701 B1ABCF000231 Peaks-COMMON R4702 C4701 C4702 SG-HPD2 0.1u 0.1u TO 21/24 R4704 R4706 R4707 HDMI2 PA_RXCM1 R4708 PA_RXCM1 PA_RXCP1 PA_RXCP1 PA_RX1M0 PA_RX1M0 PA_RX1P0 R4709 PA_RX1P0...

  • Page 52: A-Board (8/24) Schematic Diagram

    13.12. A-Board (8/24) Schematic Diagram A-BOARD (8/24) AD Buffer R4552 SUB3.3V ARC_2 TO 7/24 C4546 Q4512 R4549 6.3V R4551 B1HFCFA00026 Peaks-Common AVSW TO 21/24 R4550 R4554 R4599 R4674 RGB_FB PC_HS PA_HIN AVSW_R027PIN_FBOUT/TDET10 PA_HIN Q4513 TO 11,12/24 AVSW_R027PIN_FBOUT/TDET10 DSA200100L PC_VS R4675 PA_VIN PC_HS PA_VIN...

  • Page 53: A-Board (9/24) Schematic Diagram

    13.13. A-Board (9/24) Schematic Diagram A-BOARD (9/24) AUDIO AMP Peaks-COMMON TP2008 SUB3.3V Q2301 R2308 TO 6/24 DSA200100L SUB5V To SOS sLD-STMSBT0 SG-SOUND_SOS OPERATE C2301 R2307 R2310 TUNER 0.1u 4.7k 2.2k TO 13/24 R2101 R2121 R2135 3.3k S_15V R2309 L2302 C2107 2.2k D2014 Q2109...

  • Page 54: A-Board (10/24) Schematic Diagram

    13.14. A-Board (10/24) Schematic Diagram A-BOARD (10/24) TERMINAL EURO model Sheet AVST-MODEL TO 11/24 GND(PLUG) VIDEO IN E_AV2_VIN(20P)/A_AV3_V__TERMINAL VIDEO OUT E_AV2_VOUT(19P)_TERMINAL GND(VIDEO IN) GND(VIDEO) FB IN PC_R_TERMINAL E_AV2_FB(16P)_TERMINAL Chroma/RED in E_AV2_RED/C(15PIN)_TERMINAL GND(FB) GND(RED/C) JK3001 PC_G_TERMINAL K1FY315A0008 GREEN IN TO 11/24 E_AV2_GREEN(11P)/A_AV2C_Y__TERMINAL Q-LINK PC IN...

  • Page 55: A-Board (11/24) Schematic Diagram

    13.15. A-Board (11/24) Schematic Diagram A-BOARD (11/24) VIDEO AUDIO I/O AUDIO AUDIO STB5V AVSW-COMMON IC3001 E_AV1 L3004 R3028 C3047 J0JYC0000331 TO 12/24 E_AV1 TERMINAL ETC C3020 E_AV1 L3002 R3106 GenX-MODEL E_AV1_LOUT(_3PIN)_TERMINAL AVSW_R056PIN_L1OUT J0JYC0000331 Q3002 R3006 TO 10/24 E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL AVSW_R062PIN_L3IN TO 6/24 C3009 C3018 TP3015...

  • Page 56: A-Board (12/24) Schematic Diagram

    13.16. A-Board (12/24) Schematic Diagram A-BOARD (12/24) AV SW SUB9V SUB5V R3112 R3113 C3138 C3143 100u 0.1u SUB9V_VIDEO TO 11/24 ADV_V_DEST TP3008 PC_HS PC_HS TP3009 PC_VS PC_VS C3146 MAIN_Y/CVBS TP3021 MAIN_Y/CVBS TO 8/24 TP3004 MAIN_PB/C MAIN_PB/C TP3005 MAIN_PR MAIN_PR TP3006 RGB_CVBS RGB_CVBS C3141...

  • Page 57: A-Board (13/24) Schematic Diagram

    13.17. A-Board (13/24) Schematic Diagram A-BOARD (13/24) TUNER TUNER1.2V ACTIVE ANTENNA TU2901A SUB3.3V L2950 J0JHC0000045 ENG37F03KF TUNER FE1.2V TP2952 ACT5V R2930 TO 6/24 1 VOUT TNR5V PG-ACTIVE_ANTENNA_DET C2951 C2950 +B_active_antenna C2917 2.2u 2 VSS 2200p C2907 C2905 RF-AGC_Monitor C2911 100u 0.1u 3 ON/OFF 0.1u...

  • Page 58: A-Board (14/24) Schematic Diagram

    13.18. A-Board (14/24) Schematic Diagram A-BOARD (14/24) FRC-S POWER C4220 R4230 0.1u R4223 4.3k VBST 0.5% R4228 F15V DRVH L4206 PA4206 1.05V/2.87A R4224 G1C100MA0077 K5H4022A0031 0.5% C4215 C4212 C4213 FRC_D1.05V 3300p TP4201 L4207 R4225 DRVL G1C3R3Z00005 1.2k PGND C4242 C4243 C4244 Q4201 GenX...

  • Page 59: A-Board (15/24) Schematic Diagram

    13.19. A-Board (15/24) Schematic Diagram A-BOARD (15/24) FRC-S IC4200 C1AB00003310 Zport(input) Xport(Out1st) Yport(Out2nd) FRC-S IC4211 F_CH0DM0 F_CH0DM0 JEIDA 10bit JEIDA 10bit DRAM_DM0 IC4200 IC4211 F_CH0DM1 F_CH0DM1 DRAM_DM1 IC4200 IC4211 C3ABSG000060 PD_TA1N IC4200 P_ZA_RX0_N R4241 P_XA_TX0_N IC4200 P_YA_TX0_N IC4200 RXEAN F_CH0DQS0 F_CH0DQS0 DDR2 PD_TA1P...

  • Page 60: A-Board (16/24) Schematic Diagram

    13.20. A-Board (16/24) Schematic Diagram A-BOARD (16/24) DC-DC CONVERTER TO 15/24 P15V TP9202 TP9201 P15V IC9801 IC9803 R9107 C9812 C9813 C0DBAYY00462 C9097 C9098 3.3k C0DBAYY00462 C9811 C9099 0.1u 0.1u BOOT BOOT P3.3V R9015 R9104 C9816 C9809 TP9011 C9104 C9107 L9801 R9879 L9000 R9133...

  • Page 61: A-Board (17/24) Schematic Diagram

    13.21. A-Board (17/24) Schematic Diagram A-BOARD (17/24) IC9300 PD4H C1AB00003258 P_S0 IC9300 DCCOP40 IC9300 DD1_2P DD7_2P DD13_2P PD4H IC9300 LVDOD0P IC9300 AJ12 LVDOD12P IC9300 AJ26 LVDOD24P IC9300 P_S1 C1AB00003258 P3.3V IC9300 DCCOP41 DD1_2N DD7_2N DD13_2N IC9300 LVDOD0N IC9300 AK12 LVDOD12N IC9300 AK26 LVDOD24N...

  • Page 62: A-Board (18/24) Schematic Diagram

    13.22. A-Board (18/24) Schematic Diagram IC9300 PD4H A-BOARD (18/24) C1AB00003258 P3.3V P2.5V P1.2V L9302 J0JHC0000117 IC9300 VDD33 IC9300 AA28 MLVDS_VDD C9356 C9380 IC9300 LRX_V12C_2 IC9300 AF13 SCS_VDD18 IC9300 VDD33 IC9300 AA29 MLVDS_VDD 0.1u 0.1u IC9300 LRX_V12C_3 IC9300 VDDC IC9300 AF14 SCS_VDD18 IC9300 VDD33...

  • Page 63: A-Board (19/24) Schematic Diagram

    13.23. A-Board (19/24) Schematic Diagram A-BOARD (19/24) POWER-Peaks IC5290 F15V C0DBGYY00884 TP5208 SUB9V VOUT 3 C5293 C5294 GenX STB3.3V TP5431 TO 6/24 Q5431 Q5435 R5433 DSA200100L R5696 IC5302 R5310 IC5303 DSA200100L SG-SOS C0DBAYY00755 C0DBAYY00755 C5432 R5437 R5431 R5434 2.2k 2.2k 0.1u PA5300 SUB6V...

  • Page 64: A-Board (20/24) And K-Board Schematic Diagram

    13.24. A-Board (20/24) and K-Board Schematic Diagram A-BOARD (20/24) SUB3.3V FACTORY STB5V CN0102 TO Sheet GenX8 TO Sheet IIC R1010 P-BOARD TO 6/24 GenX (P6) TMP-SENS_SDA TP0101 FACT_SDBOOT TO 6/24 STB5V S_15V TPS15V R0180 TP0102 C1009 C1010 GenX8_SRQ SG-SRQ_GENX TMP-SENS_SCL +15V_S 0.1u P15V...

  • Page 65: A-Board (21/24) Schematic Diagram

    13.25. A-Board (21/24) Schematic Diagram A-BOARD (21/24) PEAKS LDA2 IC8000 PEAKS-LDA2 MN2WS0110C PCI_BUS ExternalBus TO 5/24 DDR3 I/F Dchip Power Achip Power Achip/Dchip GND PD_ED[0-15] TO 23/24 PD_ED0 PD_MMDQ[0-31] IC8000 PCAD0 AB33 IC8000 VDD33 IC8000 AVDDPWM IC8000 PD_AVDDPWM VDD12A IC8000 PA_VDD12A PD_ED1 AVSSPWM...

  • Page 66: A-Board (22/24) Schematic Diagram

    13.26. A-Board (22/24) Schematic Diagram LDA2 Power A-BOARD (22/24) PEAKS-LDA2 Dchip R8031 SUB3.3V 2.2k L8003 J0JHC0000045 PD_VDD33 C8025 C8028 C8031 C8034 C8037 C8040 C8043 C8046 C8049 C8052 C8055 C8062 C8066 C8001 C8010 C8016 C8020 C8022 L8002 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u...

  • Page 67: A-Board (23/24) Schematic Diagram

    13.27. A-Board (23/24) Schematic Diagram A-BOARD (23/24) DDR3 PEAKS-LDA2 PD_MMDQ[0-15] TO 21,23/24 PD_MMDQ8 IC8240 DQL0 PD_MMDQ9 IC8240 DQL1 PD_MMDQ10 IC8240 DQL2 PD_MMDQ11 IC8240 DQL3 PD_MMDQ12 DDR1.5V C8271 IC8240 DQL4 PD_MMDQ13 IC8240 DQL5 PD_MMDQ14 IC8240 DQL6 PD_MMDQ15 IC8240 DQL7 C8272 PD_MMDQ0 IC8240 DQU0 PD_MMDQ1...

  • Page 68: A-Board (24/24) Schematic Diagram

    13.28. A-Board (24/24) Schematic Diagram A-BOARD (24/24) OFDM SUB3.3V L8300 J0JHC0000045 C8320 C8311 C8305 IC8302 C8304 C0DBFYY00041 VOUT X8300 2.5V H0J410500001 TP8301 41.0MHz R8310 R8302 C8321 L8303 J0JHC0000045 2.2u FE1.2V L8304 J0JHC0000045 TUNER C8303 R8316 0.1u IFD1 C8324 TO 13/24 C8309 R8315 0.1u...

  • Page 69: C1-Board Schematic Diagram

    13.29. C1-Board Schematic Diagram C1-BOARD TNPA5099 ZA17103 K4CD01000013 ZA17100 K4CD01000013 ZA17101 ZA17102 K4CD01000013 K4CD01000013 C1_3.3V R17123 P3.3V 3.3V_DET 3.3V_DET AB_LED1 AB_ODED1 ODE1 AB_PCD1 AB_CLRD1 R17106 C17104 R17117 C17110 CLR1 100V 100V 0.33u 0.33u DD1_2- R17100 DD1_2- DD1_2+ DD1_2+ DD1_1- DD1_1- DD1_1+ DD1_1+ DRVCLK1-...

  • Page 70: C2-Board (1/2) Schematic Diagram

    13.30. C2-Board (1/2) Schematic Diagram C2-BOARD TNPA5100 (1/2) C2_3.3V P3.3V 3.3V_DET_2 R17204 3.3V_DET C17204 100V AB_LED1_C1 0.33u AB_ODED1_C1 ODE1 AB_PCD1_C1 AB_CLRD1_C1 CLR1 DD1_2- DD1_2- DD1_2+ DD1_2+ DD1_1- DD1_1- DD1_1+ DD1_1+ DRVCLK1- DRVCLK1- DRVCLK1+ DRVCLK1+ C2_3.3V DD2_2- DD2_2- DD2_2+ DD2_2+ PANEL DATA C17200 DD2_1- DD2_1-...

  • Page 71: C2-Board (2/2) Schematic Diagram

    13.31. C2-Board (2/2) Schematic Diagram C2-BOARD TNPA5100 (2/2) A-BOARD (A31) TERM C2_3.3V R17228 C2_3.3V P3.3V P3.3V P3.3V 3.3V_DET_2 3.3V_DET C17212 100V R17220 0.33u R17227 R17226 EXB38V681JV R17229 220k R17224 R17232 EXB38V470JV AB_LED1_C1 AA_LED1 AB_LED2 C17241 AB_ODED1_C1 100p R17296 AB_ODED2 SIDE R17225 AA_ODED1 EXB38V470JV...

  • Page 72: C3-Board (1/2) Schematic Diagram

    13.32. C3-Board (1/2) Schematic Diagram C3-BOARD TNPA5101 (1/2) R17344 A-BOARD 220k (A32) TERM P-BOARD SS_5V (P35) C3_3.3V R17360 C3_3.3V SS_5V C2-BOARD (C26) C17301 R17393 0.1u SS-BOARD AA_CLRD2 C3_3.3V (SS33) AB_CLRD32 AB_CLRD31 AA_PCD4 P3.3V AB_PCD32 AA_PCD3 AB_PCD31 P3.3V AA_ODED2 R17302 P3.3V EXB38V470JV AB_ODED32 R17395...

  • Page 73: C3-Board (2/2) Schematic Diagram

    13.33. C3-Board (2/2) Schematic Diagram C3-BOARD TNPA5101 (2/2) C17302 R17307 R17335 100V C17319 0.33u 100V 0.33u CB13 C3_3.3V C3_3.3V C17300 PANEL DATA PANEL DATA C17317 DRIVER DRIVER R17313 R17340 C17307 C17324 100V 100V 0.33u 0.33u C3_3.3V CB10 CB14 C3_3.3V PANEL DATA C17303 PANEL DATA C17320...

  • Page 74: Sc-Board (1/4) Schematic Diagram

    13.34. SC-Board (1/4) Schematic Diagram Vsus SC-BOARD TXNSC11XEK (1/4) P-BOARD (P2) VSUS Vsus *C16412 *C16416 *C16419 C16418 TPVSUS 220V 220V 220V 250V 250u 250u 250u 1.5u A-BOARD (A20) IC16561 SC20 C0JBAU000043 TP16 TP17 BUFFER TP18 C16561 R16580 C16562 5.6k TP36 R16561 EXB38V470JV TP46...

  • Page 75: Sc-Board (2/4) Schematic Diagram

    13.35. SC-Board (2/4) Schematic Diagram Vsus 16V_F SC-BOARD TXNSC11XEK (2/4) IC16771 *D16401 C0CBADC00072 DA3DF50ACSLW Vad+5V Vad+5V 16V_F *D16402 VOUT C16796 DA3DF50ACSLW C16771 R16534 470u D16536 Q16501 D16534 B0ECHR000001 B0ECHR000001 B1HFPFA00001 C16401 630V R16503 5600p R16504 R16512 C16502 C16503 *Q16402 4.7u 470u DG3D5020CSLW PC16461...

  • Page 76: Sc-Board (3/4) Schematic Diagram

    13.36. SC-Board (3/4) Schematic Diagram Vsus 16V_F 16V_F SC-BOARD TXNSC11XEK (3/4) AA_CERS R16604 PC16603 C16602 R16633 R16765 AA_CPH1 Vsus B3PBA0000498 Q16607 SEPA PROTECT B1CBGD000001 CIRCUIT D16497 R16631 B0ECKP000055 C16490 PC16684 R16494 R16498 R16495 B3PBA0000496 R16609 D16765 C16603 C16604 D16618 *C16417 630V 630V B0ECKP000055...

  • Page 77: Sc-Board (4/4) Schematic Diagram

    13.37. SC-Board (4/4) Schematic Diagram SC-BOARD TXNSC11XEK (4/4) R16752 4.7k SOS7_SC2 D16820 TP45 R16719 R16774 R16751 B0ACCJ000048 AA_SEL 150k TP125 TP41 Q16876 B1ABCF000231 R16783 D16821 AA_SIU 150k D16871 DZ2J330M0L TP42 AA_OC2 DZ2J240M0L AA_CLK D16875 TP43 AA_OC1 B0ACCJ000048 D16872 Vsus R16721 DZ2J200M0L EXB38V220JV TP44...

  • Page 78: Ss-Board (1/2) Schematic Diagram

    13.38. SS-Board (1/2) Schematic Diagram SS-BOARD TXNSS11QEK (1/2) R16031 *Q16001 R16032 B1JADN000009 R16001 R16033 Q16141 B1HFPFA00001 *Q16002 R16141 B1JADN000009 D16032 C16002 B0ACCJ000048 R16034 630V R16002 5600p P-BOARD R16143 (P11) SS11 *C16201 *C16202 *C16203 VSUS 250V 250V 250V VSUS *C16015 *C16011 *C16012 *C16013 *C16014...

  • Page 79: Ss-Board (2/2) And Ss2-Board Schematic Diagram

    13.39. SS-Board (2/2) and SS2-Board Schematic Diagram SS-BOARD TXNSS11QEK (2/2) FPC protector TP54 D16286 B0ACCJ000048 R16288 C16285 330k 0.1u *SS53 D16285 TP51 ZA16002 B0ADEJ000035 K4CD01000011 R16289 C16286 330k 0.1u TP56 R16290 C16280 330k R16281 R16284 220k C16287 D16282 R16285 DZ2J068M0L 0.1u Q16280 EXB38V623JV...

  • Page 80: Printed Circuit Board

    14 Printed Circuit Board 14.1. P-Board P-BOARD (FOIL SIDE) ETX2MM816ESH...
  • Page 81 Parts Location Parts Location P-BOARD (FOIL SIDE) P-BOARD (COMPONENT SIDE) TRANSISTOR TRANSISTOR TEST POINT Q601 Q602 IC201 Q201 IC201 Q201 Q603 IC202 Q202 IC501 Q202 Q604 IC251 Q203 Q355 Q605 IC352 Q204 Q401 VOLUME Q606 IC403 Q251 Q402 Q607 IC501 Q252 Q403 VR251...
  • Page 82 P-BOARD (COMPONENT SIDE) ETX2MM816ESH...

  • Page 83: K And Ss2-Board

    14.2. K and SS2-Board SS2-BOARD (FOIL SIDE) TNPA4804 K-BOARD (FOIL SIDE) TXN/K1LJUE TNPA4804 1 SS2 P b F S E E R E V E R S E F O R O R D E R N O . S S 2 4 T P 0 4 T P 0 6 T P 0 8...

  • Page 84: A-Board

    14.3. A-Board A-BOARD (FOIL SIDE) A-P50G20E A-P50G20ES A-PF50G20S A-PR50G20 C2821 R2833 TP8346 TP8344 R0924 TP8341 D2802 D2803 R0923 R0935 TP8345 TP8355 R2806 TP8406 TP8340 TP2811 R0936 R2313 R2805 TP2812 TP2501 R5308 C5320 TP8349 TP8351 TP8352 TP8404 TP8350 R2312 R2856 R2803 R5307 R5309 TP5250...
  • Page 85 A-BOARD (COMPONENT SIDE) A-P50G20E A-P50G20ES A-PF50G20S A-PR50G20 I C 0 9 0 1 R0931 Q5432 T H E R M A L P A D A88A CL5431 I C 5 3 0 3 C2303 A 8 8 CL5433 R5453 R5452 C0901 D5442 C5251...

  • Page 86: C1-Board

    14.4. C1-Board C1-BOARD (FOIL SIDE) TNPA5099 P b F TNPA5099 1 C1 S E E R E V E R S E F O R O R D E R N O . 1 2 3 C1-BOARD (COMPONENT SIDE) TNPA5099 TNPA5099 1 C1 R 1 2 3...

  • Page 87: C2-Board

    14.5. C2-Board C2-BOARD (FOIL SIDE) TNPA5100 1 2 3 TNPA5100 1 C2 P b F S E E R E V E R S E F O R O R D E R N O . C2-BOARD (COMPONENT SIDE) TNPA5100 C 2 5 3 R 2 9 6 C 2 4 1...

  • Page 88: C3-Board

    14.6. C3-Board C3-BOARD (FOIL SIDE) TNPA5101 TNPA5101 1 P b F S E E R E V E R S E F O R O R D E R N O . 1 2 3 C3-BOARD (COMPONENT SIDE) TNPA5101 C 3 9 2 R 3 0 1 C 3 4 1 R 3 9 5...

  • Page 89: Sc-Board

    14.7. SC-Board SC-BOARD (FOIL SIDE) TXNSC11XEK Z A 4 2 1 Z A 4 2 2 T P 1 0 5 Z A 4 1 2 Z A 4 1 1 T P 1 1 1 T P 1 1 2 T P 1 0 9 T P 3 4 T P 6 0...
  • Page 90 SC-BOARD (COMPONENT SIDE) TXNSC11XEK I C 4 7 1 Z A 4 1 1 Z A 4 1 2 Z A 4 2 2 Z A 4 2 1 C 4 7 2 R 7 9 1 Z A 4 0 2 D 7 9 1 P C 4 8 0 H.V.

  • Page 91: Ss-Board

    14.8. SS-Board SS-BOARD (FOIL SIDE) TXNSS11QEK S S 5 6 S S 6 4 S S 5 5 S S 6 3 S S 6 1 S S 5 3 TPSS1 T P 5 3 C 0 1 5 T P 2 6 D 0 0 1 Q 0 0 1 Q0 0 2...
  • Page 92 SS-BOARD (COMPONENT SIDE) TXNSS11QEK D 0 2 1 D I P SS64 SS64 SS63 SS63 SS56 C 1 0 3 CR No.16 SS53 SS61 SS61 Q 1 6 1 T N P A 5 0 8 2 R 1 4 3 SS55 O R D E R N O .

  • Page 93: Exploded View And Replacement Parts List

    15 Exploded View and Replacement Parts List 15.1. Exploded View and Mechanical Replacement Parts List 15.1.1. Exploded View 1...

  • Page 94: Exploded View

    15.1.2. Exploded View 2...
  • Page 95 15.1.3. Packing 1...
  • Page 96 15.1.4. Packing 2...

  • Page 97: Mechanical Replacement Parts List

    15.1.5. Mechanical Replacement Parts List...
  • Page 98 Ref. Safety Part No. Part Name & Description Q'ty Remarks J0KG00000146 FERRITE CORE PACK K2AHYH000033 AC INLET WITH CABLE 1 PAVCCZ K2CN3YY00006 AC CORD 1 PAVCCZ MD50F13C3Z PLASMA DISPLAY PANEL 1 PAVCCZ N2QAYB000490 REMOTE CONTROL 1 PAVCCZ TBLA3834 STAND POLE TBLX0150 PEDESTAL STAND(ROUND GB) 1 PAVCCZ P50G20E, PR50G20...
  • Page 99 Ref. Safety Part No. Part Name & Description Q'ty Remarks TQB0E0904C INSTRUCTION BOOK(ITALIAN) 1 PAVCCZ P50G20E/ES TQB0E0904D INSTRUCTION BOOK(FRENCH) 1 PAVCCZ P50G20E/ES TQB0E0904E INSTRUCTION BOOK(SPANISH) 1 PAVCCZ P50G20E/ES TQB0E0904F INSTRUCTION BOOK(SWEDISH) 1 PAVCCZ P50G20E/ES TQB0E0904G INSTRUCTION BOOK(NORWEGIAN) 1 PAVCCZ P50G20E/ES TQB0E0904H INSTRUCTION BOOK(FINNISH) 1 PAVCCZ P50G20E/ES...
  • Page 100 Ref. Safety Part No. Part Name & Description Q'ty Remarks XSB3+6FJ SCREW(HDMI:3) XSB4+8FNK SCREW M4x8 Black XTB4+12GFJ SCREW(GH:20 PW:2 LED:1) XTB4+12GFJK SCREW(BC:10) XTS4+10GFN COUNTERSUNK SCREW ST4x10 Silver 11 PAVCCZ XTV3+10JFJK SCREW(REAR AV:2) XYN3+F10FJK SCREW(BC-AC_INLET:2) XYN3+J10FJ SCREW XYN4+E6FJ SCREW(INLET:1) XYN4+F10FJ SCREW(HANGER_METAL:4 ONE_LEG_BRACKET:4) XYN4+F10FJ SCREW(SP_BRACKET:4) XYN4+F10FJ...

  • Page 101: Electrical Replacement Parts List

    15.2. Electrical Replacement Parts List 15.2.1. Replacement Parts List Notes...
  • Page 102 15.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2072 EEEHB0J101UR C 100PF, J, 6.3V Description C2073 F1G1E333A091 C 0.033UF, K, ETX2MM816ESH CIRCUIT BOARD P (RTL) C2074 F1G1E333A091 C 0.033UF, K,...
  • Page 103 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2757 F1G1E103A123 C 0.010UF, K, C3087 F1J1A106A087 C 0.010UF, K, C2758 F2H1E470A007 E 47UF, 25V C3088 F1J1A106A087 C 0.010UF, K, C2759 F1J1E105A231 C 1 UF 25V C3089...
  • Page 104 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C4257 F1G1C104A116 C 0.10UF, K, 16V C4336 F1G1C104A116 C 0.10UF, K, 16V C4258 F1G1C104A116 C 0.10UF, K, 16V C4337 F1G1C104A116 C 0.10UF, K, 16V C4259...
  • Page 105 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5507 F1G1A393A053 C0.015UF, K, 10V C8023 F1G1C104A116 C 0.10UF, K, 16V C5508 F1H1C104A143 C 0.1UF, K, 16V C8024 F1G1C104A116 C 0.10UF, K, 16V C5509 F1H1C104A143 C 0.1UF, K, 16V...
  • Page 106 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8101 F1J1A106A087 C 0.010UF, K, C8253 F1G1C104A116 C 0.10UF, K, 16V C8254 F1G1A105A047 C 1UF, K, 10V C8102 F1J1A106A087 C 0.010UF, K, C8255 F1G1A105A047 C 1UF, K, 10V...
  • Page 107 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8413 F1G1E103A123 C 0.010UF, K, C9308 F1G1C104A116 C 0.10UF, K, 16V C9311 F1G1C104A116 C 0.10UF, K, 16V C8414 F1G1E103A123 C 0.010UF, K, C9312 F1J1A106A087 C 0.010UF, K,...
  • Page 108 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D1006 EZAEG2A50AX ESD SUPPRESSOR IC4204 C0DBGFF00004 IC PAVCCZ D1007 EZAEG2A50AX ESD SUPPRESSOR IC4205 TVRR333 PAVCCZ D1008 EZAEG2A50AX ESD SUPPRESSOR IC4206 C0DBGYY00892 IC PAVCCZ...
  • Page 109 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L2303 G1C220MA0416 INDUCTION COIL L8009 J0JHC0000045 CHIP INDUCTOR L2304 G1C220MA0416 INDUCTION COIL L8010 J0JCC0000287 CHIP INDUCTOR L2305 G1C220MA0416 INDUCTION COIL L8011 J0JHC0000116 CHIP INDUCTOR L2306...
  • Page 110 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q4710 B1ABCF000231 TRANSISTOR R0971 ERJ2GEJ103 M 10KOHM, J,0.063W Q5431 DSA200100L TRANSISTOR R0987 ERJ2GEJ103 M 10KOHM, Q5432 DSC2001S0L TRANSISTOR J,0.063W Q5433 DSC2001S0L...
  • Page 111 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2260 ERJ2GEJ103 M 10KOHM, R3000 D0GA223JA015 M 22K OHM J J,0.063W 0.063W R2263 ERJ2GEJ103 M 10KOHM, R3001 D0GA223JA015 M 22K OHM J J,0.063W 0.063W R2264...
  • Page 112 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3115 ERJ2GEJ221 M 220 OHM, R3716 D0GA223JA015 M 22K OHM J J,0.063W 0.063W R3116 ERJ2GEJ221 M 220 OHM, R3717 D0GA223JA015 M 22K OHM J J,0.063W...
  • Page 113 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4318 D0GA331JA015 M 330 OHM, R4659 ERJ2GEJ220 M 22 OHM, J,0.063W J,0.063W R4320 D0GA330JA015 M 33 OHM, R4663 ERJ2GEJ220 M 22 OHM, J,0.063W...
  • Page 114 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4743 D0GA680JA015 M 47 OHM, R5418 ERJ2GEJ104 M 100KOHM, J,0.063W J,0.063W R4744 D0GA680JA015 M 47 OHM, R5419 D0GA683JA015 M 68KOHM, J,0.063W J,0.063W R4745...
  • Page 115 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R5481 D0GA472JA015 M 4.7KOHM, R8103 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R5482 ERJ6GEYJ150V M 15 OHM,J,1/10W R8105 D0GAR00Z0001 C 0 OHM, 0.063W R5485 D0GA101JA015 M 100 OHM, R8109...
  • Page 116 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8393 ERJ2GEJ103 M 10KOHM, R8449 D0GA151JA015 M 150 OHM, J,0.063W J,0.063W R8394 ERJ2GEJ103 M 10KOHM, R8450 D0GA473JA015 M 47 OHM, J,0.063W J,0.063W R8395...
  • Page 117 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8498 D0GA680JA015 M 47 OHM, R8673 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R8499 D0GA680JA015 M 47 OHM, R8680 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W...
  • Page 118 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8758 D1BA2402A014 M 24KOHM, 1/10W R8950 D0GA472JA015 M 4.7KOHM, J,0.063W R8759 D1BA1002A014 M 10KOHM, 1/10W R9014 D1BB5601A055 M 5.6KOHM, 1/10W R8760 D1BA2402A014 M 24KOHM, 1/10W R9015...
  • Page 119 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9905 ERJ2GEJ103 M 10KOHM, C16286 F1H1H104A970 C 0.1UF, K, 50V J,0.063W C16287 F1H1H104A970 C 0.1UF, K, 50V R9907 D0GA101JA015 M 100 OHM, C16314 F2A2T251A004 E 250UF, 220V...
  • Page 120 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C16724 F1K1E475A134 C 4.7UF, Z, 25V K1MY55B00002 55P CONNECTOR C16753 F1K1E475A134 C 4.7UF, Z, 25V K1MY55B00002 55P CONNECTOR C16755 F1K1E475A134 C 4.7UF, Z, 25V CB10...
  • Page 121 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D16646 DZ2J150M0L ZENER DIODE IC16920 C0BBBA000024 IC D16647 DZ2J150M0L ZENER DIODE IC17201 C0JBAU000043 IC D16648 DZ2J051L0L ZENER DIODE IC17300 C0JBAU000043 IC D16649...
  • Page 122 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q16676 B1ABCF000231 TRANSISTOR R16230 ERJ6GEYJ470V M 47 OHM,J,1/10W Q16677 DSC2001Q0L TRANSISTOR R16231 ERJ3GEYJ472 M 4.7KOHM,J,1/ Q16678 B1ABCF000231 TRANSISTOR R16241 EXB38V470J RESISTOR ARRAY...
  • Page 123 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16475 ERJ3GEYJ472 M 4.7KOHM,J,1/ R16621 ERJ6GEYJ221V M 220 OHM,J,1/ R16476 ERJ3GEYJ472 M 4.7KOHM,J,1/ R16622 ERJ6GEYJ221V M 220 OHM,J,1/ R16478 D0GB562JA041 M 5.6KOHM,J,1/ R16631...
  • Page 124 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16719 ERJ3GEYJ220 M 22 OHM,J,1/16W R16873 ERA6YEB242 M 24KOHM, 1/10W R16721 EXB38V220JV RESISTOR ARRAY R16891 D1BF6982A058 M 6.98KOHM, 1/ R16742 D0GB473JA057 M 47KOHM,J,1/10W R16892...
  • Page 125 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17124 ERJ6GEYJ224 M 220KOHM,J,1/ R17327 D0GB101JA041 M 100 OHM,J,1/ R17200 D0GB101JA041 M 100 OHM,J,1/ R17328 D0GB101JA041 M 100 OHM,J,1/ R17201 D0GB101JA041 M 100 OHM,J,1/ R17329...
  • Page 126 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description ZA17302 K4CD01000013 AV TERMINAL C515 ACRZL1H220T 50V 22P ZA17303 K4CD01000013 AV TERMINAL C516 ACKX221KYP 250V 220p ZA17304 K4CD01000013 AV TERMINAL C518 ECQE2223SKF 250V 0.022PF...
  • Page 127 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D507 VD1T7GA1 DIODE D509 VDAP01CT DIODE AKB2P3S-VH 2P CONNECTOR D551 VDCB863-12T DIODE AKB11B-PH-KS 11P CONNECTOR D552 VDYG902C3R DIODE AKB14B-PH-KS 14P CONNECTOR D601 VD1SS133T...
  • Page 128 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R210 ERJ6RBD152 M 1.5KOHM,J,1/ R404 ERJ6ENF2492 M24.9KOHM, 1/10W R405 ARRF2EJR10B 250V 2200P R211 ERJ3EKF1872 M18.7KOHM, 1/16W R408 ERJ3GEYJ682 M 6.8KOHM,J,1/ R213 ERX1SJ1R0...
  • Page 129 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R553 D0GB102JA057 M 1KOHM,J,1/10W R660 ERDS2FJ472 C 4.7KOHM, J,1/ R555 ERJ3EKF1072 M10.7KOHM, 1/16W R661 ERJ6GEYJ220 M 22 OHM,J,1/10W R556 ERJ3EKF1002 M 10KOHM, 1/16W...
  • Page 130 Safety Ref. No. Part No. Part Name & Pcs Remarks Description R746 D0GB103JA057 M 10K OHM J 1/ R747 D0GB103JA057 M 10K OHM J 1/ R748 D0GB103JA057 M 10K OHM J 1/ R749 D0GB103JA057 M 10K OHM J 1/ R750 D0GB103JA057 M 10K OHM J 1/ R751 ERJ6GEYJ102V M 1K OHM J 1/10W...

This manual is also suitable for:

Tx-p50g20esTx-pf50g20sTx-pr50g20

Table of Contents
