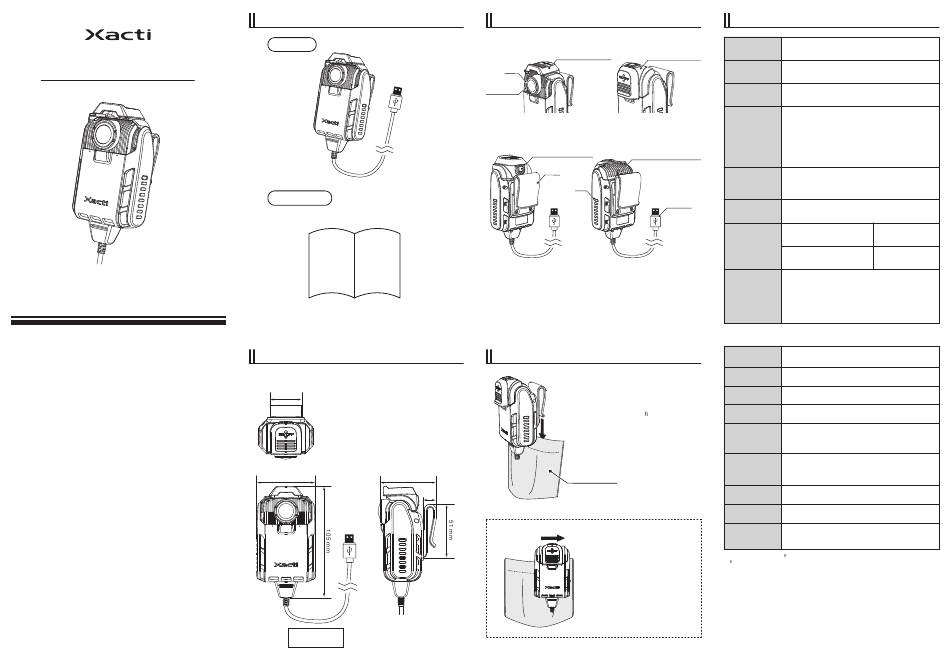

Xacti CX-WE300 Instruction Manual

Professional Wearable Camera
CX-WE300/CX-WE310
Instruction Manual
Thank you for purchasing the Xacti professional wearable camera. Before
using the product, be sure to read this Instruction Manual carefully to
ensure correct use. After reading this manual, please keep it in a safe place.
1.
Package Contents
Camera
Accessories
Instruction Manual (this manual)
2.
External Appearance
2-1 External Dimensions
32 mm
56 mm 53 mm
12 mm
Cable:
Approx. 1.5 m (L)
2.
External Appearance (Continued)
2-2 Names of Parts
Lens cover (opened)
Lens cover (closed)
Lens
Microphone
Lens cover lock
Emergency button
release button
Press and hold for 2 seconds to
Press and hold this button
turn on the power regardless of
to close the lens cover.
whether the lens cover is open.
Hook
LED
3.
Wearing the Camera
To wear the camera, insert the hook into the
breast pocket as shown in the gure.
Breast pocket
Toward edge
* The camera is recommended to
be worn at the edge of the breast
pocket to improve stability.
4.
Camera Specifications
Supply voltage
5 VDC ±5% (via USB)
Power
2.5 W (max.)
consumption
Compression
Motion JPEG
format
Full HD (1920×1080)/
30 fps, 25 fps *1 , 15 fps
Output
HD (1280×720)/30 fps, 25 fps
size/frame rate
VGA (640×480)/30 fps, 25 fps
* Switchable from host side of externally connected devices
Horizontal: 90°
Angle of view
Vertical: 58° (73° for VGA)
USB plug
None
Internal recording
* Recording is possible when connected to an external device.
When connected to
Android device/PC
Video/audio
output format
When connected to
iOS device
STARVIS™ back-illuminated 1/2.3-inch CMOS
*2
image sensor
Image sensor
Total pixels: Approx. 12.93 MP
Effective pixels: Approx. 12.47 MP
Minimum subject
Approx. 0.75 lux
*3
illumination
Audio encoding PCM (mono)
Lens f/2.4
Monaural/omnidirectional
Microphone *4
Extabilizer™
Maintain horizontal; Optical axis center;
(image stabilization
Straight Up/Down *6 ; Off
function) *5
Camera: 56 (W) × 105 (H) × 53 (D) mm
External
(not including lens protrusion)
dimensions
Cable: Approx. 1.5 m (L)
Weight Approx. 170 g (including cable)
Ambient
-5°C to +40°C (no condensation)
temperature
Dustproof/ JIS C 0920, IP65
waterproof rating
(excluding USB plug)
*1 If the power frequency of uorescent or LED lighting adversely affects video (resulting in
ickering, horizontal streaking, etc.), adjusting the frame rate to suit the power frequency
bandwidth of the usage environment may solve the issue.
30 fps is recommended for 60 Hz environments, and 25 fps is recommended for 50 Hz
environments.
*2 STARVIS™ is a trademark of Sony Group Corporation.
*3 When the upper ISO sensitivity limit is set to 12800.
*4 Depending on how the cable is routed, the sound of the cable rubbing against clothing or other
objects may be captured during use.
If capturing audio is not required, set the audio mode to Audio OFF from the externally connected
host device.
*5 Extabilizer™ is a powerful image stabilization function that uses Xacti's proprietary in-camera
image processing.
*6 One feature of Extabilizer™ (the camera's powerful image stabilization function) is the ability to
automatically rotate the image when the camera orientation changes to maintain the horizontal
position and orientation of the image.
If the camera will mainly be used pointed straight up or down, automatic image rotation can be
prevented by setting the Extabilizer™ mode to UP/DOWN.
(CX-WE310 only) , 10 fps, 5 fps
, 10 fps, 5 fps
*1
*1 , 10 fps, 5 fps
UVC 1.1/UAC 1.0
Proprietary protocol
