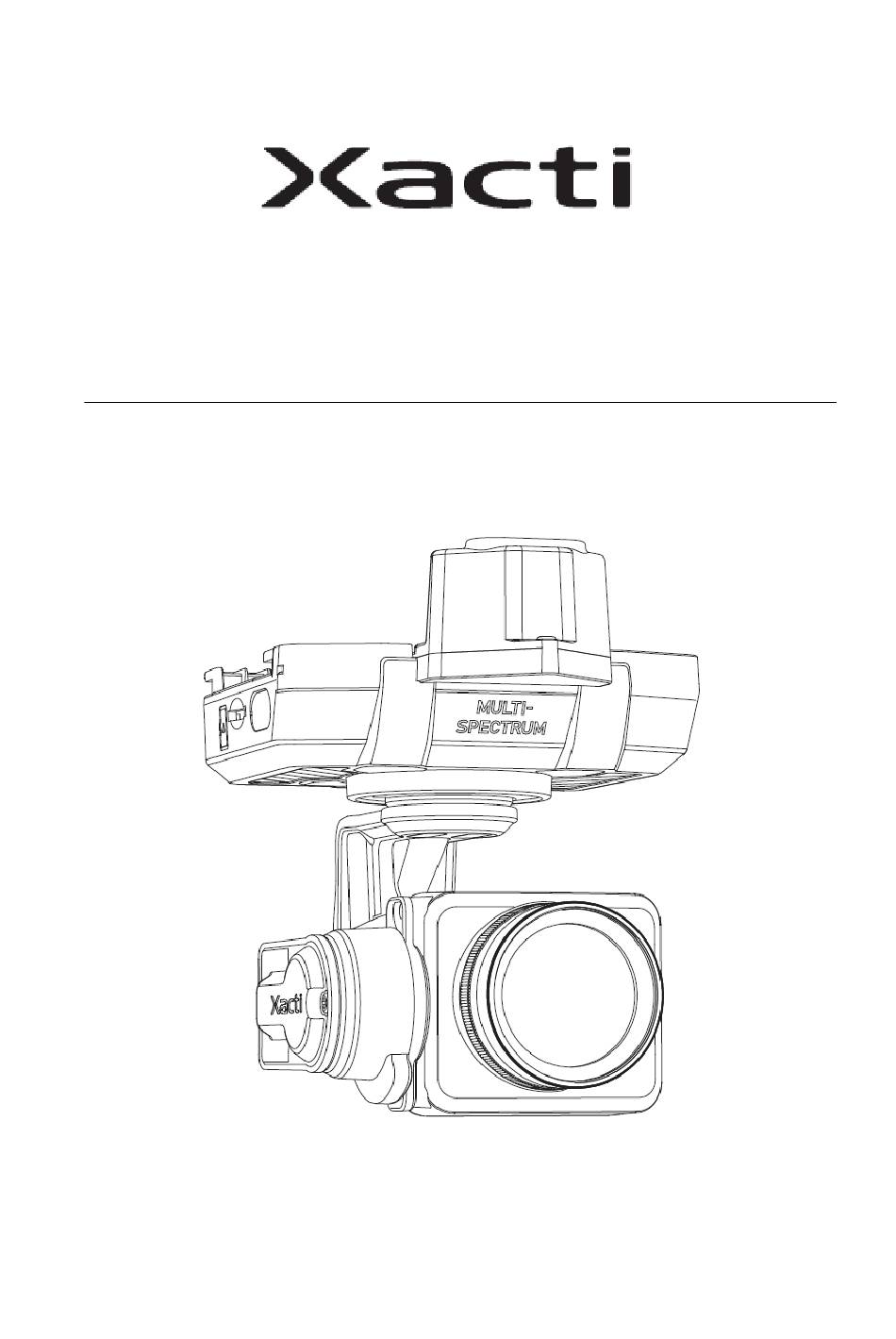

- Page 1 Multispectral gimbal camera CX-GB300 User Manual Ver1.1...
-
Page 2: Table Of Contents
Contents Safety Cautions ............................. 2 Notice/Cautions for use ......................... 4 Troubleshooting ............................ 5 Camera and accessories ........................5 Diagram ..............................6 Installing/Removing the cap ........................7 Installing/Removing the triple bandpass filter ..................8 Inserting a microSD card ........................8 Specifications ............................9 10. -
Page 3: Safety Cautions
1. Safety Cautions This section explains safety precautions users must observe to prevent personal injury and property damage. The following is a classification and explanation of the degree of harm or damage that may result from misuse. If this warning is ignored and the camera is mishandled, death or serious Warning injury may result. - Page 4 Using damaged camera/cap may cause electric shock or fire due to short circuit. Do not put foreign objects inside or pour water or other liquids on the camera or any of its ports or allow it to get wet in any way. Doing so may cause a short circuit or overheating, resulting in fire, electric shock, or malfunction.
-
Page 5: Notice/Cautions For Use
Never leave this camera unattended in an area that may become hot. Doing so may cause a fire, or it may cause deterioration of the camera’s outer case, accessories, and/or internal parts. Do not use/store the camera in a place where it may be exposed to oily smoke or steam, or excessive moisture or dust. -
Page 6: Troubleshooting
may infringe on the copyright, privacy, or portrait rights of a third party. Please use this camera at your own risk, giving due consideration to the copyrights of third parties and the privacy/portrait rights of the filmed subject. When taking important pictures, please make sure that the camera can take pictures normally. In the unlikely event that you are unable to take or record a picture while using this camera due to any of these malfunctions, we assume no responsibility for compensation for the contents of the picture taken or for any losses incurred due to the inability to take or record the picture. -
Page 7: Diagram
5. Diagram Solar Sensor Mount Mount Camera Triple bandpass Camera filter Lens Lens Power Supply / microSD Card Slot Communication Connector microSD Card Slot Pan Motor Pan Motor Roll Motor Roll Motor Tilt Motor Tilt Motor Cautions When not in use, install the cap to prevent damage to the lens and to secure motors. DO NOT touch the lens. -
Page 8: Installing/Removing The Cap
6. Installing/Removing the cap Cautions This operation should be performed after disconnecting the camera from the external device. When installing or removing the cap to the camera, do not apply force on the motors. How to install the cap Place the camera diagonally into the Press to fit the camera into the cap. -
Page 9: Installing/Removing The Triple Bandpass Filter
7. Installing/Removing the triple bandpass filter Hold the black frame of the filter and turn it to attach or remove it from the camera. Make sure the filter is securely attached to prevent accidental detachment during flight. Cautions DO NOT touch the front and back of the filter. 8. -
Page 10: Specifications
9. Specifications General Model name CX-GB300 Dimensions Width 78mm × Height 99mm × Depth 93mm Weight 200g Dust and waterproof performance JIS C 0920 IP4X Supply voltage Power Consumption 12W (maximum) Operating Temperature 0° to 40°C Operating humidity 10 to 90%... -
Page 11: System Specification
Interface Communication I/F USB (UVC / control signal) Connectors Pogo pin 10-pole connector 10. System specification This camera receives power supply from an external device and starts up automatically. At startup, the camera position is initialized. Make sure to turn off the camera from the external device before attaching or detaching this camera. Cautions Power should be supplied to the camera with no foreign objects in contact with the camera.
