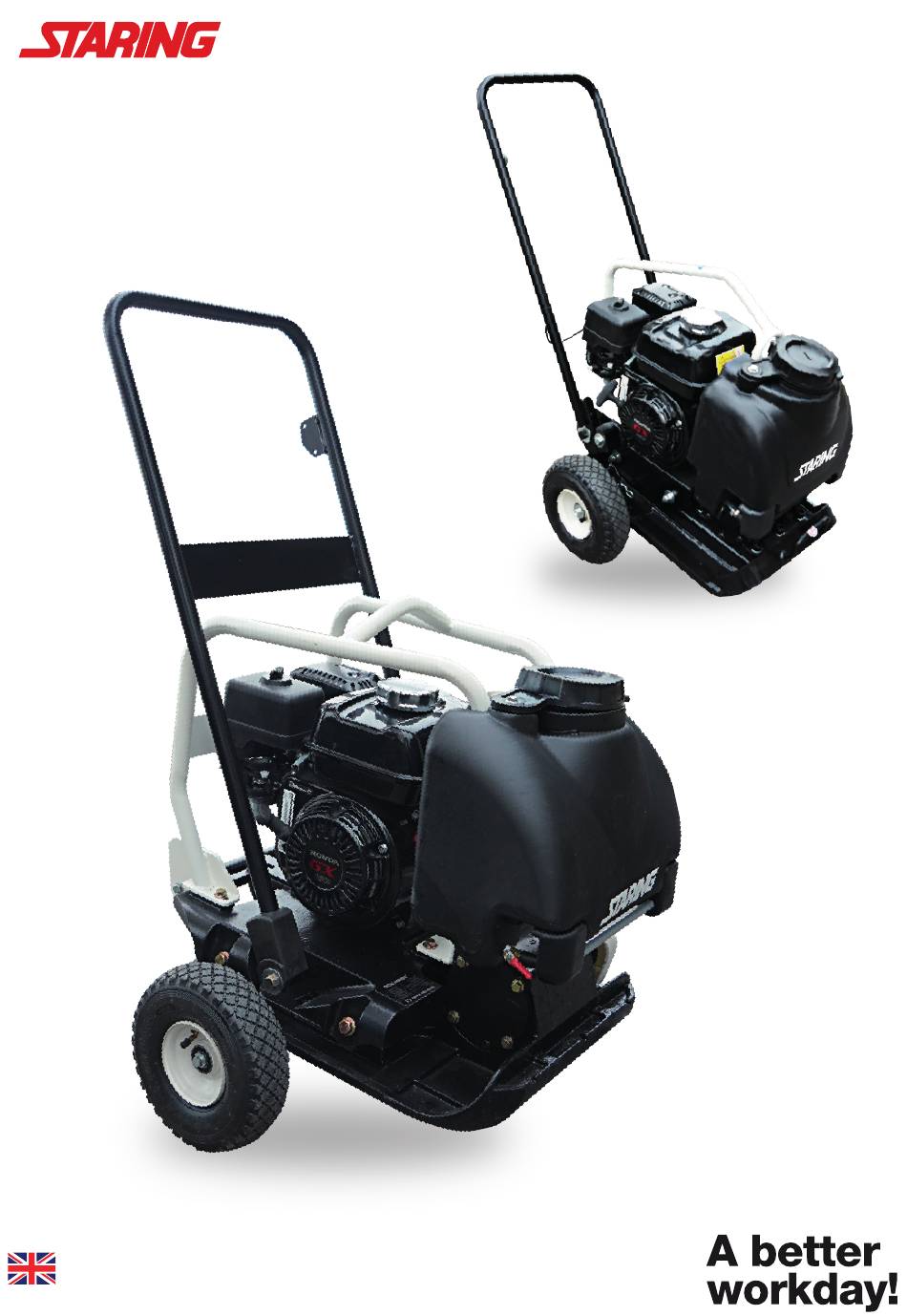

- Page 1 STV - 070 STV - 090 USER MANUAL Staring Vibratory Plate STV-070 / STV-090...
-
Page 2: Table Of Contents
..................CONTENTS INTRODUCTION ......................1 APPLICATION,STRUCTURE AND POWER TRANSMISSION........2 WARNING SIGNS ......................3 CAUTIONS FOR SAFETY ..................4-8 4.1 General Cautions ....................4 4.2 Refueling Precautions ...................5 4.3 Location And Ventilation Precautions ..............5 4.4 Precautions Before Starting ...................5 4.5 Precautions During Work ..................5 4.6 Lifting Precautions ....................5 4.7 Transportation And Storage Precautions ...............6 4.8 Maintenance Precautions ..................6... -
Page 3: Introduction
1. INTRODUCTION • This operation manual describes the proper operation, basic inspection and maintenance procedures of the plate compactor. • Please read this operation manual before use in order to maximize the excellent performance of this machine and make your work more efficient and effective. •... -
Page 4: Warning Signs
3. WARNING SIGNS The triangle shaped marks used in this manual and on the decals stuck on the main body indicate common hazards. Be sure to read and observe the cautions described. Warning labels indicating hazards to humans and to equipment. Warning labels indicating hazards to humans and to equipment. -
Page 5: Refueling Precautions
4. CAUTIONS FOR SAFETY 4.2 Refueling Precautions DANGER • Always refuel in a well ventilated area. • Make sure to stop the engine and wait until the engine cools down when refueling. • Select a flat surface area with no flammable material around for refueling. Be careful not to spill the fuel. -
Page 6: Transportation And Storage Precautions
4. CAUTIONS FOR SAFETY 4.7 Transportation And Storage Precautions WARNING • Stop the engine during transportation. • Transport after the engine and the machine are cooled down. • Always drain the fuel before transporting. • Securely fix the machine to prevent it from moving or falling during transportation 4.8 Maintenance Precautions WARNING •... -
Page 7: Label Position
4. CAUTIONS FOR SAFETY 4.9 Label Position PART No. PART NAME LABEL No. REMARK PLATE,SERIAL NO./EU 9201-01410 LOGO NP-141 WATER TANK 9201-14000 LOGO NP-1400 WATER TANK 9209-00090 DEAL,LIFTING POSITION NPA-1474 9209-00090 DEAL.CAUTIONICONS NPA-1479 Warning labels 9209-00090 DECAL,DO NOT LIFTING NPA-1473 9202-00870 DECAL,WITHOUT ENGINE OIL NPA-87... -
Page 8: Descriptions Of Symbols Used On Warning Labels
4. CAUTIONS FOR SAFETY 4.10 Descriptions Of Symbols Used On Warning Labels 1. Danger: poisonous exhaust gas. 6. Be careful not to approach danger source. Carbon monoxide poisoning may occur if the During operation, Be careful not to approach exhaust gas is inhaled. Do not operate the hot parts and rotating parts. -
Page 9: Specification
5. SPECIFICATIONS 5.1 Body Model STV-070 STV-070 Plate size mm 500x400 525x500 Vibrating frequency Hz/v.p.m 93(5,600) 100(6000) Centrifugal force(max) kN/kgf 10.1(1030) 15.0(1530) Max.traveling speed m/min Max.limited grade ability % Engine GX160 GX160 Brand HONDA HONDA Max.output 5.5hp 5.5hp Dimension mm... -
Page 10: Appearance
6. APPEARANCE 6.1 Appearance Dimension STV-070 STV-090 * The illustration is shown for model,”STV-070” * Specifications are subject to change without notice. 6.2 Control Unit Positions And Names * The illustration is shown for model,”STV-070”... -
Page 11: Inspection Before Operation
7. INSPECTION BEFORE OPERATION DANGER Conduct inspection while the engine is stopped. lf you get caught in the rotating parts,you may suffer serious damage.Conduct inspection after making this machine level and checking that the body does not move. Refer to the ”Regular Check and Adjust- 5) Set the engine on a level surface to check the oil ments”... - Page 12 7. INSPECTION BEFORE OPERATION 8) Pour water into the water tank for sprinkling work. Note: Pour water only. lf you should put liquids other than water, the resin, tank cap seal,etc. may deteriorate or swell, leading to leakage or damage. The water tank can be removed by pulling it upward.
- Page 13 7. INSPECTION BEFORE OPERATION From Carrying Condition To Stoped Condition. 1. Let the end of the compaction board touch the 4. After the lock pin stopper touches the lockpin, the ground,then tilt the handle forward to make the lock pin moves up, and once it fits into the stopper wheel move away from the ground (Fig.8) hole, it moves down automatically.
-
Page 14: Operation
8. OPERATION 5. Grip the starting knob of the recoil starter, When you pull the rope a little, you will feel some resistance. Then pull it at a stroke. Be careful not 8.1 Starting to pull the rope too strongly, or the rope may break or come off. -
Page 15: Stopping The Machine
9. STOPPING THE MACHINE 10. TRANSPORTATION 10.1 Loading And Unloading 1. When you finish the work and stop the engine, return the speed control lever to the low speed position, and keep the engine running at low WARNING speed for 3-5minutes. When the temperature of the engine has decreased, stop the engine. -
Page 16: Regular Check And Adjustment
12. REGULAR CHECK AND ADJUSTMENT 12.1 Inspection And Maintenance Schedule Table Check frequency Check parts Check items Oils Appearance Flaw, deformation Fuel tank Leakage Fuel system Leakage Engine oil Leakage, oil level, dirt Engine oil Daily Shock absorber Crack, damage, wear (before starting) Vibrator oil Leakage... -
Page 17: Checking/Changing V-Belt And Clutch
12. REGULAR CHECK AND ADJUSTMENT 12.4 12.5 Checking/Changing V-belt and Clutch Inspection and Change of Vibrator Oil Make this machine level, and remove the oil level plug off the vibrator. Check that vibrator oil is provid- CAUTION ed up to the mouth level. The oil level plug is on the •... -
Page 18: Troubleshooting
13. TROUBLESHOOTING (1) Starting problems Error Causes Possible Solutions Bridging Spark Plug Carbon accumulated on Spark Plug Electricity reaches to High Voltage Cable Short circuit due to insulation problems of Spark Plug Fuel is supplied, but Spark Plug Inappropriate gap of Spark Plug doesnot ignite Short circuit of Stop Switch Electricity does not... - Page 20 Staring A/S Starengvej 9-11 DK-9700 Brønderslev Tlf.: +45 9882 1622 staring@staring.dk CVR.nr. DK 2767 2701 staring.dk...
